1DMY - JenaLib

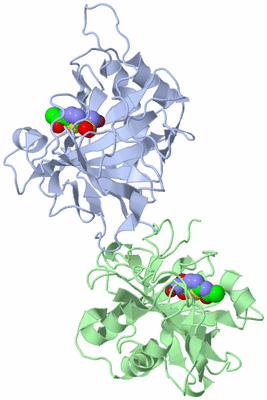

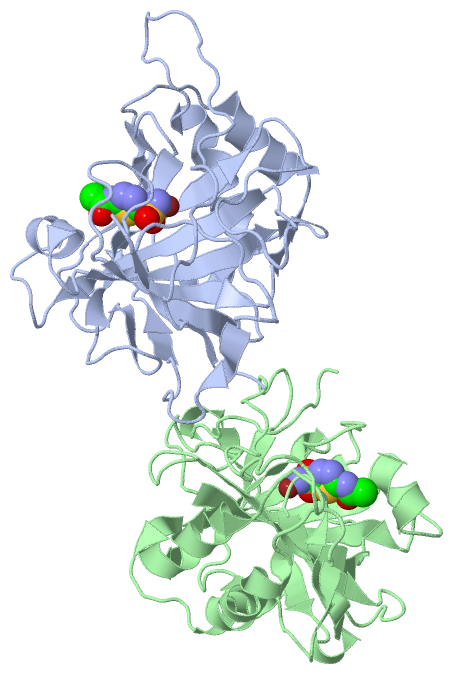

Asymmetric Unit (Jmol Viewer)

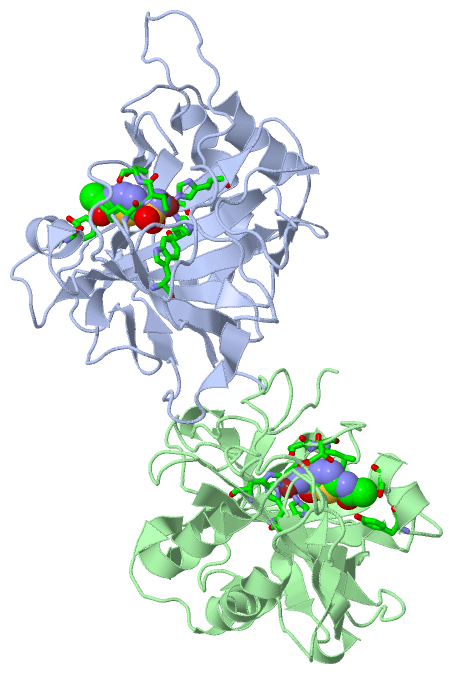

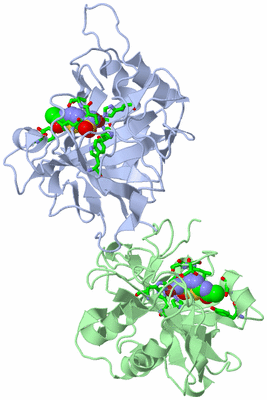

Asym. Unit - sites (Jmol Viewer)

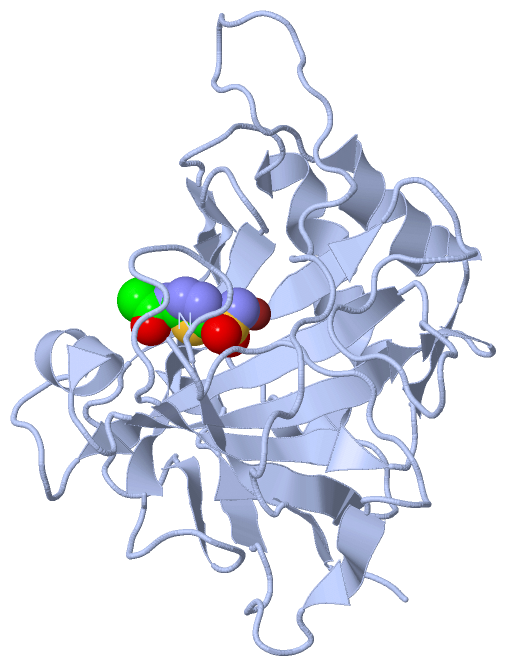

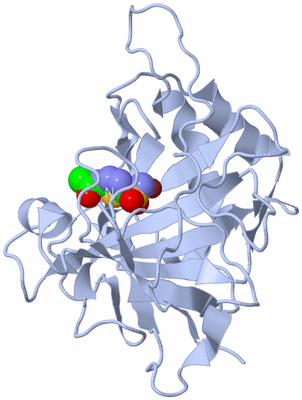

Biological Unit 1 (Jmol Viewer)

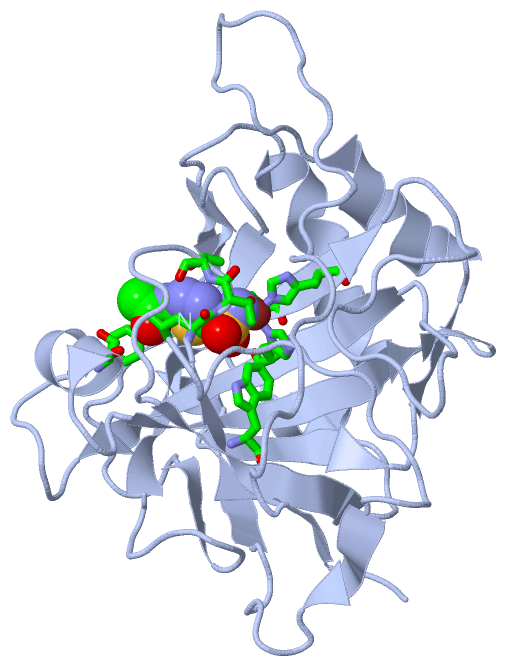

Biol. Unit 1 - sites (Jmol Viewer)

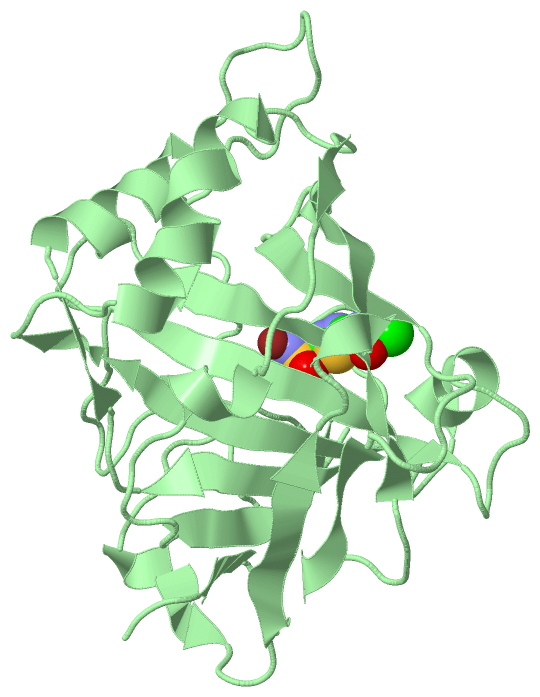

Biological Unit 2 (Jmol Viewer)

Title :   COMPLEX BETWEEN MURINE MITOCHONDRIAL CARBONIC ANYHDRASE V AND THE TRANSITION STATE ANALOGUE ACETAZOLAMIDE

Authors :   P. A. Boriack-Sjodin, D. W. Christianson

Date :   04 Oct 95 (Deposition) - 03 Apr 96 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.45

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Proton Transfer, Lyase (Oxo-Acid) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   P. A. Boriack-Sjodin, R. W. Heck, P. J. Laipis, D. N. Silverman, D. W. Christianson
Structure Determination Of Murine Mitochondrial Carbonic Anhydrase V At 2. 45-A Resolution: Implications For Catalytic Proton Transfer And Inhibitor Design.
Proc. Natl. Acad. Sci. Usa V. 92 10949 1995
PubMed-ID: 7479916 | Reference-DOI: 10.1073/PNAS.92.24.10949
(for further references see the PDB file header)

Molecule 1 - MURINE CARBONIC ANHYDRASE V
	Cell Line	:	BL21
	Chains	:	A, B
	EC Number	:	4.2.1.1
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Gene	:	MCA5C
	Expression System Plasmid	:	PET31 T7
	Expression System Strain	:	BL21 (DE3) PLYSS
	Expression System Taxid	:	562
	Gene	:	MCA5C
	Mutation	:	YES
	Organ	:	LIVER
	Organelle	:	MITOCHONDRIA
	Organism Common	:	HOUSE MOUSE
	Organism Scientific	:	MUS MUSCULUS
	Organism Taxid	:	10090
	Other Details	:	TRUNCATED VERSION OF PROTEIN WITH 21 N TERMINAL RESIDUES REMOVED (SEE HECK ET AL., JBC, VOL 269 (1994) PP 24742-24746)
	Strain	:	BALB/CJ
	Synonym	:	CARBONATE DEHYDROGENASE, MCAVC

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 4)

No.	Name	Count	Type	Full Name
1	AZM	2	Ligand/Ion	5-ACETAMIDO-1,3,4-THIADIAZOLE-2-SULFONAMIDE
2	ZN	2	Ligand/Ion	ZINC ION

Biological Unit 1 (1, 1)

No.	Name	Count	Type	Full Name
1	AZM	1	Ligand/Ion	5-ACETAMIDO-1,3,4-THIADIAZOLE-2-SULFONAMIDE
2	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 2 (1, 1)

No.	Name	Count	Type	Full Name
1	AZM	1	Ligand/Ion	5-ACETAMIDO-1,3,4-THIADIAZOLE-2-SULFONAMIDE
2	ZN	-1	Ligand/Ion	ZINC ION

Asymmetric Unit (5, 5)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	HIS A:94 , HIS A:96 , HIS A:119 , AZM A:400	BINDING SITE FOR RESIDUE ZN A 280
2	AC2	SOFTWARE	HIS B:94 , HIS B:96 , HIS B:119 , AZM B:900	BINDING SITE FOR RESIDUE ZN B 280
3	AC3	SOFTWARE	HIS A:94 , HIS A:96 , HIS A:119 , TYR A:131 , SER A:135 , LEU A:198 , THR A:199 , THR A:200 , TRP A:209 , ZN A:280	BINDING SITE FOR RESIDUE AZM A 400
4	AC4	SOFTWARE	HIS B:94 , HIS B:96 , HIS B:119 , TYR B:131 , SER B:135 , LEU B:198 , THR B:199 , THR B:200 , TRP B:209 , ZN B:280	BINDING SITE FOR RESIDUE AZM B 900
5	ZIN	AUTHOR	ZN A:280 , ZN B:280	CATALYTICALLY ACTIVE METAL ION

(no "SS Bond" information available for 1DMY)

Asymmetric Unit

No.	Residues
1	Ser A:29	-	Pro A:30
2	Pro A:201	-	Pro A:202
3	Ser B:29	-	Pro B:30
4	Pro B:201	-	Pro B:202

(no "SAP(SNP)/Variant" information available for 1DMY)

Asymmetric Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	ALPHA_CA_1	PS00162	Alpha-carbonic anhydrases signature.	CAH5A_MOUSE	135-151	2	A:105-121 B:105-121

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	ALPHA_CA_1	PS00162	Alpha-carbonic anhydrases signature.	CAH5A_MOUSE	135-151	1	A:105-121 -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	ALPHA_CA_1	PS00162	Alpha-carbonic anhydrases signature.	CAH5A_MOUSE	135-151	1	- B:105-121

(no "Exon" information available for 1DMY)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:237
 aligned with CAH5A_MOUSE | P23589 from UniProtKB/Swiss-Prot  Length:299

    Alignment length:237
                                    64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284
          CAH5A_MOUSE    55 GTRQSPINIQWKDSVYDPQLAPLRVSYDAASCRYLWNTGYFFQVEFDDSCEDSGISGGPLGNHYRLKQFHFHWGATDEWGSEHAVDGHTYPAELHLVHWNSTKYENYKKASVGENGLAVIGVFLKLGAHHQALQKLVDVLPEVRHKDTQVAMGPFDPSCLLPACRDYWTYPGSLTTPPLAESVTWIVQKTPVEVSPSQLSTFRTLLFSGRGEEEDVMVNNYRPLQPLRDRKLRSSFR 291
               SCOP domains d1dmya_ A: Carbonic anhydrase                                                                                                                                                                                                                 SCOP domains
               CATH domains 1dmyA00 A:25-261 Carbonic Anhydrase II                                                                                                                                                                                                        CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .............eee.......eee..hhheeeeee....eeeee.......eee.......eeeeeeeeee..................eeeeeeeee......hhhhhh....eeeeeeeeee....hhhhhhhhhhhh......eee.....hhhh......eeeeee..........eeeeee...eee.hhhhhhhhh...........................eee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------ALPHA_CA_1       -------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dmy A  25 GTRQSPINIQWKDSVYDPQLAPLRVSYDAASCRYLWNTGYFFQVEFDDSCEDSGISGGPLGNHYRLKQFHFHWGATDEWGSEHAVDGHTYPAELHLVHWNSTKYENYKKASVGENGLAVIGVFLKLGAHHQALQKLVDVLPEVRHKDTQVAMGPFDPSCLMPACRDYWTYPGSLTTPPLAESVTWIVQKTPVEVSPSQLSMFRTLLFSGRGEEEDVMVNNYRPLQPLRDRKLRSSFR 261
                                    34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254

Chain B from PDB  Type:PROTEIN  Length:237
 aligned with CAH5A_MOUSE | P23589 from UniProtKB/Swiss-Prot  Length:299

    Alignment length:237
                                    64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284
          CAH5A_MOUSE    55 GTRQSPINIQWKDSVYDPQLAPLRVSYDAASCRYLWNTGYFFQVEFDDSCEDSGISGGPLGNHYRLKQFHFHWGATDEWGSEHAVDGHTYPAELHLVHWNSTKYENYKKASVGENGLAVIGVFLKLGAHHQALQKLVDVLPEVRHKDTQVAMGPFDPSCLLPACRDYWTYPGSLTTPPLAESVTWIVQKTPVEVSPSQLSTFRTLLFSGRGEEEDVMVNNYRPLQPLRDRKLRSSFR 291
               SCOP domains d1dmyb_ B: Carbonic anhydrase                                                                                                                                                                                                                 SCOP domains
               CATH domains 1dmyB00 B:25-261 Carbonic Anhydrase II                                                                                                                                                                                                        CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........hhheee....eeeeee..hhheeeeee....eeeee.......eeeee.....eeeeeeeeee..................eeeeeeeee......hhhhhh....eeeeeeeeee....hhhhhhhhhhhh......eee.....hhhh......eeeeee..........eeeeee...eee.hhhhhhhhh...........................eee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------ALPHA_CA_1       -------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dmy B  25 GTRQSPINIQWKDSVYDPQLAPLRVSYDAASCRYLWNTGYFFQVEFDDSCEDSGISGGPLGNHYRLKQFHFHWGATDEWGSEHAVDGHTYPAELHLVHWNSTKYENYKKASVGENGLAVIGVFLKLGAHHQALQKLVDVLPEVRHKDTQVAMGPFDPSCLMPACRDYWTYPGSLTTPPLAESVTWIVQKTPVEVSPSQLSMFRTLLFSGRGEEEDVMVNNYRPLQPLRDRKLRSSFR 261
                                    34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: Carbonic anhydrase (525)

Superfamily: Carbonic anhydrase (525)

Family: Carbonic anhydrase (513)

Protein domain: Carbonic anhydrase (499)

Mouse (Mus musculus), liver, isozyme V [TaxId: 10090] (4)

1a	d1dmya_	A:
1b	d1dmyb_	B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: Carbonic Anhydrase II (332)

Homologous Superfamily: Carbonic Anhydrase II (332)

House mouse (Mus musculus) (8)

1a	1dmyA00	A:25-261
1b	1dmyB00	B:25-261

(no "Pfam Domain" information available for 1DMY)

Asymmetric Unit(hide GO term definitions)

Chain A,B (CAH5A_MOUSE | P23589)

molecular function
	GO:0004089	carbonate dehydratase activity	Catalysis of the reaction: H2CO3 = CO2 + H2O.
	GO:0016829	lyase activity	Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0008270	zinc ion binding	Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
	GO:0006094	gluconeogenesis	The formation of glucose from noncarbohydrate precursors, such as pyruvate, amino acids and glycerol.
	GO:0006730	one-carbon metabolic process	The chemical reactions and pathways involving the transfer of one-carbon units in various oxidation states.
cellular component
	GO:0005739	mitochondrion	A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		AZM	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		ZIN	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Pro A:201 - Pro A:202	[ RasMol ]
		Pro B:201 - Pro B:202	[ RasMol ]
		Ser A:29 - Pro A:30	[ RasMol ]
		Ser B:29 - Pro B:30	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1dmy
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	CAH5A_MOUSE \| P23589
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	4.2.1.1
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	CAH5A_MOUSE \| P23589
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	CAH5A_MOUSE \| P23589	:	1dmx 1keq 1urt
