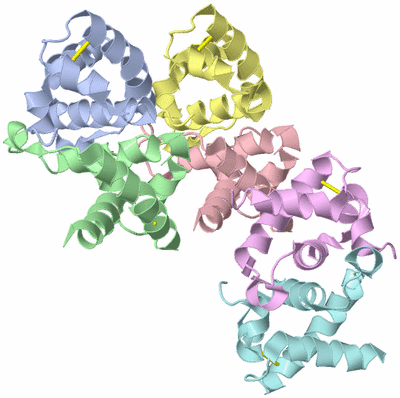

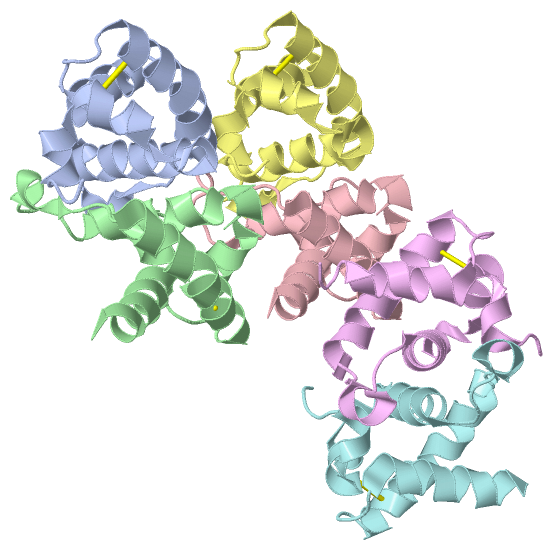

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

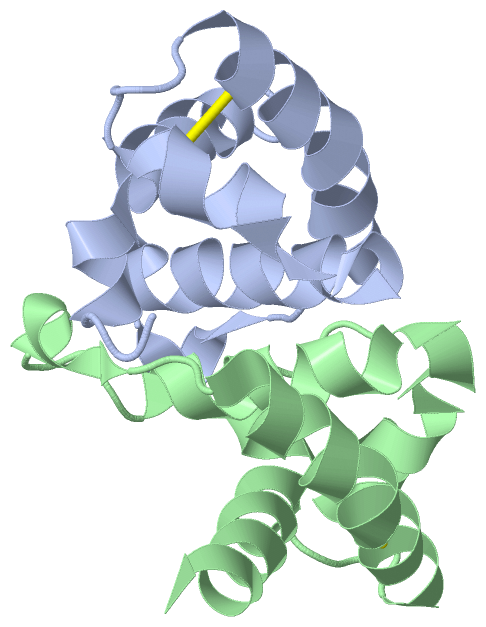

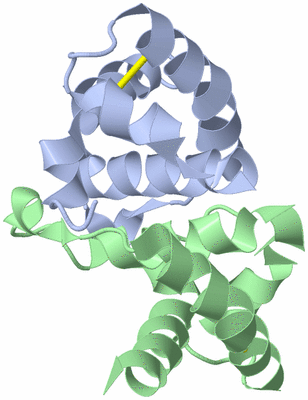

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

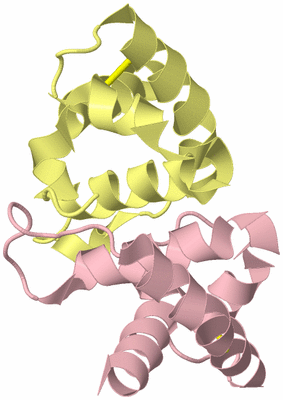

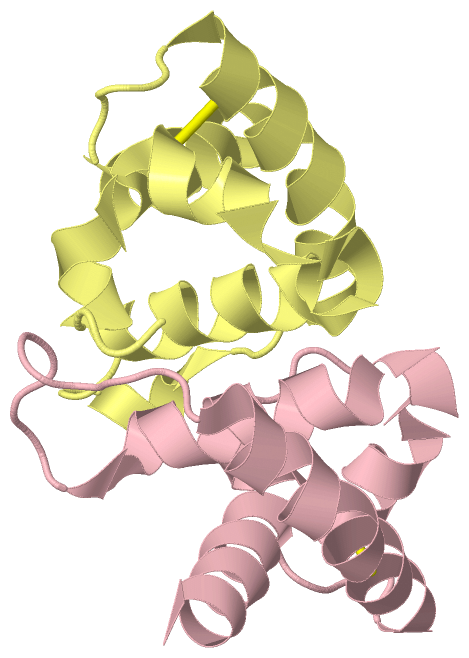

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

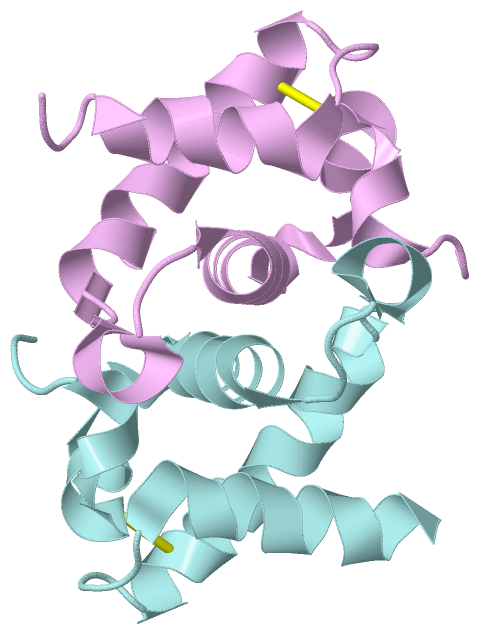

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF E. COLI PERIPLASMIC PROTEIN HDEA

Authors :  K. S. Gajiwala, S. K. Burley
Date :  02 Dec 99  (Deposition) - 10 Dec 99  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B,C,D,E,F
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  E,F  (1x)
Keywords :  Alpha Helical, Structural Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. S. Gajiwala, S. K. Burley
Hdea, A Periplasmic Protein That Supports Acid Resistance In Pathogenic Enteric Bacteria.
J. Mol. Biol. V. 295 605 2000
PubMed-ID: 10623550  |  Reference-DOI: 10.1006/JMBI.1999.3347
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEIN HNS-DEPENDENT EXPRESSION A
    Cellular Location: PERIPLASM
    Chains: A, B, C, D, E, F
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: HDEA

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit : ABCDEF
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD
Biological Unit 3 (1x):     EF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1DJ8)

(-) Sites  (0, 0)

(no "Site" information available for 1DJ8)

(-) SS Bonds  (6, 6)

Asymmetric Unit
No.Residues
1A:18 -A:66
2B:18 -B:66
3C:18 -C:66
4D:18 -D:66
5E:18 -E:66
6F:18 -F:66

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1DJ8)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1DJ8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1DJ8)

(-) Exons   (0, 0)

(no "Exon" information available for 1DJ8)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_ECO57 | P0AET0 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_ECO57    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8a_ A: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8A00 A:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 A   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain A from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_ECOLI | P0AES9 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_ECOLI    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8a_ A: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8A00 A:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 A   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain A from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_SHIFL | P0AET1 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_SHIFL    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8a_ A: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8A00 A:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 A   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain B from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_ECO57 | P0AET0 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_ECO57    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8b_ B: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8B00 B:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 B   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain B from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_ECOLI | P0AES9 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_ECOLI    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8b_ B: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8B00 B:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 B   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain B from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_SHIFL | P0AET1 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_SHIFL    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8b_ B: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8B00 B:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 B   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain C from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_ECO57 | P0AET0 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_ECO57    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8c_ C: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8C00 C:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 C   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain C from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_ECOLI | P0AES9 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_ECOLI    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8c_ C: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8C00 C:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 C   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain C from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_SHIFL | P0AET1 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_SHIFL    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8c_ C: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8C00 C:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 C   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain D from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_ECO57 | P0AET0 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_ECO57    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8d_ D: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8D00 D:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 D   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain D from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_ECOLI | P0AES9 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_ECOLI    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8d_ D: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8D00 D:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 D   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain D from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_SHIFL | P0AET1 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_SHIFL    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8d_ D: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8D00 D:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 D   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain E from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_ECO57 | P0AET0 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_ECO57    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8e_ E: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8E00 E:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 E   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain E from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_ECOLI | P0AES9 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_ECOLI    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8e_ E: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8E00 E:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 E   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain E from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_SHIFL | P0AET1 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_SHIFL    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8e_ E: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8E00 E:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 E   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain F from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_ECO57 | P0AET0 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_ECO57    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8f_ F: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8F00 F:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 F   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain F from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_ECOLI | P0AES9 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_ECOLI    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8f_ F: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8F00 F:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 F   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78


Chain F from PDB  Type:PROTEIN  Length:79
 aligned with HDEA_SHIFL | P0AET1 from UniProtKB/Swiss-Prot  Length:110

    Alignment length:79
                                    39        49        59        69        79        89        99
           HDEA_SHIFL    30 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK 108
               SCOP domains d1dj8f_ F: Protein HNS-dependent expression A; HdeA                             SCOP domains
               CATH domains 1dj8F00 F:9-87  [code=1.10.890.10, no name defined]                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                 1dj8 F   9 NKKPVNSWTCEDFLAVDESFQPTAVGFAEALNNKDKPEDAVLDVQGIATVTPAIVQACTQDKQANFKDKVKGEWDKIKK  87
                                    18        28        38        48        58        68        78
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 6)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 6)

Asymmetric Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1DJ8)

(-) Gene Ontology  (5, 13)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F   (HDEA_ECOLI | P0AES9)
molecular function
    GO:0051087    chaperone binding    Interacting selectively and non-covalently with a chaperone protein, a class of proteins that bind to nascent or unfolded polypeptides and ensure correct folding or transport.
biological process
    GO:0071468    cellular response to acidic pH    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a pH stimulus with pH < 7. pH is a measure of the acidity or basicity of an aqueous solution.
    GO:0033554    cellular response to stress    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating the organism is under stress. The stress is usually, but not necessarily, exogenous (e.g. temperature, humidity, ionizing radiation).
cellular component
    GO:0030288    outer membrane-bounded periplasmic space    The region between the inner (cytoplasmic or plasma) membrane and outer membrane of organisms with two membranes such as Gram negative bacteria. These periplasmic spaces are relatively thick and contain a thin peptidoglycan layer (PGL), also referred to as a thin cell wall.
    GO:0042597    periplasmic space    The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

Chain A,B,C,D,E,F   (HDEA_ECO57 | P0AET0)
biological process
    GO:0071468    cellular response to acidic pH    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a pH stimulus with pH < 7. pH is a measure of the acidity or basicity of an aqueous solution.
    GO:0033554    cellular response to stress    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating the organism is under stress. The stress is usually, but not necessarily, exogenous (e.g. temperature, humidity, ionizing radiation).
cellular component
    GO:0030288    outer membrane-bounded periplasmic space    The region between the inner (cytoplasmic or plasma) membrane and outer membrane of organisms with two membranes such as Gram negative bacteria. These periplasmic spaces are relatively thick and contain a thin peptidoglycan layer (PGL), also referred to as a thin cell wall.
    GO:0042597    periplasmic space    The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

Chain A,B,C,D,E,F   (HDEA_SHIFL | P0AET1)
biological process
    GO:0071468    cellular response to acidic pH    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a pH stimulus with pH < 7. pH is a measure of the acidity or basicity of an aqueous solution.
    GO:0033554    cellular response to stress    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating the organism is under stress. The stress is usually, but not necessarily, exogenous (e.g. temperature, humidity, ionizing radiation).
cellular component
    GO:0030288    outer membrane-bounded periplasmic space    The region between the inner (cytoplasmic or plasma) membrane and outer membrane of organisms with two membranes such as Gram negative bacteria. These periplasmic spaces are relatively thick and contain a thin peptidoglycan layer (PGL), also referred to as a thin cell wall.
    GO:0042597    periplasmic space    The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1dj8)

  Sites
(no "Sites" information available for 1dj8)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1dj8)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1dj8
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  HDEA_ECO57 | P0AET0
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  HDEA_ECOLI | P0AES9
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  HDEA_SHIFL | P0AET1
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  HDEA_ECO57 | P0AET0
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  HDEA_ECOLI | P0AES9
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  HDEA_SHIFL | P0AET1
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        HDEA_ECO57 | P0AET0: 1bg8
        HDEA_ECOLI | P0AES9: 1bg8
        HDEA_SHIFL | P0AET1: 1bg8

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1DJ8)
