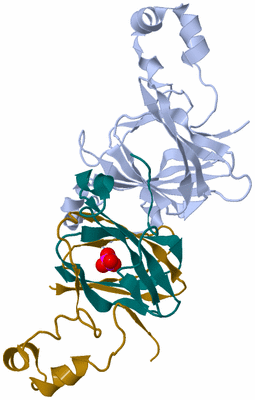

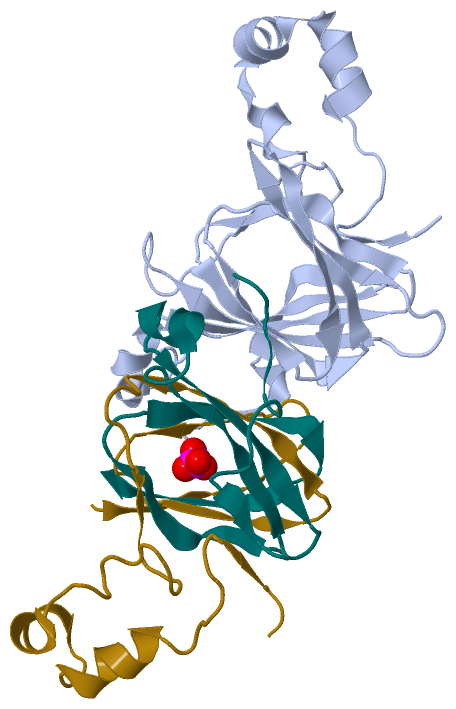

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

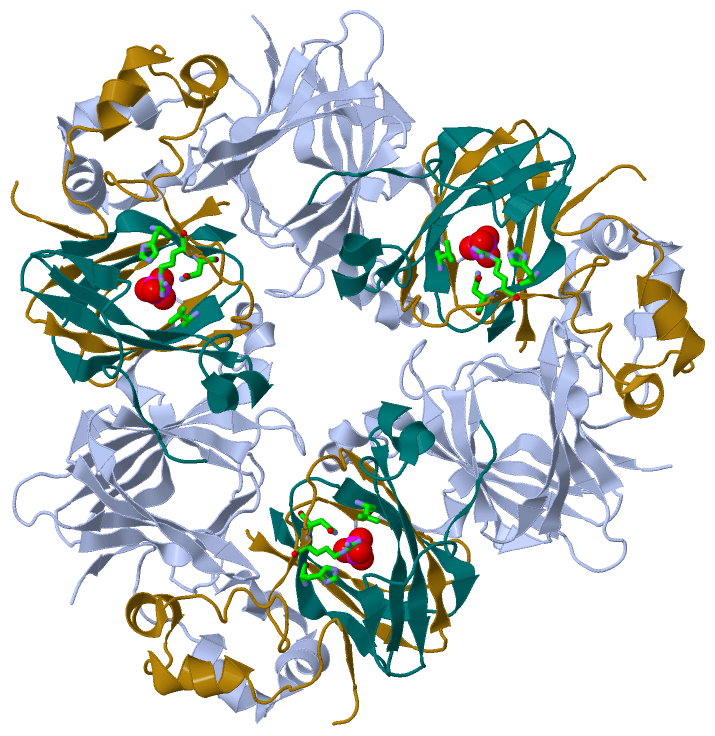

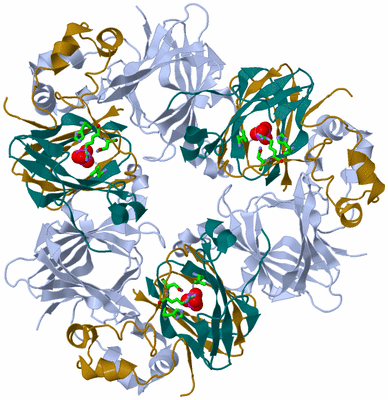

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE RHOMBOHEDRAL CRYSTAL OF CANAVALIN FROM JACK BEAN

Authors :  T. -P. Ko, A. Mcpherson
Date :  26 Nov 99  (Deposition) - 20 Dec 99  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.70
Chains :  Asym. Unit :  A,X,Y
Biol. Unit 1:  A,X,Y  (3x)
Keywords :  Duplicated Swiss-Roll Beta Barrels, Loops With Alpha Helices, Merohedral/ Hemihedral Twinning, Plant Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. P. Ko, Y. G. Kuznetsov, A. J. Malkin, J. Day, A. Mcpherson
X-Ray Diffraction And Atomic Force Microscopy Analysis Of Twinned Crystals: Rhombohedral Canavalin.
Acta Crystallogr. , Sect. D V. 57 829 2001
PubMed-ID: 11375502  |  Reference-DOI: 10.1107/S0907444901003791
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CANAVALIN
    Chains: A
    Fragment: RESIDUES 46-223
    Organ: SEED
    Organism Common: JACK BEAN
    Organism Scientific: CANAVALIA ENSIFORMIS
    Organism Taxid: 3823
    Other Details: LEGUME STORAGE PROTEIN;
LIMITED DIGESTION BY TRYPSIN
    Tissue: COTYLEDON

Molecule 2 - CANAVALIN
    Chains: X
    Fragment: RESIDUES 246-324
    Organ: SEED
    Organism Common: JACK BEAN
    Organism Scientific: CANAVALIA ENSIFORMIS
    Organism Taxid: 3823
    Other Details: LEGUME STORAGE PROTEIN;
LIMITED DIGESTION BY TRYPSIN
    Tissue: COTYLEDON

Molecule 3 - CANAVALIN
    Chains: Y
    Fragment: RESIDUES 331-423
    Organ: SEED
    Organism Common: JACK BEAN
    Organism Scientific: CANAVALIA ENSIFORMIS
    Organism Taxid: 3823
    Other Details: LEGUME STORAGE PROTEIN;
LIMITED DIGESTION BY TRYPSIN
    Tissue: COTYLEDON

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : AXY
Biological Unit 1 (3x): AXY

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1PO41Ligand/IonPHOSPHATE ION
Biological Unit 1 (1, 3)
No.NameCountTypeFull Name
1PO43Ligand/IonPHOSPHATE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS X:297 , ASN X:299 , VAL X:304 , ARG Y:376BINDING SITE FOR RESIDUE PO4 X 500

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1DGW)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1DGW)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1DGW)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1DGW)

(-) Exons   (0, 0)

(no "Exon" information available for 1DGW)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:178
 aligned with CANA_CANEN | P50477 from UniProtKB/Swiss-Prot  Length:445

    Alignment length:178
                                    55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215
           CANA_CANEN    46 NNPYLFRSNKFLTLFKNQHGSLRLLQRFNEDTEKLENLRDYRVLEYCSKPNTLLLPHHSDSDLLVLVLEGQAILVLVNPDGRDTYKLDQGDAIKIQAGTPFYLINPDNNQNLRILKFAITFRRPGTVEDFFLSSTKRLPSYLSAFSKNFLEASYDSPYDEIEQTLLQEEQEGVIVKMP 223
               SCOP domains d1dgwa_ A: Seed storage 7S protein                                                                                                                                                 SCOP domains
               CATH domains 1dgwA00 A:46-223 Jelly Rolls                                                                                                                                                       CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eehhh.eeeeeee..eeeeee......hhhhhhhh.eeeeeeee...eeeeeeee..eeeeeeee.eeeeeeee..eeeeeeee..eeeee.....eeeee......eeeeeeee.........eee........hhhhhhhhhhhhhhhh.hhhhhhhhh........eee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dgw A  46 NNPYLFRSNKFLTLFKNQHGSLRLLQRFNEDTEKLENLRDYRVLEYCSKPNTLLLPHHSDSDLLVLVLEGQAILVLVNPDGRDTYKLDQGDAIKIQAGTPFYLINPDNNQNLRILKFAITFRRPGTVEDFFLSSTKRLPSYLSAFSKNFLEASYDSPYDEIEQTLLQEEQEGVIVKMP 223
                                    55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215


Chain X from PDB  Type:PROTEIN  Length:76
 aligned with CANA_CANEN | P50477 from UniProtKB/Swiss-Prot  Length:445

    Alignment length:76
                                   255       265       275       285       295       305       315
           CANA_CANEN   246 DKPFNLRSRDPIYSNNYGKLYEITPEKNSQLRDLDILLNCLQMNEGALFVPHYNSRATVILVANEGRAEVELVGLE 321
               SCOP domains d1dgw.1 X:,Y: Seed storage 7S protein                                        SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee.......ee...eeeeee....hhhhhh..eeeeeeee....eeeeeee...eeeeeeee..eeeeeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------- Transcript
                 1dgw X 246 DKPFNLRSRDPIYSNNYGKLYEITPEKNSQLRDLDILLNCLQMNEGALFVPHYNSRATVILVANEGRAEVELVGLE 321
                                   255       265       275       285       295       305       315


Chain Y from PDB  Type:PROTEIN  Length:92
 aligned with CANA_CANEN | P50477 from UniProtKB/Swiss-Prot  Length:445

    Alignment length:92
                                   341       351       361       371       381       391       401       411       421
           CANA_CANEN   332 QLRRYAATLSEGDIIVIPSSFPVALKAASDLNMVGIGVNAENNERNFLAGHKENVIRQIPRQVSDLTFPGSGEEVEELLENQKESYFVDGQP 423
               SCOP domains d1dgw.1 X:,Y: Seed storage 7S protein                                                        SCOP domains
               CATH domains -------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeee....eeee.....eeeee...eeeeeeee......eee............hhhhhhhhh...hhhhhhhh.......ee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------- Transcript
                 1dgw Y 332 QLRRYAATLSEGDIIVIPSSFPVALKAASDLNMVGIGVNAENNERNFLAGHKENVIRQIPRQVSDLTFPGSGEEVEELLENQKESYFVDGQP 423
                                   341       351       361       371       381       391       401       411       421
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1DGW)

(-) Gene Ontology  (1, 1)

Asymmetric Unit(hide GO term definitions)
Chain A,X,Y   (CANA_CANEN | P50477)
molecular function
    GO:0045735    nutrient reservoir activity    Functions in the storage of nutritious substrates.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    PO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1dgw)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1dgw
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CANA_CANEN | P50477
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CANA_CANEN | P50477
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CANA_CANEN | P50477: 1cau 1cav 1caw 1cax 1dgr 2cau 2cav

(-) Related Entries Specified in the PDB File

1caw EARLIER VERSION OF ORTHORHOMBIC FORM OF CANAVALIN
1cax EARLIER VERSION OF RHOMBOHEDRAL FORM OF CANAVALIN
1dgr RHOMBOHEDRAL FORM OF CANAVALIN
2cau CUBIC FORM OF CANAVALIN
2cav HEXAGONAL FORM OF CANAVALIN
