1CZP - JenaLib

Title :   ANABAENA PCC7119 [2FE-2S] FERREDOXIN IN THE REDUCED AND OXIXIZED STATE AT 1.17 A

Authors :   R. Morales, M. H. Charon, M. Frey

Date :   06 Sep 99 (Deposition) - 14 Jan 00 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.17

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   [2Fe-2S] Protein, Crystal Reduced With Dithionite, Electron Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   R. Morales, M. H. Charon, G. Hudry-Clergeon, Y. Petillot, S. Norager, M. Medina, M. Frey
Refined X-Ray Structures Of The Oxidized, At 1. 3 A, And Reduced, At 1. 17 A, [2Fe-2S] Ferredoxin From The Cyanobacterium Anabaena Pcc7119 Show Redox-Linked Conformational Changes.
Biochemistry V. 38 15764 1999
PubMed-ID: 10625442 | Reference-DOI: 10.1021/BI991578S

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 2)

Sites (2, 2)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 4)

Asymmetric Unit (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	2FE2S_FER_2	PS51085	2Fe-2S ferredoxin-type iron-sulfur binding domain profile.	FER1_NOSSO	4-96	2	A:3-95 B:3-95
2	2FE2S_FER_1	PS00197	2Fe-2S ferredoxin-type iron-sulfur binding region signature.	FER1_NOSSO	42-50	2	A:41-49 B:41-49

Biological Unit 1 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	2FE2S_FER_2	PS51085	2Fe-2S ferredoxin-type iron-sulfur binding domain profile.	FER1_NOSSO	4-96	1	A:3-95 -
2	2FE2S_FER_1	PS00197	2Fe-2S ferredoxin-type iron-sulfur binding region signature.	FER1_NOSSO	42-50	1	A:41-49 -

Biological Unit 2 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	2FE2S_FER_2	PS51085	2Fe-2S ferredoxin-type iron-sulfur binding domain profile.	FER1_NOSSO	4-96	1	- B:3-95
2	2FE2S_FER_1	PS00197	2Fe-2S ferredoxin-type iron-sulfur binding region signature.	FER1_NOSSO	42-50	1	- B:41-49

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:98
 aligned with FER1_NOSSO | P0A3C8 from UniProtKB/Swiss-Prot  Length:99

    Alignment length:98
                                    11        21        31        41        51        61        71        81        91
            FER1_NOSSO    2 ATFKVTLINEAEGTKHEIEVPDDEYILDAAEEQGYDLPFSCRAGACSTCAGKLVSGTVDQSDQSFLDDDQIEAGYVLTCVAYPTSDVVIQTHKEEDLY 99
               SCOP domains d1czpa_ A: 2Fe-2S ferredoxin                                                                       SCOP domains
               CATH domains 1czpA00 A:1-98  [code=3.10.20.30, no name defined]                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeee....eeeeeeee...hhhhhhhhh................eeeeee..ee.......hhhhhhh.eee.hhhee...eeee........ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --2FE2S_FER_2  PDB: A:3-95 UniProt: 4-96                                                       --- PROSITE (1)
                PROSITE (2) ----------------------------------------2FE2S_FER------------------------------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                  1czp A  1 ATFKVTLINEAEGTKHEIEVPDDEYILDAAEEQGYDLPFSCRAGACSTCAGKLVSGTVDQSDQSFLDDDQIEAGYVLTCVAYPTSDVVIQTHKEEDLY 98
                                    10        20        30        40        50        60        70        80        90

Chain B from PDB  Type:PROTEIN  Length:98
 aligned with FER1_NOSSO | P0A3C8 from UniProtKB/Swiss-Prot  Length:99

    Alignment length:98
                                    11        21        31        41        51        61        71        81        91
            FER1_NOSSO    2 ATFKVTLINEAEGTKHEIEVPDDEYILDAAEEQGYDLPFSCRAGACSTCAGKLVSGTVDQSDQSFLDDDQIEAGYVLTCVAYPTSDVVIQTHKEEDLY 99
               SCOP domains d1czpb_ B: 2Fe-2S ferredoxin                                                                       SCOP domains
               CATH domains 1czpB00 B:1-98  [code=3.10.20.30, no name defined]                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeee....eeeeeeee...hhhhhhhhh................eeeeee..ee.......hhhhhhh.eee.hhhee...eeee..hhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --2FE2S_FER_2  PDB: B:3-95 UniProt: 4-96                                                       --- PROSITE (1)
                PROSITE (2) ----------------------------------------2FE2S_FER------------------------------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                  1czp B  1 ATFKVTLINEAEGTKHEIEVPDDEYILDAAEEQGYDLPFSCRAGACSTCAGKLVSGTVDQSDQSFLDDDQIEAGYVLTCVAYPTSDVVIQTHKEEDLY 98
                                    10        20        30        40        50        60        70        80        90

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (1, 2)

Pfam Domains (0, 0)

Gene Ontology (7, 7)

Asymmetric Unit(hide GO term definitions)

Chain A,B (FER1_NOSSO | P0A3C8)

molecular function
	GO:0051537	2 iron, 2 sulfur cluster binding	Interacting selectively and non-covalently with a 2 iron, 2 sulfur (2Fe-2S) cluster; this cluster consists of two iron atoms, with two inorganic sulfur atoms found between the irons and acting as bridging ligands.
	GO:0009055	electron carrier activity	Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
	GO:0051536	iron-sulfur cluster binding	Interacting selectively and non-covalently with an iron-sulfur cluster, a combination of iron and sulfur atoms.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0022900	electron transport chain	A process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

Visualization

Interactive Views

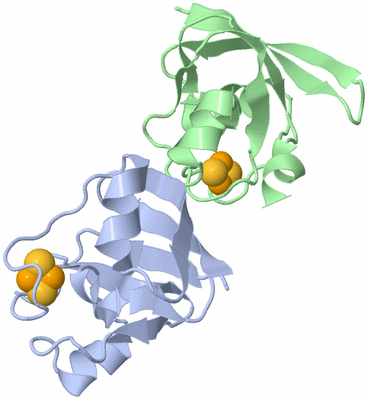

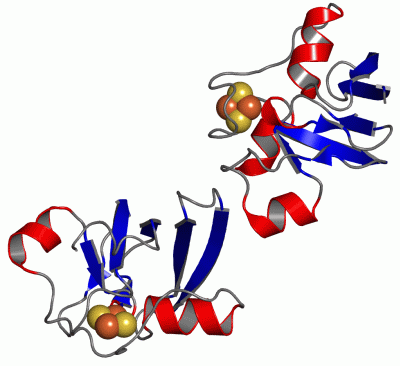

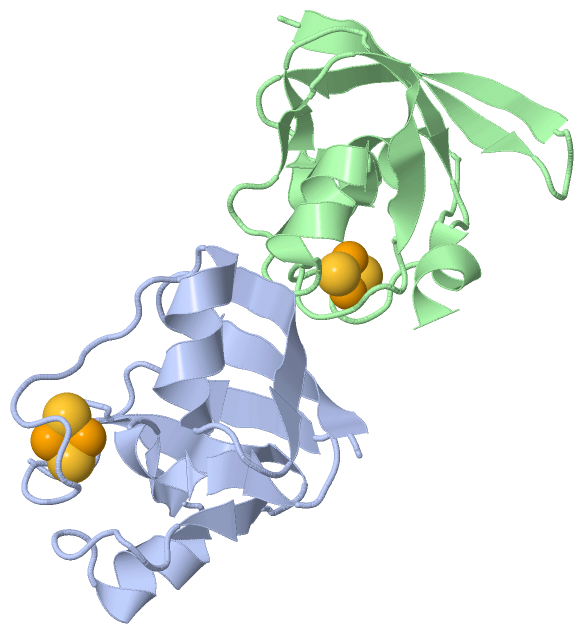

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		FES	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

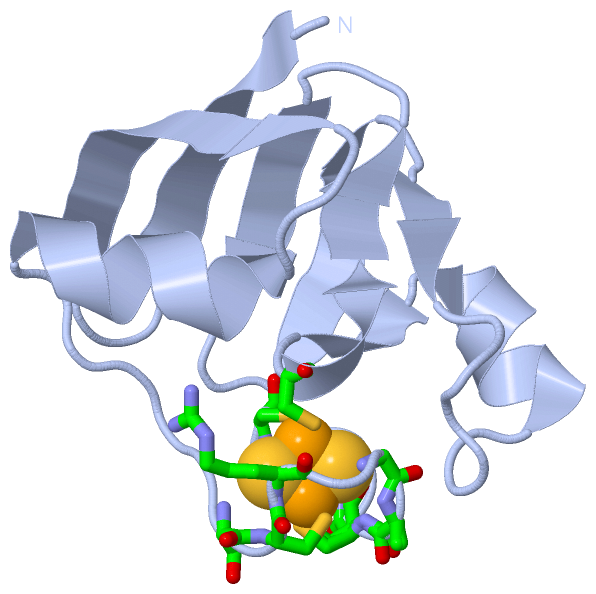

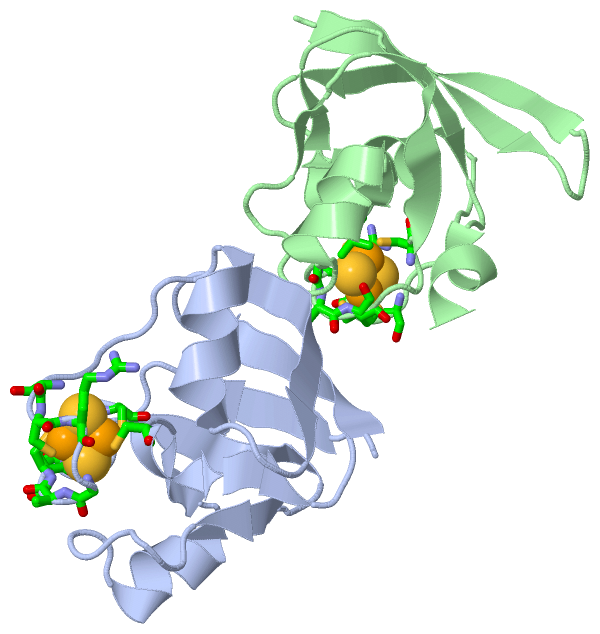

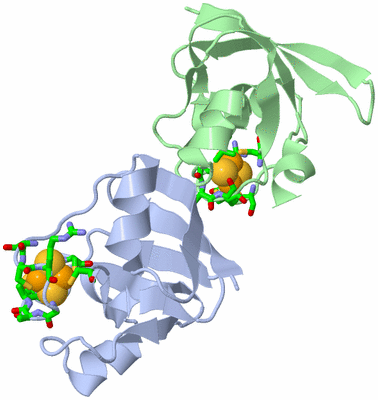

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1czp)

Biological Units
	Complete Structure

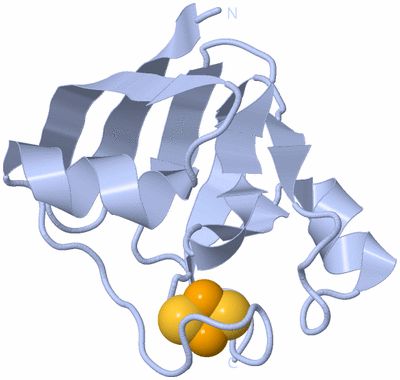

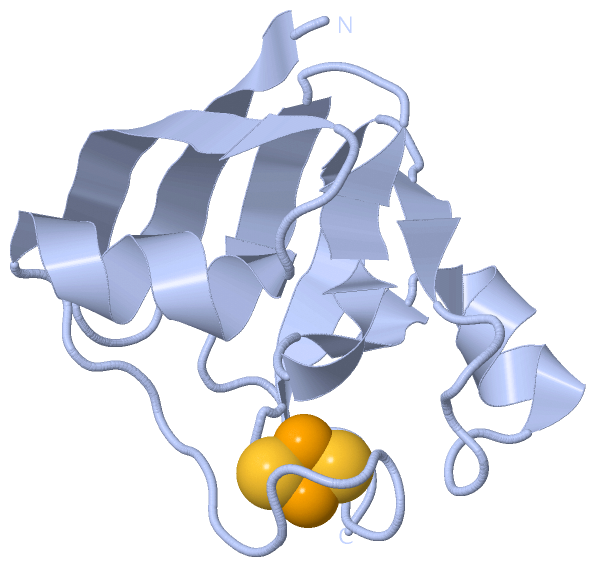

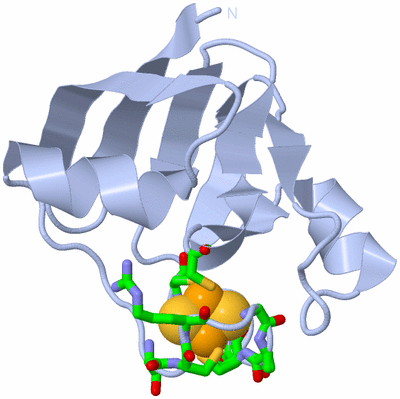

		Biological Unit 1	[ Jena3D ]

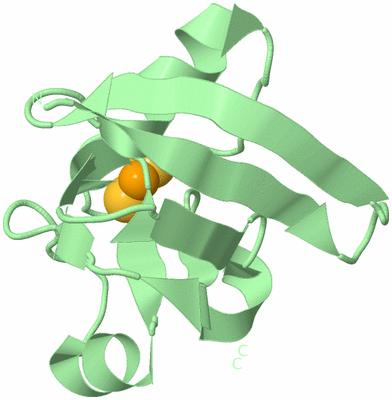

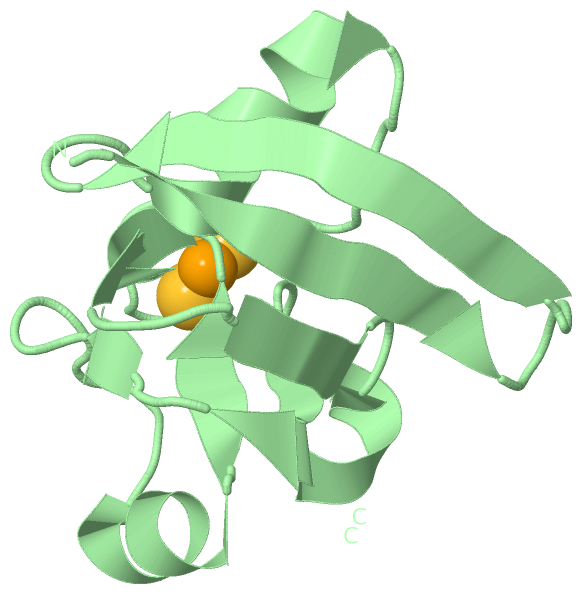

		Biological Unit 2	[ Jena3D ]
