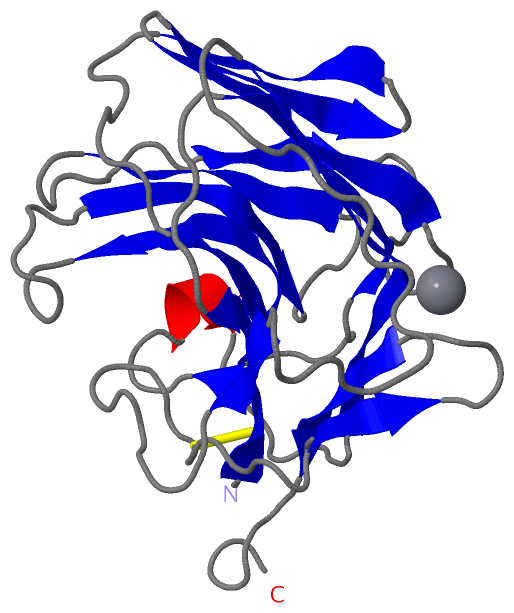

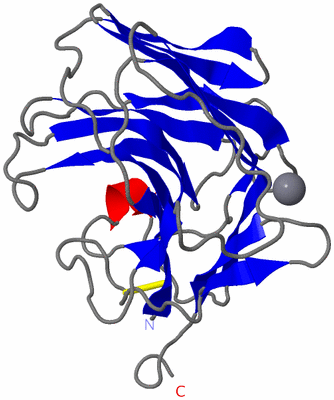

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  NATIVE-LIKE IN VIVO FOLDING OF A CIRCULARLY PERMUTED JELLYROLL PROTEIN SHOWN BY CRYSTAL STRUCTURE ANALYSIS

Authors :  M. Hahn, U. Heinemann
Date :  11 Mar 94  (Deposition) - 22 Jun 94  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Hydrolase(Glucanase) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Hahn, K. Piotukh, R. Borriss, U. Heinemann
Native-Like In Vivo Folding Of A Circularly Permuted Jellyroll Protein Shown By Crystal Structure Analysis.
Proc. Natl. Acad. Sci. Usa V. 91 10417 1994
PubMed-ID: 7937966  |  Reference-DOI: 10.1073/PNAS.91.22.10417
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CIRCULARLY PERMUTED
    Chains: A
    EC Number: 3.2.1.73
    Engineered: YES
    Organism Scientific: PAENIBACILLUS MACERANS
    Organism Taxid: 44252

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1CA1Ligand/IonCALCIUM ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:149 , PRO A:165 , GLY A:201 , HOH A:216 , HOH A:217 , HOH A:218BINDING SITE FOR RESIDUE CA A 215

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:3 -A:188

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Asn A:142 -Pro A:143

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1CPM)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GH16_1PS01034 Glycosyl hydrolases family 16 active sites.GUB_PAEMA128-138  1A:47-57

(-) Exons   (0, 0)

(no "Exon" information available for 1CPM)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:214
 aligned with GUB_PAEMA | P23904 from UniProtKB/Swiss-Prot  Length:237

    Alignment length:214
                                                                                                                                                                                     237
                                    91       101       111       121       131       141       151       161       171       181       191       201       211       221       231     |   -         -         -         -         -         -
            GUB_PAEMA    82 FDCAEYRSTNIYGYGLYEVSMKPAKNTGIVSSFFTYTGPAHGTQWDEIDIEFLGKDTTKVQFNYYTNGVGGHEKVISLGFDASKGFHTYAFDWQPGYIKWYVDGVLKHTATANIPSTPGKIMMNLWNGTGVDDWLGSYNGANPLYAEYDWVKYTSN----------------------------------------------------------   -
               SCOP domains d1cpma_ A: Bacillus 1-3,1-4-beta-glucanase                                                                                                                                                                             SCOP domains
               CATH domains 1cpmA00 A:1-214  [code=2.60.120.200, no name defined]                                                                                                                                                                  CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee......eeeeeeee......eeeeeeeee........eeeeeeee.....eeeeeee........eeee.........eeeeeeee..eeeeee..eeeeee.........eeeeeeee....hhhh........eeeeeeeeeeee..................eee..................eee.....eeeee....... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------GH16_1     ------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1cpm A   1 FDCAEYRSTNIYGYGLYEVSMKPAKNTGIVSSFFTYTGPAHGTQWDEIDIEFLGKDTTKVQFNYYTNGVGGHEKVISLGFDASKGFHTYAFDWQPGYIKWYVDGVLKHTATANIPSTPGKIMMNLWNGTGVDDWLGSYNGANPLYAEYDWVKYTSNQTGGSFFEPFNSYNSGTWEKADGYSNGGVFNCTWRANNVNFTNDGKLKLGLTSSAYNA 214
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1CPM)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (GUB_PAEMA | P23904)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0004553    hydrolase activity, hydrolyzing O-glycosyl compounds    Catalysis of the hydrolysis of any O-glycosyl bond.
    GO:0042972    licheninase activity    Catalysis of the hydrolysis of (1->4)-beta-D-glucosidic linkages in beta-D-glucans containing (1->3) and (1->4) bonds.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
