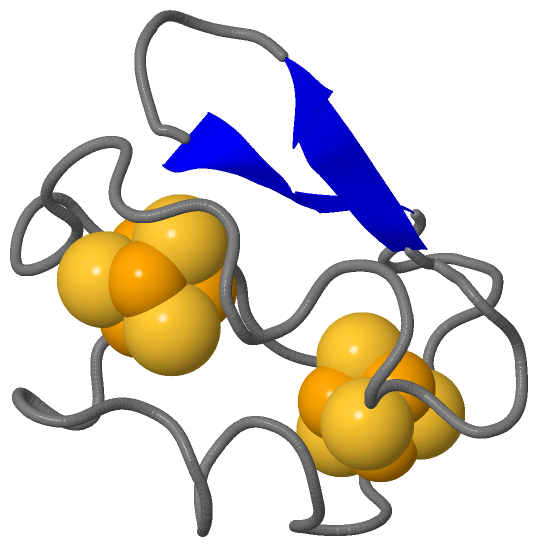

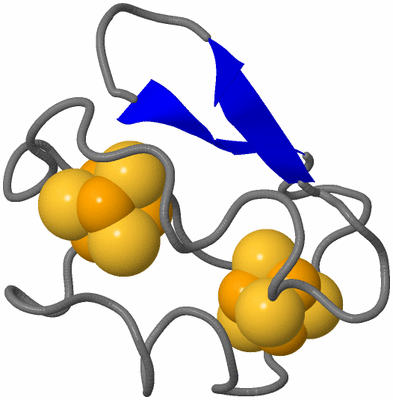

NMR Structure - model 1

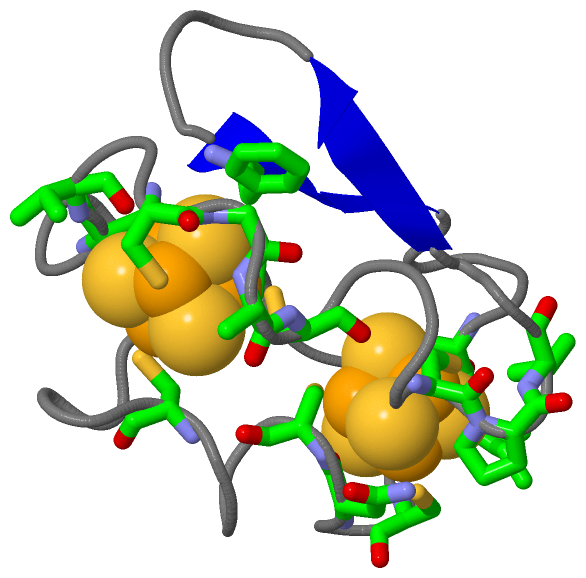

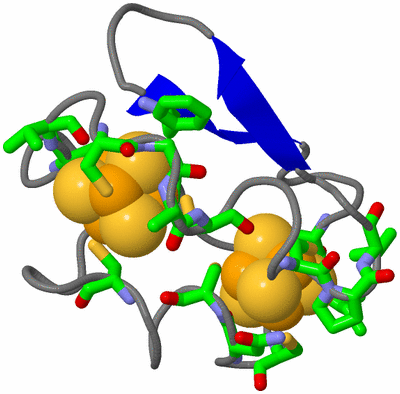

NMR Structure - model 1, sites

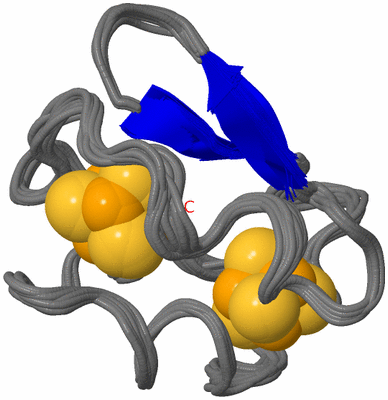

NMR Structure - all models

collapse

expand

NMR Structure - model 1 (Jmol Viewer)

NMR Structure - model 1, sites (Jmol Viewer)

NMR Structure - all models (Jmol Viewer)

Description

Title :   CLOSTRIDIUM PASTEURIANUM FERREDOXIN

Authors :   I. Bertini, A. Donaire, B. A. Feinberg, C. Luchinat, M. Piccioli, H. Yuan

Date :   21 Jun 95 (Deposition) - 29 Jan 96 (Release) - 24 Mar 09 (Revision)

Method :   SOLUTION NMR

Resolution :   NOT APPLICABLE

Chains :   NMR Structure  : A  (16x)

Keywords :   Electron Transfer (Iron-Sulfur Protein) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   I. Bertini, A. Donaire, B. A. Feinberg, C. Luchinat, M. Piccioli, H. Yuan
Solution Structure Of The Oxidized 2[4Fe-4S] Ferredoxin From Clostridium Pasteurianum.
Eur. J. Biochem. V. 232 192 1995
PubMed-ID: 7556151 | Reference-DOI: 10.1111/J.1432-1033.1995.TB20799.X
(for further references see the PDB file header)

Compounds

Molecule 1 - FERREDOXIN
	Atcc	:	6013
	Chains	:	A
	Organism Scientific	:	CLOSTRIDIUM PASTEURIANUM
	Organism Taxid	:	1501
	Strain	:	WINOGRADSKY

Structural Features

Chains, Units


NMR Structure (16x)	:

Summary Information (see also Sequences/Alignments below)

Ligands, Modified Residues, Ions (1, 2)

NMR Structure (1, 2)

No.	Name	Count	Type	Full Name
1	SF4	2	Ligand/Ion	IRON/SULFUR CLUSTER

Sites (2, 2)

NMR Structure (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ILE A:4 , CYS A:8 , VAL A:9 , CYS A:11 , GLY A:12 , ALA A:13 , CYS A:14 , PHE A:30 , CYS A:47	BINDING SITE FOR RESIDUE SF4 A 56
2	AC2	SOFTWARE	CYS A:18 , PRO A:19 , VAL A:20 , CYS A:37 , ILE A:38 , CYS A:40 , ASN A:42 , CYS A:43	BINDING SITE FOR RESIDUE SF4 A 57

SS Bonds (0, 0)

(no "SS Bond" information available for 1CLF)

Cis Peptide Bonds (0, 0)

(no "Cis Peptide Bond" information available for 1CLF)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

(no "SAP(SNP)/Variant" information available for 1CLF)

PROSITE Motifs (2, 3)

NMR Structure (2, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	4FE4S_FER_1	PS00198	4Fe-4S ferredoxin-type iron-sulfur binding region signature.	FER_CLOPA	9-20 38-49	2	A:8-19 A:37-48
2	4FE4S_FER_2	PS51379	4Fe-4S ferredoxin-type iron-sulfur binding domain profile.	FER_CLOPA	29-56 1-28	1	A:28-55 -

Exons (0, 0)

(no "Exon" information available for 1CLF)

Sequences/Alignments

NMR Structure

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:55
 aligned with FER_CLOPA | P00195 from UniProtKB/Swiss-Prot  Length:56

    Alignment length:55
                                    11        21        31        41        51
             FER_CLOPA    2 AYKIADSCVSCGACASECPVNAISQGDSIFVIDADTCIDCGNCANVCPVGAPVQE 56
               SCOP domains d1clfa_ A: Ferredoxin II                                SCOP domains
               CATH domains 1clfA00 A:1-55  [code=3.30.70.20, no name defined]      CATH domains
               Pfam domains ------------------------------------------------------- Pfam domains
         Sec.struct. author ......................eee....eee....................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -------4FE4S_FER_1 -----------------4FE4S_FER_1 ------- PROSITE (1)
                PROSITE (2) 4FE4S_FER_2  PDB: -        4FE4S_FER_2  PDB: A:28-55    PROSITE (2)
                 Transcript ------------------------------------------------------- Transcript
                  1clf A  1 AYKIADSCVSCGACASECPVNAISQGDSIFVIDADTCIDCGNCANVCPVGAPVQE 55
                                    10        20        30        40        50

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

NMR Structure

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Ferredoxin-like (1795)

Superfamily: 4Fe-4S ferredoxins (143)

Family: Short-chain ferredoxins (11)

Protein domain: Ferredoxin II (7)

Clostridium pasteurianum [TaxId: 1501] (1)

d1clfa_

CATH Domains (1, 1)

NMR Structure

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: Alpha-Beta Plaits (1688)

Homologous Superfamily: [code=3.30.70.20, no name defined] (120)

Clostridium pasteurianum. Organism_taxid: 1501. Strain: winogradsky. (1)

1clfA00

A:1-55

Pfam Domains (0, 0)

(no "Pfam Domain" information available for 1CLF)

Gene Ontology (5, 5)

NMR Structure(hide GO term definitions)

Chain A (FER_CLOPA | P00195)

molecular function
	GO:0051539	4 iron, 4 sulfur cluster binding	Interacting selectively and non-covalently with a 4 iron, 4 sulfur (4Fe-4S) cluster; this cluster consists of four iron atoms, with the inorganic sulfur atoms found between the irons and acting as bridging ligands.
	GO:0009055	electron carrier activity	Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
	GO:0051536	iron-sulfur cluster binding	Interacting selectively and non-covalently with an iron-sulfur cluster, a combination of iron and sulfur atoms.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
biological process
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

Visualization

Interactive Views

NMR Structure
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		SF4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1clf)

Still Images

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ NMR Structure - model 1 PNG format \| NMR Structure - model 1, sites PNG format \| NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	1clf
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	FER_CLOPA \| P00195
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Analysis Tools

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	FER_CLOPA \| P00195
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
