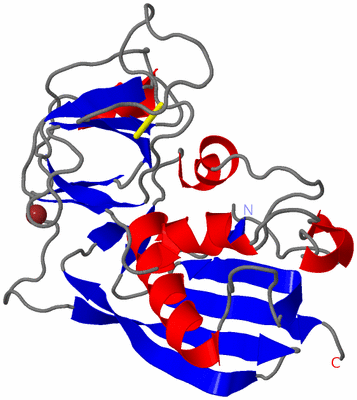

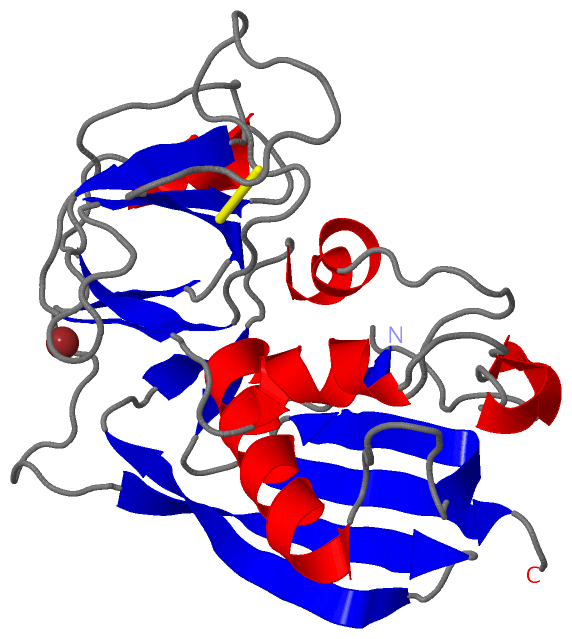

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

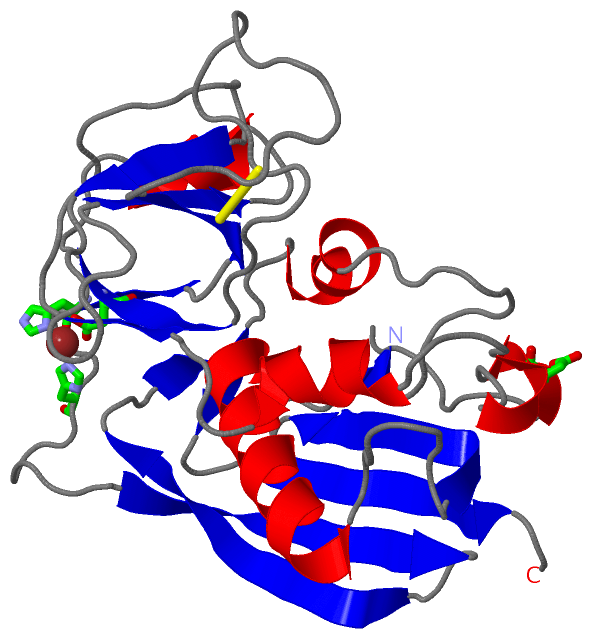

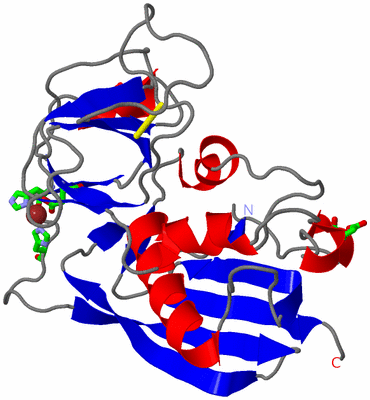

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

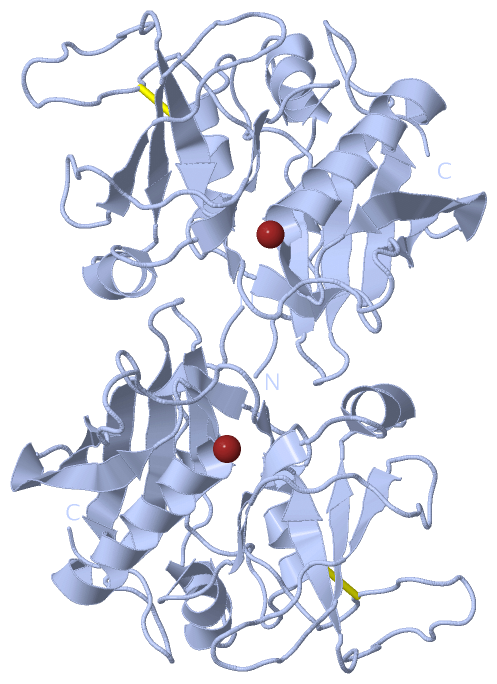

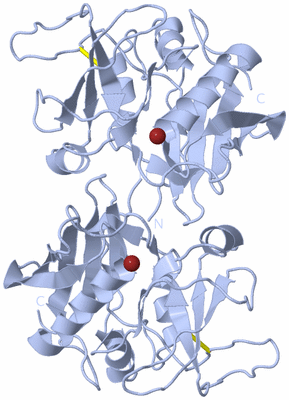

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

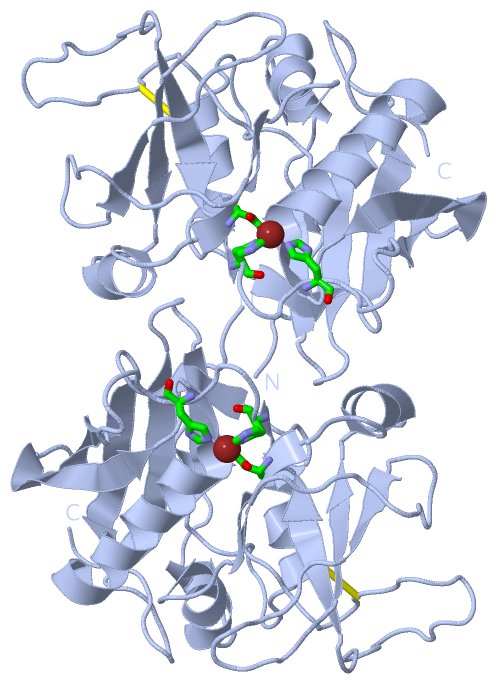

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF STAPHYLOCOCCAL ENTEROTOXIN C3

Authors :  Y. -I. Chi, G. A. Bohach, C. V. Stauffacher
Date :  26 Apr 99  (Deposition) - 10 Jul 02  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.60
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Staphylococcal Enterotoxin, Superantigen, Zinc (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. I. Chi, I. Sadler, L. M. Jablonski, S. D. Callantine, C. F. Deobald, C. V. Stauffacher, G. A. Bohach
Zinc-Mediated Dimerization And Its Effect On Activity And Conformation Of Staphylococcal Enterotoxin Type C.
J. Biol. Chem. V. 277 22839 2002
PubMed-ID: 11934896  |  Reference-DOI: 10.1074/JBC.M201932200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEIN (ENTEROTOXIN TYPE C-3)
    Chains: A
    Organism Scientific: STAPHYLOCOCCUS AUREUS
    Organism Taxid: 1280
    Secretion: GROWING MEDIA
    Strain: FRI-909

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1ZN1Ligand/IonZINC ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:9 , ASP A:83 , HIS A:118 , HIS A:122BINDING SITE FOR RESIDUE ZN A 300
2ZNBAUTHORASP A:83 , HIS A:118 , HIS A:122 , ASP A:9ASP 9 IS FROM THE NEXT MOLECULE, THUS FORMING A DIMER

(-) SS Bonds  (1, 1)

Asymmetric Unit
No.Residues
1A:93 -A:110

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1CK1)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1CK1)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1CK1)

(-) Exons   (0, 0)

(no "Exon" information available for 1CK1)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:239
 aligned with Q06535_STAAU | Q06535 from UniProtKB/TrEMBL  Length:239

    Alignment length:239
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
         Q06535_STAAU     1 ESQPDPMPDDLHKSSEFTGTMGNMKYLYDDHYVSATKVKSVDKFLAHDLIYNINHKKLNNYDKVKTELLNEDLAKNYKDEVVDVYGSNYYVNCYFSSKDNVGKVTSGKTCMYGGITKHEGNHFDNGNLQNVLIRVYENKRNTISFEVQTDKKSVTAQELDIKARNFLINKKNLYEFNSSPYETGYIKFIESNGNTFWYDMMPAPGDKFDQSKYLMIYKDNKMVDSKSVKIEVHLTTKNG 239
               SCOP domains d1ck1a1 A:1-121 Staphylococcal enterotoxin C3, SEC3                                                                      d1ck1a2 A:122-239 Staphylococcal enterotoxin C3, SEC3                                                                  SCOP domains
               CATH domains 1ck1A02 A:1-31,A:120-237       1ck1A01 A:32-119  [code=2.40.50.110, no name defined]                                   1ck1A02 A:1-31,A:120-237  [code=3.10.20.120, no name defined]                                                         -- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhh...hhh....hhhhhhhh....eee............eeee...........eeeee...hhhhhhh....eeeee.....................eeeee..eee...........eeeeeeeee...eeeeeeeee...eeehhhhhhhhhhhhhhhh.........eeeeeeeee.....eeeee..........hhhhhhhh....eee....eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ck1 A   1 ESQPDPMPDDLHKSSEFTGTMGNMKYLYDDHYVSATKVKSVDKFLAHDLIYNINDKKLNNYDKVKTELLNEDLANKYKDEVVDVYGSNYYVNCYFSSKDNVGKVTSGKTCMYGGITKHEGNHFDNGNLQNVLIRVYENKRNTISFEVQTDKKSVTAQELDIKARNFLINKKNLYEFNSSPYETGYIKFIESNGNTFWYDMMPAPGDKFDQSKYLMIYKDNKMVDSKSVKIEVHLTTKNG 239
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (2, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1CK1)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A   (Q06535_STAAU | Q06535)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
