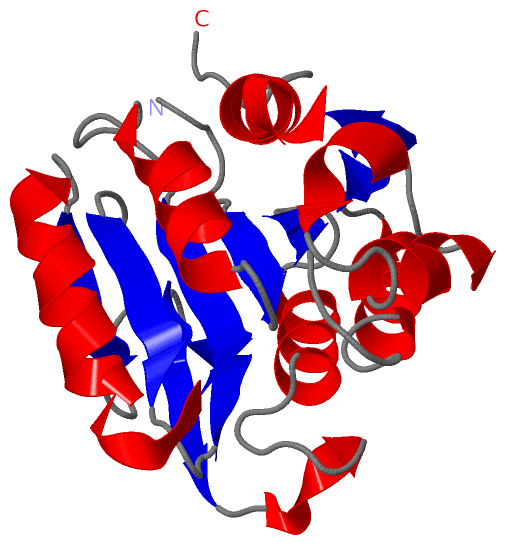

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

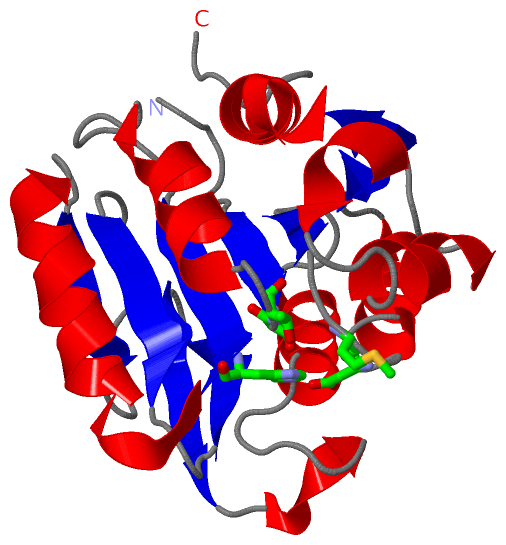

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CHEB METHYLESTERASE DOMAIN

Authors :  A. H. West, E. Martinez-Hackert, A. M. Stock
Date :  09 Mar 95  (Deposition) - 29 Jan 96  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.75
Chains :  Asym./Biol. Unit :  A
Keywords :  Chemotaxis Protein, Serine Hydrolase, Carboxyl Methylesterase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  A. H. West, E. Martinez-Hackert, A. M. Stock
Crystal Structure Of The Catalytic Domain Of The Chemotaxis Receptor Methylesterase, Cheb.
J. Mol. Biol. V. 250 276 1995
PubMed-ID: 7608974  |  Reference-DOI: 10.1006/JMBI.1995.0376
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CHEB METHYLESTERASE
    ChainsA
    EC Number3.1.1.61
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System GeneCHEB
    Expression System PlasmidPCP1 (PUC12 VECTOR)
    Expression System StrainDH5ALPHA
    Expression System Taxid562
    Expression System Vector TypeBACTERIAL
    GeneCHEB
    Organism ScientificSALMONELLA TYPHIMURIUM
    Organism Taxid99287
    StrainLT2

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1CHD)

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1ACTAUTHORSER A:164 , HIS A:190 , ASP A:286ACTIVE SITE
2OXYAUTHORMET A:283 , THR A:165PROPOSED OXYANION HOLE

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1CHD)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Arg A:257 -Pro A:258

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1CHD)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CHEBPS50122 CheB-type methylesterase domain profile.CHEB_SALTY152-344  1A:152-344

(-) Exons   (0, 0)

(no "Exon" information available for 1CHD)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:198
 aligned with CHEB_SALTY | P04042 from UniProtKB/Swiss-Prot  Length:349

    Alignment length:198
                                   161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341
           CHEB_SALTY   152 LLSSEKLIAIGASTGGTEAIRHVLQPLPLSSPAVIITQHMPPGFTRSFAERLNKLCQISVKEAEDGERVLPGHAYIAPGDKHMELARSGANYQIKIHDGPPVNRHRPSVDVLFHSVAKHAGRNAVGVILTGMGNDGAAGMLAMYQAGAWTIAQNEASCVVFGMPREAINMGGVSEVVDLSQVSQQMLAKISAGQAIRI 349
               SCOP domains d1chda_ A: Methylesterase CheB, C-terminal domain                                                                                                                                                      SCOP domains
               CATH domains 1chdA00 A:152-349  [code=3.40.50.180, no name defined]                                                                                                                                                 CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
     Sec.struct. author (1) ......eeeeee...hhhhhhhhhh.......eeeeeeehhhhhhhhhhhhhhhh...eeeee.........eeeee....eeeeeee..eeeeeee.hhhh......hhhhhhhhhhh....eeeeee.......hhhhhhhhhh..eeeeeehhhh....hhhhhhh.....---hhhhhhhhhhhhh........ Sec.struct. author (1)
     Sec.struct. author (2) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------eeee-------------------- Sec.struct. author (2)
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE CHEB  PDB: A:152-344 UniProt: 152-344                                                                                                                                                            ----- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1chd A 152 LLSSEKLIAIGASTGGTEAIRHVLQPLPLSSPAVIITQHMPPGFTRSFAERLNKLCQISVKEAEDGERVLPGHAYIAPGDKHMELARSGANYQIKIHDGPPVNRHRPSVDVLFHSVAKHAGRNAVGVILTGMGNDGAAGMLAMYQAGAWTIAQNEASCVVFGMPREAINMGGVSEVVDLSQVSQQMLAKISAGQAIRI 349
                                   161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1CHD)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (CHEB_SALTY | P04042)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0000156    phosphorelay response regulator activity    Responds to a phosphorelay sensor to initiate a change in cell state or activity. The activity of the response regulator is regulated by transfer of a phosphate from a histidine residue in the sensor, to an aspartate residue in the response regulator. Many but not all response regulators act as transcriptional regulators to elicit a response.
    GO:0008984    protein-glutamate methylesterase activity    Catalysis of the reaction: protein L-glutamate O(5)-methyl ester + H2O = protein L-glutamate + methanol.
    GO:0004871    signal transducer activity    Conveys a signal across a cell to trigger a change in cell function or state. A signal is a physical entity or change in state that is used to transfer information in order to trigger a response.
biological process
    GO:0006935    chemotaxis    The directed movement of a motile cell or organism, or the directed growth of a cell guided by a specific chemical concentration gradient. Movement may be towards a higher concentration (positive chemotaxis) or towards a lower concentration (negative chemotaxis).
    GO:0000160    phosphorelay signal transduction system    A conserved series of molecular signals found in prokaryotes and eukaryotes; involves autophosphorylation of a histidine kinase and the transfer of the phosphate group to an aspartate that then acts as a phospho-donor to response regulator proteins.
    GO:0007165    signal transduction    The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
