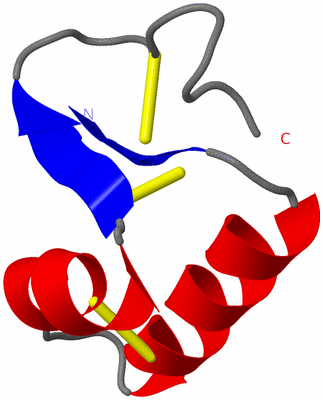

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  DIRECT NOE REFINEMENT OF CRAMBIN FROM 2D NMR DATA USING A SLOW-COOLING ANNEALING PROTOCOL

Authors :  A. M. J. J. Bonvin, J. A. C. Rullmann, R. M. J. N. Lamerichs, R. Boelens, R. Kaptein
Date :  14 Apr 93  (Deposition) - 31 Oct 93  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A
Keywords :  Plant Seed Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. M. J. J. Bonvin, R. Boelens, R. Kaptein
Direct Noe Refinement Of Biomolecular Structures Using 2D Nmr Data
J. Biomol. Nmr V. 1 305 1991
PubMed-ID: 1841701  |  Reference-DOI: 10.1007/BF01875523
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CRAMBIN
    Chains: A
    Engineered: YES
    Organism Scientific: CRAMBE HISPANICA SUBSP. ABYSSINICA
    Organism Taxid: 3721
    Strain: SUBSP. ABYSSINICA

 Structural Features

(-) Chains, Units


NMR Structure :

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1CCN)

(-) Sites  (0, 0)

(no "Site" information available for 1CCN)

(-) SS Bonds  (3, 3)

NMR Structure
No.Residues
1A:3 -A:40
2A:4 -A:32
3A:16 -A:26

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1CCN)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (2, 2)

NMR Structure (2, 2)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_CRAM_CRAAB_001 *P22SCRAM_CRAAB  ---  ---AP22S
2UniProtVAR_CRAM_CRAAB_002 *L25ICRAM_CRAAB  ---  ---AL25I
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1THIONINPS00271 Plant thionins signature.CRAM_CRAAB3-16  1A:3-16

(-) Exons   (0, 0)

(no "Exon" information available for 1CCN)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:46
 aligned with CRAM_CRAAB | P01542 from UniProtKB/Swiss-Prot  Length:46

    Alignment length:46
                                    10        20        30        40
            CRAM_CRAAB    1 TTCCPSIVARSNFNVCRLPGTPEALCATYTGCIIIPGATCPGDYAN 46
               SCOP domains d1ccna_ A: Crambin                             SCOP domains
               CATH domains 1ccnA00 A:1-46                                 CATH domains
               Pfam domains ---------------------------------------------- Pfam domains
         Sec.struct. author eeee..hhhhhhhhhhhh....hhhhhhhh.eeee........... Sec.struct. author
                 SAPs(SNPs) ---------------------S--I--------------------- SAPs(SNPs)
                    PROSITE --THIONIN       ------------------------------ PROSITE
                 Transcript ---------------------------------------------- Transcript
                  1ccn A  1 TTCCPSIVARSNFNVCRLPGTPEALCATYTGCIIIPGATCPGDYAN 46
                                    10        20        30        40
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Small proteins (3458)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1CCN)

(-) Gene Ontology  (2, 2)

NMR Structure(hide GO term definitions)
Chain A   (CRAM_CRAAB | P01542)
biological process
    GO:0006952    defense response    Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ccn)

  Sites
(no "Sites" information available for 1ccn)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ccn)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

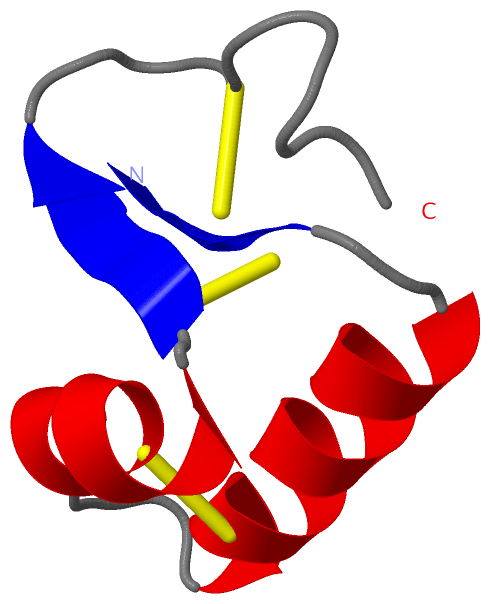

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
Midas

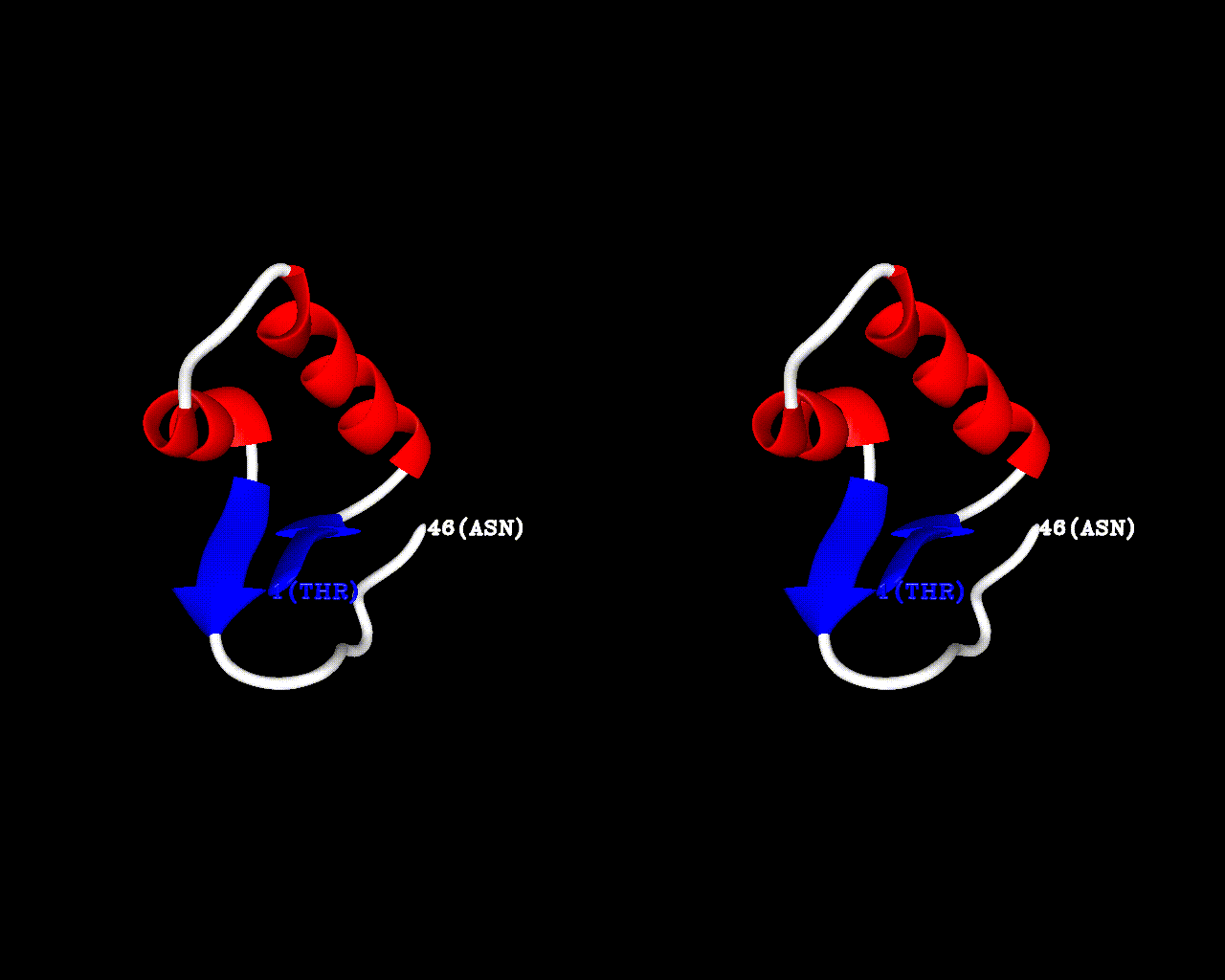

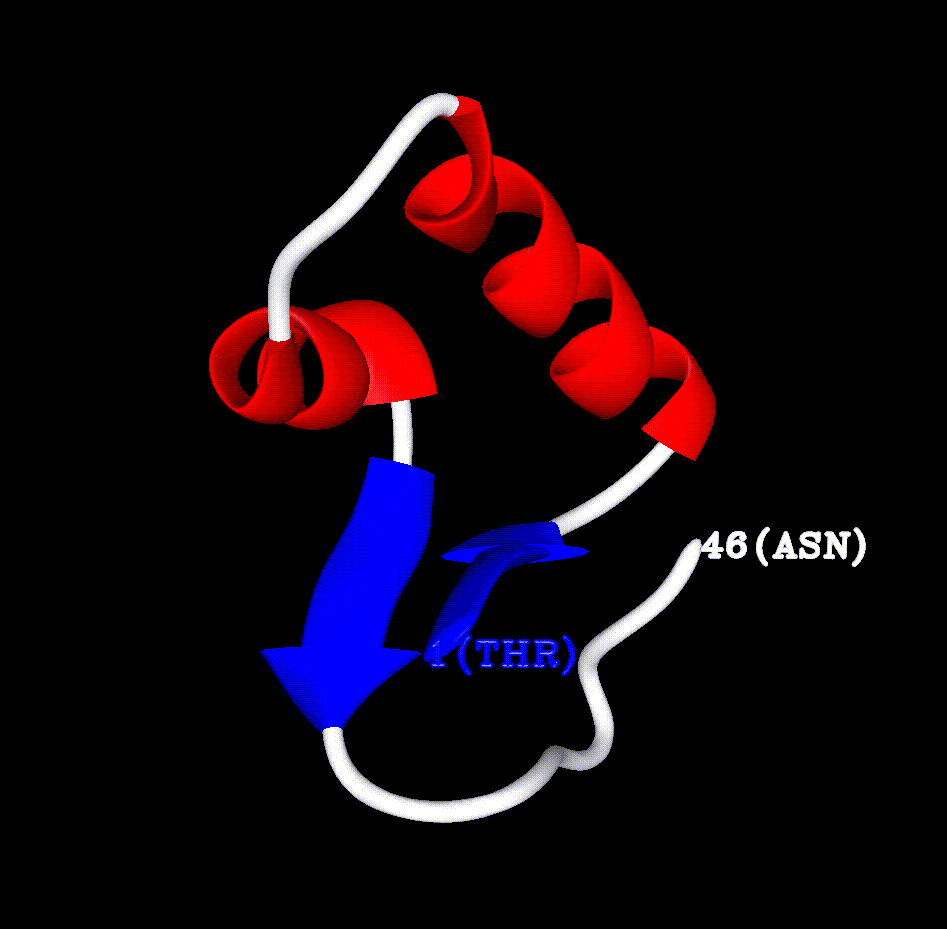

  ribbon, secondary structure
[ mono GIF format | stereo GIF format ]
Setor

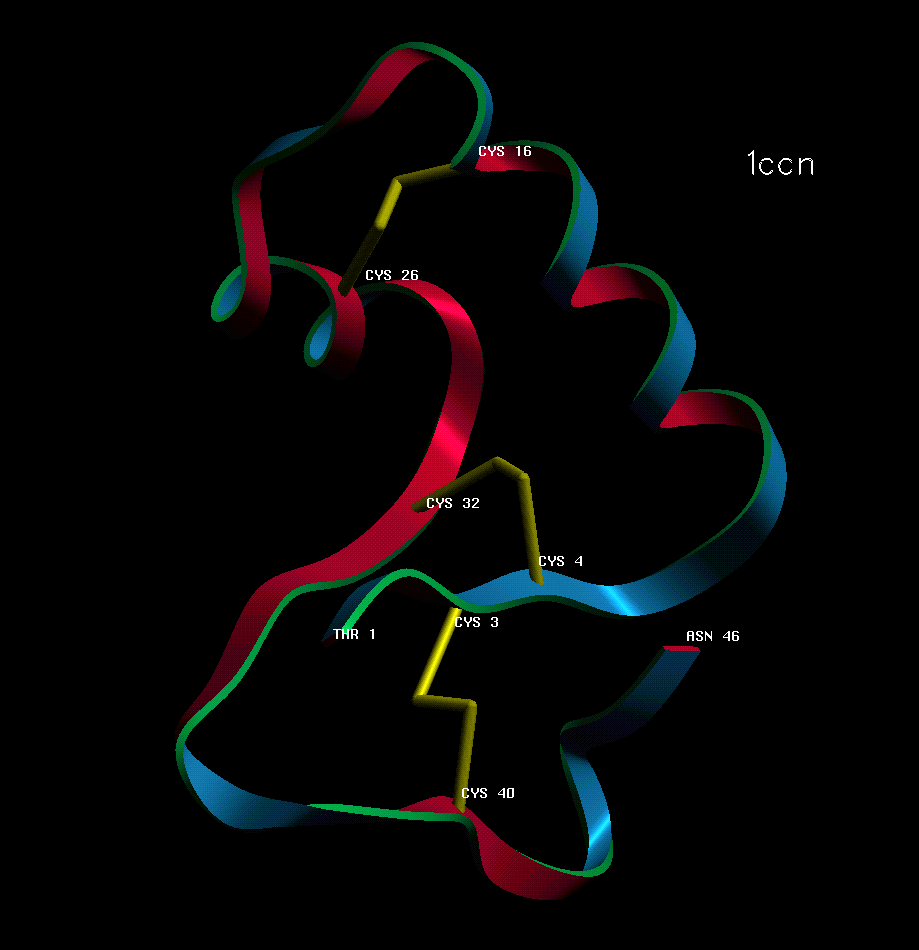

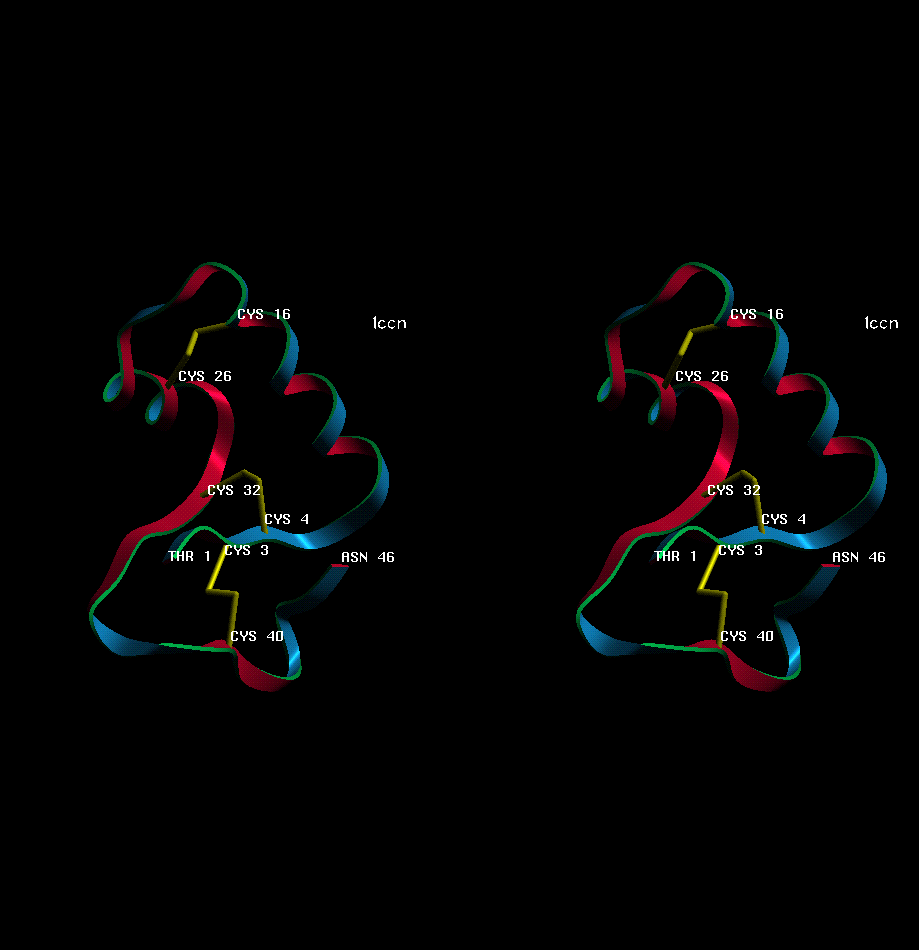

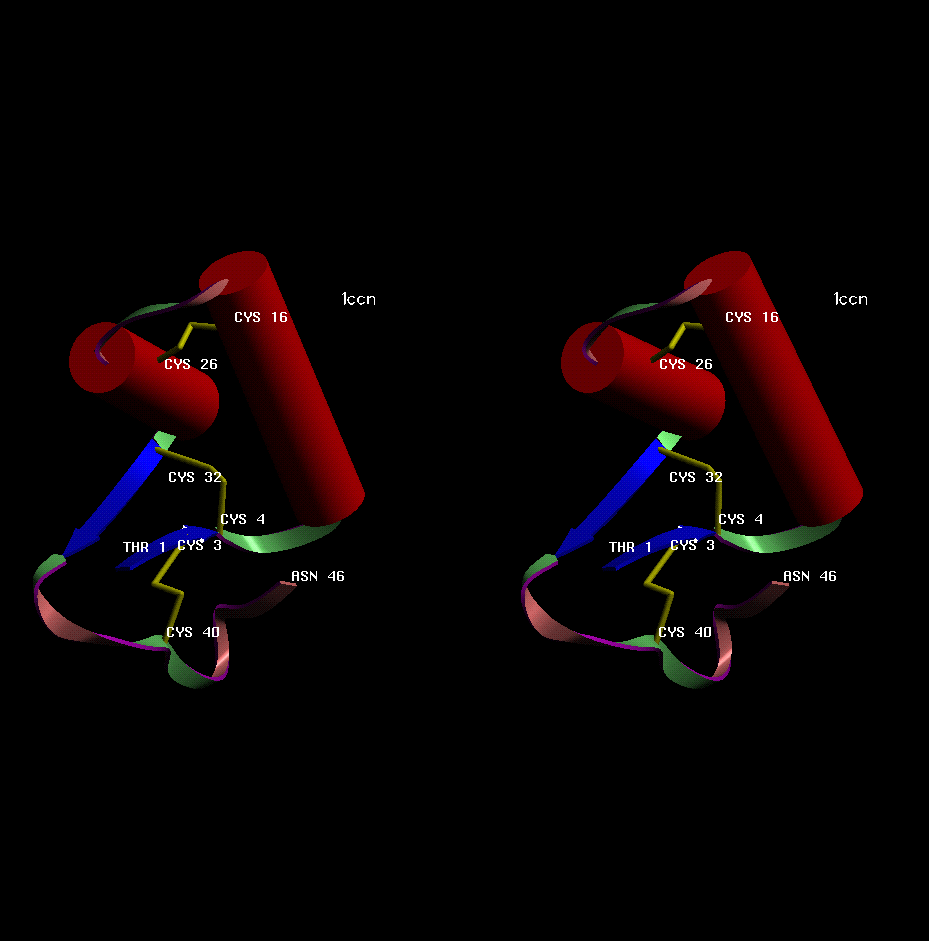

  ribbon, SS bonds
[ mono GIF format | stereo GIF format ]

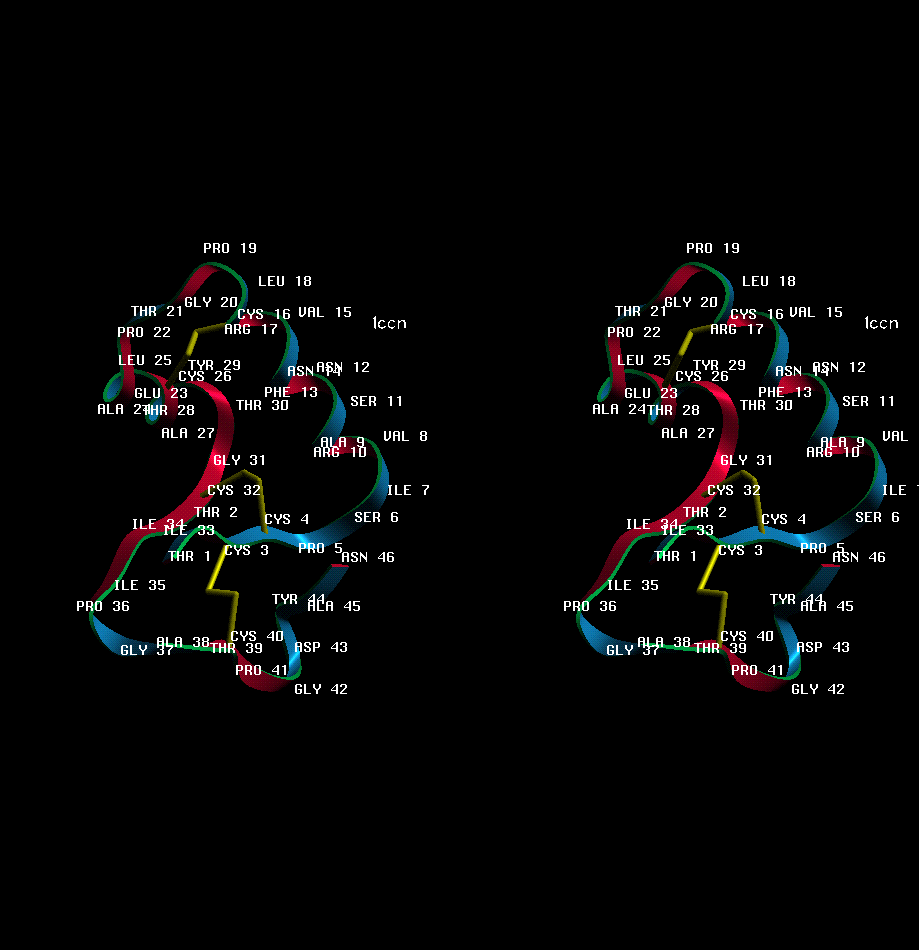

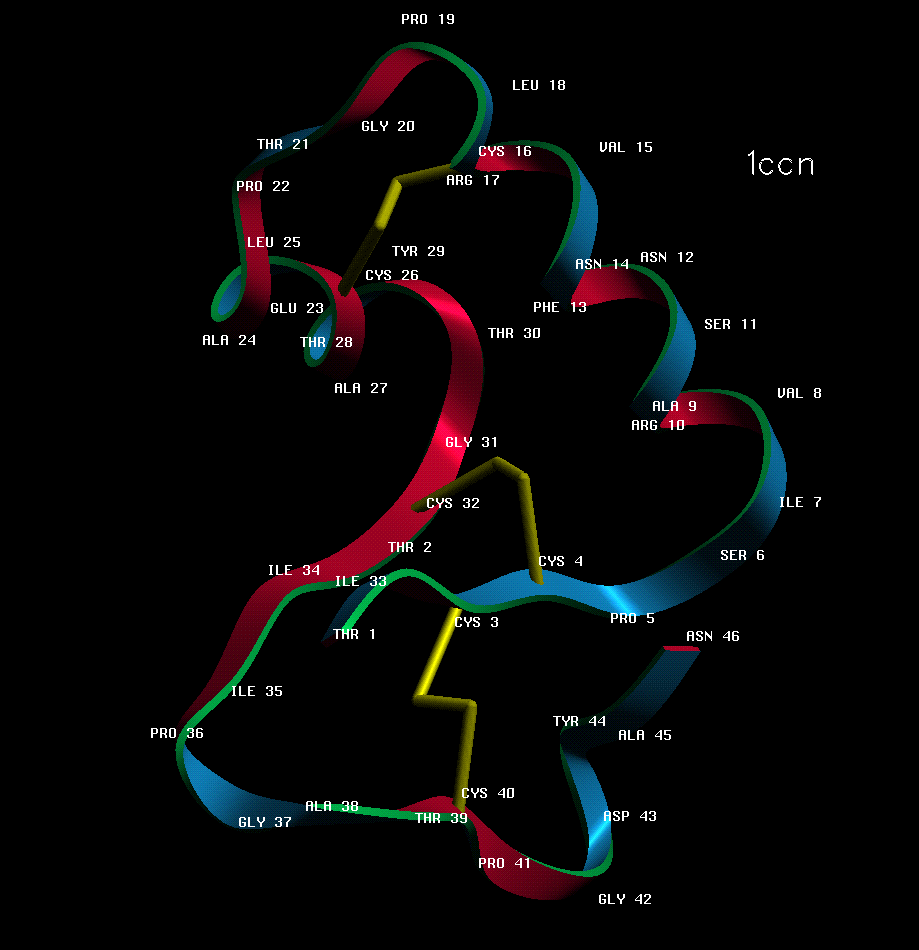

  ribbon, numbering
[ mono GIF format | stereo GIF format ]

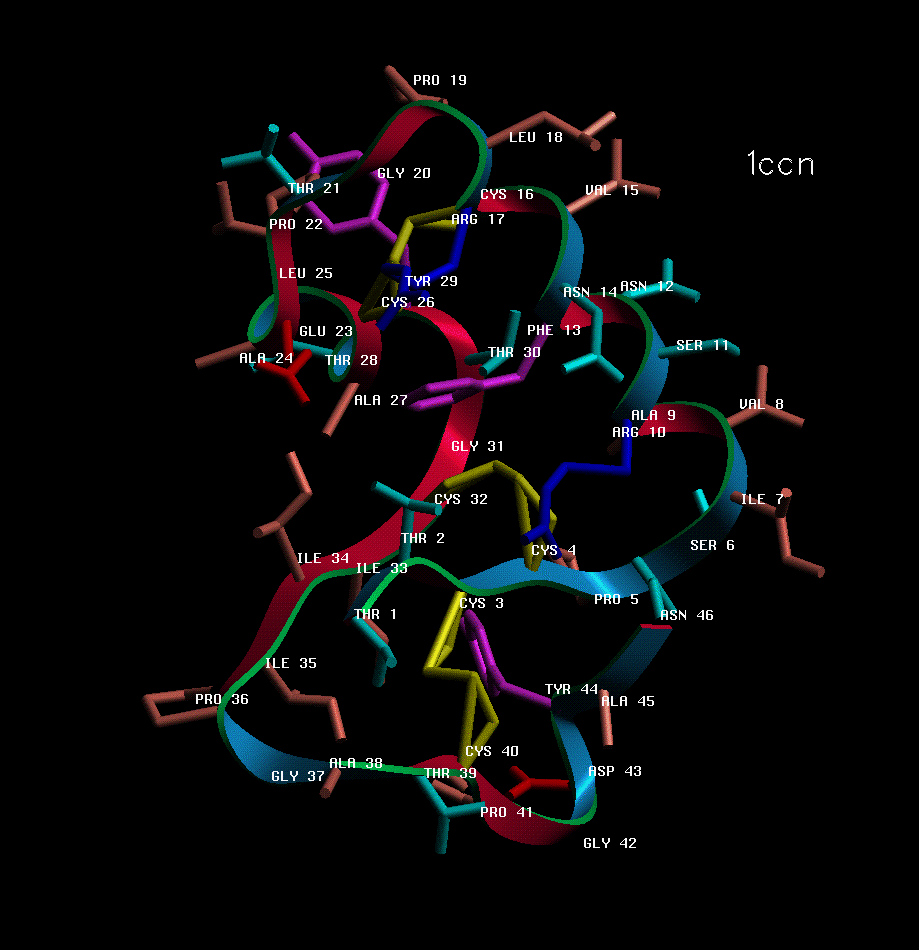

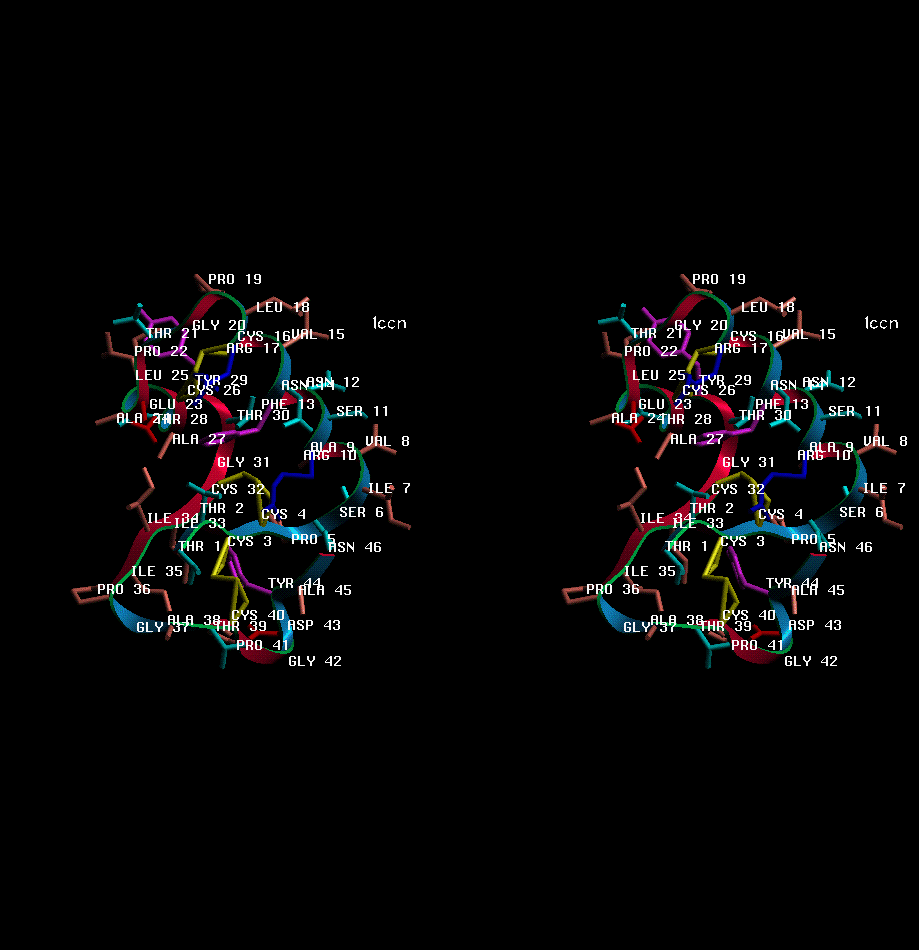

  ribbon, sticks, numbering
[ mono GIF format | stereo GIF format ]

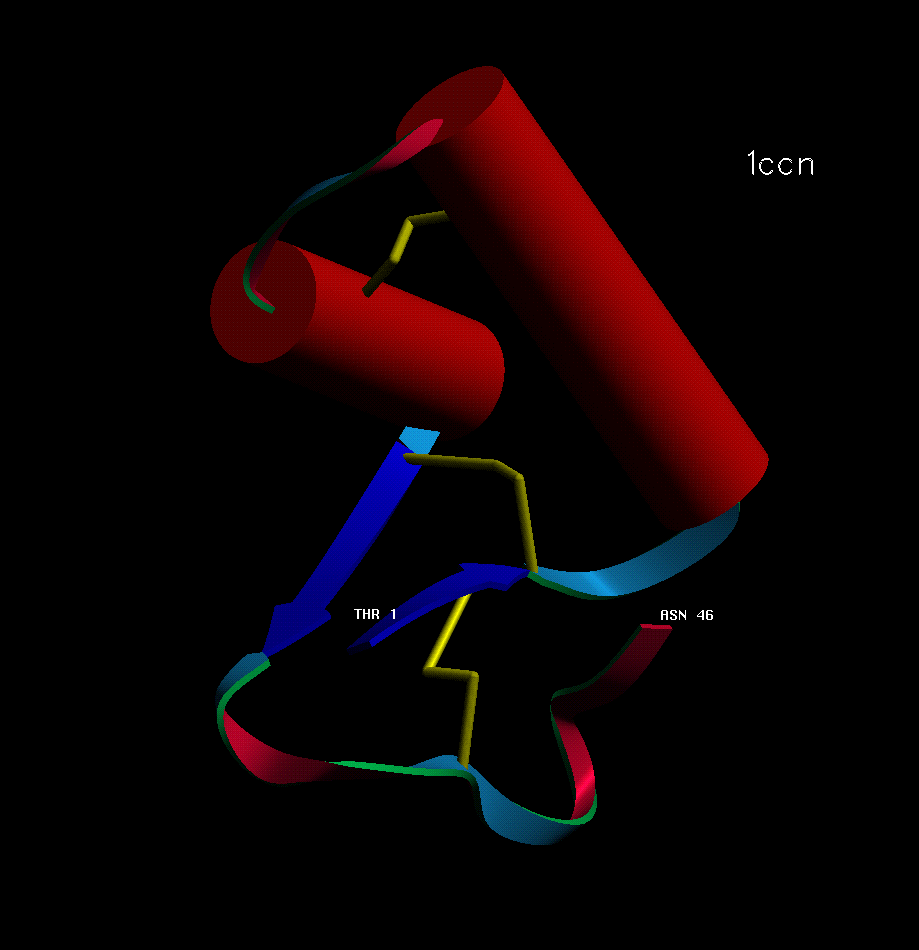

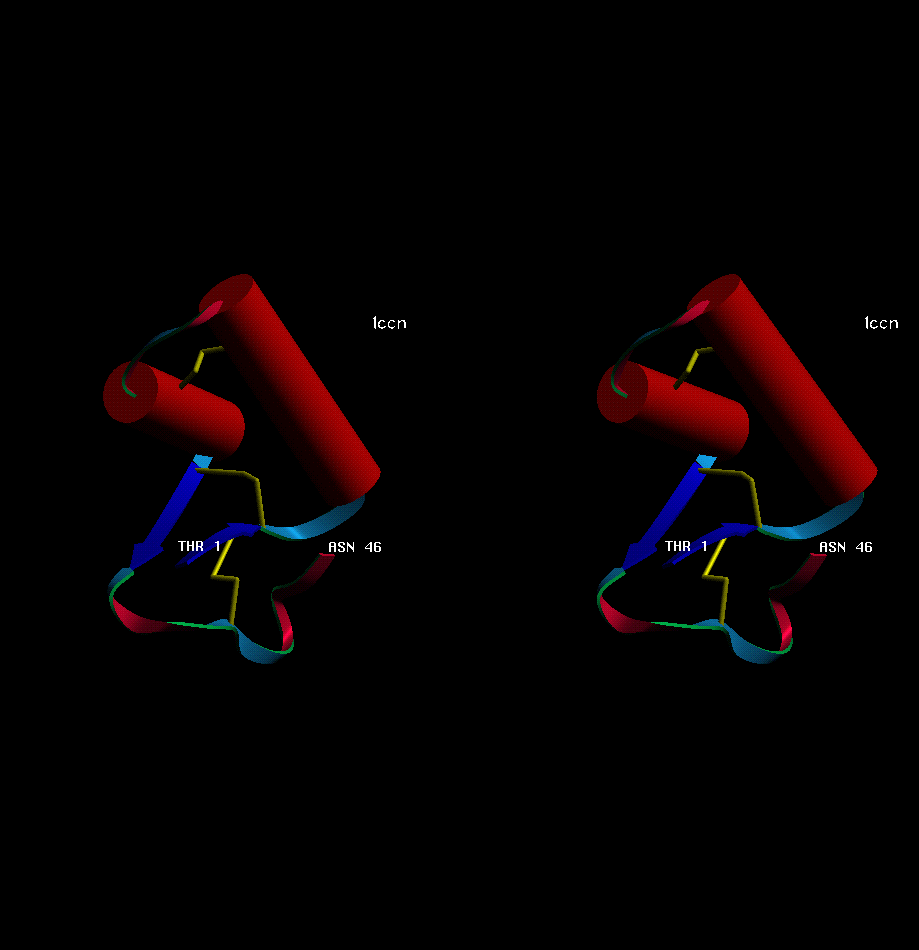

  ribbon, secondary structure
[ mono GIF format | stereo GIF format ]

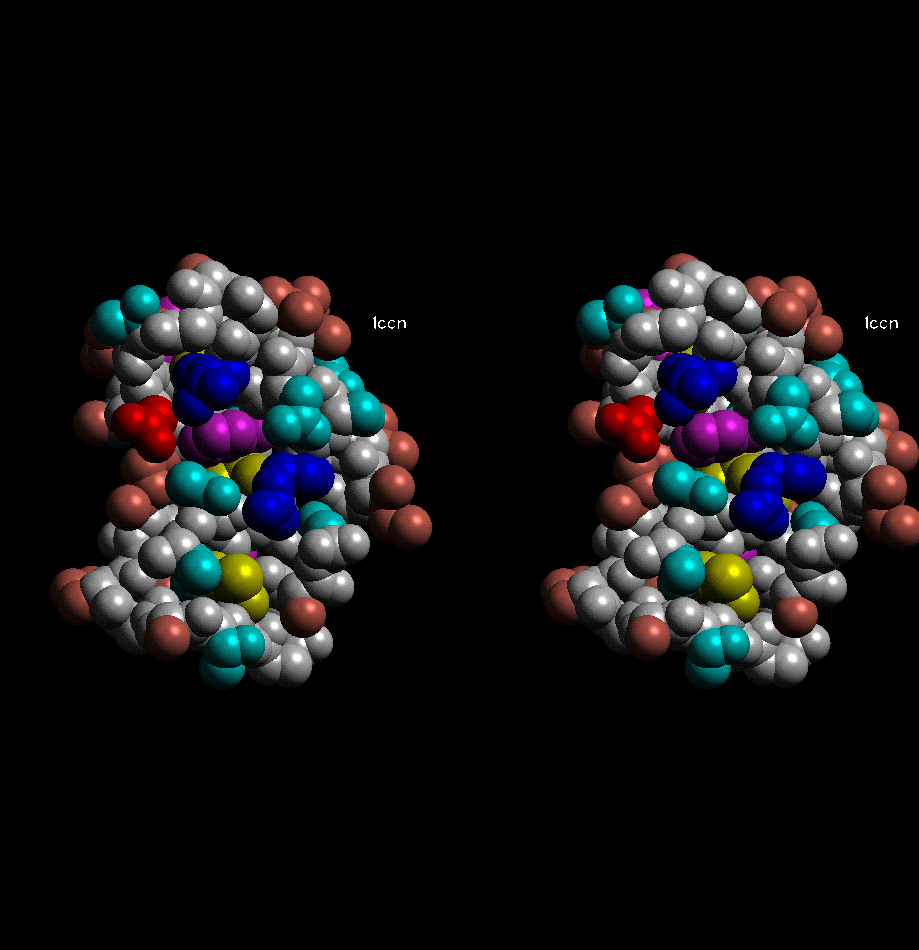

  spacefill
[ mono GIF format | stereo GIF format ]

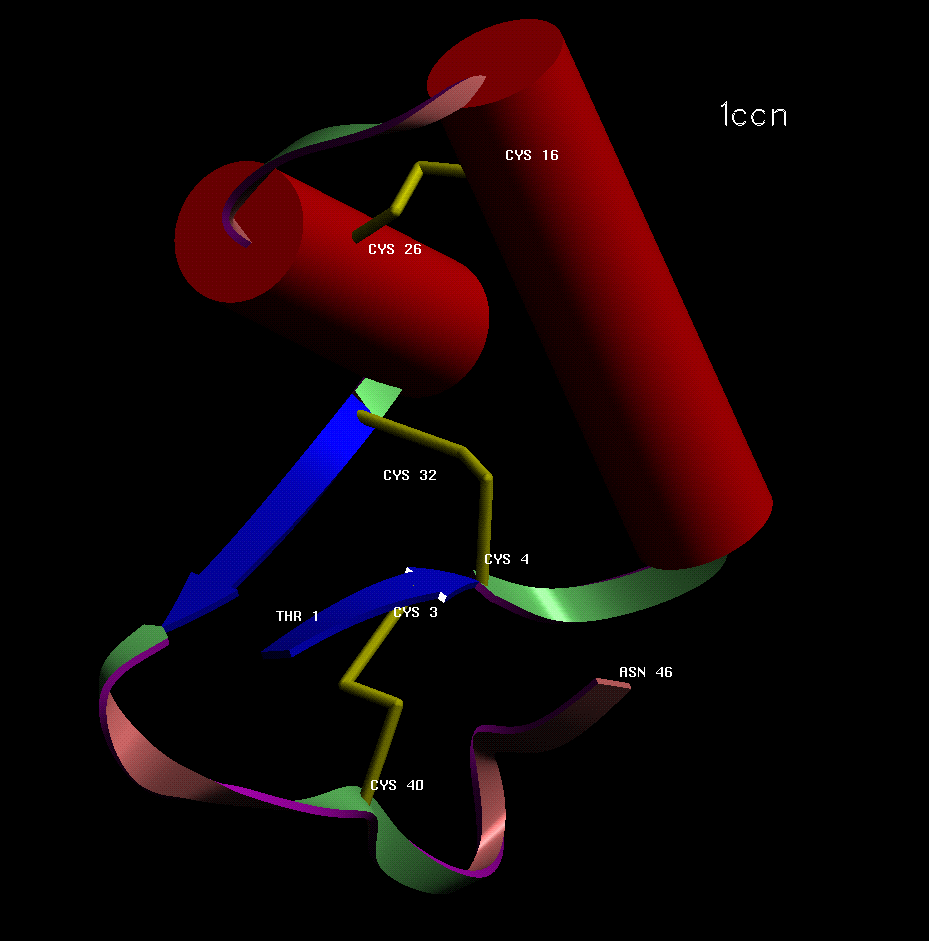

  ribbon, secondary structure
[ mono GIF format | stereo GIF format ]

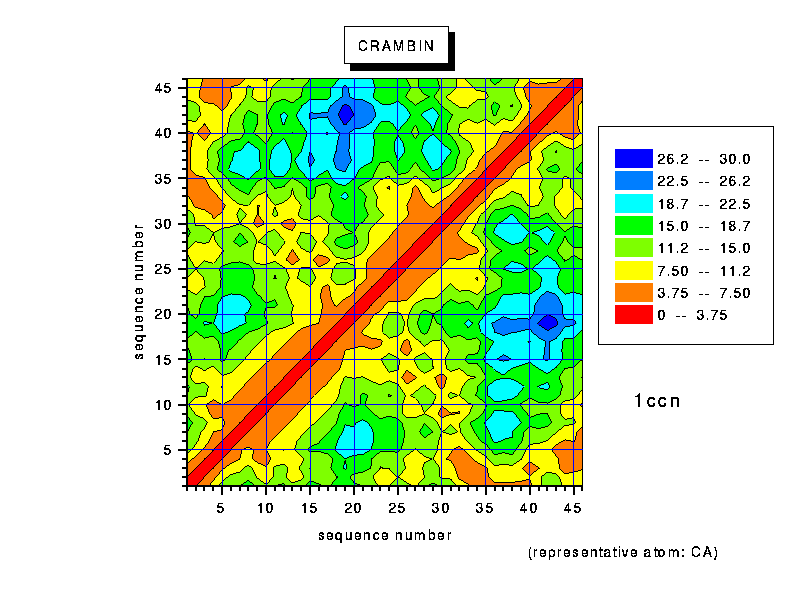

Distance Plot
  representative atom: CA
[ mono GIF format | mono PDF format ]

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1ccn
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CRAM_CRAAB | P01542
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CRAM_CRAAB | P01542
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CRAM_CRAAB | P01542: 1ab1 1cbn 1ccm 1cnr 1crn 1cxr 1ejg 1jxt 1jxu 1jxw 1jxx 1jxy 1yv8 1yva 2eya 2eyb 2eyc 2eyd 2fd7 2fd9 3nir 3u7t 3ue7 4fc1

(-) Related Entries Specified in the PDB File

1ccm
