Title :   CRYSTAL STRUCTURE OF CELLULAR RETINOIC-ACID-BINDING PROTEINS I AND II IN COMPLEX WITH ALL-TRANS-RETINOIC ACID AND A SYNTHETIC RETINOID

Authors :   G. J. Kleywegt, T. Bergfors, T. A. Jones

Date :   28 Sep 94 (Deposition) - 26 Jan 95 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.90

Chains :   Asym./Biol. Unit : A,B

Keywords :   Retinoic-Acid Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   G. J. Kleywegt, T. Bergfors, H. Senn, P. Le Motte, B. Gsell, K. Shudo, T. A. Jones
Crystal Structures Of Cellular Retinoic Acid Binding Proteins I And Ii In Complex With All-Trans-Retinoic Acid And A Synthetic Retinoid.
Structure V. 2 1241 1994
PubMed-ID: 7704533 | Reference-DOI: 10.1016/S0969-2126(94)00125-1
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 2)

Sites (2, 2)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 2)

Exons (0, 0)

Sequences/Alignments

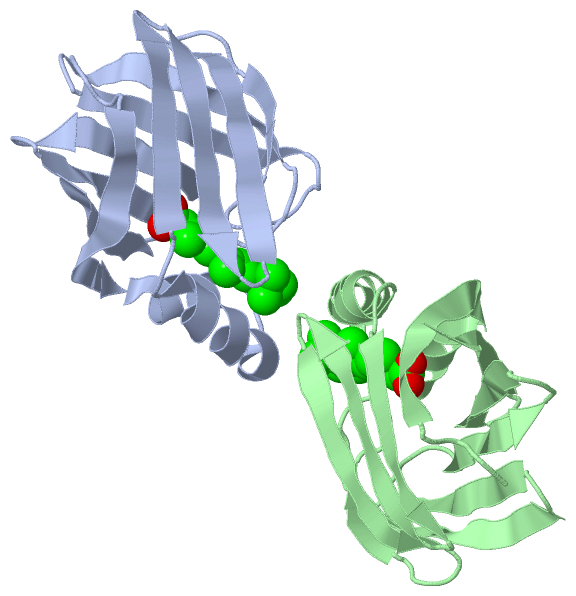

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:136
 aligned with RABP1_MOUSE | P62965 from UniProtKB/Swiss-Prot  Length:137

    Alignment length:136
                                    11        21        31        41        51        61        71        81        91       101       111       121       131
          RABP1_MOUSE     2 PNFAGTWKMRSSENFDELLKALGVNAMLRKVAVAAASKPHVEIRQDGDQFYIKTSTTVRTTEINFKVGEGFEEETVDGRKCRSLPTWENENKIHCTQTLLEGDGPKTYWTRELANDELILTFGADDVVCTRIYVRE 137
               SCOP domains d1cbra_ A: Cellular retinoic-acid-binding protein (CRABP)                                                                                SCOP domains
               CATH domains 1cbrA00 A:1-136  [code=2.40.128.20, no name defined]                                                                                     CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeeeehhhhhhhhh..hhhhhhhhhhhh...eeeeeee..eeeeeeee..eeeeeeee....eee.......eeeeeeeee..eeeeeeee.......eeeeeee...eeeeeeee..eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----FABP  PDB: A:5-22 ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1cbr A   1 PNFAGTWKMRSSENFDELLKALGVNAMLRKVAVAAASKPHVEIRQDGDQFYIKTSTTVRTTEINFKVGEGFEEETVDGRKCRSLPTWENENKIHCTQTLLEGDGPKTYWTRELANDELILTFGADDVVCTRIYVRE 136
                                    10        20        30        40        50        60        70        80        90       100       110       120       130

Chain B from PDB  Type:PROTEIN  Length:136
 aligned with RABP1_MOUSE | P62965 from UniProtKB/Swiss-Prot  Length:137

    Alignment length:136
                                    11        21        31        41        51        61        71        81        91       101       111       121       131
          RABP1_MOUSE     2 PNFAGTWKMRSSENFDELLKALGVNAMLRKVAVAAASKPHVEIRQDGDQFYIKTSTTVRTTEINFKVGEGFEEETVDGRKCRSLPTWENENKIHCTQTLLEGDGPKTYWTRELANDELILTFGADDVVCTRIYVRE 137
               SCOP domains d1cbrb_ B: Cellular retinoic-acid-binding protein (CRABP)                                                                                SCOP domains
               CATH domains 1cbrB00 B:1-136  [code=2.40.128.20, no name defined]                                                                                     CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeeeehhhhhhhhh..hhhhhhhhhhhh...eeeeeee..eeeeeeee..eeeeeeee....eee.......eeeeeeeee..eeeeeeee.......eeeeeee...eeeeeeee..eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----FABP  PDB: B:5-22 ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1cbr B   1 PNFAGTWKMRSSENFDELLKALGVNAMLRKVAVAAASKPHVEIRQDGDQFYIKTSTTVRTTEINFKVGEGFEEETVDGRKCRSLPTWENENKIHCTQTLLEGDGPKTYWTRELANDELILTFGADDVVCTRIYVRE 136
                                    10        20        30        40        50        60        70        80        90       100       110       120       130

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (1, 2)

Pfam Domains (0, 0)

Gene Ontology (10, 10)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B (RABP1_MOUSE | P62965)

molecular function
	GO:0008289	lipid binding	Interacting selectively and non-covalently with a lipid.
	GO:0016918	retinal binding	Interacting selectively and non-covalently with retinal, one of the forms of vitamin A. Retinal plays an important role in the visual process in most vertebrates, combining with opsins to form visual pigments in the retina.
	GO:0001972	retinoic acid binding	Interacting selectively and non-covalently with retinoic acid, 3,7-dimethyl-9-(2,6,-trimethyl-1-cyclohexen-1-yl)-2,4,6,8-nonatetraenoic acid.
	GO:0005501	retinoid binding	Interacting selectively and non-covalently with retinoids, any member of a class of isoprenoids that contain or are derived from four prenyl groups linked head-to-tail. Retinoids include retinol and retinal and structurally similar natural derivatives or synthetic compounds, but need not have vitamin A activity.
	GO:0019841	retinol binding	Interacting selectively and non-covalently with retinol, vitamin A1, 2,6,6-trimethyl-1-(9'-hydroxy-3',7'-dimethylnona-1',3',5',7'-tetraenyl)cyclohex-1-ene, one of the three components that makes up vitamin A. Retinol is an intermediate in the vision cycle and it also plays a role in growth and differentiation.
	GO:0005215	transporter activity	Enables the directed movement of substances (such as macromolecules, small molecules, ions) into, out of or within a cell, or between cells.
biological process
	GO:0034653	retinoic acid catabolic process	The chemical reactions and pathways resulting in the breakdown of retinoic acid, one of the three components that makes up vitamin A.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

Visualization

Interactive Views

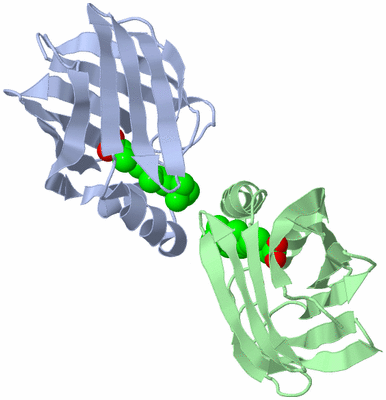

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		REA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

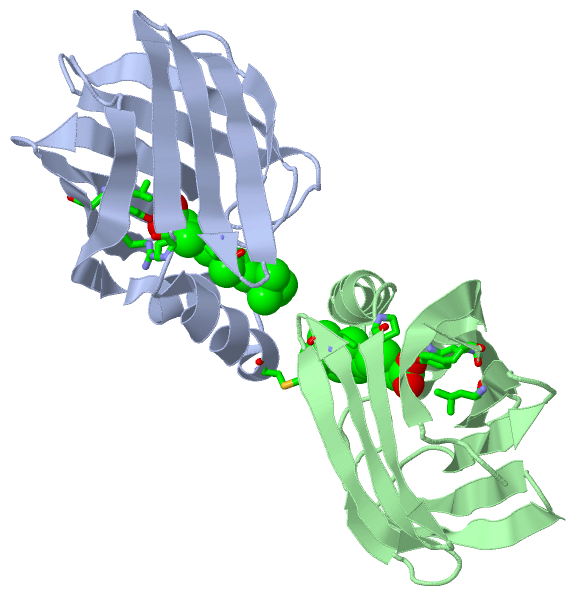

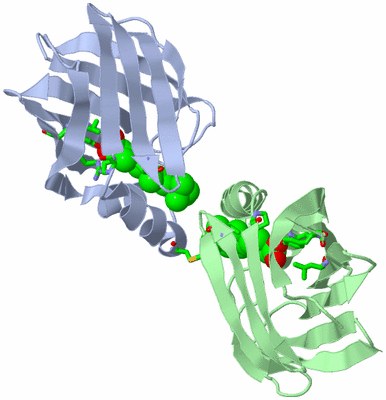

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1cbr)
