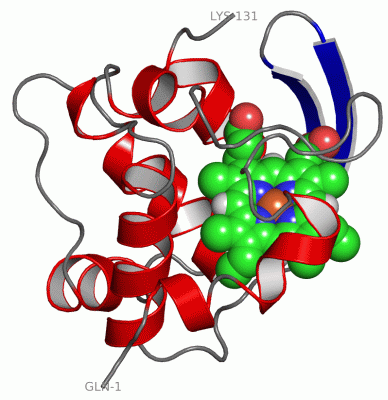

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

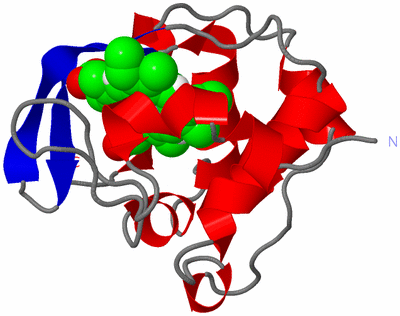

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

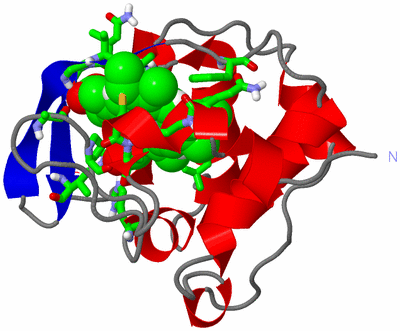

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  THERMUS THERMOPHILUS CYTOCHROME-C552: A NEW HIGHLY THERMOSTABLE CYTOCHROME-C STRUCTURE OBTAINED BY MAD PHASING

Authors :  M. E. Than, P. Hof, R. Huber, G. P. Bourenkov, H. D. Bartunik, G. Buse, T. Soulimane
Date :  23 Jun 97  (Deposition) - 24 Jun 98  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.28
Chains :  Asym./Biol. Unit :  A
Keywords :  Electron Transport Protein, Cytochrome-C552, Mad, Thermostability (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. E. Than, P. Hof, R. Huber, G. P. Bourenkov, H. D. Bartunik, G. Buse, T. Soulimane
Thermus Thermophilus Cytochrome-C552: A New Highly Thermostable Cytochrome-C Structure Obtained By Mad Phasing.
J. Mol. Biol. V. 271 629 1997
PubMed-ID: 9281430  |  Reference-DOI: 10.1006/JMBI.1997.1181
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CYTOCHROME-C552
    Cellular Location: PERIPLASM
    Chains: A
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 274
    Other Details: OXIDIZED STATE (FE+++)

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1HEM1Ligand/IonPROTOPORPHYRIN IX CONTAINING FE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLN A:10 , CYS A:11 , CYS A:14 , HIS A:15 , ALA A:25 , PRO A:27 , HIS A:32 , TYR A:45 , LEU A:46 , LEU A:54 , GLN A:55 , GLY A:56 , VAL A:60 , GLY A:67 , VAL A:68 , MET A:69 , PHE A:72 , ARG A:125BINDING SITE FOR RESIDUE HEM A 200

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1C52)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1C52)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1C52)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CYTCPS51007 Cytochrome c family profile.CY552_THETH1-91  1A:1-91

(-) Exons   (0, 0)

(no "Exon" information available for 1C52)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:131
 aligned with CY552_THETH | P04164 from UniProtKB/Swiss-Prot  Length:131

    Alignment length:131
                                    10        20        30        40        50        60        70        80        90       100       110       120       130
          CY552_THETH     1 QADGAKIYAQCAGCHQQNGQGIPGAFPPLAGHVAEILAKEGGREYLILVLLYGLQGQIEVKGMKYNGVMSSFAQLKDEEIAAVLNHIATAWGDAKKVKGFKPFTAEEVKKLRAKKLTPQQVLAERKKLGLK 131
               SCOP domains d1c52a_ A: Cytochrome c552                                                                                                          SCOP domains
               CATH domains 1c52A00 A:1-131 Cytochrome c                                                                                                        CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhh.hhhhhhh................hhhhhh....hhhhhhhhhhh.eeeeeee..eeeeeee.......hhhhhhhhhhhhh....hhh........hhhhhhh......hhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE CYTC  PDB: A:1-91 UniProt: 1-91                                                            ---------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1c52 A   1 QADGAKIYAQCAGCHQQNGQGIPGAFPPLAGHVAEILAKEGGREYLILVLLYGLQGQIEVKGMKYNGVMSSFAQLKDEEIAAVLNHIATAWGDAKKVKGFKPFTAEEVKKLRAKKLTPQQVLAERKKLGLK 131
                                    10        20        30        40        50        60        70        80        90       100       110       120       130
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1C52)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (CY552_THETH | P04164)
molecular function
    GO:0009055    electron carrier activity    Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
    GO:0020037    heme binding    Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    HEM  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1c52)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

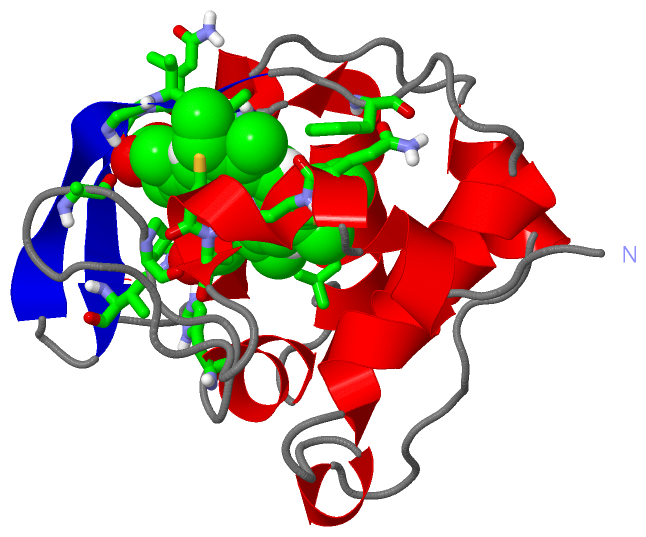

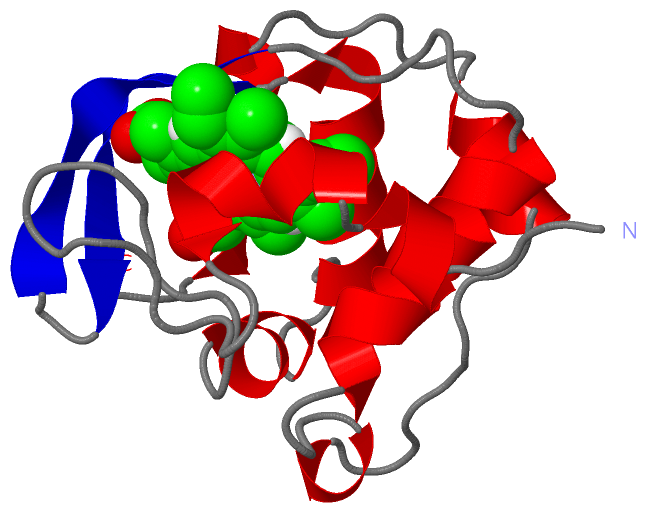

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1c52
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CY552_THETH | P04164
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CY552_THETH | P04164
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CY552_THETH | P04164: 1foc 1qyz 1r0q 2fwl 3vnw
