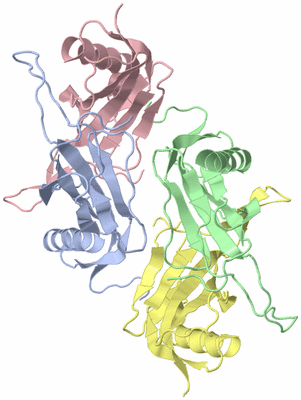

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  BETA DOMAIN OF STREPTOKINASE

Authors :  X. Wang, X. C. Zhang
Date :  15 Sep 99  (Deposition) - 13 Oct 99  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Plasminogen Activator, Blood Clotting (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Wang, J. Tang, B. Hunter, X. C. Zhang
Crystal Structure Of Streptokinase Beta-Domain.
Febs Lett. V. 459 85 1999
PubMed-ID: 10508922  |  Reference-DOI: 10.1016/S0014-5793(99)01214-4
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEIN (STREPTOKINASE)
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PET11
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Fragment: BETA DOMAIN
    Organism Scientific: STREPTOCOCCUS DYSGALACTIAE SUBSP. EQUISIMILIS
    Organism Taxid: 119602
    Strain: SUBSP. EQUISIMILIS

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1C4P)

(-) Sites  (0, 0)

(no "Site" information available for 1C4P)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1C4P)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1C4P)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1C4P)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1C4P)

(-) Exons   (0, 0)

(no "Exon" information available for 1C4P)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:137
 aligned with Q53284_STREQ | Q53284 from UniProtKB/TrEMBL  Length:414

    Alignment length:137
                                   158       168       178       188       198       208       218       228       238       248       258       268       278
         Q53284_STREQ   149 KPIQNQAKSVDVEYTVQFTPLNPDDDFRPGLKDTKLLKTLAIGDTITSQELLAQAQSILNKTHPGYTIYERDSSIVTHDNDIFRTILPMDQEFTYHVKNREQAYEINKKSGLNEEINNTDLISEKYYVLKKGEKPYD 285
               SCOP domains d1c4pa_ A: Streptokinase                                                                                                                  SCOP domains
               CATH domains 1c4pA00 A:149-285  [code=3.10.20.180, no name defined]                                                                                    CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeeeeeeeee..............eeeeee....eeehhhhhhhhhhhhhhh...eeeeee.eeeeee...............eee.....................eeeeeeeeeeeee....... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1c4p A 149 KPIQNQAKSVDVEYTVQFTPLNPDDDFRPGLKDTKLLKTLAIGDTITSQELLAQAQSILNKTHPGYTIYERDSSIVTHDNDIFRTILPMDQEFTYHVKNREQAYEINKKSGLNEEINNTDLISEKYYVLKKGEKPYD 285
                                   158       168       178       188       198       208       218       228       238       248       258       268       278


Chain B from PDB  Type:PROTEIN  Length:137
 aligned with Q53284_STREQ | Q53284 from UniProtKB/TrEMBL  Length:414

    Alignment length:137
                                   158       168       178       188       198       208       218       228       238       248       258       268       278
         Q53284_STREQ   149 KPIQNQAKSVDVEYTVQFTPLNPDDDFRPGLKDTKLLKTLAIGDTITSQELLAQAQSILNKTHPGYTIYERDSSIVTHDNDIFRTILPMDQEFTYHVKNREQAYEINKKSGLNEEINNTDLISEKYYVLKKGEKPYD 285
               SCOP domains d1c4pb_ B: Streptokinase                                                                                                                  SCOP domains
               CATH domains 1c4pB00 B:149-285  [code=3.10.20.180, no name defined]                                                                                    CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeeeeeeeee..............eeeeee....eeehhhhhhhhhhhhhhh...eeeeee.eeeeee...............eee.....................eeeeeeeeeeeee....... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1c4p B 149 KPIQNQAKSVDVEYTVQFTPLNPDDDFRPGLKDTKLLKTLAIGDTITSQELLAQAQSILNKTHPGYTIYERDSSIVTHDNDIFRTILPMDQEFTYHVKNREQAYEINKKSGLNEEINNTDLISEKYYVLKKGEKPYD 285
                                   158       168       178       188       198       208       218       228       238       248       258       268       278


Chain C from PDB  Type:PROTEIN  Length:132
 aligned with Q53284_STREQ | Q53284 from UniProtKB/TrEMBL  Length:414

    Alignment length:132
                                   158       168       178       188       198       208       218       228       238       248       258       268       278
         Q53284_STREQ   149 KPIQNQAKSVDVEYTVQFTPLNPDDDFRPGLKDTKLLKTLAIGDTITSQELLAQAQSILNKTHPGYTIYERDSSIVTHDNDIFRTILPMDQEFTYHVKNREQAYEINKKSGLNEEINNTDLISEKYYVLKKG 280
               SCOP domains d1c4pc_ C: Streptokinase                                                                                                             SCOP domains
               CATH domains 1c4pC00 C:149-280  [code=3.10.20.180, no name defined]                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........eeeeeeeeeee..............eeeeee....eeehhhhhhhhhhhhhhh....eeeee.eeeeee......eee......eee.......eee......eee..eeeeeeeeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1c4p C 149 KPIQNQAKSVDVEYTVQFTPLNPDDDFRPGLKDTKLLKTLAIGDTITSQELLAQAQSILNKTHPGYTIYERDSSIVTHDNDIFRTILPMDQEFTYHVKNREQAYEINKKSGLNEEINNTDLISEKYYVLKKG 280
                                   158       168       178       188       198       208       218       228       238       248       258       268       278


Chain D from PDB  Type:PROTEIN  Length:132
 aligned with Q53284_STREQ | Q53284 from UniProtKB/TrEMBL  Length:414

    Alignment length:132
                                   158       168       178       188       198       208       218       228       238       248       258       268       278
         Q53284_STREQ   149 KPIQNQAKSVDVEYTVQFTPLNPDDDFRPGLKDTKLLKTLAIGDTITSQELLAQAQSILNKTHPGYTIYERDSSIVTHDNDIFRTILPMDQEFTYHVKNREQAYEINKKSGLNEEINNTDLISEKYYVLKKG 280
               SCOP domains d1c4pd_ D: Streptokinase                                                                                                             SCOP domains
               CATH domains 1c4pD00 D:149-280  [code=3.10.20.180, no name defined]                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........eeeeeeeeeee..............eeeeee....eeehhhhhhhhhhhhhhh...eeeeee.eeeeee.....eeee......eee.......eeee....eeee..eeeeeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1c4p D 149 KPIQNQAKSVDVEYTVQFTPLNPDDDFRPGLKDTKLLKTLAIGDTITSQELLAQAQSILNKTHPGYTIYERDSSIVTHDNDIFRTILPMDQEFTYHVKNREQAYEINKKSGLNEEINNTDLISEKYYVLKKG 280
                                   158       168       178       188       198       208       218       228       238       248       258       268       278
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1C4P)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D   (Q53284_STREQ | Q53284)
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
    GO:0031639    plasminogen activation    The process in which inactive plasminogen is processed to active plasmin. This process includes cleavage at an internal Arg-Val site to form an N-terminal A-chain and C-terminal B-chain held together by a disulfide bond, and can include further proteolytic cleavage events to remove the preactivation peptide.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1c4p)

  Sites
(no "Sites" information available for 1c4p)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1c4p)


(-) Still Images

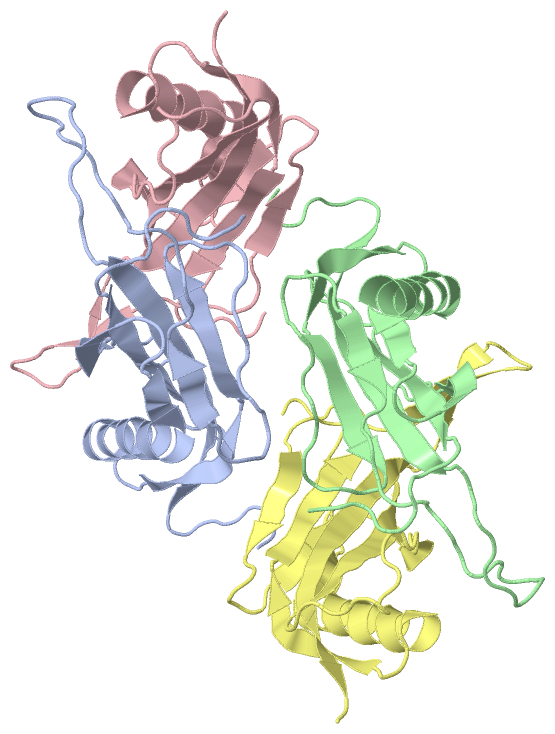

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1c4p
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q53284_STREQ | Q53284
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q53284_STREQ | Q53284
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1C4P)

(-) Related Entries Specified in the PDB File

1bml STREPTOKINASE IN COMPLEX WITH PLASMINOGEN
