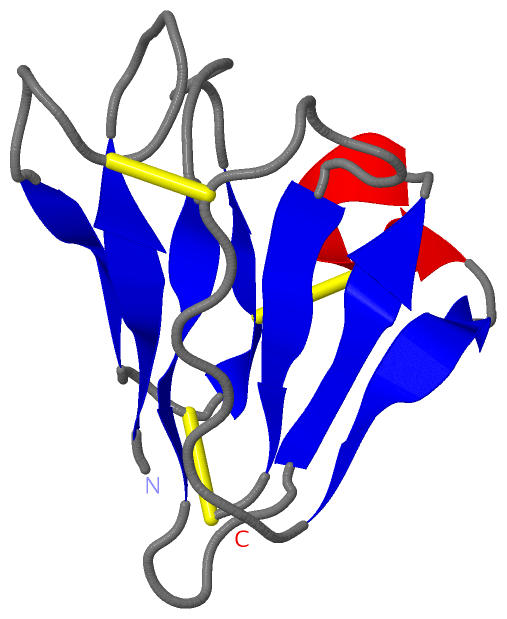

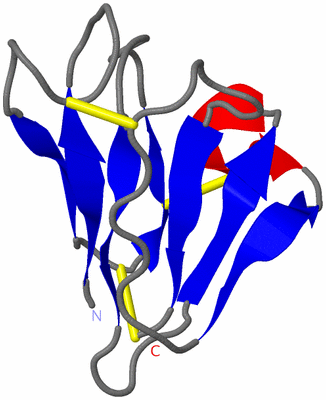

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

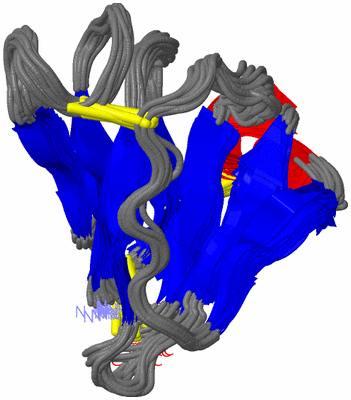

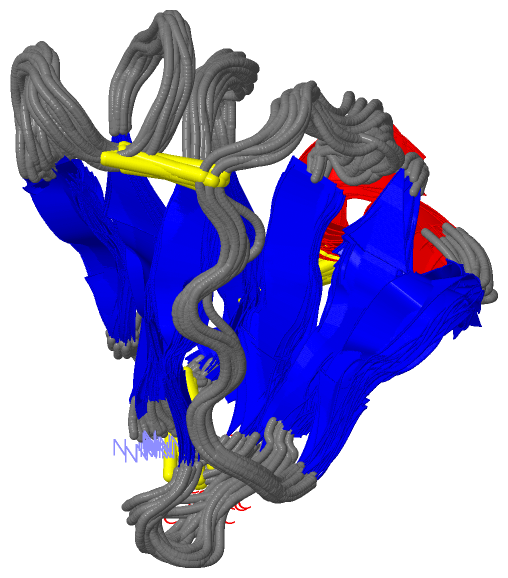

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF MIAMP1, A PLANT ANTIMICROBIAL PROTEIN

Authors :  A. M. Mcmanus, K. J. Nielsen, J. P. Marcus, S. J. Harrison, J. L. Green, J. M. Manners, D. J. Craik
Date :  13 Jul 99  (Deposition) - 19 Jul 00  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Greek Key, Beta-Barrel, Antimicrobial Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. M. Mcmanus, K. J. Nielsen, J. P. Marcus, S. J. Harrison, J. L. Green, J. M. Manners, D. J. Craik
Miamp1, A Novel Protein From Macadamia Integrifolia Adopts A Greek Key Beta-Barrel Fold Unique Amongst Plant Antimicrobial Proteins.
J. Mol. Biol. V. 293 629 1999
PubMed-ID: 10543955  |  Reference-DOI: 10.1006/JMBI.1999.3163
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ANTIMICROBIAL PEPTIDE 1
    Chains: A
    Organ: NUT KERNEL
    Organism Scientific: MACADAMIA INTEGRIFOLIA
    Organism Taxid: 60698

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1C01)

(-) Sites  (0, 0)

(no "Site" information available for 1C01)

(-) SS Bonds  (3, 3)

NMR Structure
No.Residues
1A:11 -A:64
2A:21 -A:76
3A:23 -A:49

(-) Cis Peptide Bonds  (1, 20)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20Gly A:8 -Pro A:9

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1C01)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1C01)

(-) Exons   (0, 0)

(no "Exon" information available for 1C01)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:76
 aligned with AMP1_MACIN | P80915 from UniProtKB/Swiss-Prot  Length:102

    Alignment length:76
                                    36        46        56        66        76        86        96
           AMP1_MACIN    27 SAFTVWSGPGCNNRAERYSKCGCSAIHQKGGYDFSYTGQTAALYNQAGCSGVAHTRFGSSARACNPFGWKSIFIQC 102
               SCOP domains d1c01a_ A: Plant antimicrobial protein MIAMP1                                SCOP domains
               CATH domains 1c01A00 A:1-76  [code=2.60.20.30, no name defined]                           CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee..........eee...eeee......eeee.....eeee.hhhhh..eeeee.............eeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------- Transcript
                 1c01 A   1 SAFTVWSGPGCNNRAERYSKCGCSAIHQKGGYDFSYTGQTAALYNQAGCSGVAHTRFGSSARACNPFGWKSIFIQC  76
                                    10        20        30        40        50        60        70
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1C01)

(-) Gene Ontology  (6, 6)

NMR Structure(hide GO term definitions)
Chain A   (AMP1_MACIN | P80915)
biological process
    GO:0006952    defense response    Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
    GO:0042742    defense response to bacterium    Reactions triggered in response to the presence of a bacterium that act to protect the cell or organism.
    GO:0050832    defense response to fungus    Reactions triggered in response to the presence of a fungus that act to protect the cell or organism.
    GO:0031640    killing of cells of other organism    Any process in an organism that results in the killing of cells of another organism, including in some cases the death of the other organism. Killing here refers to the induction of death in one cell by another cell, not cell-autonomous death due to internal or other environmental conditions.
    GO:0045926    negative regulation of growth    Any process that stops, prevents or reduces the rate or extent of growth, the increase in size or mass of all or part of an organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1c01)

  Sites
(no "Sites" information available for 1c01)

  Cis Peptide Bonds
    Gly A:8 - Pro A:9   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
