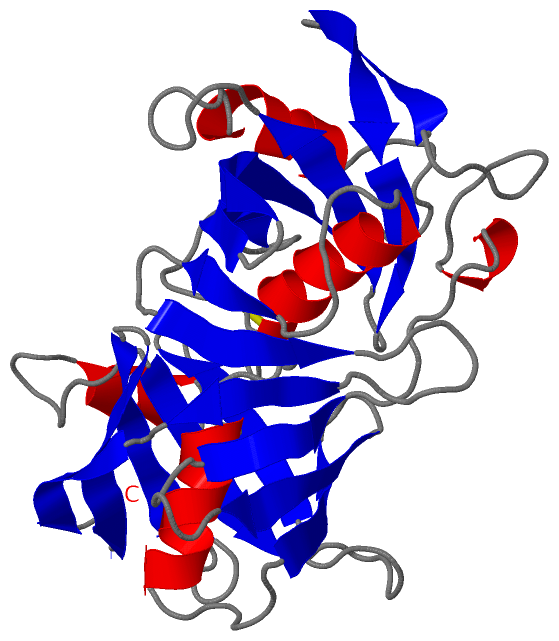

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  DIAMINOPIMELATE EPIMERASE FROM HEMOPHILUS INFLUENZAE

Authors :  M. Cirilli, R. Zheng, G. Scapin, J. S. Blanchard
Date :  29 Sep 98  (Deposition) - 16 Dec 98  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.72
Chains :  Asym./Biol. Unit :  A
Keywords :  Metabolic Role, Structural Classification, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Cirilli, R. Zheng, G. Scapin, J. S. Blanchard
Structural Symmetry: The Three-Dimensional Structure Of Haemophilus Influenzae Diaminopimelate Epimerase.
Biochemistry V. 37 16452 1998
PubMed-ID: 9843410  |  Reference-DOI: 10.1021/BI982138O
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEIN (DIAMINOPIMELATE EPIMERASE)
    Chains: A
    EC Number: 5.1.1.7
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Gene: DAPF
    Expression System Plasmid: PET 23A(+)
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Gene: DAPF
    Organism Scientific: HAEMOPHILUS INFLUENZAE
    Organism Taxid: 727
    Synonym: DAP EPIMERASE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1BWZ)

(-) Sites  (0, 0)

(no "Site" information available for 1BWZ)

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:73 -A:217

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Ile A:128 -Pro A:129

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1BWZ)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1DAP_EPIMERASEPS01326 Diaminopimelate epimerase signature.DAPF_HAEIN64-78  1A:64-78

(-) Exons   (0, 0)

(no "Exon" information available for 1BWZ)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:274
 aligned with DAPF_HAEIN | P44859 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270
           DAPF_HAEIN     1 MQFSKMHGLGNDFVVVDGVTQNVFFTPETIRRLANRHCGIGFDQLLIVEAPYDPELDFHYRIFNADGSEVSQCGNGARCFARFVTLKGLTNKKDISVSTQKGNMVLTVKDDNQIRVNMGEPIWEPAKIPFTANKFEKNYILRTDIQTVLCGAVSMGNPHCVVQVDDIQTANVEQLGPLLESHERFPERVNAGFMQIINKEHIKLRVYERGAGETQACGSGACAAVAVGIMQGLLNNNVQVDLPGGSLMIEWNGVGHPLYMTGEATHIYDGFITL 274
               SCOP domains d1bwza1 A:1-130 Diaminopimelate epimerase                                                                                         d1bwza2 A:131-274 Diaminopimelate epimerase                                                                                                      SCOP domains
               CATH domains 1bwzA01 A:1-114,A:262-274 Diaminopimelate Epimerase; Chain A, domain 1                                            1bwzA02                  ----------1bwzA02 A:115-139,A:150-261 Diaminopimelate Epimerase; Chain A, domain 1                                        1bwzA01       CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee..eeeeeee.........hhhhhhhh.........eeeeee.........eeeeee............hhhhhhhhhh.......eeeee....eeeeee.....eeee.......hhh...........eeeee..eeeeeeeee...eeeeee........hhhhhhhhh.........eeeeeeeee..eeeeeee..........hhhhhhhhhhhhh.......eeee....eeeee........eeee..eeeeeee... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------DAP_EPIMERASE  ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1bwz A   1 MQFSKMHGLGNDFVVVDGVTQNVFFTPETIRRLANRHCGIGFDQLLIVEAPYDPELDFHYRIFNADGSEVSQCGNGARCFARFVTLKGLTNKKDISVSTQKGNMVLTVKDMNQIRVNMGEPIWEPAKIPFTANKFEKNYILRTDIQTVLCGAVSMGNPHCVVQVDDIQTANVEQLGPLLESHERFPERVNAGFMQIINKEHIKLRVYERGAGETQACGSGACAAVAVGIMQGLLNNNVQVDLPGGSLMIEWNGVGHPLYMTGEATHIYDGFITL 274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1BWZ)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (DAPF_HAEIN | P44859)
molecular function
    GO:0008837    diaminopimelate epimerase activity    Catalysis of the reaction: LL-2,6-diaminopimelate = meso-2,6-diaminopimelate.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
biological process
    GO:0008652    cellular amino acid biosynthetic process    The chemical reactions and pathways resulting in the formation of amino acids, organic acids containing one or more amino substituents.
    GO:0009085    lysine biosynthetic process    The chemical reactions and pathways resulting in the formation of lysine, 2,6-diaminohexanoic acid.
    GO:0009089    lysine biosynthetic process via diaminopimelate    The chemical reactions and pathways resulting in the formation of lysine, via the intermediate diaminopimelate.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1bwz)

  Sites
(no "Sites" information available for 1bwz)

  Cis Peptide Bonds
    Ile A:128 - Pro A:129   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
