1BT0 - JenaLib

Title :   STRUCTURE OF UBIQUITIN-LIKE PROTEIN, RUB1

Authors :   W. P. Delacruz, A. J. Fisher

Date :   02 Sep 98 (Deposition) - 30 Dec 98 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.70

Chains :   Asym./Biol. Unit : A

Keywords :   Rub1, Ubiquitin-Like Protein, Arabidopsis, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. Rao-Naik, W. Delacruz, J. M. Laplaza, S. Tan, J. Callis, A. J. Fisher
The Rub Family Of Ubiquitin-Like Proteins. Crystal Structure Of Arabidopsis Rub1 And Expression Of Multiple Rubs In Arabidopsis.
J. Biol. Chem. V. 273 34976 1998
PubMed-ID: 9857029 | Reference-DOI: 10.1074/JBC.273.52.34976
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 5)

Sites (5, 5)

Asymmetric Unit (5, 5)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	MET A:1 , ASP A:16	BINDING SITE FOR RESIDUE ZN A 201
2	AC2	SOFTWARE	HIS A:68 , HOH A:141 , HOH A:153	BINDING SITE FOR RESIDUE ZN A 202
3	AC3	SOFTWARE	GLU A:12 , GLU A:14 , LYS A:33 , HOH A:111 , HOH A:162	BINDING SITE FOR RESIDUE EDO A 301
4	AC4	SOFTWARE	GLU A:31 , HOH A:156	BINDING SITE FOR RESIDUE EDO A 302
5	AC5	SOFTWARE	LYS A:4 , GLY A:64 , VAL A:66 , HOH A:140	BINDING SITE FOR RESIDUE EDO A 303

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 2)

Exons (0, 0)

Sequences/Alignments

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:73
 aligned with RUB1_ARATH | Q9SHE7 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:73
                                    86        96       106       116       126       136       146
           RUB1_ARATH    77 TMIKVKTLTGKEIEIDIEPTDTIDRIKERVEEKEGIPPVQQRLIYAGKQLADDKTAKDYNIEGGSVLHLVLAL 149
               SCOP domains d1bt0a_ A: Rub1                                                           SCOP domains
               CATH domains 1bt0A00 A:1-73                                                            CATH domains
               Pfam domains ------------------------------------------------------------------------- Pfam domains
         Sec.struct. author eeeeeee..eeeeeeee.....hhhhhhhhhhhh.....eeeeee..eee.....hhhh....eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) UBIQUITIN_2  PDB: A:3-73 UniProt: 77-152                                  PROSITE (1)
                PROSITE (2) --------------------------UBIQUITIN_1  PDB: A:27-52 --------------------- PROSITE (2)
                 Transcript ------------------------------------------------------------------------- Transcript
                 1bt0 A   1 MLIKVKTLTGKEIEIDIEPTDTIDRIKERVEEKEGIPPVQQRLIYAGKQLADDKTAKDYNIEGGSVLHLVLAL  73
                                    10        20        30        40        50        60        70

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A (RUB1_ARATH | Q9SHE7)

biological process
	GO:0009693	ethylene biosynthetic process	The chemical reactions and pathways resulting in the formation of ethylene (C2-H4, ethene), a simple hydrocarbon gas that can function in plants as a growth regulator.
	GO:0045116	protein neddylation	Covalent attachment of the ubiquitin-like protein NEDD8 (RUB1) to another protein.
	GO:0009733	response to auxin	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an auxin stimulus.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0005634	nucleus	A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Visualization

Interactive Views

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		EDO	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1bt0)

Still Images

Jmol

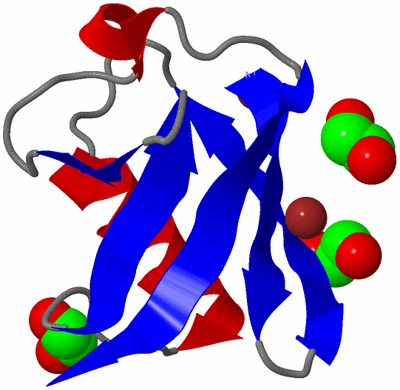

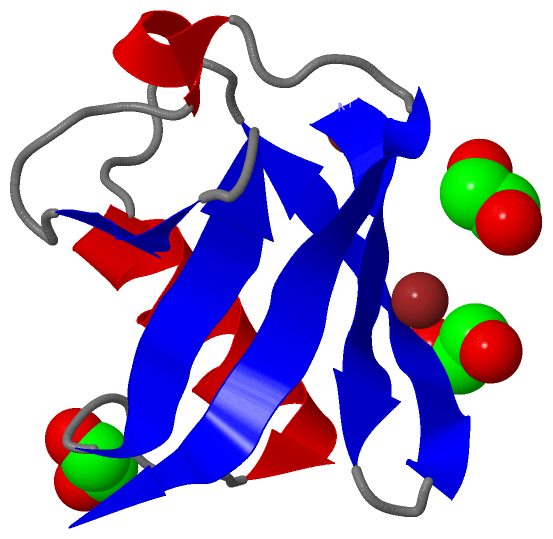

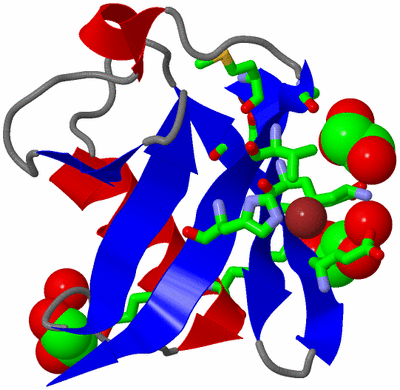

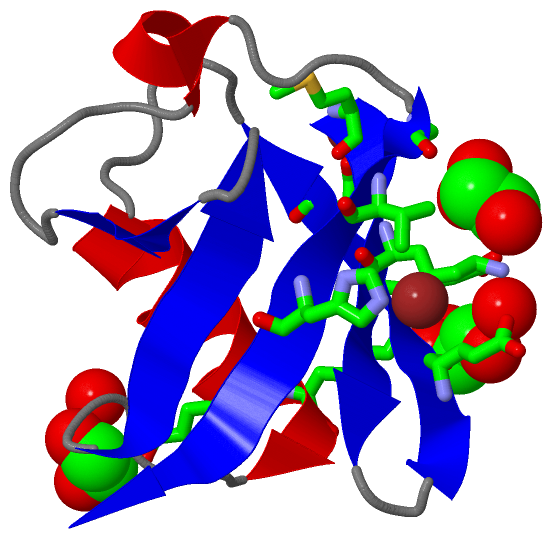

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
