1BSD - JenaLib

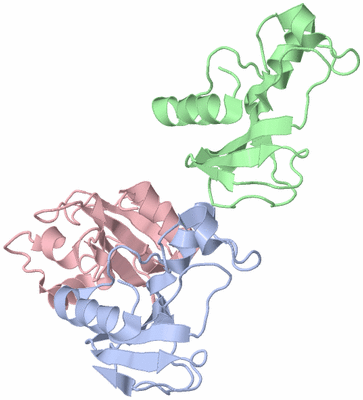

Asymmetric Unit (Jmol Viewer)

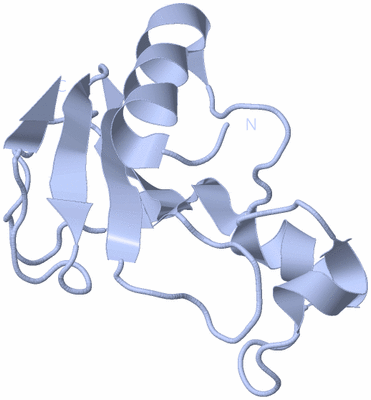

Biological Unit 1 (Jmol Viewer)

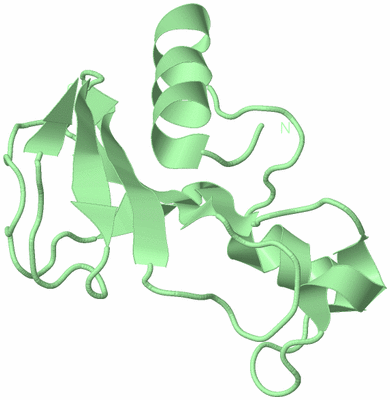

Biological Unit 2 (Jmol Viewer)

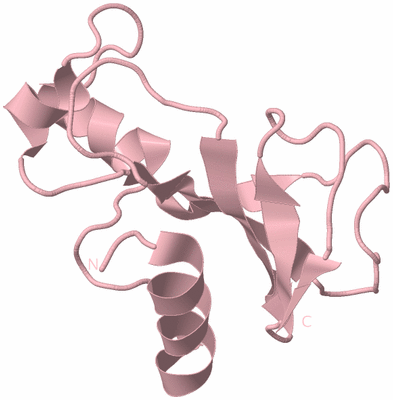

Biological Unit 3 (Jmol Viewer)

Title :   CRYSTAL STRUCTURAL ANALYSIS OF MUTATIONS IN THE HYDROPHOBIC CORES OF BARNASE

Authors :   A. M. Buckle, K. Henrick, A. R. Fersht

Date :   19 Jul 93 (Deposition) - 31 Jan 94 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.30

Chains :   Asym. Unit : A,B,C
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)

Keywords :   Endonuclease (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   A. M. Buckle, K. Henrick, A. R. Fersht
Crystal Structural Analysis Of Mutations In The Hydrophobic Cores Of Barnase.
J. Mol. Biol. V. 234 847 1993
PubMed-ID: 8254677 | Reference-DOI: 10.1006/JMBI.1993.1630
(for further references see the PDB file header)

Molecule 1 - BARNASE
	Chains	:	A, B, C
	EC Number	:	3.1.27.-
	Engineered	:	YES
	Organism Scientific	:	BACILLUS AMYLOLIQUEFACIENS
	Organism Taxid	:	1390

		1	2	3
Asymmetric Unit	:	A	B	C
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1BSD)

(no "Site" information available for 1BSD)

(no "SS Bond" information available for 1BSD)

(no "Cis Peptide Bond" information available for 1BSD)

(no "SAP(SNP)/Variant" information available for 1BSD)

(no "PROSITE Motif" information available for 1BSD)

(no "Exon" information available for 1BSD)

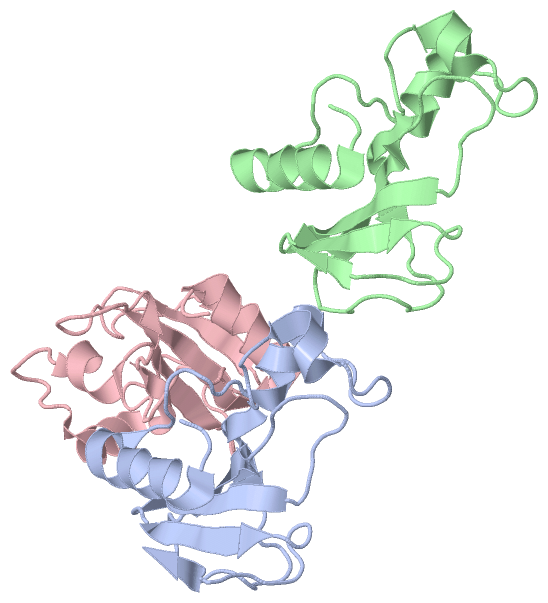

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:107
 aligned with RNBR_BACAM | P00648 from UniProtKB/Swiss-Prot  Length:157

    Alignment length:107
                                    60        70        80        90       100       110       120       130       140       150
           RNBR_BACAM    51 INTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLIYKTTDHYQTFTKIR 157
               SCOP domains d1bsda_ A: Barnase                                                                                          SCOP domains
               CATH domains 1bsdA00 A:4-110  [code=3.10.450.30, no name defined]                                                        CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhh.......hhhhhhhhh......hhhhhh....eeeeee.............eeeeeee.........eeeeeee..eeeee........ee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------- Transcript
                 1bsd A   4 INTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLVYKTTDHYQTFTKIR 110
                                    13        23        33        43        53        63        73        83        93       103

Chain B from PDB  Type:PROTEIN  Length:107
 aligned with RNBR_BACAM | P00648 from UniProtKB/Swiss-Prot  Length:157

    Alignment length:107
                                    60        70        80        90       100       110       120       130       140       150
           RNBR_BACAM    51 INTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLIYKTTDHYQTFTKIR 157
               SCOP domains d1bsdb_ B: Barnase                                                                                          SCOP domains
               CATH domains 1bsdB00 B:4-110  [code=3.10.450.30, no name defined]                                                        CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhh.......hhhhhhhhh......hhhhhh....eeeeee.............eeeeeee.........eeeeeee..eeeee........ee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------- Transcript
                 1bsd B   4 INTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLVYKTTDHYQTFTKIR 110
                                    13        23        33        43        53        63        73        83        93       103

Chain C from PDB  Type:PROTEIN  Length:107
 aligned with RNBR_BACAM | P00648 from UniProtKB/Swiss-Prot  Length:157

    Alignment length:107
                                    60        70        80        90       100       110       120       130       140       150
           RNBR_BACAM    51 INTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLIYKTTDHYQTFTKIR 157
               SCOP domains d1bsdc_ C: Barnase                                                                                          SCOP domains
               CATH domains 1bsdC00 C:4-110  [code=3.10.450.30, no name defined]                                                        CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhh.......hhhhhhhhh......hhhhhh....eeeeee.............eeeeeee.........eeeeeee..eeeee........ee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------- Transcript
                 1bsd C   4 INTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLVYKTTDHYQTFTKIR 110
                                    13        23        33        43        53        63        73        83        93       103

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Microbial ribonucleases (174)

Superfamily: Microbial ribonucleases (174)

Family: Bacterial ribonucleases (89)

Protein domain: Barnase (49)

Bacillus amyloliquefaciens [TaxId: 1390] (49)

1a	d1bsda_	A:
1b	d1bsdb_	B:
1c	d1bsdc_	C:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: Nuclear Transport Factor 2; Chain: A, (517)

Homologous Superfamily: [code=3.10.450.30, no name defined] (159)

Bacillus amyloliquefaciens. Organism_taxid: 1390 (9)

1a	1bsdA00	A:4-110
1b	1bsdB00	B:4-110
1c	1bsdC00	C:4-110

(no "Pfam Domain" information available for 1BSD)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C (RNBR_BACAM | P00648)

molecular function
	GO:0003723	RNA binding	Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
	GO:0004519	endonuclease activity	Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
	GO:0004521	endoribonuclease activity	Catalysis of the hydrolysis of ester linkages within ribonucleic acid by creating internal breaks.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0004518	nuclease activity	Catalysis of the hydrolysis of ester linkages within nucleic acids.
	GO:0004540	ribonuclease activity	Catalysis of the hydrolysis of phosphodiester bonds in chains of RNA.
biological process
	GO:0090501	RNA phosphodiester bond hydrolysis	The RNA metabolic process in which the phosphodiester bonds between ribonucleotides are cleaved by hydrolysis.
	GO:0090502	RNA phosphodiester bond hydrolysis, endonucleolytic	The chemical reactions and pathways involving the hydrolysis of internal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.
	GO:0090305	nucleic acid phosphodiester bond hydrolysis	The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1bsd)

	Sites
(no "Sites" information available for 1bsd)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1bsd)

Biological Units
	Complete Structure

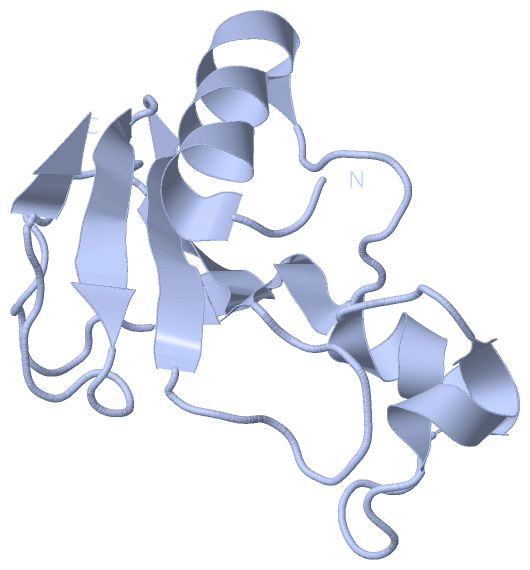

		Biological Unit 1	[ Jena3D ]

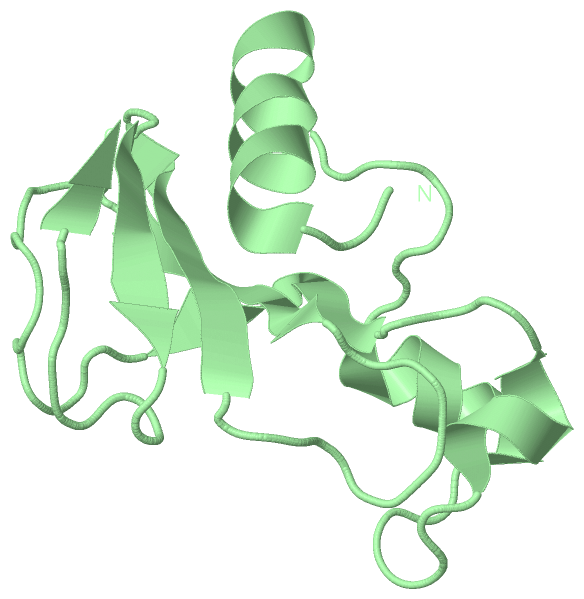

		Biological Unit 2	[ Jena3D ]

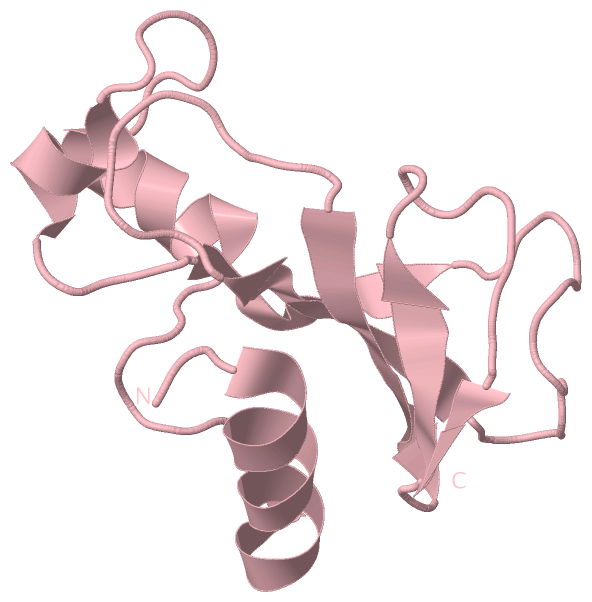

		Biological Unit 3	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1bsd
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	RNBR_BACAM \| P00648
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.1.27.-
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	RNBR_BACAM \| P00648
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
