1BOM - JenaLib

Title :   THREE-DIMENSIONAL STRUCTURE OF BOMBYXIN-II, AN INSULIN-RELATED BRAIN-SECRETORY PEPTIDE OF THE SILKMOTH BOMBYX MORI: COMPARISON WITH INSULIN AND RELAXIN

Authors :   K. Nagata, H. Hatanaka, D. Kohda, F. Inagaki

Date :   21 Jul 94 (Deposition) - 01 Nov 94 (Release) - 24 Feb 09 (Revision)

Method :   SOLUTION NMR

Resolution :   NOT APPLICABLE

Chains :   NMR Structure  : A,B

Keywords :   Insulin-Like Brain-Secretory Peptide (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   K. Nagata, H. Hatanaka, D. Kohda, H. Kataoka, H. Nagasawa, A. Isogai, H. Ishizaki, A. Suzuki, F. Inagaki
Three-Dimensional Solution Structure Of Bombyxin-Ii An Insulin-Like Peptide Of The Silkmoth Bombyx Mori: Structural Comparison With Insulin And Relaxin.
J. Mol. Biol. V. 253 749 1995
PubMed-ID: 7473749 | Reference-DOI: 10.1006/JMBI.1995.0588
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 1)

Sites (0, 0)

SS Bonds (3, 3)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 1)

Exons (0, 0)

Sequences/Alignments

NMR Structure

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:20
 aligned with BXA2_BOMMO | P15411 from UniProtKB/Swiss-Prot  Length:89

    Alignment length:20
                                    79        89
            BXA2_BOMMO   70 GIVDECCLRPCSVDVLLSYC 89
               SCOP domains d1bom.1 B:,A:        SCOP domains
               CATH domains -------------------- CATH domains
               Pfam domains -------------------- Pfam domains
         Sec.struct. author .hhhhhhh....hhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------- SAPs(SNPs)
                    PROSITE -----INSULIN         PROSITE
                 Transcript -------------------- Transcript
                  1bom A  1 GIVDECCLRPCSVDVLLSYC 20
                                    10        20

Chain B from PDB  Type:PROTEIN  Length:28
 aligned with BXA6_BOMMO | P26729 from UniProtKB/Swiss-Prot  Length:92

    Alignment length:28
                                    29        39
            BXA6_BOMMO   20 QQPQAVHTYCGRHLARTLADLCWEAGVD 47
               SCOP domains d1bom.1 B:,A: Bombyxin-II    SCOP domains
               CATH domains ---------------------------- CATH domains
               Pfam domains ---------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------- SAPs(SNPs)
                    PROSITE ---------------------------- PROSITE
                 Transcript ---------------------------- Transcript
                  1bom B -2 xQPQAVHTYCGRHLARTLADLCWEAGVD 25
                            |        7        17
                           -2-PCA

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (4, 8)

NMR Structure(hide GO term definitions)

Chain A (BXA2_BOMMO | P15411)

molecular function
	GO:0008083	growth factor activity	The function that stimulates a cell to grow or proliferate. Most growth factors have other actions besides the induction of cell growth or proliferation.
	GO:0005179	hormone activity	The action characteristic of a hormone, any substance formed in very small amounts in one specialized organ or group of cells and carried (sometimes in the bloodstream) to another organ or group of cells in the same organism, upon which it has a specific regulatory action. The term was originally applied to agents with a stimulatory physiological action in vertebrate animals (as opposed to a chalone, which has a depressant action). Usage is now extended to regulatory compounds in lower animals and plants, and to synthetic substances having comparable effects; all bind receptors and trigger some biological process.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
	GO:0005615	extracellular space	That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.

Chain B (BXA6_BOMMO | P26729)

molecular function
	GO:0008083	growth factor activity	The function that stimulates a cell to grow or proliferate. Most growth factors have other actions besides the induction of cell growth or proliferation.
	GO:0005179	hormone activity	The action characteristic of a hormone, any substance formed in very small amounts in one specialized organ or group of cells and carried (sometimes in the bloodstream) to another organ or group of cells in the same organism, upon which it has a specific regulatory action. The term was originally applied to agents with a stimulatory physiological action in vertebrate animals (as opposed to a chalone, which has a depressant action). Usage is now extended to regulatory compounds in lower animals and plants, and to synthetic substances having comparable effects; all bind receptors and trigger some biological process.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
	GO:0005615	extracellular space	That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.

Visualization

Interactive Views

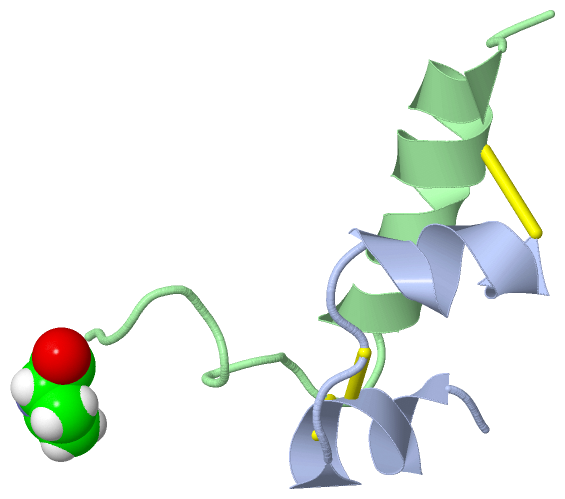

NMR Structure
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		PCA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
(no "Sites" information available for 1bom)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1bom)

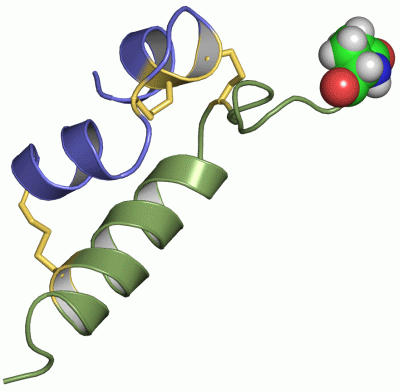

Still Images
