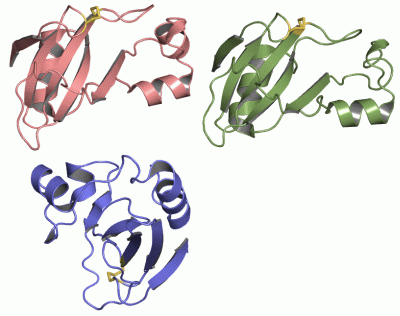

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)
Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

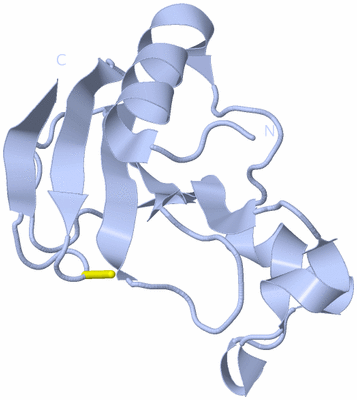

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

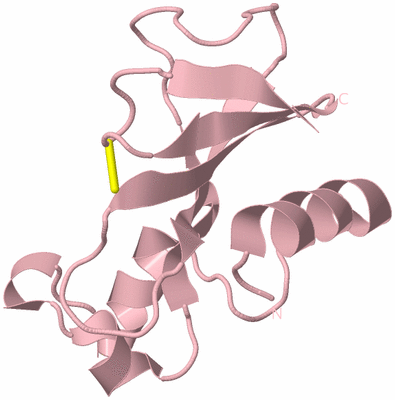

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  BARNASE S85C/H102C DISULFIDE MUTANT

Authors :  J. Clarke, K. Henrick, A. R. Fersht
Date :  31 Mar 95  (Deposition) - 10 Jul 95  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Keywords :  Endonuclease (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Clarke, K. Henrick, A. R. Fersht
Disulfide Mutants Of Barnase. I: Changes In Stability And Structure Assessed By Biophysical Methods And X-Ray Crystallography.
J. Mol. Biol. V. 253 493 1995
PubMed-ID: 7473729  |  Reference-DOI: 10.1006/JMBI.1995.0568
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - BARNASE
    Chains: A, B, C
    EC Number: 3.1.27.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Gene: BARNASE
    Expression System Plasmid: PTZ18 DERIVED
    Expression System Taxid: 562
    Gene: BARNASE
    Organism Scientific: BACILLUS AMYLOLIQUEFACIENS
    Organism Taxid: 1390

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1BNG)

(-) Sites  (0, 0)

(no "Site" information available for 1BNG)

(-) SS Bonds  (3, 3)

Asymmetric Unit
No.Residues
1A:85 -A:102
2B:85 -B:102
3C:85 -C:102

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1BNG)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1BNG)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1BNG)

(-) Exons   (0, 0)

(no "Exon" information available for 1BNG)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:108
 aligned with RNBR_BACAM | P00648 from UniProtKB/Swiss-Prot  Length:157

    Alignment length:108
                                    59        69        79        89        99       109       119       129       139       149
           RNBR_BACAM    50 VINTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLIYKTTDHYQTFTKIR 157
               SCOP domains d1bnga_ A: Barnase                                                                                           SCOP domains
               CATH domains 1bngA00 A:3-110  [code=3.10.450.30, no name defined]                                                         CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhh.......hhhhhhhhh..hhh.hhhhhh...eeeeee..............eeeeeee........eeeeeee..eeeeee......eeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------ Transcript
                 1bng A   3 VINTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNCDRILYSSDWLIYKTTDCYQTFTKIR 110
                                    12        22        32        42        52        62        72        82        92       102


Chain B from PDB  Type:PROTEIN  Length:107
 aligned with RNBR_BACAM | P00648 from UniProtKB/Swiss-Prot  Length:157

    Alignment length:107
                                    60        70        80        90       100       110       120       130       140       150
           RNBR_BACAM    51 INTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLIYKTTDHYQTFTKIR 157
               SCOP domains d1bngb_ B: Barnase                                                                                          SCOP domains
               CATH domains 1bngB00 B:4-110  [code=3.10.450.30, no name defined]                                                        CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhh.......hhhhhhhhh..hhh..........eeeeee..............eeeeeee........eeeeeee..eeeeee......eeeee Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------- Transcript
                 1bng B   4 INTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNCDRILYSSDWLIYKTTDCYQTFTKIR 110
                                    13        23        33        43        53        63        73        83        93       103


Chain C from PDB  Type:PROTEIN  Length:107
 aligned with RNBR_BACAM | P00648 from UniProtKB/Swiss-Prot  Length:157

    Alignment length:107
                                    60        70        80        90       100       110       120       130       140       150
           RNBR_BACAM    51 INTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLIYKTTDHYQTFTKIR 157
               SCOP domains d1bngc_ C: Barnase                                                                                          SCOP domains
               CATH domains 1bngC00 C:4-110  [code=3.10.450.30, no name defined]                                                        CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhh.......hhhhhhhhh..hhh.hhhhhh...eeeeee..............eeeeeee........eeeeeee..eeeeee......eeeee Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------- Transcript
                 1bng C   4 INTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNCDRILYSSDWLIYKTTDCYQTFTKIR 110
                                    13        23        33        43        53        63        73        83        93       103
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 3)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1BNG)

(-) Gene Ontology  (10, 10)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C   (RNBR_BACAM | P00648)
molecular function
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
    GO:0004519    endonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
    GO:0004521    endoribonuclease activity    Catalysis of the hydrolysis of ester linkages within ribonucleic acid by creating internal breaks.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0004518    nuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids.
    GO:0004540    ribonuclease activity    Catalysis of the hydrolysis of phosphodiester bonds in chains of RNA.
biological process
    GO:0090501    RNA phosphodiester bond hydrolysis    The RNA metabolic process in which the phosphodiester bonds between ribonucleotides are cleaved by hydrolysis.
    GO:0090502    RNA phosphodiester bond hydrolysis, endonucleolytic    The chemical reactions and pathways involving the hydrolysis of internal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1bng)

  Sites
(no "Sites" information available for 1bng)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1bng)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

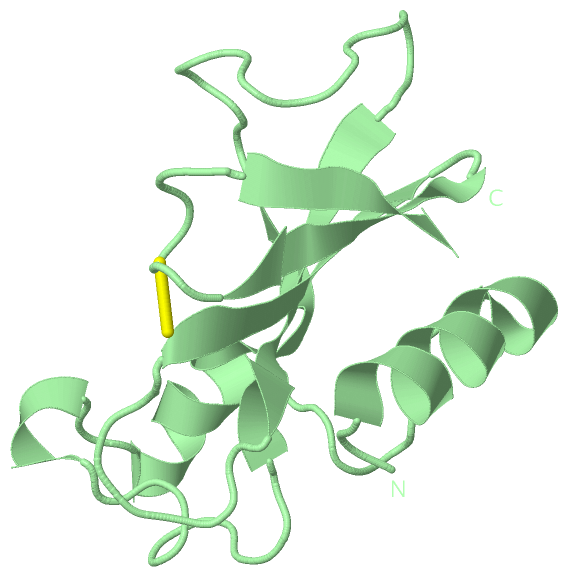

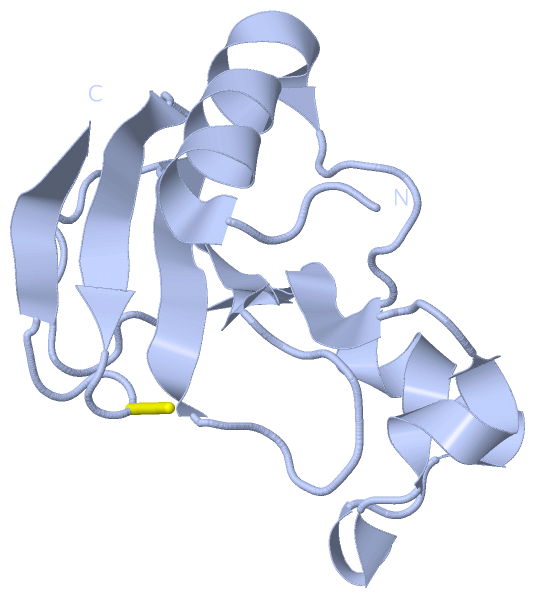

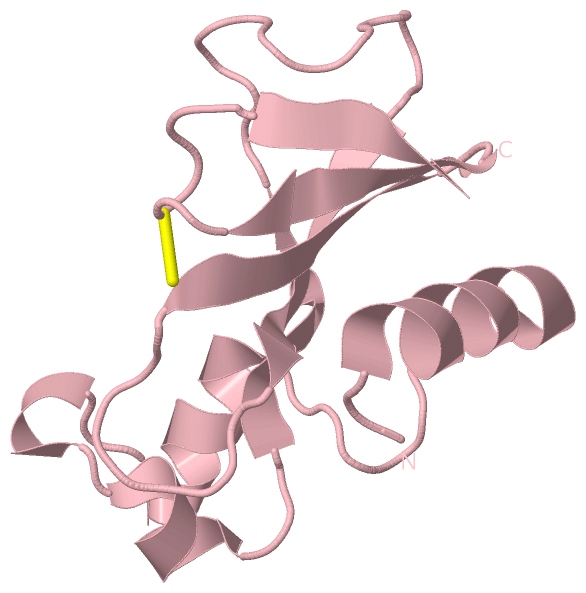

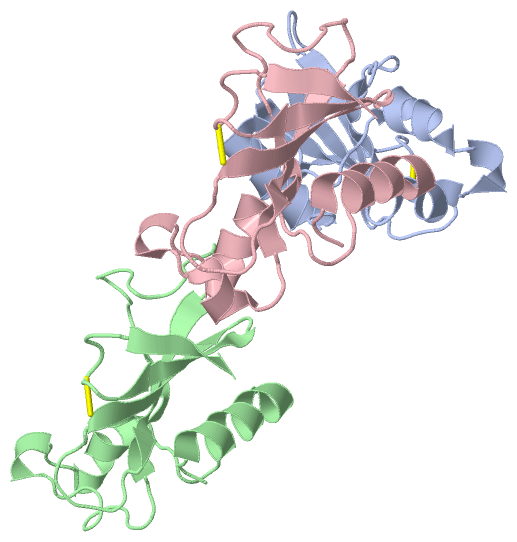

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1bng
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RNBR_BACAM | P00648
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.1.27.-
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  RNBR_BACAM | P00648
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
