1BM8 - JenaLib

Title :   DNA-BINDING DOMAIN OF MBP1

Authors :   R. -M. Xu, C. Koch, Y. Liu, J. R. Horton, D. Knapp, K. Nasmyth, X. Cheng

Date :   29 Jul 98 (Deposition) - 02 Mar 99 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.71

Chains :   Asym./Biol. Unit : A

Keywords :   Cell Cycle, Cyclins, Dna Synthesis, Helix-Turn-Helix Dna- Binding Domain, Multiwavelength Anomalous Diffraction, Transcription Factor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   R. M. Xu, C. Koch, Y. Liu, J. R. Horton, D. Knapp, K. Nasmyth, X. Cheng
Crystal Structure Of The Dna-Binding Domain Of Mbp1, A Transcription Factor Important In Cell-Cycle Control Of Dna Synthesis.
Structure V. 5 349 1997
PubMed-ID: 9083114 | Reference-DOI: 10.1016/S0969-2126(97)00192-5
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 1)

Exons (1, 1)

Sequences/Alignments

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:99
 aligned with MBP1_YEAST | P39678 from UniProtKB/Swiss-Prot  Length:833

    Alignment length:99
                                    13        23        33        43        53        63        73        83        93
           MBP1_YEAST     4 QIYSARYSGVDVYEFIHSTGSIMKRKKDDWVNATHILKAANFAKAKRTRILEKEVLKETHEKVQGGFGKYQGTWVPLNIAKQLAEKFSVYDQLKPLFDF 102
               SCOP domains d1bm8a_ A: DNA-binding domain of Mlu1-box binding protein MBP1                                      SCOP domains
               CATH domains 1bm8A00 A:4-102 Mlu1-box Binding Protein; Dna-binding Domain;                                       CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee..eeeeeee....eeeee.......hhhhhhh....hhhhhhhhhhh......eee........eee..hhhhhhhhhh...hhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -HTH_APSES  PDB: A:5-102 UniProt: 5-111                                                             PROSITE
               Transcript 1 Exon 1.1  PDB: A:4-102 UniProt: 1-833 [INCOMPLETE]                                                  Transcript 1
                 1bm8 A   4 QIYSARYSGVDVYEFIHSTGSIMKRKKDDWVNATHILKAANFAKAKRTRILEKEVLKETHEKVQGGFGKYQGTWVPLNIAKQLAEKFSVYDQLKPLFDF 102
                                    13        23        33        43        53        63        73        83        93

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (10, 10)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A (MBP1_YEAST | P39678)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0001077	transcriptional activator activity, RNA polymerase II core promoter proximal region sequence-specific binding	Interacting selectively and non-covalently with a sequence of DNA that is in cis with and relatively close to a core promoter for RNA polymerase II (RNAP II) in order to activate or increase the frequency, rate or extent of transcription from the RNAP II promoter.
biological process
	GO:0071931	positive regulation of transcription involved in G1/S transition of mitotic cell cycle	Any process that activates or increases transcription as part of the G1/S transition of the mitotic cell cycle.
	GO:0000083	regulation of transcription involved in G1/S transition of mitotic cell cycle	Any process that regulates transcription such that the target genes are involved in the transition between G1 and S phase of the mitotic cell cycle.
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0006366	transcription from RNA polymerase II promoter	The synthesis of RNA from a DNA template by RNA polymerase II, originating at an RNA polymerase II promoter. Includes transcription of messenger RNA (mRNA) and certain small nuclear RNAs (snRNAs).
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.
cellular component
	GO:0030907	MBF transcription complex	A protein complex that binds to the Mlu1 cell cycle box (MCB) promoter element, consensus sequence ACGCGN, and is involved in regulation of transcription during the G1/S transition of the cell cycle. In Saccharomyces, the complex contains a heterodimer of the DNA binding protein Mbp1p and the activator Swi4p, and is associated with additional proteins known as Nrm1p, Msa1p, and Msa2p; in Schizosaccharomyces the complex contains Res1p, Res2p, and Cdc10p.
	GO:0005634	nucleus	A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Visualization

Interactive Views

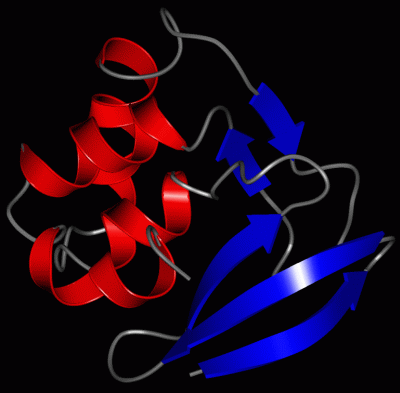

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1bm8)

	Sites
(no "Sites" information available for 1bm8)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1bm8)

Still Images

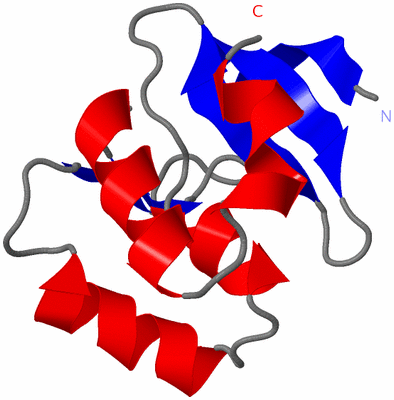

Jmol

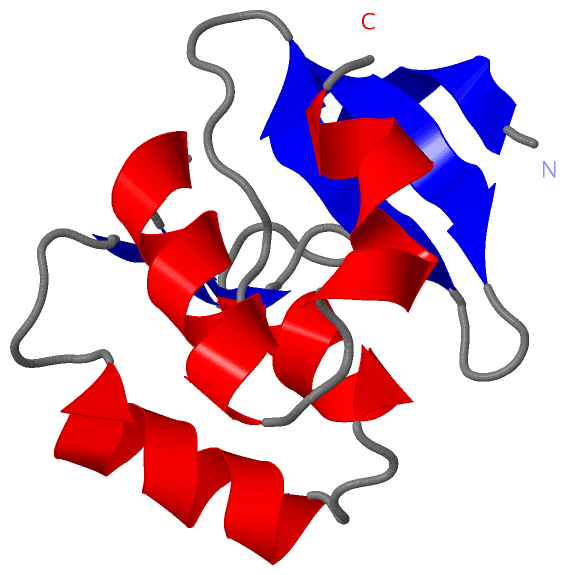

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

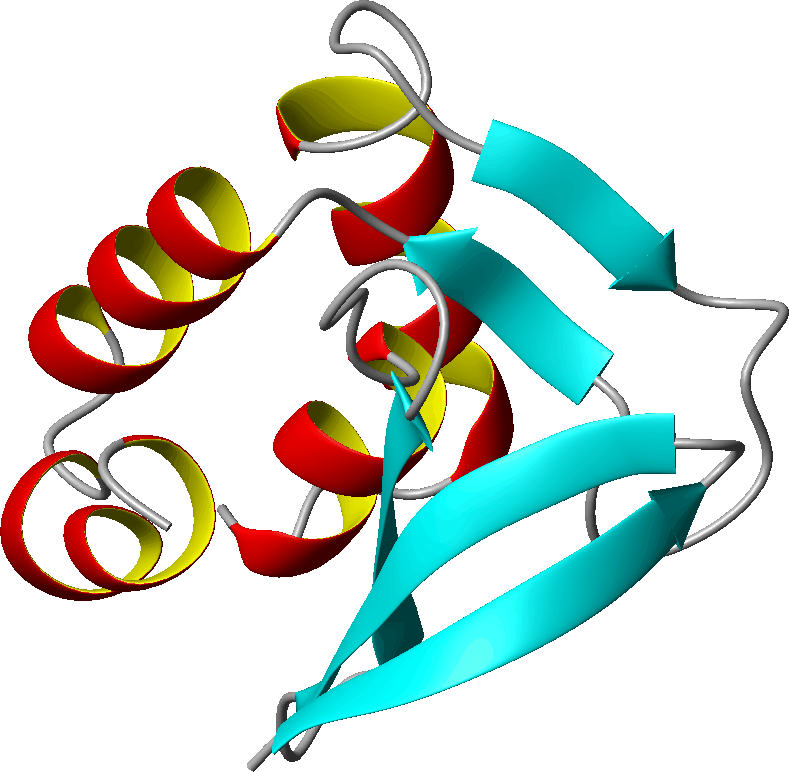

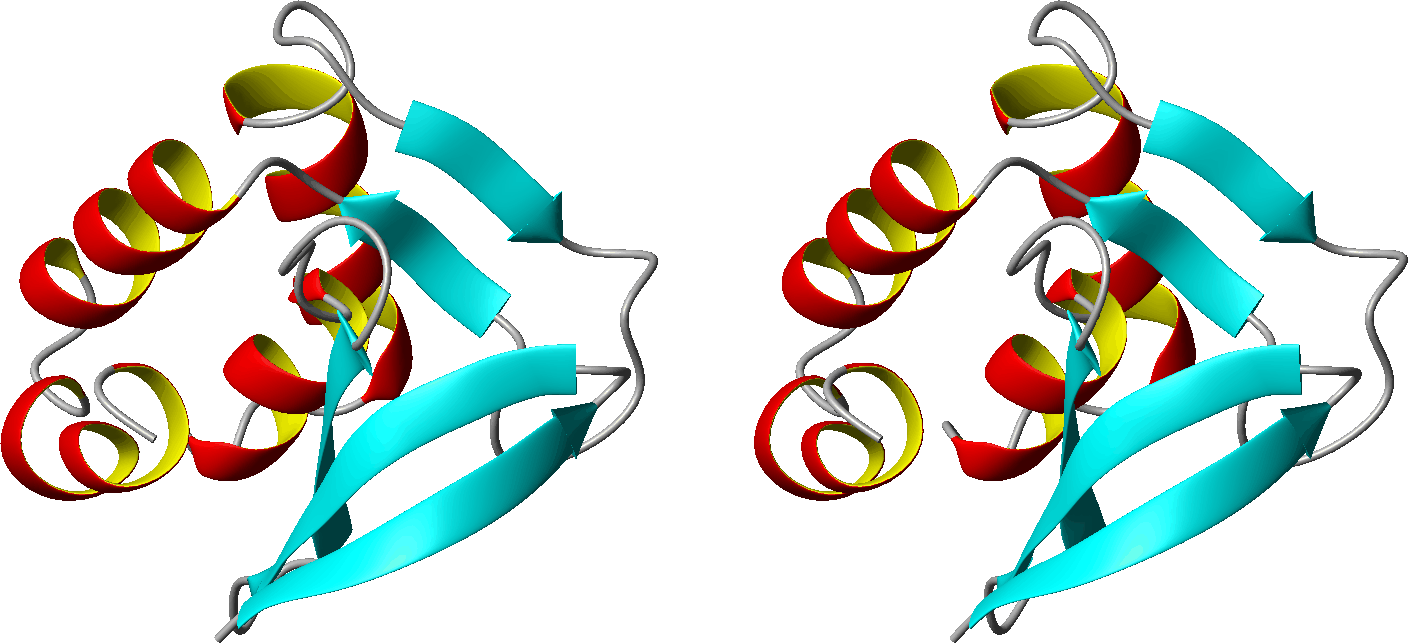

Molmol
	protein, nucleic acid: cartoon; ligands: spacefill; active site: sticks [ mono GIF format \| stereo GIF format ] (automatic, in case of more than 1 NMR structures only model 1 is shown)
Prepi

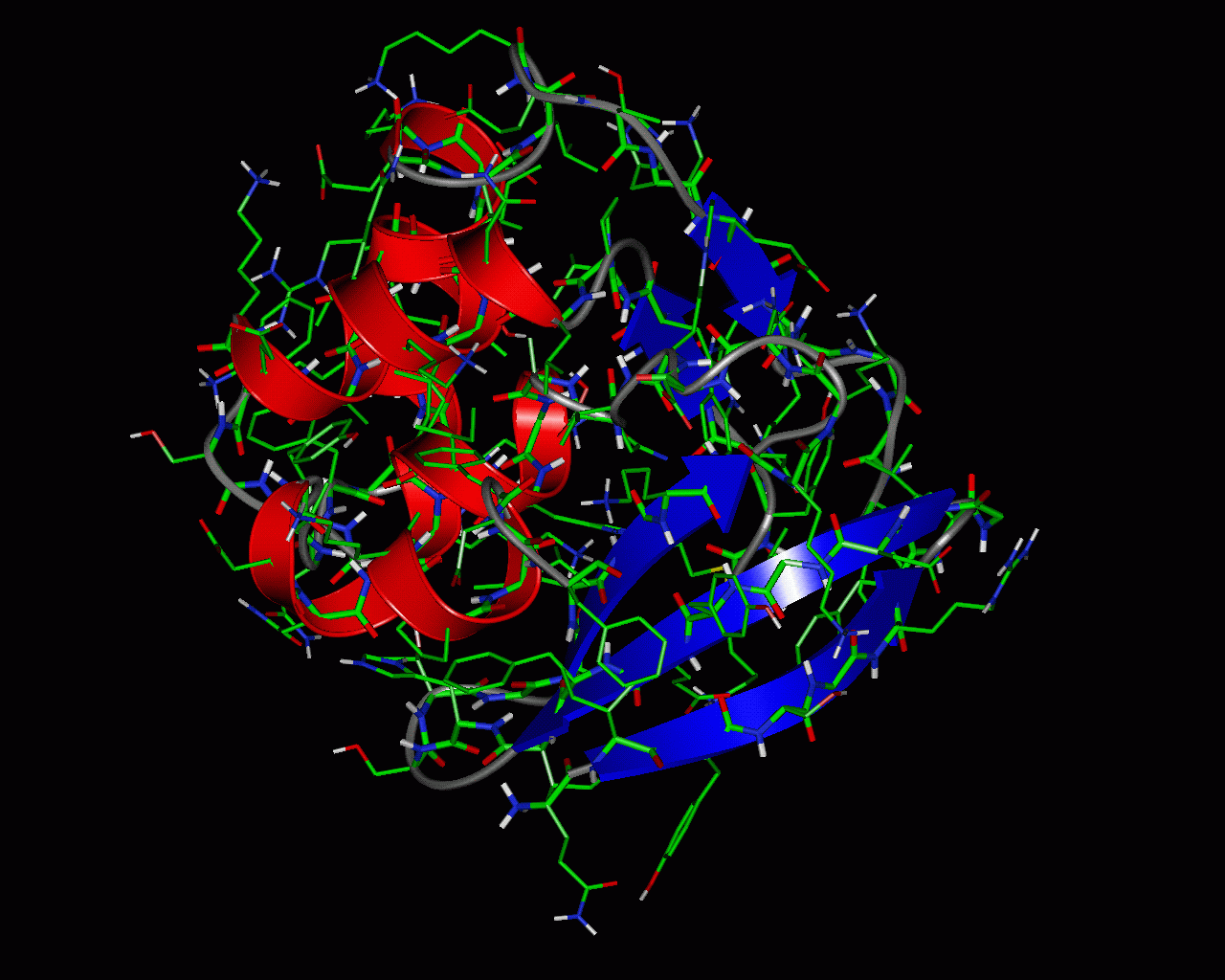

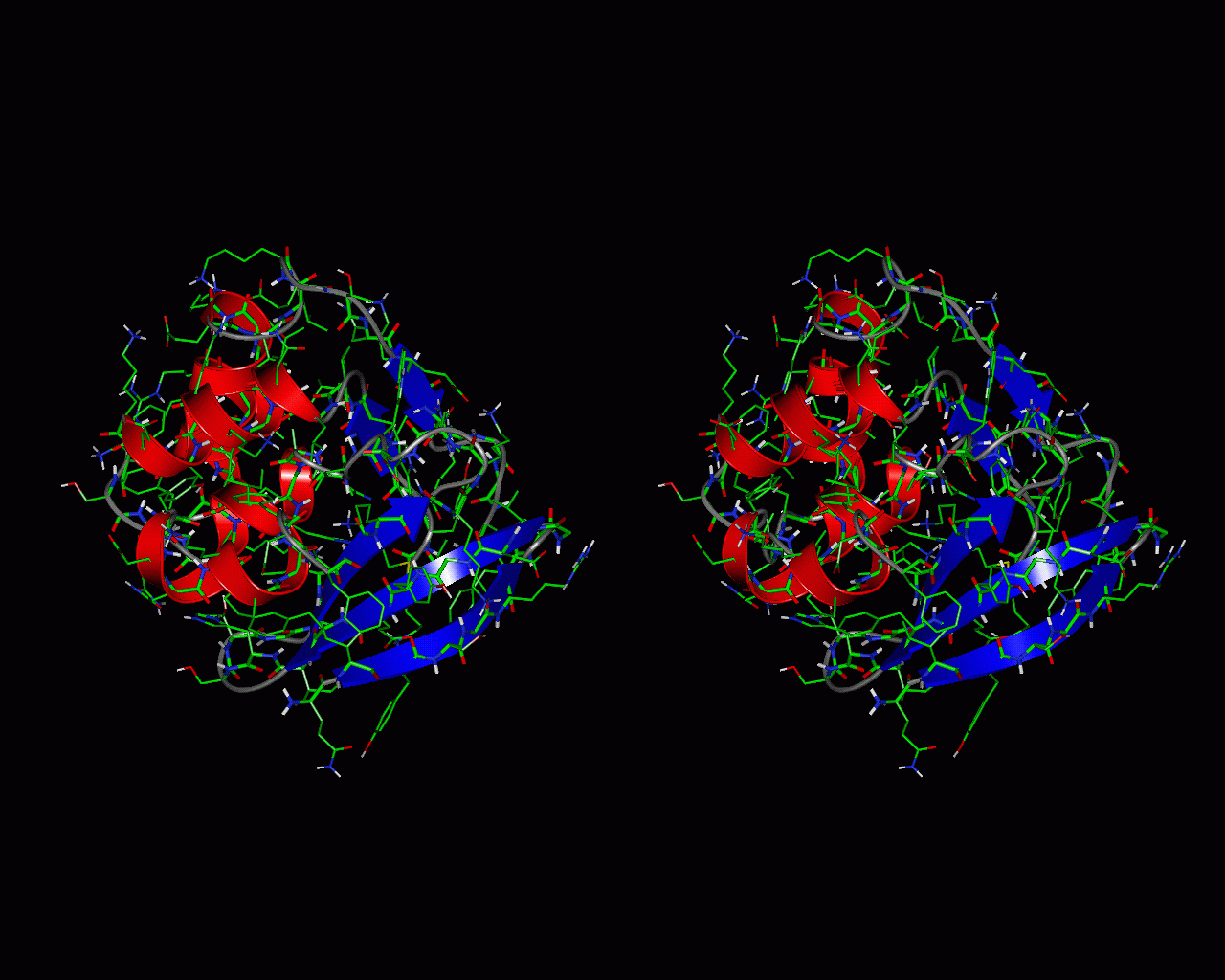

	ribbon, secondary structure, sticks [ mono GIF format \| stereo GIF format ]

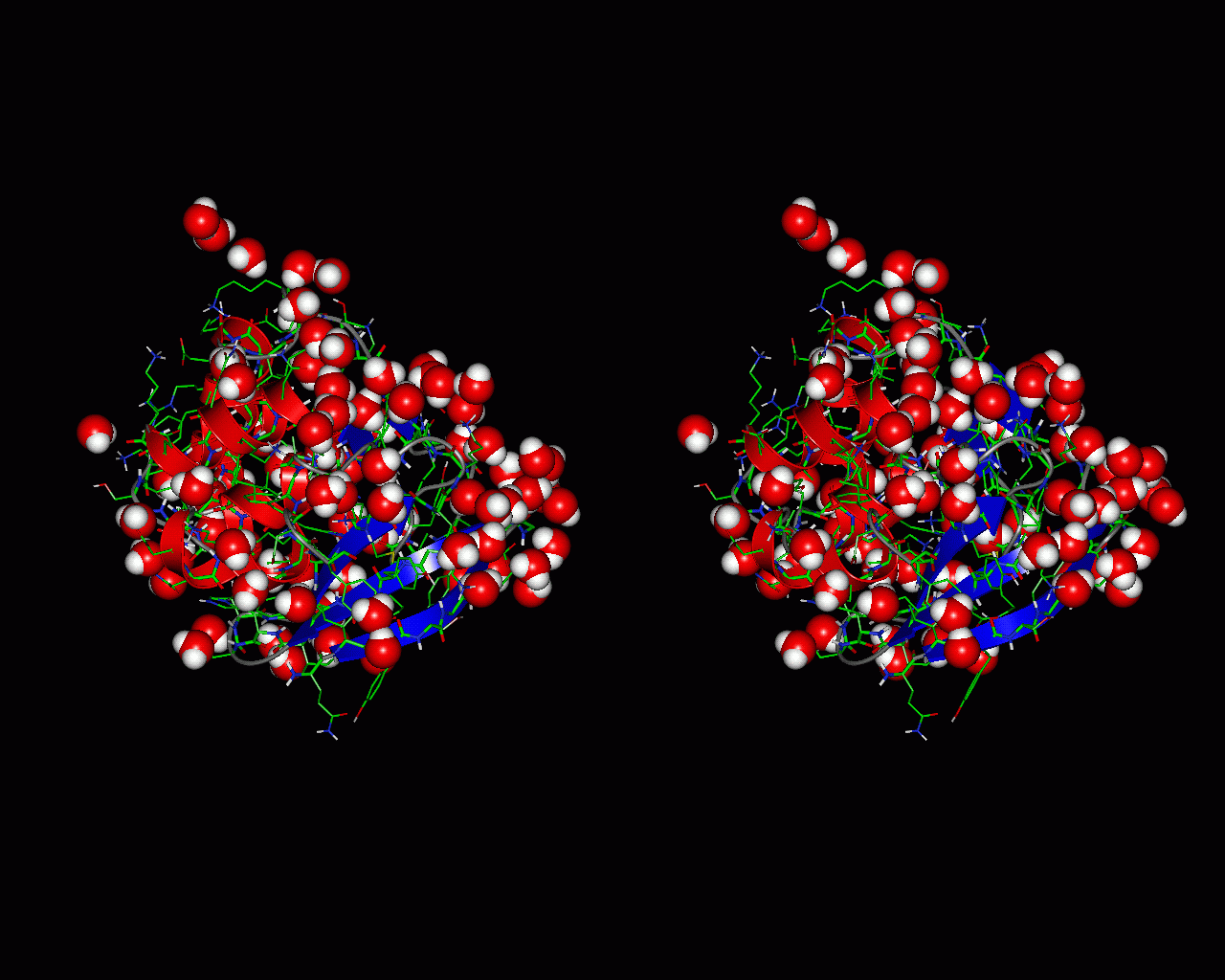

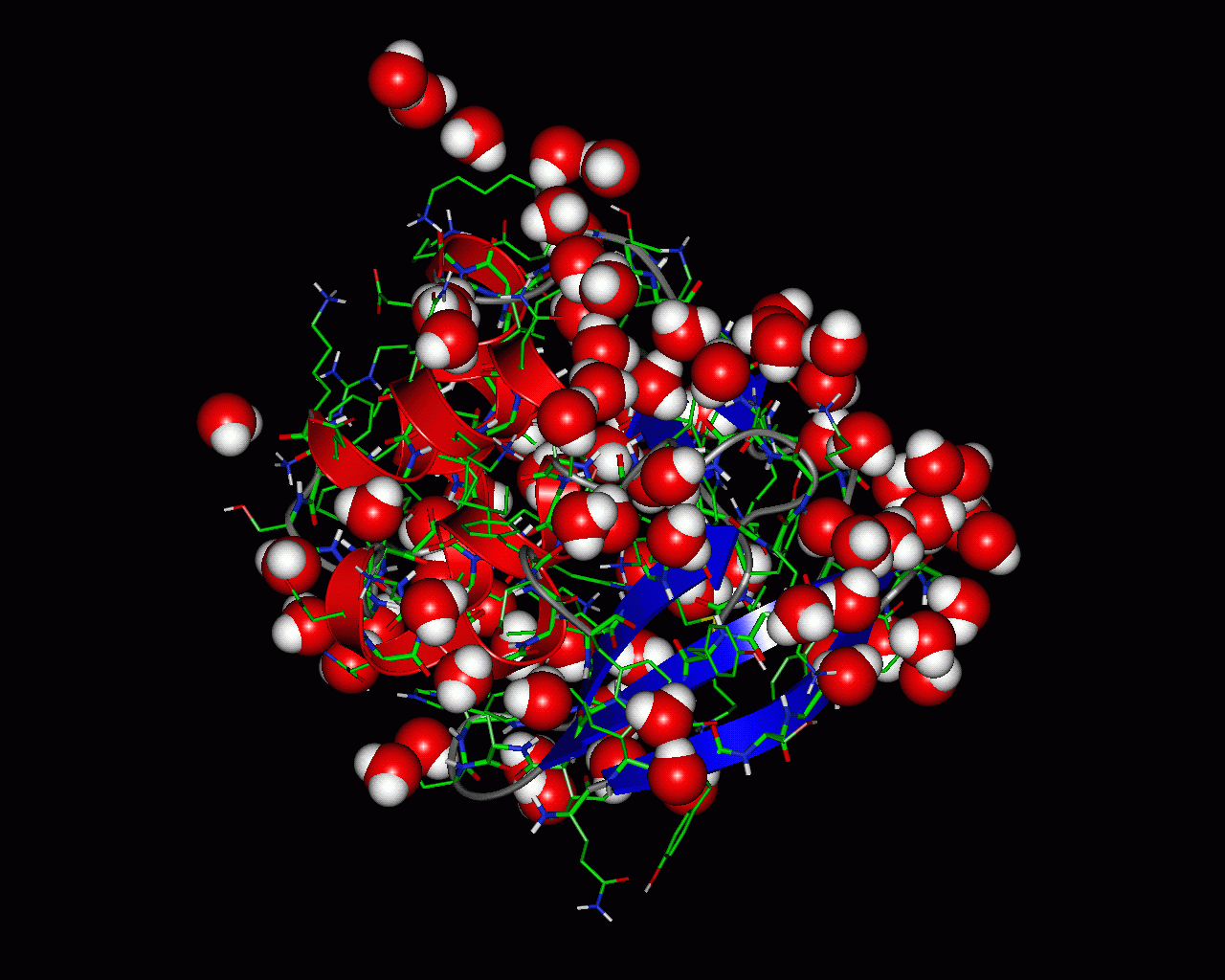

	ribbon, secondary structure, sticks, water [ mono GIF format \| stereo GIF format ]

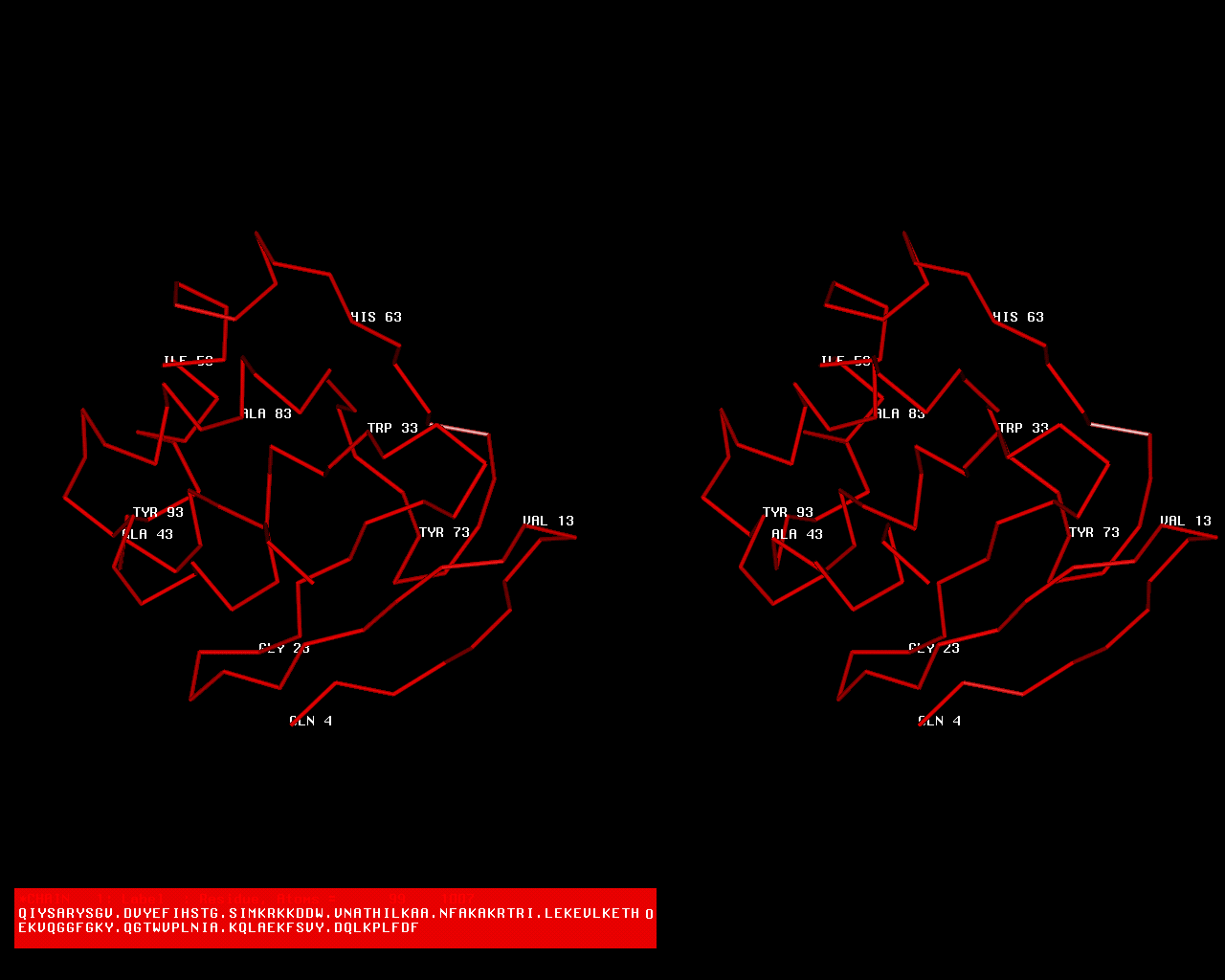

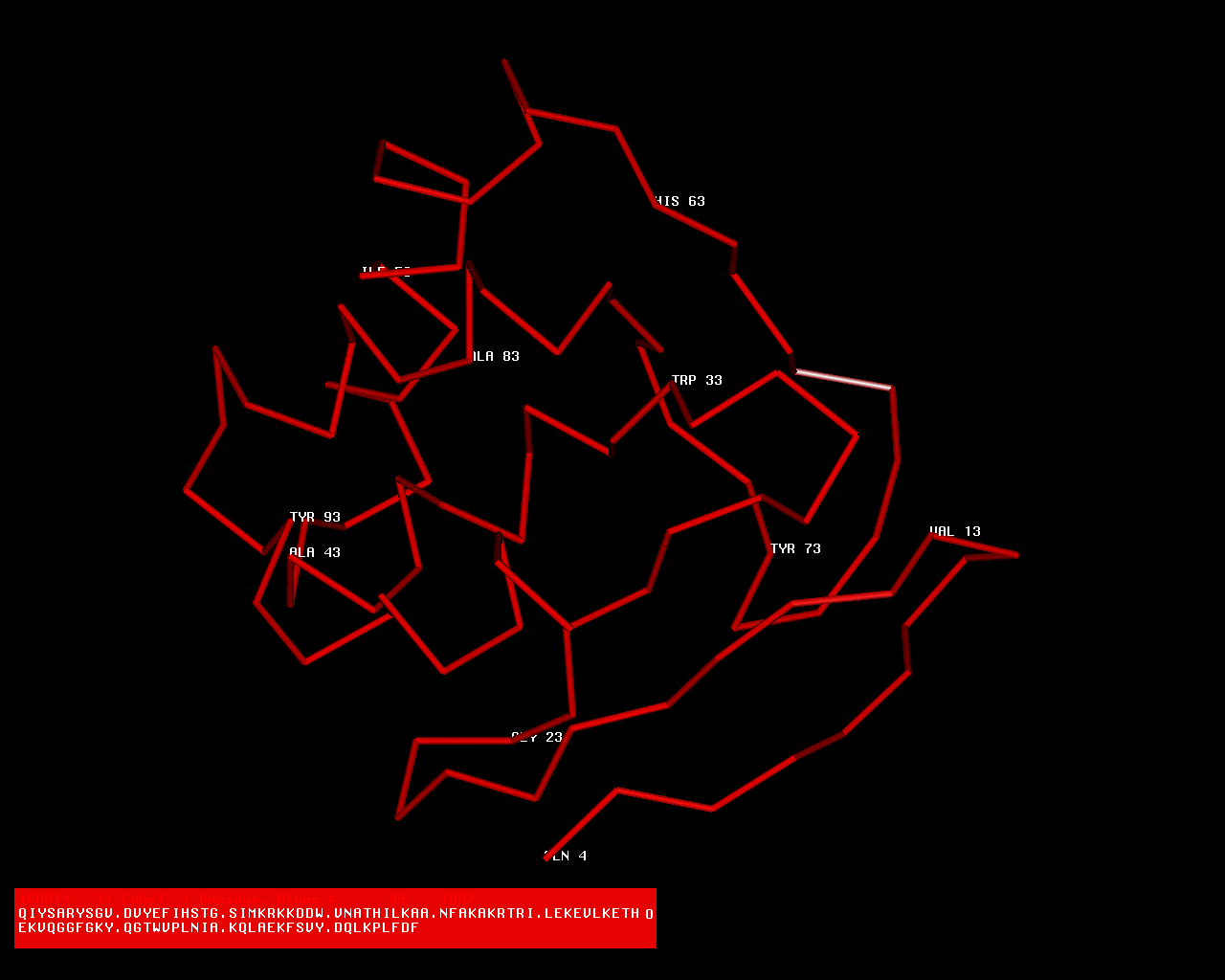

	C alpha wire, labeling, sequence [ mono GIF format \| stereo GIF format ]

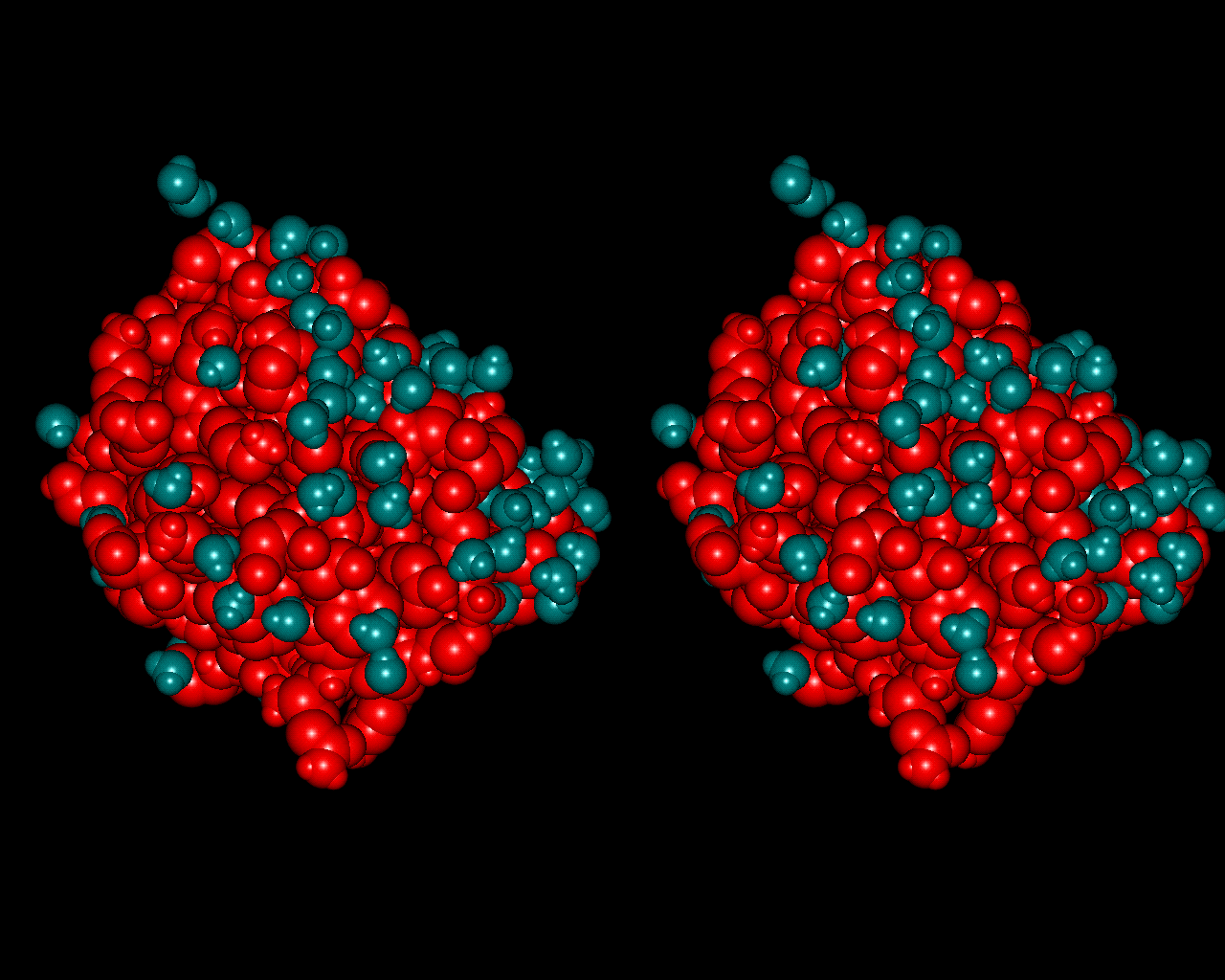

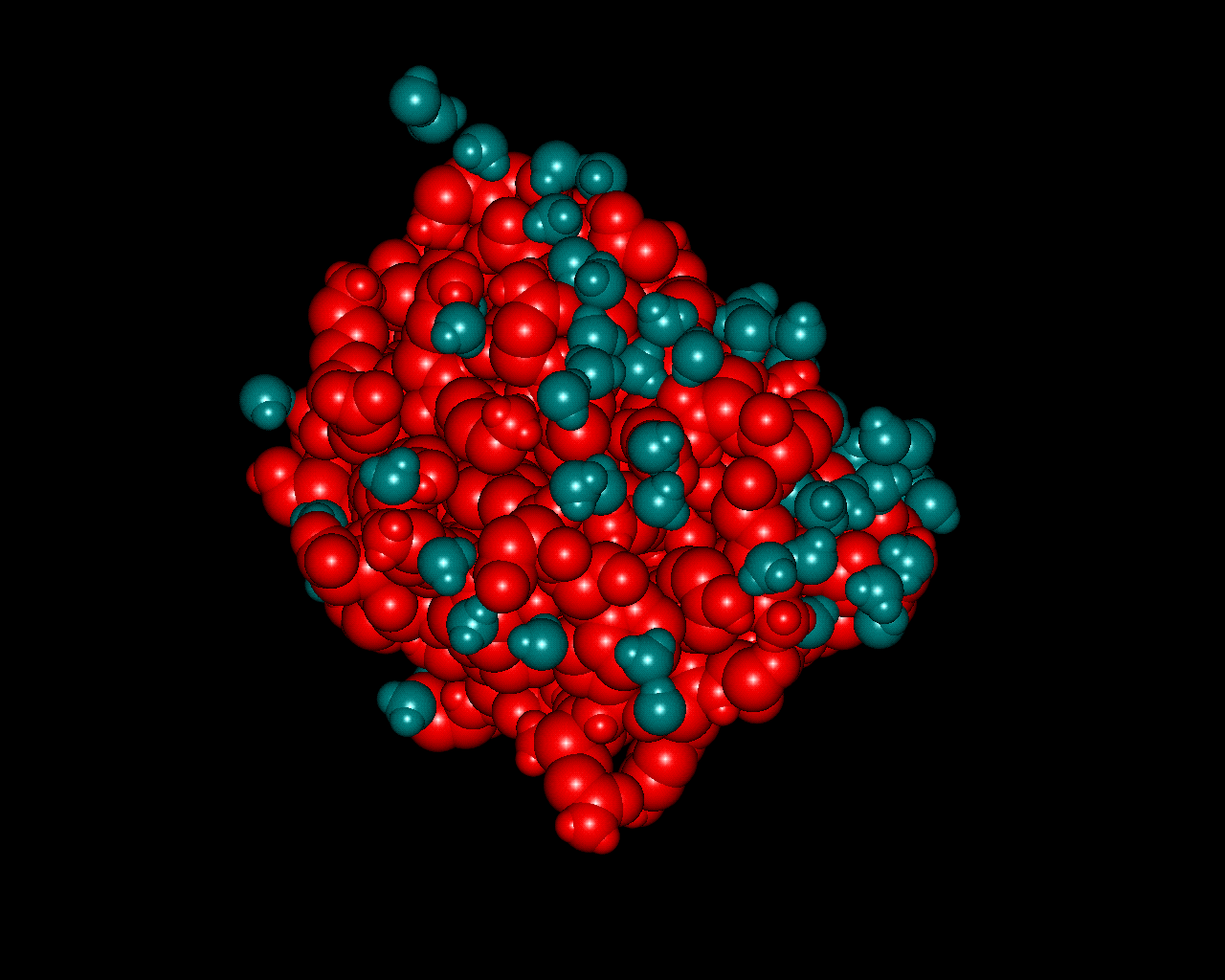

	spacefill, water [ mono GIF format \| stereo GIF format ]
