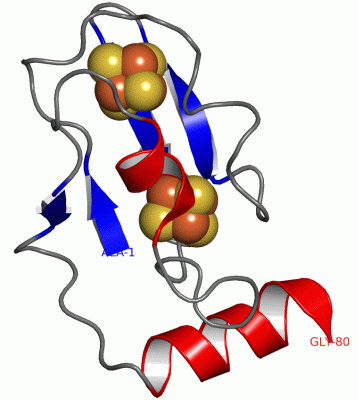

Asym./Biol. Unit - manually (Jmol Viewer)

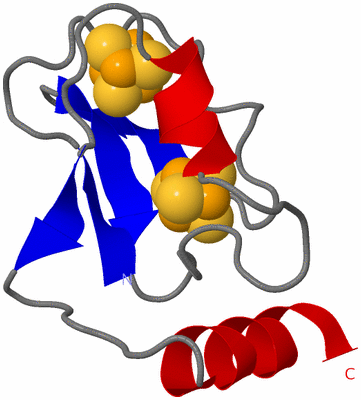

Asym./Biol. Unit (Jmol Viewer)

Asym./Biol. Unit - sites (Jmol Viewer)

Description

Title :   STRUCTURE OF THE 2[4FE-4S] FERREDOXIN FROM CHROMATIUM VINOSUM

Authors :   Z. Dauter, K. S. Wilson, L. C. Sieker, J. M. Moulis

Date :   16 Apr 96 (Deposition) - 08 Nov 96 (Release) - 24 Mar 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.10

Chains :   Asym./Biol. Unit : A

Keywords :   Electron Transport, Ferredoxin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. M. Moulis, L. C. Sieker, K. S. Wilson, Z. Dauter
Crystal Structure Of The 2[4Fe-4S] Ferredoxin From Chromatium Vinosum: Evolutionary And Mechanistic Inferences For [3/4Fe-4S] Ferredoxins.
Protein Sci. V. 5 1765 1996
PubMed-ID: 8880900
(for further references see the PDB file header)

Compounds

Molecule 1 - FERREDOXIN
	Chains	:	A
	Organism Scientific	:	ALLOCHROMATIUM VINOSUM
	Organism Taxid	:	1049

Structural Features

Chains, Units

		1
Asymmetric/Biological Unit	:	A

Summary Information (see also Sequences/Alignments below)

Ligands, Modified Residues, Ions (1, 2)

Asymmetric/Biological Unit (1, 2)

No.	Name	Count	Type	Full Name
1	SF4	2	Ligand/Ion	IRON/SULFUR CLUSTER

Sites (2, 2)

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	CYS A:8 , ILE A:9 , CYS A:11 , ASP A:12 , CYS A:14 , TYR A:30 , CYS A:53 , PRO A:54 , CYS A:57 , ILE A:58	BINDING SITE FOR RESIDUE SF4 A 101
2	AC2	SOFTWARE	CYS A:18 , ILE A:23 , CYS A:37 , CYS A:40 , SER A:47 , CYS A:49	BINDING SITE FOR RESIDUE SF4 A 102

SS Bonds (0, 0)

(no "SS Bond" information available for 1BLU)

Cis Peptide Bonds (0, 0)

(no "Cis Peptide Bond" information available for 1BLU)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

(no "SAP(SNP)/Variant" information available for 1BLU)

PROSITE Motifs (2, 2)

Asymmetric/Biological Unit (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	4FE4S_FER_2	PS51379	4Fe-4S ferredoxin-type iron-sulfur binding domain profile.	FER_ALLVD	1-29 31-64	1	- A:30-63
2	4FE4S_FER_1	PS00198	4Fe-4S ferredoxin-type iron-sulfur binding region signature.	FER_ALLVD	9-20	1	A:8-19

Exons (0, 0)

(no "Exon" information available for 1BLU)

Sequences/Alignments

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:80
 aligned with FER_ALLVD | P00208 from UniProtKB/Swiss-Prot  Length:83

    Alignment length:80
                                    11        21        31        41        51        61        71        81
             FER_ALLVD    2 ALMITDECINCDVCEPECPNGAISQGDETYVIEPSLCTECVGHYETSQCVEVCPVDCIIKDPSHEETEDELRAKYERITG 81
               SCOP domains d1blua_ A: Ferredoxin II                                                         SCOP domains
               CATH domains 1bluA00 A:1-80  [code=3.30.70.20, no name defined]                               CATH domains
               Pfam domains -------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author eee..................eeeee..eeeee.............hhhhhh......eee.......hhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) 4FE4S_FER_2  PDB: -         -4FE4S_FER_2  PDB: A:30-63         ----------------- PROSITE (1)
                PROSITE (2) -------4FE4S_FER_1 ------------------------------------------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------- Transcript
                  1blu A  1 ALMITDECINCDVCEPECPNGAISQGDETYVIEPSLCTECVGHYETSQCVEVCPVDCIIKDPSHEETEDELRAKYERITG 80
                                    10        20        30        40        50        60        70        80

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Ferredoxin-like (1795)

Superfamily: 4Fe-4S ferredoxins (143)

Family: Short-chain ferredoxins (11)

Protein domain: Ferredoxin II (7)

Chromatium vinosum [TaxId: 1049] (1)

d1blua_

CATH Domains (1, 1)

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: Alpha-Beta Plaits (1688)

Homologous Superfamily: [code=3.30.70.20, no name defined] (120)

Allochromatium vinosum. Organism_taxid: 1049 (1)

1bluA00

A:1-80

Pfam Domains (0, 0)

(no "Pfam Domain" information available for 1BLU)

Gene Ontology (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A (FER_ALLVD | P00208)

molecular function
	GO:0051539	4 iron, 4 sulfur cluster binding	Interacting selectively and non-covalently with a 4 iron, 4 sulfur (4Fe-4S) cluster; this cluster consists of four iron atoms, with the inorganic sulfur atoms found between the irons and acting as bridging ligands.
	GO:0051536	iron-sulfur cluster binding	Interacting selectively and non-covalently with an iron-sulfur cluster, a combination of iron and sulfur atoms.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
biological process
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

Visualization

Interactive Views

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		SF4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1blu)

Still Images

Jmol

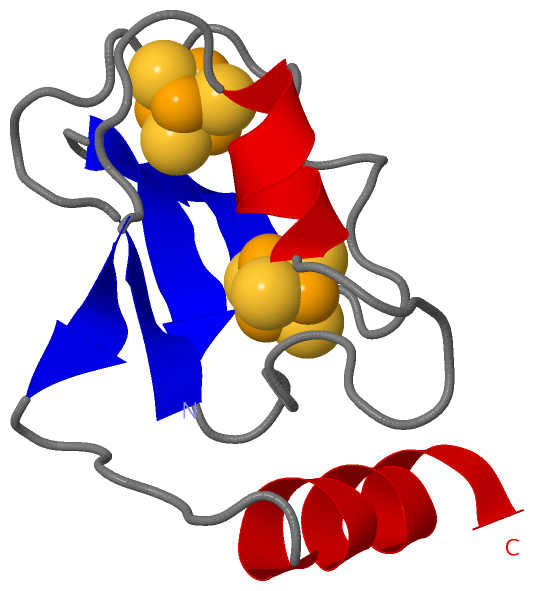

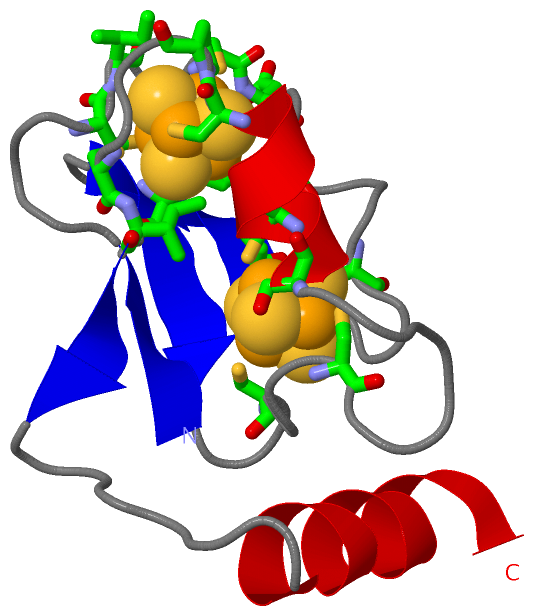

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
