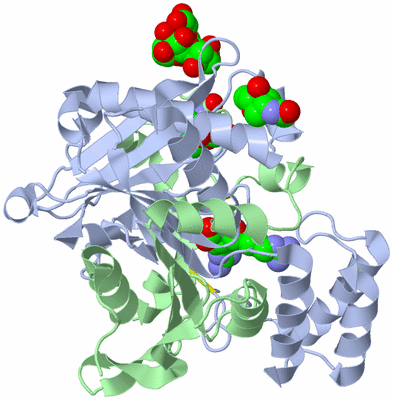

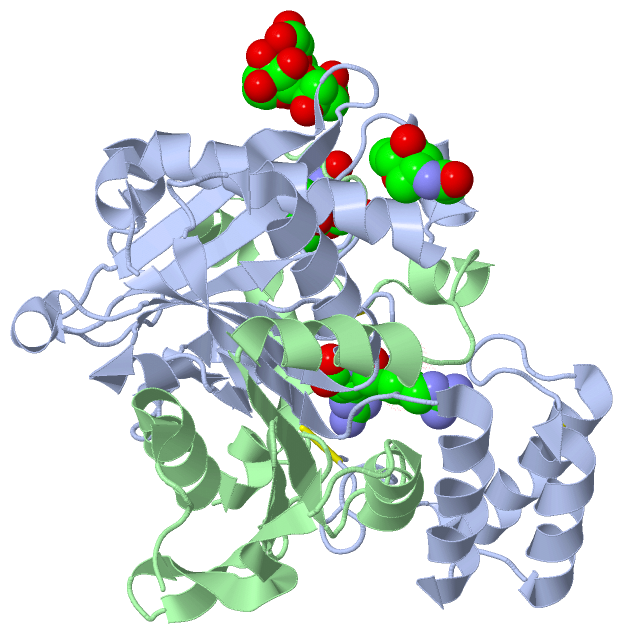

Asymmetric Unit (Jmol Viewer)

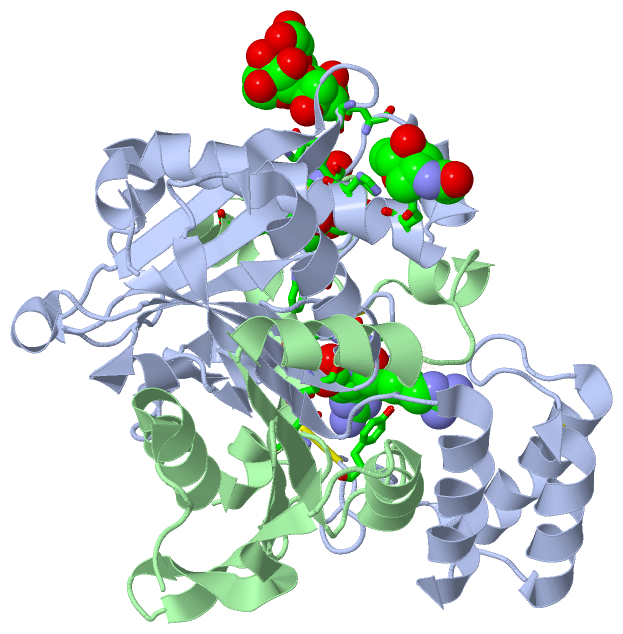

Asym. Unit - sites (Jmol Viewer)

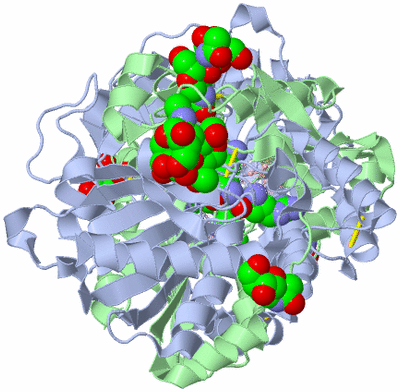

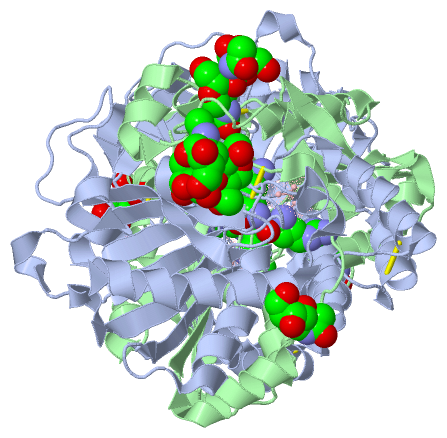

Biological Unit 1 (Jmol Viewer)

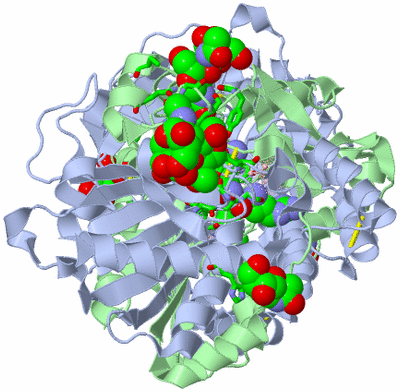

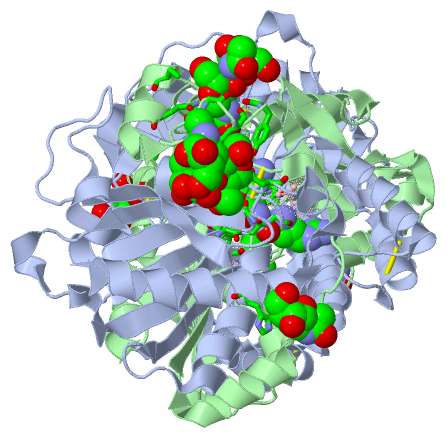

Biol. Unit 1 - sites (Jmol Viewer)

Title :   COMPLEX OF THE WHEAT SERINE CARBOXYPEPTIDASE, CPDW-II, WITH THE MICROBIAL PEPTIDE ALDEHYDE INHIBITOR, ANTIPAIN, AND ARGININE AT ROOM TEMPERATURE

Authors :   T. L. Bullock, S. J. Remington

Date :   03 Nov 95 (Deposition) - 08 Mar 96 (Release) - 05 Jun 13 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.50

Chains :   Asym. Unit : A,B,C
Biol. Unit 1: A,B,C  (2x)

Keywords :   Microbial Peptide Aldehyde Inhibitor, Serine Protease-Inhibitor Complex, Hydrolase-Hydrolase Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   T. L. Bullock, K. Breddam, S. J. Remington
Peptide Aldehyde Complexes With Wheat Serine Carboxypeptidase Ii: Implications For The Catalytic Mechanism And Substrate Specificity.
J. Mol. Biol. V. 255 714 1996
PubMed-ID: 8636973 | Reference-DOI: 10.1006/JMBI.1996.0058
(for further references see the PDB file header)

Molecule 1 - SERINE CARBOXYPEPTIDASE II
	Chains	:	A
	EC Number	:	3.4.16.6
	Organism Common	:	BREAD WHEAT
	Organism Scientific	:	TRITICUM AESTIVUM
	Organism Taxid	:	4565
	Tissue	:	WHEAT GERM

Molecule 2 - SERINE CARBOXYPEPTIDASE II
	Chains	:	B
	EC Number	:	3.4.16.6
	Organism Common	:	BREAD WHEAT
	Organism Scientific	:	TRITICUM AESTIVUM
	Organism Taxid	:	4565
	Tissue	:	WHEAT GERM

Molecule 3 - ANTIPAIN
	Chains	:	C
	Engineered	:	YES
	Organism Scientific	:	ACTINOBACTERIA
	Organism Taxid	:	1760
	Synthetic	:	YES

		1	2	3
Asymmetric Unit	:	A	B	C
Biological Unit 1 (2x)	:	A	B	C

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (4, 8)

No.	Name	Count	Type	Full Name
1	ARG	1	Mod. Amino Acid	ARGININE
2	FUC	1	Ligand/Ion	ALPHA-L-FUCOSE
3	NAG	5	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE
4	OAR	1	Mod. Amino Acid	N-(4-AMINO-5-HYDROXY-PENTYL)-GUANIDINE

Biological Unit 1 (4, 16)

No.	Name	Count	Type	Full Name
1	ARG	2	Mod. Amino Acid	ARGININE
2	FUC	2	Ligand/Ion	ALPHA-L-FUCOSE
3	NAG	10	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE
4	OAR	2	Mod. Amino Acid	N-(4-AMINO-5-HYDROXY-PENTYL)-GUANIDINE

Asymmetric Unit (7, 7)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASN A:113 , HIS A:117	BINDING SITE FOR RESIDUE NAG A 1131
2	AC2	SOFTWARE	NAG A:1133 , NAG A:1134	BINDING SITE FOR RESIDUE FUC A 1132
3	AC3	SOFTWARE	GLY A:27 , TYR A:103 , ASN A:105 , FUC A:1132 , NAG A:1134	BINDING SITE FOR RESIDUE NAG A 1133
4	AC4	SOFTWARE	FUC A:1132 , NAG A:1133	BINDING SITE FOR RESIDUE NAG A 1134
5	AC5	SOFTWARE	ASN A:51 , GLY A:52 , GLY A:53 , GLU A:145 , TYR A:239 , GLU B:398 , OAR C:4	BINDING SITE FOR RESIDUE ARG A 426
6	AC6	SOFTWARE	ARG B:282 , GLN B:285 , ASN B:291 , GLY B:294 , MET B:296 , TYR B:298 , TRP B:300 , NAG B:2912	BINDING SITE FOR RESIDUE NAG B 2911
7	AC7	SOFTWARE	NAG B:2911	BINDING SITE FOR RESIDUE NAG B 2912

Asymmetric Unit

No.	Residues
1	A:56	-	B:303
2	A:210	-	A:222
3	A:246	-	B:268

Asymmetric Unit

No.	Residues
1	Gln A:42	-	Pro A:43
2	Gly A:53	-	Pro A:54
3	Ser A:95	-	Pro A:96

(no "SAP(SNP)/Variant" information available for 1BCR)

Asymmetric Unit (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CARBOXYPEPT_SER_SER	PS00131	Serine carboxypeptidases, serine active site.	CBP2_WHEAT	154-161	1	A:142-149
2	CARBOXYPEPT_SER_HIS	PS00560	Serine carboxypeptidases, histidine active site.	CBP2_WHEAT	403-420	1	B:387-404

Biological Unit 1 (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	CARBOXYPEPT_SER_SER	PS00131	Serine carboxypeptidases, serine active site.	CBP2_WHEAT	154-161	2	A:142-149
2	CARBOXYPEPT_SER_HIS	PS00560	Serine carboxypeptidases, histidine active site.	CBP2_WHEAT	403-420	2	B:387-404

(no "Exon" information available for 1BCR)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:254
 aligned with CBP2_WHEAT | P08819 from UniProtKB/Swiss-Prot  Length:444

    Alignment length:254
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255
          CBP2_WHEAT      6 HAADRIARLPGQPAVDFDMYSGYITVDEGAGRSLFYLLQEAPEDAQPAPLVLWLNGGPGCSSVAYGASEELGAFRVKPRGAGLVLNEYRWNKVANVLFLDSPAGVGFSYTNTSSDIYTSGDNRTAHDSYAFLAKWFERFPHYKYRDFYIAGESYAGHYVPELSQLVHRSKNPVINLKGFMVGNGLIDDYHDYVGTFEFWWNHGIVSDDTYRRLKEACLHDSFIHPSPACDAATDVATAEQGNIDMYSLYTPVCN  259
               SCOP domains d1bcr.1 A:,B: Serine carboxypeptidase II                                                                                                                                                                                                                       SCOP domains
               CATH domains 1bcrA00 A:-4-247  [code=3.40.50.1820, no name defined]                                                                                                                                                                                                         CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhh.............eeeeeeeee....eeeeeeee..hhhhh...eeeee..........hhhhhh...eee.hhhh.eee...hhhhh.eeeee............hhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh..eeeeeee.hhhhhhhhhhhhhhhhh....eeeeeeee....hhhhhhhhhhhhhhh....hhhhhhhhhhhhh.......hhhhhhhhhhhhhhhh............. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------CARBOXYP-------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1bcr A   -4 HAADRIARLPGQPAVDFDMYSGYITVDEGAGRSLFYLLQEAPEDAQPAPLVLWLNGGPGCSSVAYGASEELGAFRVKPRGAGLVLNEYRWNKVANVLFLDSPAGVGFSYTNTSSDIYTSGDNRTAHDSYAFLAKWFERFPHYKYRDFYIAGESYAGHYVPELSQLVHRSKNPVINLKGFMVGNGLIDDYHDYVGTFEFWWNHGIVSDDTYRRLKEACLHDSFIHPSPACDAATDVATAEQGNIDMYSLYTPVCN  247
                                     5     || 17      | 26        36        46        56  |     65        75 |      84        94       104      112B|      121       131  ||   143       153       163       173       183       193       203       213       223       233       243
                                          11|       23A                                 58A                76A                                 112A||                   134|
                                           14                                                                                                   112B|                    137
                                                                                                                                                 112C

Chain B from PDB  Type:PROTEIN  Length:152
 aligned with CBP2_WHEAT | P08819 from UniProtKB/Swiss-Prot  Length:444

    Alignment length:152
                                   296       306       316       326       336       346       356       366       376       386       396       406       416       426       436
          CBP2_WHEAT    287 SYDPCTERYSTAYYNRRDVQMALHANVTGAMNYTWATCSDTINTHWHDAPRSMLPIYRELIAAGLRIWVFSGDTDAVVPLTATRYSIGALGLPTTTSWYPWYDDQEVGGWSQVYKGLTLVSVRGAGHEVPLHRPRQALVLFQYFLQGKPMPG  438
               SCOP domains d1bcr.1 A:,B: Serine carboxypeptidase II                                                                                                                 SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhh.hhhhhhhhh..............hhhhhhh.......hhhhhhhhhhhh.eeeeeee......hhhhhhhhhhh....eeeeeeeeee..eeeeeeeee..eeeeee.....hhhhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------CARBOXYPEPT_SER_HI------------------ PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1bcr B  264 SYDPCTERYSTAYYNRRDVQMALHANVTGAMNYTWATCSDTINTHWHDAPRSMLPIYRELIAAGLRIWVFSGDTDAVVPLTATRYSIGALGLPTTTSWYPWYDDQEVGGWSQVYKGLTLVSVRGAGHEVPLHRPRQALVLFQYFLQGKPMPG  422
                                || 275       285       295      303B     ||310       320   ||  333       343       353|      371    |  380       390       400       410       420
                              268|                             303A|  308A||             324|                      353|          375A
                               271                              303B   308B|              328                       362
                                                                        308C

Chain C from PDB  Type:PROTEIN  Length:2

               SCOP domains -- SCOP domains
               CATH domains -- CATH domains
               Pfam domains -- Pfam domains
         Sec.struct. author .. Sec.struct. author
                 SAPs(SNPs) -- SAPs(SNPs)
                    PROSITE -- PROSITE
                 Transcript -- Transcript
                1bcr C    3 Vr    4
                             |
                             4-OAR

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: alpha/beta-Hydrolases (971)

Superfamily: alpha/beta-Hydrolases (971)

Family: Serine carboxypeptidase-like (15)

Protein domain: Serine carboxypeptidase II (8)

Wheat (Triticum vulgare) [TaxId: 4565] (5)

d1bcr.1

A:,B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: [code=3.40.50.1820, no name defined] (692)

Bread wheat (Triticum aestivum) (3)

1bcrA00

A:-4-247

(no "Pfam Domain" information available for 1BCR)

Asymmetric Unit(hide GO term definitions)

Chain A,B (CBP2_WHEAT | P08819)

molecular function
	GO:0004180	carboxypeptidase activity	Catalysis of the hydrolysis of the terminal or penultimate peptide bond at the C-terminal end of a peptide or polypeptide.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0008233	peptidase activity	Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
	GO:0004185	serine-type carboxypeptidase activity	Catalysis of the hydrolysis of a peptide bond not more than three residues from the C-terminus of a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
	GO:0006508	proteolysis	The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ARG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		FUC	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		NAG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		OAR	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Gln A:42 - Pro A:43	[ RasMol ]
		Gly A:53 - Pro A:54	[ RasMol ]
		Ser A:95 - Pro A:96	[ RasMol ]

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1bcr
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	CBP2_WHEAT \| P08819
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.4.16.6
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	CBP2_WHEAT \| P08819
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	CBP2_WHEAT \| P08819	:	1bcs 1whs 1wht 3sc2
