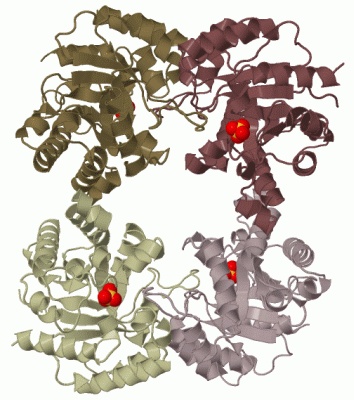

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

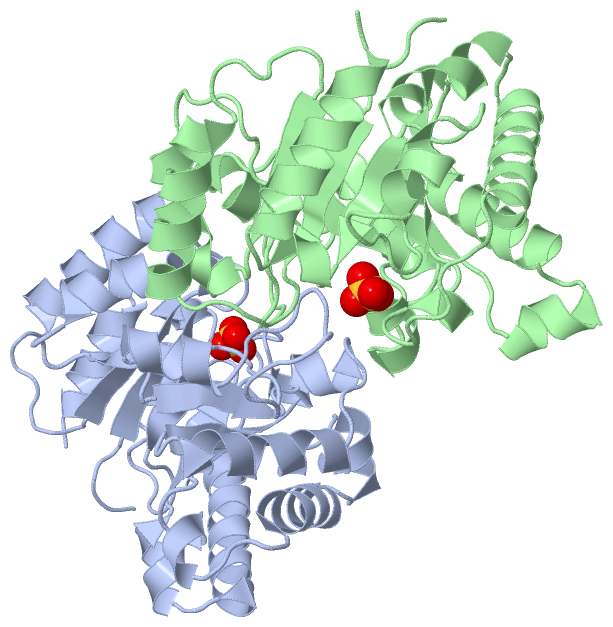

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

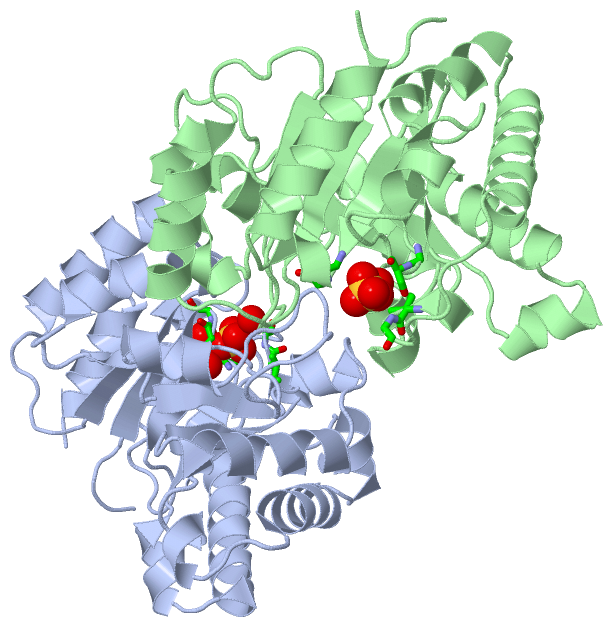

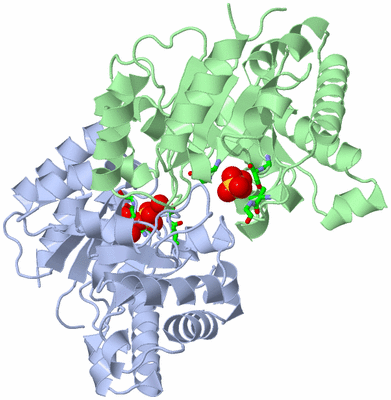

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

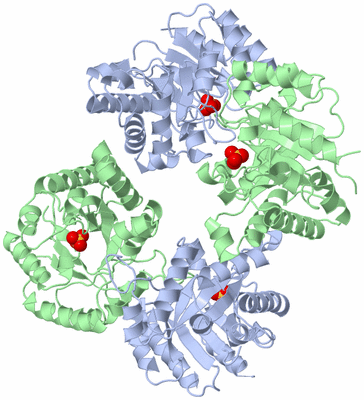

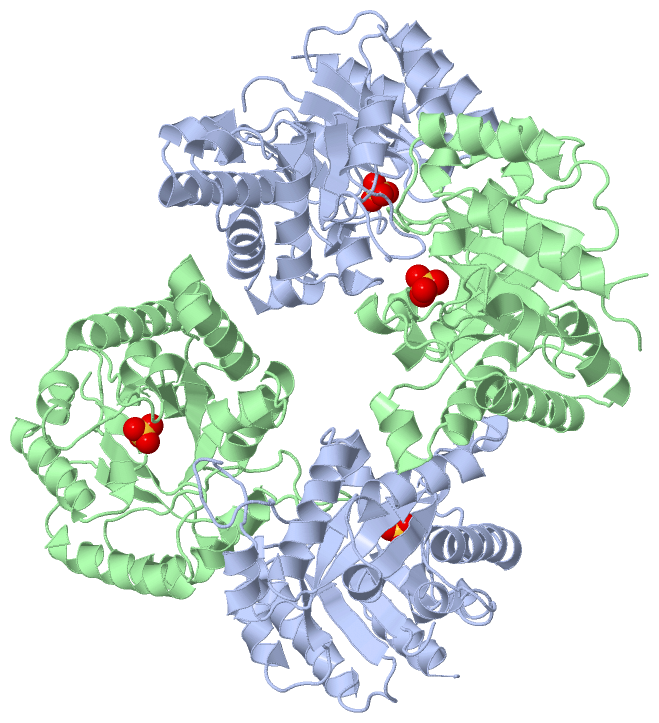

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

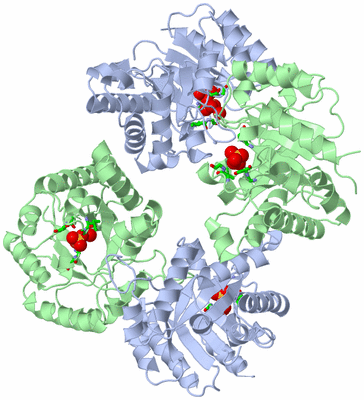

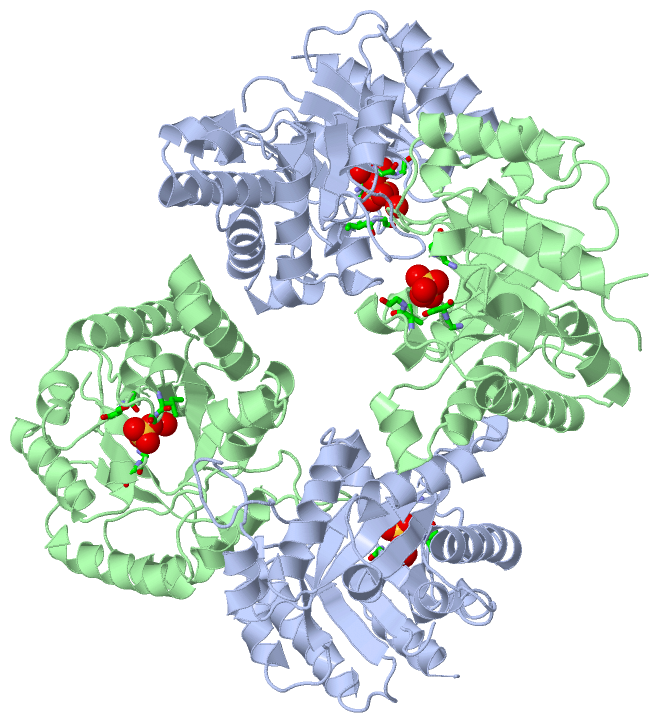

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  TRIOSEPHOSPHATE ISOMERASE OF THERMOTOGA MARITIMA

Authors :  D. Maes, R. K. Wierenga
Date :  09 Feb 99  (Deposition) - 01 Jan 00  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.85
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (2x)
Biol. Unit 2:  A,B  (1x)
Keywords :  Isomerase, Thermophilic, Thermotoga Maritima (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  D. Maes, J. P. Zeelen, N. Thanki, N. Beaucamp, M. Alvarez, M. H. Thi, J. Backmann, J. A. Martial, L. Wyns, R. Jaenicke, R. K. Wierenga
The Crystal Structure Of Triosephosphate Isomerase (Tim) From Thermotoga Maritima: A Comparative Thermostability Structural Analysis Of Ten Different Tim Structures.
Proteins V. 37 441 1999

(-) Compounds

Molecule 1 - PROTEIN (TRIOSEPHOSPHATE ISOMERASE)
    ChainsA, B
    EC Number5.3.1.1
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    Organism ScientificTHERMOTOGA MARITIMA
    Organism Taxid2336
    Other DetailsA SULFATE MOLECULE IS OBSERVED IN THE ACTIVE SITE OF BOTH SUBUNITS
    SynonymTIM

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit AB
Biological Unit 1 (2x)AB
Biological Unit 2 (1x)AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
1SO42Ligand/IonSULFATE ION
Biological Unit 1 (1, 4)
No.NameCountTypeFull Name
1SO44Ligand/IonSULFATE ION
Biological Unit 2 (1, 2)
No.NameCountTypeFull Name
1SO42Ligand/IonSULFATE ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREILE A:173 , GLY A:174 , SER A:214 , GLY A:235 , GLY A:236 , HOH A:902 , HOH A:929 , HOH A:931BINDING SITE FOR RESIDUE SO4 A 301
2AC2SOFTWAREILE B:673 , GLY B:674 , GLY B:713 , SER B:714 , GLY B:735 , GLY B:736 , HOH B:943BINDING SITE FOR RESIDUE SO4 B 302

(-) SS Bonds  (1, 1)

Asymmetric Unit
No.Residues
1A:142 -B:642

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1B9B)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1B9B)

(-) PROSITE Motifs  (2, 4)

Asymmetric Unit (2, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1TIM_2PS51440 Triosephosphate isomerase (TIM) family profile.PGKT_THEMA403-648

  2A:4-249
B:504-749
2TIM_1PS00171 Triosephosphate isomerase active site.PGKT_THEMA565-575

  2A:166-176
B:666-676
Biological Unit 1 (2, 8)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1TIM_2PS51440 Triosephosphate isomerase (TIM) family profile.PGKT_THEMA403-648

  4A:4-249
B:504-749
2TIM_1PS00171 Triosephosphate isomerase active site.PGKT_THEMA565-575

  4A:166-176
B:666-676
Biological Unit 2 (2, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1TIM_2PS51440 Triosephosphate isomerase (TIM) family profile.PGKT_THEMA403-648

  2A:4-249
B:504-749
2TIM_1PS00171 Triosephosphate isomerase active site.PGKT_THEMA565-575

  2A:166-176
B:666-676

(-) Exons   (0, 0)

(no "Exon" information available for 1B9B)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:252
 aligned with PGKT_THEMA | P36204 from UniProtKB/Swiss-Prot  Length:654

    Alignment length:252
                                   410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650
           PGKT_THEMA   401 TRKLILAGNWKMHKTISEAKKFVSLLVNELHDVKEFEIVVCPPFTALSEVGEILSGRNIKLGAQNVFYEDQGAFTGEISPLMLQEIGVEYVIVGHSERRRIFKEDDEFINRKVKAVLEKGMTPILCVGETLEEREKGLTFCVVEKQVREGFYGLDKEEAKRVVIAYEPVWAIGTGRVATPQQAQEVHAFIRKLLSEMYDEETAGSIRILYGGSIKPDNFLGLIVQKDIDGGLVGGASLKESFIELARIMRGV 652
               SCOP domains d1b9ba_ A: Triosephosphate isomerase                                                                                                                                                                                                                         SCOP domains
               CATH domains 1b9bA00 A:2-253 Aldolase class I                                                                                                                                                                                                                             CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....eeeee......hhhhhhhhhhhhhh.......eeeee..hhhhhhhhhhh.....eee.................hhhhhhh...eeee..hhhhh.....hhhhhhhhhhhhh...eeeeee...hhhhhh..hhhhhhhhhhhhh....hhhh...eeeee.hhh........hhhhhhhhhhhhhhhhhh..hhhhhh.eeeee....hhhh..........eeee.hhh...hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (1) --TIM_2  PDB: A:4-249 UniProt: 403-648                                                                                                                                                                                                                  ---- PROSITE (1)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------------------------------------------------TIM_1      ----------------------------------------------------------------------------- PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1b9b A   2 TRKLILAGNWKMHKTISEAKKFVSLLVNELHDVKEFEIVVCPPFTALSEVGEILSGRNIKLGAQNVFYEDQGAFTGEISPLMLQEIGVEYVIVGHSERRRIFKEDDEFINRKVKAVLEKGMTPILCVGETLEEREKGLTFCVVEKQVREGFYGLDKEEAKRVVIAYEPVWAIGTGRVATPQQAQEVHAFIRKLLSEMYDEETAGSIRILYGGSIKPDNFLGLIVQKDIDGGLVGGASLKESFIELARIMRGV 253
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251

Chain B from PDB  Type:PROTEIN  Length:255
 aligned with PGKT_THEMA | P36204 from UniProtKB/Swiss-Prot  Length:654

    Alignment length:255
                                   409       419       429       439       449       459       469       479       489       499       509       519       529       539       549       559       569       579       589       599       609       619       629       639       649
           PGKT_THEMA   400 ITRKLILAGNWKMHKTISEAKKFVSLLVNELHDVKEFEIVVCPPFTALSEVGEILSGRNIKLGAQNVFYEDQGAFTGEISPLMLQEIGVEYVIVGHSERRRIFKEDDEFINRKVKAVLEKGMTPILCVGETLEEREKGLTFCVVEKQVREGFYGLDKEEAKRVVIAYEPVWAIGTGRVATPQQAQEVHAFIRKLLSEMYDEETAGSIRILYGGSIKPDNFLGLIVQKDIDGGLVGGASLKESFIELARIMRGVIS 654
               SCOP domains d1b9bb_ B: Triosephosphate isomerase                                                                                                                                                                                                                            SCOP domains
               CATH domains 1b9bB00 B:501-755 Aldolase class I                                                                                                                                                                                                                              CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeee......hhhhhhhhhhhhhh.......eeeee..hhhhhhhhhhh.........................hhhhhhh...eeee..hhhhhh....hhhhhhhhhhhhh...eeeeee...hhhhhh..hhhhhhhhhhhhh....hhhhhh.eeee..hhh........hhhhhhhhhhhhhhhhhh..hhhhhh.eeee.......hhhhhh......eeee.hhh..hhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ---TIM_2  PDB: B:504-749 UniProt: 403-648                                                                                                                                                                                                                ------ PROSITE (1)
                PROSITE (2) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------TIM_1      ------------------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1b9b B 501 ITRKLILAGNWKMHKTISEAKKFVSLLVNELHDVKEFEIVVCPPFTALSEVGEILSGRNIKLGAQNVFYEDQGAFTGEISPLMLQEIGVEYVIVGHSERRRIFKEDDEFINRKVKAVLEKGMTPILCVGETLEEREKGLTFCVVEKQVREGFYGLDKEEAKRVVIAYEPVWAIGTGRVATPQQAQEVHAFIRKLLSEMYDEETAGSIRILYGGSIKPDNFLGLIVQKDIDGGLVGGASLKESFIELARIMRGVIS 755
                                   510       520       530       540       550       560       570       580       590       600       610       620       630       640       650       660       670       680       690       700       710       720       730       740       750

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1B9B)

(-) Gene Ontology  (17, 17)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (PGKT_THEMA | P36204)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0004618    phosphoglycerate kinase activity    Catalysis of the reaction: 3-phospho-D-glycerate + ATP = 3-phospho-D-glyceroyl phosphate + ADP + H(+).
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0004807    triose-phosphate isomerase activity    Catalysis of the reaction: D-glyceraldehyde 3-phosphate = glycerone phosphate.
biological process
    GO:0006633    fatty acid biosynthetic process    The chemical reactions and pathways resulting in the formation of a fatty acid, any of the aliphatic monocarboxylic acids that can be liberated by hydrolysis from naturally occurring fats and oils. Fatty acids are predominantly straight-chain acids of 4 to 24 carbon atoms, which may be saturated or unsaturated; branched fatty acids and hydroxy fatty acids also occur, and very long chain acids of over 30 carbons are found in waxes.
    GO:0006631    fatty acid metabolic process    The chemical reactions and pathways involving fatty acids, aliphatic monocarboxylic acids liberated from naturally occurring fats and oils by hydrolysis.
    GO:0006094    gluconeogenesis    The formation of glucose from noncarbohydrate precursors, such as pyruvate, amino acids and glycerol.
    GO:0006096    glycolytic process    The chemical reactions and pathways resulting in the breakdown of a carbohydrate into pyruvate, with the concomitant production of a small amount of ATP and the reduction of NAD(P) to NAD(P)H. Glycolysis begins with the metabolism of a carbohydrate to generate products that can enter the pathway and ends with the production of pyruvate. Pyruvate may be converted to acetyl-coenzyme A, ethanol, lactate, or other small molecules.
    GO:0006629    lipid metabolic process    The chemical reactions and pathways involving lipids, compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent. Includes fatty acids; neutral fats, other fatty-acid esters, and soaps; long-chain (fatty) alcohols and waxes; sphingoids and other long-chain bases; glycolipids, phospholipids and sphingolipids; and carotenes, polyprenols, sterols, terpenes and other isoprenoids.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0006098    pentose-phosphate shunt    The glucose-6-phosphate catabolic process in which, coupled to NADPH synthesis, glucose-6-P is oxidized with the formation of carbon dioxide (CO2) and ribulose 5-phosphate; ribulose 5-P then enters a series of reactions interconverting sugar phosphates. The pentose phosphate pathway is a major source of reducing equivalents for biosynthesis reactions and is also important for the conversion of hexoses to pentoses.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
