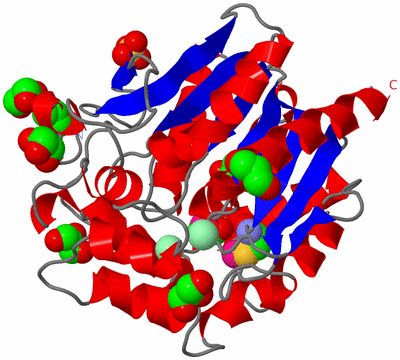

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

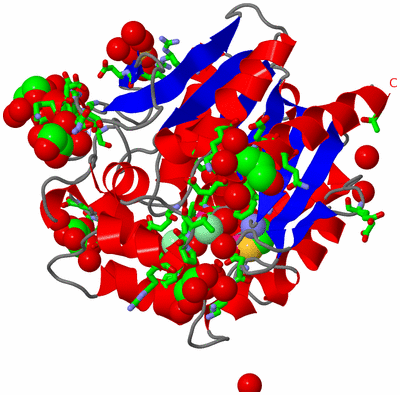

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  HALOALKANE DEHALOGENASE AT PH 5.0 CONTAINING CHLORIDE

Authors :  I. S. Ridder, H. J. Rozeboom, B. W. Dijkstra
Date :  14 Jan 99  (Deposition) - 13 Jul 99  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.15
Chains :  Asym./Biol. Unit :  A
Keywords :  Hydrolase, Haloalkane Dehalogenase, Alpha/Beta-Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  I. S. Ridder, H. J. Rozeboom, B. W. Dijkstra
Haloalkane Dehalogenase From Xanthobacter Autotrophicus Gj1 Refined At 1. 15 A Resolution.
Acta Crystallogr. , Sect. D V. 55 1273 1999
PubMed-ID: 10393294  |  Reference-DOI: 10.1107/S090744499900534X
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HALOALKANE DEHALOGENASE
    Chains: A
    EC Number: 3.8.1.5
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: XANTHOBACTER AUTOTROPHICUS
    Organism Taxid: 280
    Strain: GJ10

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 12)

Asymmetric/Biological Unit (4, 12)
No.NameCountTypeFull Name
1CL2Ligand/IonCHLORIDE ION
2CSB2Mod. Amino AcidCYS BOUND TO LEAD ION
3GOL7Ligand/IonGLYCEROL
4SO41Ligand/IonSULFATE ION

(-) Sites  (11, 11)

Asymmetric Unit (11, 11)
No.NameEvidenceResiduesDescription
01AC1SOFTWARELEU A:25 , ASP A:26 , ARG A:112 , ALA A:227 , GLN A:228 , HOH A:2092 , HOH A:2255 , HOH A:2267 , HOH A:2422 , HOH A:2522 , HOH A:2581 , HOH A:2606BINDING SITE FOR RESIDUE SO4 A 1101
02AC2SOFTWAREGLU A:56 , TRP A:125 , TRP A:175 , PRO A:223 , HOH A:2197BINDING SITE FOR RESIDUE CL A 1998
03AC3SOFTWAREALA A:195 , PRO A:196 , THR A:197 , HOH A:2012 , HOH A:2150BINDING SITE FOR RESIDUE CL A 1999
04AC4SOFTWAREALA A:4 , ARG A:6 , GLY A:33 , ASP A:89 , HOH A:2296 , HOH A:2298 , HOH A:2397 , HOH A:2605BINDING SITE FOR RESIDUE GOL A 1201
05AC5SOFTWAREPRO A:8 , ASP A:9 , GLN A:10 , GLU A:280 , HOH A:2145 , HOH A:2158 , HOH A:2368BINDING SITE FOR RESIDUE GOL A 1202
06AC6SOFTWAREARG A:193 , PRO A:196 , LYS A:261 , HOH A:2062 , HOH A:2097 , HOH A:2120 , HOH A:2334 , HOH A:2393 , HOH A:2554 , HOH A:2564 , HOH A:2580BINDING SITE FOR RESIDUE GOL A 1203
07AC7SOFTWAREASP A:93 , GLU A:94 , GLU A:95 , HOH A:2103 , HOH A:2325 , HOH A:2330 , HOH A:2451 , HOH A:2608 , HOH A:2609BINDING SITE FOR RESIDUE GOL A 1204
08AC8SOFTWAREARG A:103 , MET A:135 , GLU A:239 , HOH A:2136 , HOH A:2283 , HOH A:2339 , HOH A:2409 , HOH A:2589BINDING SITE FOR RESIDUE GOL A 1205
09AC9SOFTWARELYS A:65 , GLU A:293 , PHE A:294 , GLY A:295 , GLU A:296 , GLN A:297 , HOH A:2349BINDING SITE FOR RESIDUE GOL A 1206
10ACTUNKNOWNASP A:124 , HIS A:289 , ASP A:260CATALYTIC TRIAD RESIDUES
11BC1SOFTWAREGLN A:10 , ARG A:11 , ASN A:14 , THR A:309 , HOH A:2069 , HOH A:2214 , HOH A:2391 , HOH A:2610BINDING SITE FOR RESIDUE GOL A 1207

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1B6G)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Glu A:56 -Pro A:57
2Gln A:167 -Pro A:168

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1B6G)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1B6G)

(-) Exons   (0, 0)

(no "Exon" information available for 1B6G)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:310
 aligned with DHLA_XANAU | P22643 from UniProtKB/Swiss-Prot  Length:310

    Alignment length:310
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310
           DHLA_XANAU     1 MINAIRTPDQRFSNLDQYPFSPNYLDDLPGYPGLRAHYLDEGNSDAEDVFLCLHGEPTWSYLYRKMIPVFAESGARVIAPDFFGFGKSDKPVDEEDYTFEFHRNFLLALIERLDLRNITLVVQDWGGFLGLTLPMADPSRFKRLIIMNACLMTDPVTQPAFSAFVTQPADGFTAWKYDLVTPSDLRLDQFMKRWAPTLTEAEASAYAAPFPDTSYQAGVRKFPKMVAQRDQACIDISTEAISFWQNDWNGQTFMAIGMKDKLLGPDVMYPMKALINGCPEPLEIADAGHFVQEFGEQVAREALKHFAETE 310
               SCOP domains d1b6ga_ A: Haloalkane dehalogenase                                                                                                                                                                                                                                                                                     SCOP domains
               CATH domains 1b6gA00 A:1-310  [code=3.40.50.1820, no name defined]                                                                                                                                                                                                                                                                  CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhh..........eeee........eeeeeeee......eeee.......hhhhhhhhhhhhhh..eeeee.............hhh..hhhhhhhhhhhhhhh....eeeee.hhhhhhhhh.hhh.hhheeeeeee...........hhhhhhh......hhhhhhhhh......hhhhhhhh.....hhhhhhhh.....hhh.hhhhhhhhhhh...hhhhhhhhhhhhhhhh....eeeeeee.......hhhhhhhhhh.......eee......hhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1b6g A   1 MVNAIRTPDQRFSNLDQYPFSPNYLDDLPGYPGLRAHYLDEGNSDAEDVFLCLHGEPTWSYLYRKMIPVFAESGARVIAPDFFGFGKSDKPVDEEDYTFEFHRNFLLALIERLDLRNITLVVQDWGGFLGLTLPMADPSRFKRLIIMNAcLMTDPVTQPAFSAFVTQPADGFTAWKYDLVTPSDLRLDQFMKRWAPTLTEAEASAYAAPFPDTSYQAGVRKFPKMVAQRDQAcIDISTEAISFWQNDWNGQTFMAIGMKDKLLGPDVMYPMKALINGCPEPLEIADAGHFVQEFGEQVAREALKHFAETE 310
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230  |    240       250       260       270       280       290       300       310
                                                                                                                                                                               150-CSB                                                                            233-CSB
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1B6G)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (DHLA_XANAU | P22643)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0018786    haloalkane dehalogenase activity    Catalysis of the reaction: 1-haloalkane + H2O = a primary alcohol + halide.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
biological process
    GO:0019260    1,2-dichloroethane catabolic process    The chemical reactions and pathways resulting in the breakdown of 1,2-dichloroethane, a major commodity chemical used, for example, in the manufacture of vinyl chloride.
    GO:0009636    response to toxic substance    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a toxic stimulus.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CSB  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    ACT  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Gln A:167 - Pro A:168   [ RasMol ]
    Glu A:56 - Pro A:57   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

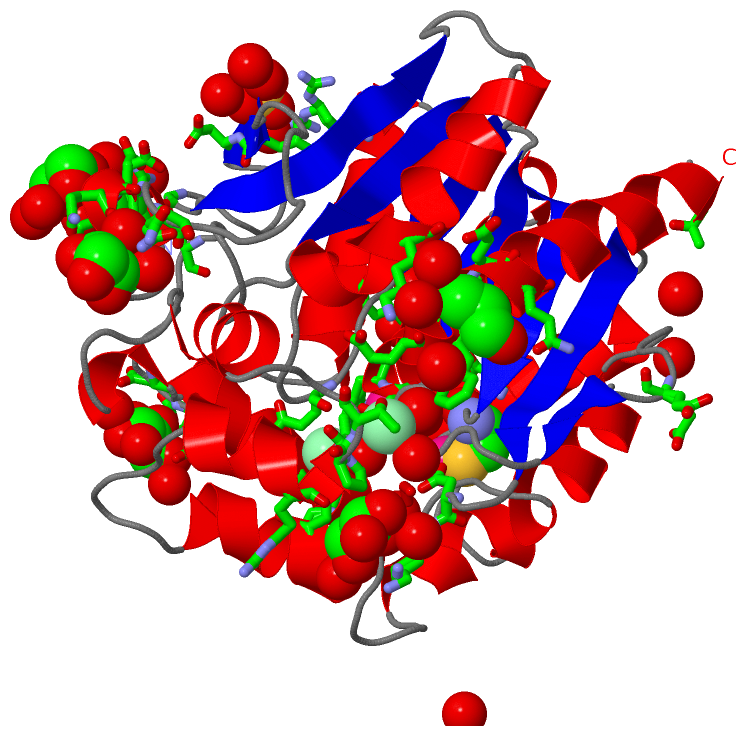

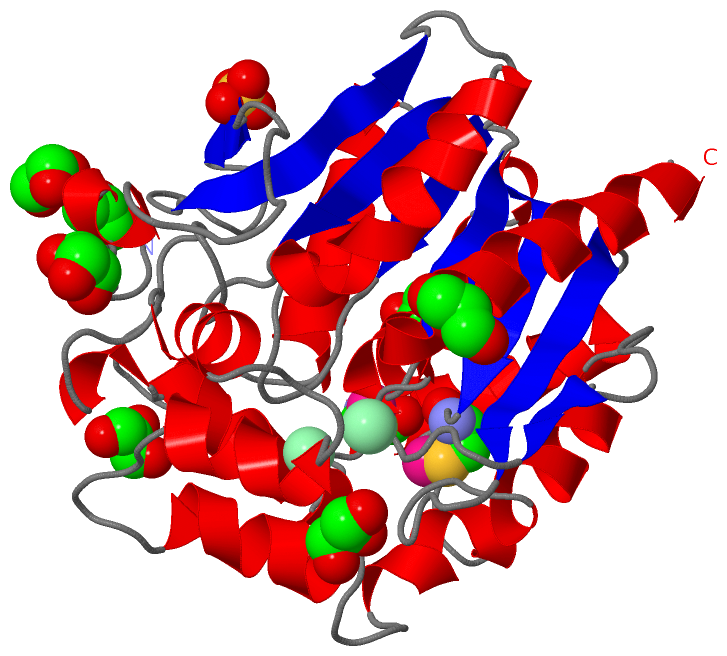

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1b6g
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DHLA_XANAU | P22643
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.8.1.5
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  DHLA_XANAU | P22643
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DHLA_XANAU | P22643: 1be0 1bee 1bez 1cij 1edb 1edd 1ede 1hde 2dhc 2dhd 2dhe 2eda 2edc 2had 2pky 2yxp

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1B6G)
