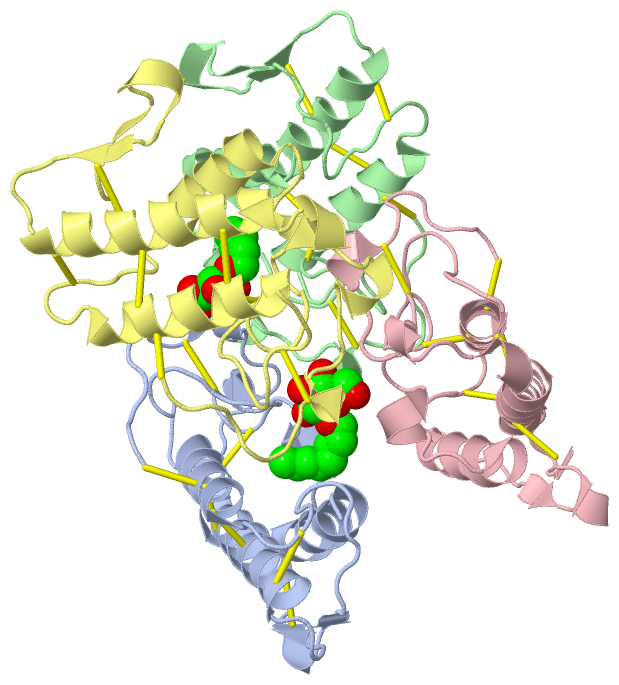

Asym./Biol. Unit (Jmol Viewer)

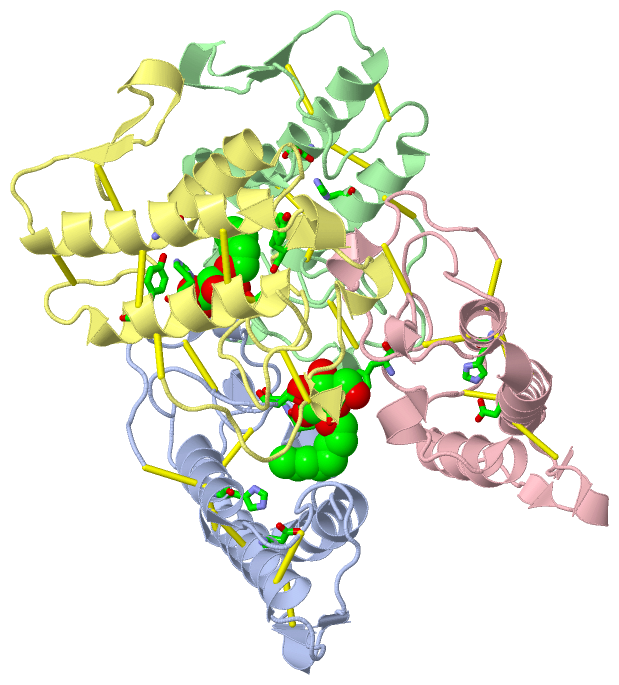

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   BASIC PHOSPHOLIPASE A2 FROM AGKISTRODON HALYS PALLAS-IMPLICATIONS FOR ITS ASSOCIATION AND ANTICOAGULANT ACTIVITIES BY X-RAY CRYSTALLOGRAPHY

Authors :   K. H. Zhao, Z. J. Lin

Date :   30 Dec 98 (Deposition) - 12 Jan 00 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.60

Chains :   Asym./Biol. Unit : A,B,C,D

Keywords :   Basic Phospholipase A2, Agkistrodon Halys Pallas, Dimer, Anticoagulant Activity, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   K. Zhao, Y. Zhou, Z. Lin
Structure Of Basic Phospholipase A2 From Agkistrodon Halys Pallas: Implications For Its Association, Hemolytic And Anticoagulant Activities.
Toxicon V. 38 901 2000
PubMed-ID: 10728829 | Reference-DOI: 10.1016/S0041-0101(99)00193-2
(for further references see the PDB file header)

Molecule 1 - PROTEIN (PHOSPHOLIPASE A2)
	Cellular Location	:	EXTRACELLULAR
	Chains	:	A, B, C, D
	EC Number	:	3.1.1.4
	Organism Common	:	HALYS VIPER
	Organism Scientific	:	GLOYDIUS HALYS
	Organism Taxid	:	8714
	Secretion	:	YES
	Synonym	:	PLA2

		1	2	3	4
Asymmetric/Biological Unit	:	A	B	C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (1, 2)

No.	Name	Count	Type	Full Name
1	BOG	2	Ligand/Ion	B-OCTYLGLUCOSIDE

Asymmetric Unit (6, 6)

No.	Name	Evidence	Residues	Description
1	AC1	AUTHOR	HIS A:48 , ASP A:99	ACTIVE SITE 1
2	AC2	AUTHOR	HIS B:48 , ASP B:99	ACTIVE SITE 2
3	AC3	AUTHOR	HIS C:48 , ASP C:99	ACTIVE SITE 3
4	AC4	AUTHOR	HIS D:48 , ASP D:99	ACTIVE SITE 4
5	AC5	SOFTWARE	ALA A:23 , PHE A:24 , SER A:31 , PHE C:24 , ILE D:124	BINDING SITE FOR RESIDUE BOG A 200
6	AC6	SOFTWARE	TYR D:22 , CYS D:29 , HIS D:48 , TYR D:52 , HOH D:317	BINDING SITE FOR RESIDUE BOG D 300

Asymmetric/Biological Unit

No.	Residues
1	A:27	-	A:126
2	A:29	-	A:45
3	A:44	-	A:105
4	A:50	-	A:133
5	A:51	-	A:98
6	A:61	-	A:91
7	A:84	-	A:96
8	B:27	-	B:126
9	B:29	-	B:45
10	B:44	-	B:105
11	B:50	-	B:133
12	B:51	-	B:98
13	B:61	-	B:91
14	B:84	-	B:96
15	C:27	-	C:126
16	C:29	-	C:45
17	C:44	-	C:105
18	C:50	-	C:133
19	C:51	-	C:98
20	C:61	-	C:91
21	C:84	-	C:96
22	D:27	-	D:126
23	D:29	-	D:45
24	D:44	-	D:105
25	D:50	-	D:133
26	D:51	-	D:98
27	D:61	-	D:91
28	D:84	-	D:96

(no "Cis Peptide Bond" information available for 1B4W)

(no "SAP(SNP)/Variant" information available for 1B4W)

Asymmetric/Biological Unit (2, 8)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PA2_HIS	PS00118	Phospholipase A2 histidine active site.	PA2BB_GLOHA	59-66	4	A:44-51 B:44-51 C:44-51 D:44-51
2	PA2_ASP	PS00119	Phospholipase A2 aspartic acid active site.	PA2BB_GLOHA	101-111	4	A:95-105 B:95-105 C:95-105 D:95-105

(no "Exon" information available for 1B4W)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:122
 aligned with PA2BB_GLOHA | O42187 from UniProtKB/Swiss-Prot  Length:138

    Alignment length:122
                                    26        36        46        56        66        76        86        96       106       116       126       136
          PA2BB_GLOHA    17 SLLQFRKMIKKMTGKEPVVSYAFYGCYCGSGGRGKPKDATDRCCFVHDCCYEKLTGCDPKWDDYTYSWKNGTIVCGGDDPCKKEVCECDKAAAICFRDNLKTYKKRYMTYPNILCSSKSEKC 138
               SCOP domains d1b4wa_ A: Snake phospholipase A2                                                                                          SCOP domains
               CATH domains 1b4wA00 A:1-133 Phospholipase A2                                                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhh...hhhh..................hhhhhhhhhhhhhhh............ee.hhh..ee....hhhhhhhhhhhhhhhhhhh.hhh..hhh....hhh........ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------PA2_HIS ----------------------------------PA2_ASP    --------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------- Transcript
                 1b4w A   1 HLLQFRKMIKKMTGKEPVVSYAFYGCYCGSGGRGKPKDATDRCCFVHDCCYEKVTGCDPKWDDYTYSWKNGTIVCGGDDPCKKEVCECDKAAAICFRDNLKTYKKRYMAYPDILCSSKSEKC 133
                                    10   ||   21        31        41        51    ||||69        79      ||90       100       110       120 ||    131
                                        14|                                      56|||                 86|                               122|
                                         16                                       59||                  88                                124
                                                                                   61|
                                                                                    67

Chain B from PDB  Type:PROTEIN  Length:122
 aligned with PA2BB_GLOHA | O42187 from UniProtKB/Swiss-Prot  Length:138

    Alignment length:122
                                    26        36        46        56        66        76        86        96       106       116       126       136
          PA2BB_GLOHA    17 SLLQFRKMIKKMTGKEPVVSYAFYGCYCGSGGRGKPKDATDRCCFVHDCCYEKLTGCDPKWDDYTYSWKNGTIVCGGDDPCKKEVCECDKAAAICFRDNLKTYKKRYMTYPNILCSSKSEKC 138
               SCOP domains d1b4wb_ B: Snake phospholipase A2                                                                                          SCOP domains
               CATH domains 1b4wB00 B:1-133 Phospholipase A2                                                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhh...hhhh..................hhhhhhhhhhhhhhh............ee.hhh..ee....hhhhhhhhhhhhhhhhhhh.hhh..hhh....hhh........ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------PA2_HIS ----------------------------------PA2_ASP    --------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------- Transcript
                 1b4w B   1 HLLQFRKMIKKMTGKEPVVSYAFYGCYCGSGGRGKPKDATDRCCFVHDCCYEKVTGCDPKWDDYTYSWKNGTIVCGGDDPCKKEVCECDKAAAICFRDNLKTYKKRYMAYPDILCSSKSEKC 133
                                    10   ||   21        31        41        51    ||||69        79      ||90       100       110       120 ||    131
                                        14|                                      56|||                 86|                               122|
                                         16                                       59||                  88                                124
                                                                                   61|
                                                                                    67

Chain C from PDB  Type:PROTEIN  Length:122
 aligned with PA2BB_GLOHA | O42187 from UniProtKB/Swiss-Prot  Length:138

    Alignment length:122
                                    26        36        46        56        66        76        86        96       106       116       126       136
          PA2BB_GLOHA    17 SLLQFRKMIKKMTGKEPVVSYAFYGCYCGSGGRGKPKDATDRCCFVHDCCYEKLTGCDPKWDDYTYSWKNGTIVCGGDDPCKKEVCECDKAAAICFRDNLKTYKKRYMTYPNILCSSKSEKC 138
               SCOP domains d1b4wc_ C: Snake phospholipase A2                                                                                          SCOP domains
               CATH domains 1b4wC00 C:1-133 Phospholipase A2                                                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhh...hhhh..................hhhhhhhhhhhhhhh............ee.hhh..ee....hhhhhhhhhhhhhhhhhhh.hhh..hhh....hhh........ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------PA2_HIS ----------------------------------PA2_ASP    --------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------- Transcript
                 1b4w C   1 HLLQFRKMIKKMTGKEPVVSYAFYGCYCGSGGRGKPKDATDRCCFVHDCCYEKVTGCDPKWDDYTYSWKNGTIVCGGDDPCKKEVCECDKAAAICFRDNLKTYKKRYMAYPDILCSSKSEKC 133
                                    10   ||   21        31        41        51    ||||69        79      ||90       100       110       120 ||    131
                                        14|                                      56|||                 86|                               122|
                                         16                                       59||                  88                                124
                                                                                   61|
                                                                                    67

Chain D from PDB  Type:PROTEIN  Length:122
 aligned with PA2BB_GLOHA | O42187 from UniProtKB/Swiss-Prot  Length:138

    Alignment length:122
                                    26        36        46        56        66        76        86        96       106       116       126       136
          PA2BB_GLOHA    17 SLLQFRKMIKKMTGKEPVVSYAFYGCYCGSGGRGKPKDATDRCCFVHDCCYEKLTGCDPKWDDYTYSWKNGTIVCGGDDPCKKEVCECDKAAAICFRDNLKTYKKRYMTYPNILCSSKSEKC 138
               SCOP domains d1b4wd_ D: Snake phospholipase A2                                                                                          SCOP domains
               CATH domains 1b4wD00 D:1-133 Phospholipase A2                                                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhh...hhhh..................hhhhhhhhhhhhhhh............ee.hhh..ee....hhhhhhhhhhhhhhhhhhh.hhh..hhh....hhh........ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------PA2_HIS ----------------------------------PA2_ASP    --------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------- Transcript
                 1b4w D   1 HLLQFRKMIKKMTGKEPVVSYAFYGCYCGSGGRGKPKDATDRCCFVHDCCYEKVTGCDPKWDDYTYSWKNGTIVCGGDDPCKKEVCECDKAAAICFRDNLKTYKKRYMAYPDILCSSKSEKC 133
                                    10   ||   21        31        41        51    ||||69        79      ||90       100       110       120 ||    131
                                        14|                                      56|||                 86|                               122|
                                         16                                       59||                  88                                124
                                                                                   61|
                                                                                    67

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: Phospholipase A2, PLA2 (282)

Superfamily: Phospholipase A2, PLA2 (282)

Family: Vertebrate phospholipase A2 (271)

Protein domain: Snake phospholipase A2 (124)

Halys viper (Agkistrodon halys) [TaxId: 8714] (9)

1a	d1b4wa_	A:
1b	d1b4wb_	B:
1c	d1b4wc_	C:
1d	d1b4wd_	D:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Up-down Bundle (3216)

Topology: Phospholipase A2 (241)

Homologous Superfamily: Phospholipase A2 (241)

Halys viper (Gloydius halys) (9)

1a	1b4wA00	A:1-133
1b	1b4wB00	B:1-133
1c	1b4wC00	C:1-133
1d	1b4wD00	D:1-133

(no "Pfam Domain" information available for 1B4W)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B,C,D (PA2BB_GLOHA | O42187)

molecular function
	GO:0005509	calcium ion binding	Interacting selectively and non-covalently with calcium ions (Ca2+).
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0004623	phospholipase A2 activity	Catalysis of the reaction: phosphatidylcholine + H2O = 1-acylglycerophosphocholine + a carboxylate.
biological process
	GO:0016042	lipid catabolic process	The chemical reactions and pathways resulting in the breakdown of lipids, compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent.
	GO:0006629	lipid metabolic process	The chemical reactions and pathways involving lipids, compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent. Includes fatty acids; neutral fats, other fatty-acid esters, and soaps; long-chain (fatty) alcohols and waxes; sphingoids and other long-chain bases; glycolipids, phospholipids and sphingolipids; and carotenes, polyprenols, sterols, terpenes and other isoprenoids.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
