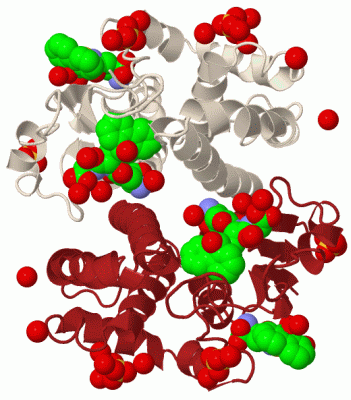

Biol.Unit 1 - manually (Jmol Viewer)

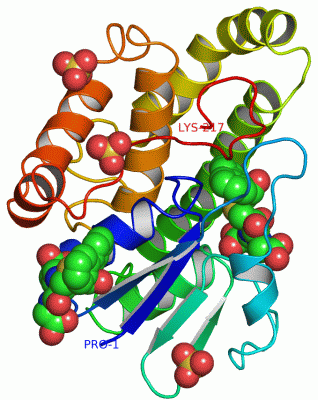

Asym.Unit - manually (Jmol Viewer)

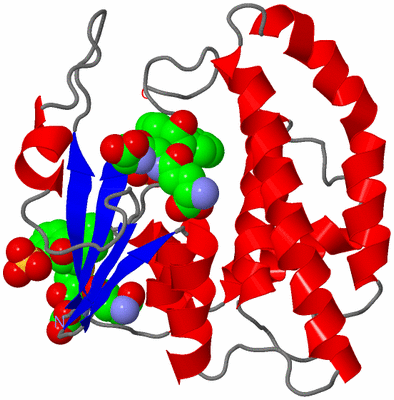

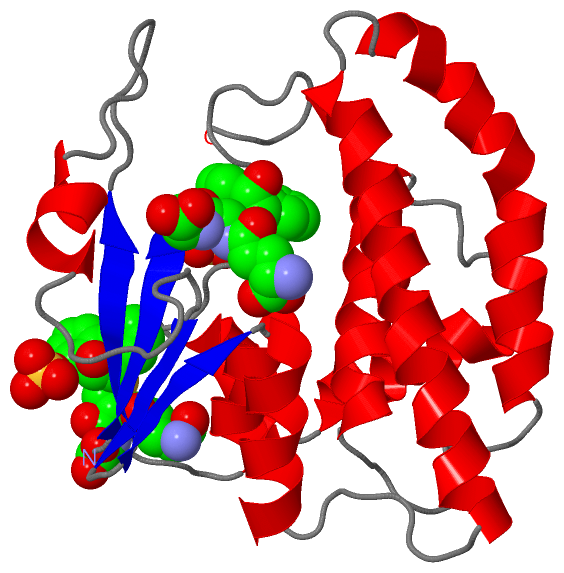

Asymmetric Unit (Jmol Viewer)

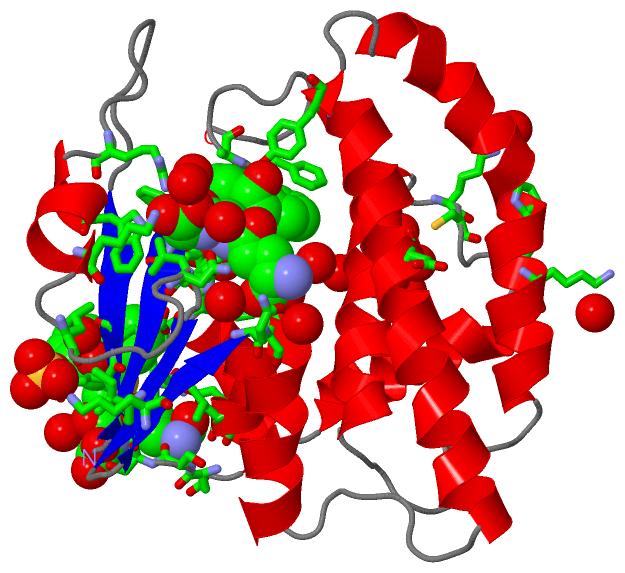

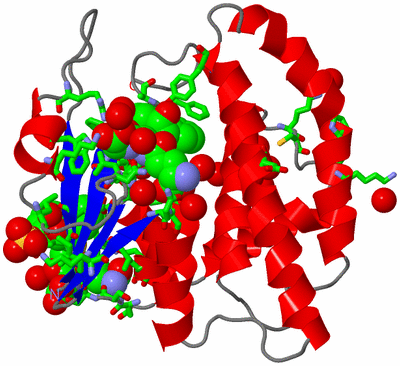

Asym. Unit - sites (Jmol Viewer)

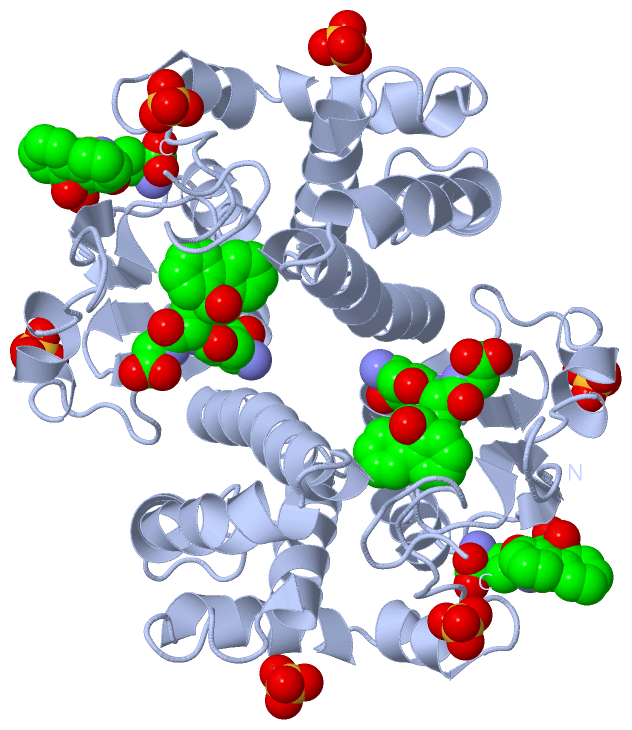

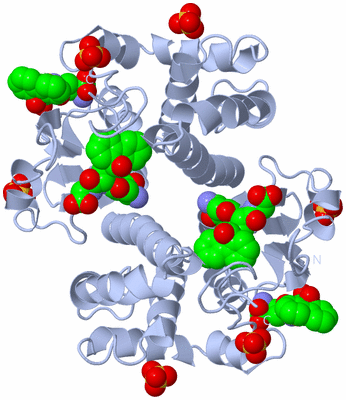

Biological Unit 1 (Jmol Viewer)

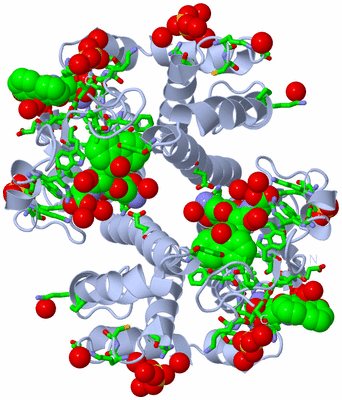

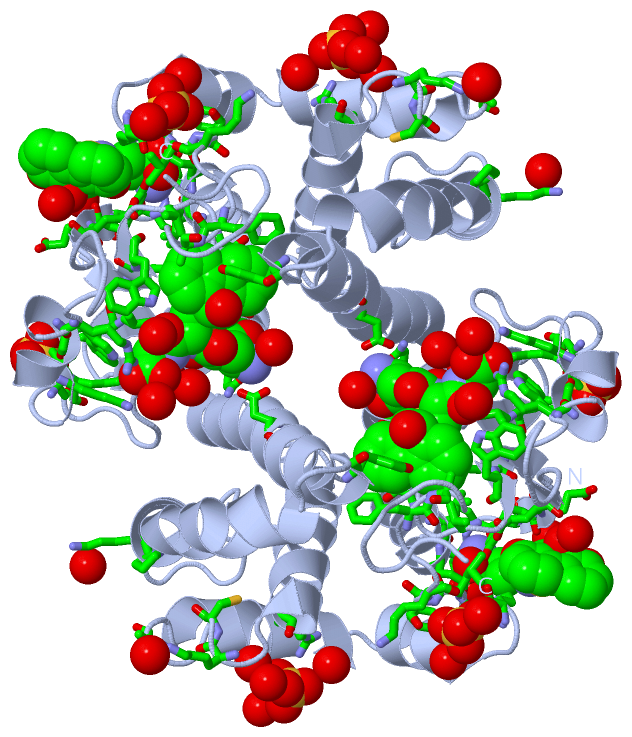

Biol. Unit 1 - sites (Jmol Viewer)

Title :   CRYSTAL STRUCTURES OF CLASS MU CHIMERIC GST ISOENZYMES M1-2 AND M2-1

Authors :   G. Xiao, J. Chen, R. N. Armstrong, G. L. Gilliland

Date :   26 Dec 98 (Deposition) - 08 Jul 03 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.70

Chains :   Asym. Unit : A
Biol. Unit 1: A  (2x)

Keywords :   Chimeric Gst, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   G. Xiao, X. Liu, X. Ji, P. Zhang, W. W. Johnson, J. Chen, J. F. Parsons, W. J. Stevens, G. L. Gilliland, R. N. Armstrong
Crystal Structures Of Class Mu Chimeric Gst Isoenzymes M1-2 And M2-1
To Be Published
PubMed: search
(for further references see the PDB file header)

Molecule 1 - PROTEIN (GLUTATHIONE S-TRANSFERASE)
	Chains	:	A
	EC Number	:	2.5.1.18
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Gene	:	CDNA INSERT OF CLONE PGT33MX
	Expression System Plasmid	:	PGT33MX
	Expression System Strain	:	M5219
	Expression System Taxid	:	562
	Fragment	:	COMPLETE PROTEIN
	Gene	:	CDNA INSERT OF CLONE PGT33MX
	Organ	:	LIVER
	Organism Common	:	NORWAY RAT
	Organism Scientific	:	RATTUS NORVEGICUS
	Organism Taxid	:	10116
	Other Details	:	SUBSTRATE IS (9S, 10S)-9-(S-GLUTATHIONYL)-10-HYDROXY- 9.10-DIHYDROPHENANTHRENE
	Other Details - Source	:	THE ENZYME IS A CHIMERIC GST, CONSISTING OF DOMAIN I FROM TYPE M1-1 AND DOMAIN II FROM TYPE M2-2
	Strain	:	M5219
	Synonym	:	GST

		1
Asymmetric Unit	:	A
Biological Unit 1 (2x)	:	A

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 5)

No.	Name	Count	Type	Full Name
1	GPS	2	Ligand/Ion	L-GAMMA-GLUTAMYL-S-[(9S,10S)-10-HYDROXY-9,10-DIHYDROPHENANTHREN-9-YL]-L-CYSTEINYLGLYCINE
2	SO4	3	Ligand/Ion	SULFATE ION

Biological Unit 1 (2, 10)

No.	Name	Count	Type	Full Name
1	GPS	4	Ligand/Ion	L-GAMMA-GLUTAMYL-S-[(9S,10S)-10-HYDROXY-9,10-DIHYDROPHENANTHREN-9-YL]-L-CYSTEINYLGLYCINE
2	SO4	6	Ligand/Ion	SULFATE ION

Asymmetric Unit (6, 6)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ARG A:167 , HOH A:391 , HOH A:475 , HOH A:521 , HOH A:535	BINDING SITE FOR RESIDUE SO4 A 221
2	AC2	SOFTWARE	LEU A:52 , ILE A:63 , LYS A:68	BINDING SITE FOR RESIDUE SO4 A 222
3	AC3	SOFTWARE	LYS A:135 , PHE A:202 , LEU A:203 , SER A:204 , LYS A:205 , HOH A:395 , HOH A:497 , HOH A:526	BINDING SITE FOR RESIDUE SO4 A 223
4	AC4	SOFTWARE	TYR A:6 , TRP A:7 , VAL A:9 , GLY A:11 , LEU A:12 , ARG A:42 , TRP A:45 , LYS A:49 , ASN A:58 , LEU A:59 , GLN A:71 , SER A:72 , ASP A:105 , TYR A:115 , PHE A:208 , ALA A:209 , HOH A:301 , HOH A:302 , HOH A:325 , HOH A:386 , HOH A:415 , HOH A:508	BINDING SITE FOR RESIDUE GPS A 218
5	AC5	SOFTWARE	LEU A:20 , GLU A:21 , ASP A:24 , SER A:25 , SER A:26 , TYR A:27 , GLU A:28 , GLU A:29 , PRO A:131 , LYS A:172 , CYS A:173 , ALA A:176 , ARG A:201 , HOH A:384 , HOH A:429 , HOH A:533	BINDING SITE FOR RESIDUE GPS A 219
6	GPS	AUTHOR	TYR A:6	NON3

(no "SS Bond" information available for 1B4P)

Asymmetric Unit

No.	Residues
1	Ala A:37	-	Pro A:38
2	Leu A:59	-	Pro A:60
3	Lys A:205	-	Pro A:206

(no "SAP(SNP)/Variant" information available for 1B4P)

Asymmetric Unit (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GST_CTER	PS50405	Soluble glutathione S-transferase C-terminal domain profile.	GSTM2_RAT	90-214	1	A:89-213

Biological Unit 1 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GST_CTER	PS50405	Soluble glutathione S-transferase C-terminal domain profile.	GSTM2_RAT	90-214	2	A:89-213

(no "Exon" information available for 1B4P)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:217
 aligned with GSTM2_RAT | P08010 from UniProtKB/Swiss-Prot  Length:218

    Alignment length:217
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211
            GSTM2_RAT     2 PMTLGYWDIRGLAHAIRLFLEYTDTSYEDKKYSMGDAPDYDRSQWLSEKFKLGLDFPNLPYLIDGSHKITQSNAILRYLGRKHNLCGETEEERIRVDVLENQAMDTRLQLAMVCYSPDFERKKPEYLEGLPEKMKLYSEFLGKQPWFAGNKITYVDFLVYDVLDQHRIFEPKCLDAFPNLKDFVARFEGLKKISDYMKSGRFLSKPIFAKMAFWNPK 218
               SCOP domains d1b4pa2 A:1-84 Class mu GST                                                         d1b4pa1 A:85-217 Class mu GST                                                                                                         SCOP domains
               CATH domains 1b4pA01 A:1-85,A:191-217 Glutaredoxin                                                1b4pA02 A:86-190  [code=1.20.1050.10, no name defined]                                                   1b4pA01 A:1-85,A:191-217    CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee......hhhhhhhhh....eeeeee..........hhhhhhh...........eeee..eeee.hhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhh........hhhhhhhhhhhh.hhhhhhhh................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------GST_CTER  PDB: A:89-213 UniProt: 90-214                                                                                      ---- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1b4p A   1 PMILGYWNVRGLTHPIRLLLEYTDSSYEEKRYAMGDAPDYDRSQWLNEKFKLGLDFPNLPYLIDGSRKITQSNAIMRYLARKHHLCGETEEERIRVDVLENQAMDTRLQLAMVCYSPDFERKKPEYLEGLPEKMKLYSEFLGKQPWFAGNKITYVDFLVYDVLDQHRIFEPKCLDAFPNLKDFVARFEGLKKISDYMKSGRFLSKPIFAKMAFWNPK 217
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Glutaredoxin (620)

Homologous Superfamily: Glutaredoxin (617)

Norway rat (Rattus norvegicus) (10)

1b4pA01

A:1-85,A:191-217

Class: Mainly Alpha (13335)

Architecture: Up-down Bundle (3216)

Topology: Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2 (267)

Homologous Superfamily: [code=1.20.1050.10, no name defined] (249)

Norway rat (Rattus norvegicus) (7)

1b4pA02

A:86-190

(no "Pfam Domain" information available for 1B4P)

Asymmetric Unit(hide GO term definitions)

Chain A (GSTM2_RAT | P08010)

molecular function
	GO:0004364	glutathione transferase activity	Catalysis of the reaction: R-X + glutathione = H-X + R-S-glutathione. R may be an aliphatic, aromatic or heterocyclic group; X may be a sulfate, nitrile or halide group.
	GO:0042803	protein homodimerization activity	Interacting selectively and non-covalently with an identical protein to form a homodimer.
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
	GO:0007568	aging	A developmental process that is a deterioration and loss of function over time. Aging includes loss of functions such as resistance to disease, homeostasis, and fertility, as well as wear and tear. Aging includes cellular senescence, but is more inclusive. May precede death and may succeed developmental maturation (GO:0021700).
	GO:0008152	metabolic process	The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
	GO:1902168	response to catechin	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a catechin stimulus.
	GO:0033595	response to genistein	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a genistein stimulus.
	GO:0010038	response to metal ion	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a metal ion stimulus.
	GO:0014070	response to organic cyclic compound	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an organic cyclic compound stimulus.
	GO:0050896	response to stimulus	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus. The process begins with detection of the stimulus and ends with a change in state or activity or the cell or organism.
	GO:0007608	sensory perception of smell	The series of events required for an organism to receive an olfactory stimulus, convert it to a molecular signal, and recognize and characterize the signal. Olfaction involves the detection of chemical composition of an organism's ambient medium by chemoreceptors. This is a neurological process.
	GO:0006805	xenobiotic metabolic process	The chemical reactions and pathways involving a xenobiotic compound, a compound foreign to living organisms. Used of chemical compounds, e.g. a xenobiotic chemical, such as a pesticide.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
	GO:0043234	protein complex	A stable macromolecular complex composed (only) of two or more polypeptide subunits along with any covalently attached molecules (such as lipid anchors or oligosaccharide) or non-protein prosthetic groups (such as nucleotides or metal ions). Prosthetic group in this context refers to a tightly bound cofactor. The component polypeptide subunits may be identical.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		GPS	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		GPS	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Ala A:37 - Pro A:38	[ RasMol ]
		Leu A:59 - Pro A:60	[ RasMol ]
		Lys A:205 - Pro A:206	[ RasMol ]

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1b4p
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	GSTM2_RAT \| P08010
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	2.5.1.18
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	GSTM2_RAT \| P08010
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1B4P)

(no "Related Entries Specified in the PDB File" available for 1B4P)
