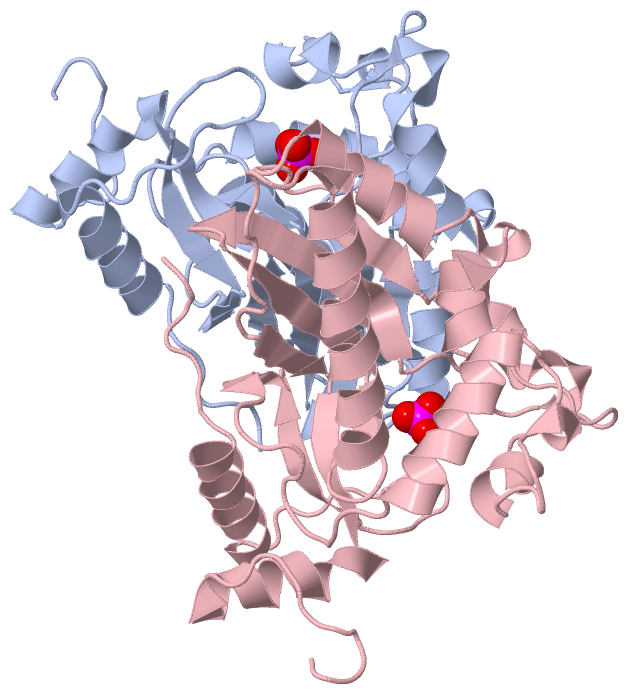

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  DCMP HYDROXYMETHYLASE FROM T4 (PHOSPHATE-BOUND)

Authors :  H. K. Song, S. H. Sohn, S. W. Suh
Date :  06 Jan 99  (Deposition) - 13 Jan 99  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym./Biol. Unit :  A,C
Keywords :  Hydroxymethylase, Dntp Synthesizing Complex, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. K. Song, S. H. Sohn, S. W. Suh
Crystal Structure Of Deoxycytidylate Hydroxymethylase From Bacteriophage T4, A Component Of The Deoxyribonucleoside Triphosphate-Synthesizing Complex.
Embo J. V. 18 1104 1999
PubMed-ID: 10064578  |  Reference-DOI: 10.1093/EMBOJ/18.5.1104

(-) Compounds

Molecule 1 - PROTEIN (DEOXYCYTIDYLATE HYDROXYMETHYLASE)
    Chains: A, C
    EC Number: 2.1.2.8
    Organism Scientific: ENTEROBACTERIA PHAGE T4
    Organism Taxid: 10665
    Synonym: T4 CH

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1PO42Ligand/IonPHOSPHATE ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:28 , ARG A:168 , SER A:169 , HOH A:314 , ARG C:123 , ARG C:124 , HOH C:302BINDING SITE FOR RESIDUE PO4 A 300
2AC2SOFTWAREARG A:123 , ARG A:124 , HOH A:321 , LYS C:28 , ARG C:168 , SER C:169 , HOH C:316BINDING SITE FOR RESIDUE PO4 C 301
3CATAUTHORCYS A:148 , CYS C:148NULL

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1B49)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1B49)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1B49)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1B49)

(-) Exons   (0, 0)

(no "Exon" information available for 1B49)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:241
 aligned with DCHM_BPT4 | P08773 from UniProtKB/Swiss-Prot  Length:246

    Alignment length:241
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240
            DCHM_BPT4     1 MISDSMTVEEIRLHLGLALKEKDFVVDKTGVKTIEIIGASFVADEPFIFGALNDEYIQRELEWYKSKSLFVKDIPGETPKIWQQVASSKGEINSNYGWAIWSEDNYAQYDMCLAELGQNPDSRRGIMIYTRPSMQFDYNKDGMSDFMCTNTVQYLIRDKKINAVVNMRSNDVVFGFRNDYAWQKYVLDKLVSDLNAGDSTRQYKAGSIIWNVGSLHVYSRHFYLVDHWWKTGETHISKKDY 241
               SCOP domains d1b49a_ A: dCMP hydroxymethylase                                                                                                                                                                                                                  SCOP domains
               CATH domains 1b49A00 A:1-241 Thymidylate Synthase, chain A                                                                                                                                                                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhh............eeeee.eeee...........hhhhhhhhhhhhh....hhh......hhhhh...........hhhhhh.hhh..hhhhhhhhhhh.......eee...hhhhhhhhhhh......eeeeeeeee..eeeeeeee.eee...hhhhhhhhhhhhhhhhhhhhhhh..........eeeee.eeeeehhhhhhhhhhhhh.......... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1b49 A   1 MISDSMTVEEIRLHLGLALKEKDFVVDKTGVKTIEIIGASFVADEPFIFGALNDEYIQRELEWYKSKSLFVKDIPGETPKIWQQVASSKGEINSNYGWAIWSEDNYAQYDMCLAELGQNPDSRRGIMIYTRPSMQFDYNKDGMSDFMCTNTVQYLIRDKKINAVVNMRSNDVVFGFRNDYAWQKYVLDKLVSDLNAGDSTRQYKAGSIIWNVGSLHVYSRHFYLVDHWWKTGETHISKKDY 241
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240


Chain C from PDB  Type:PROTEIN  Length:241
 aligned with DCHM_BPT4 | P08773 from UniProtKB/Swiss-Prot  Length:246

    Alignment length:241
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240
            DCHM_BPT4     1 MISDSMTVEEIRLHLGLALKEKDFVVDKTGVKTIEIIGASFVADEPFIFGALNDEYIQRELEWYKSKSLFVKDIPGETPKIWQQVASSKGEINSNYGWAIWSEDNYAQYDMCLAELGQNPDSRRGIMIYTRPSMQFDYNKDGMSDFMCTNTVQYLIRDKKINAVVNMRSNDVVFGFRNDYAWQKYVLDKLVSDLNAGDSTRQYKAGSIIWNVGSLHVYSRHFYLVDHWWKTGETHISKKDY 241
               SCOP domains d1b49c_ C: dCMP hydroxymethylase                                                                                                                                                                                                                  SCOP domains
               CATH domains 1b49C00 C:1-241 Thymidylate Synthase, chain A                                                                                                                                                                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhh............eeeee.eeee...........hhhhhhhhhhhhh....hhh......hhhhh...........hhhhhh.hhh..hhhhhhhhhhh.......eee...hhhhhhhhhhh......eeeeeeeee..eeeeeeee.eee...hhhhhhhhhhhhhhhhhhhhhhh..........eeeee.eeeeehhhhhhhhhhhhh.......... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1b49 C   1 MISDSMTVEEIRLHLGLALKEKDFVVDKTGVKTIEIIGASFVADEPFIFGALNDEYIQRELEWYKSKSLFVKDIPGETPKIWQQVASSKGEINSNYGWAIWSEDNYAQYDMCLAELGQNPDSRRGIMIYTRPSMQFDYNKDGMSDFMCTNTVQYLIRDKKINAVVNMRSNDVVFGFRNDYAWQKYVLDKLVSDLNAGDSTRQYKAGSIIWNVGSLHVYSRHFYLVDHWWKTGETHISKKDY 241
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1B49)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,C   (DCHM_BPT4 | P08773)
molecular function
    GO:0047153    deoxycytidylate 5-hydroxymethyltransferase activity    Catalysis of the reaction: 5,10-methylenetetrahydrofolate + dCMP + H(2)O = (6S)-5,6,7,8-tetrahydrofolate + 5-hydroxymethyldeoxycytidylate.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    PO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    CAT  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1b49)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1b49
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DCHM_BPT4 | P08773
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.1.2.8
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  DCHM_BPT4 | P08773
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DCHM_BPT4 | P08773: 1b5d 1b5e

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1B49)
