1B3L - JenaLib

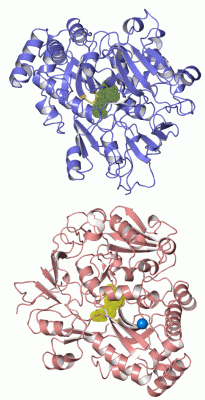

Asym.Unit - manually (Jmol Viewer)

Asymmetric Unit (Jmol Viewer)

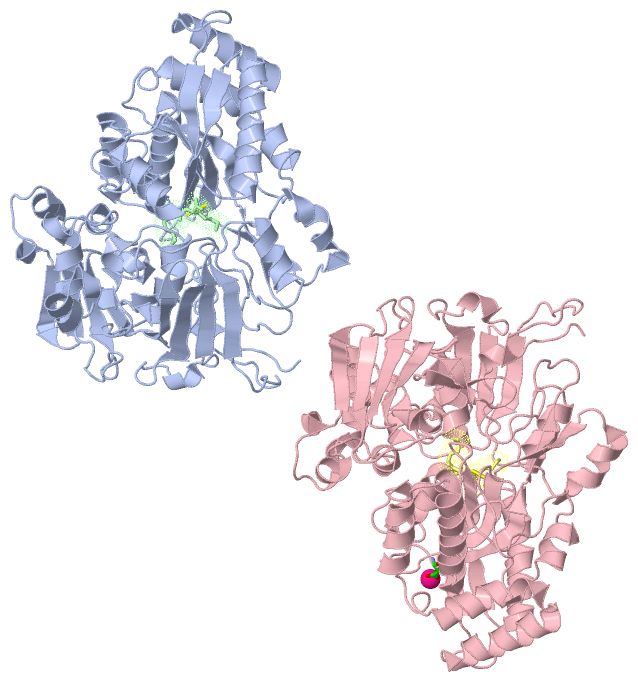

Asym. Unit - sites (Jmol Viewer)

Biological Unit 1 (Jmol Viewer)

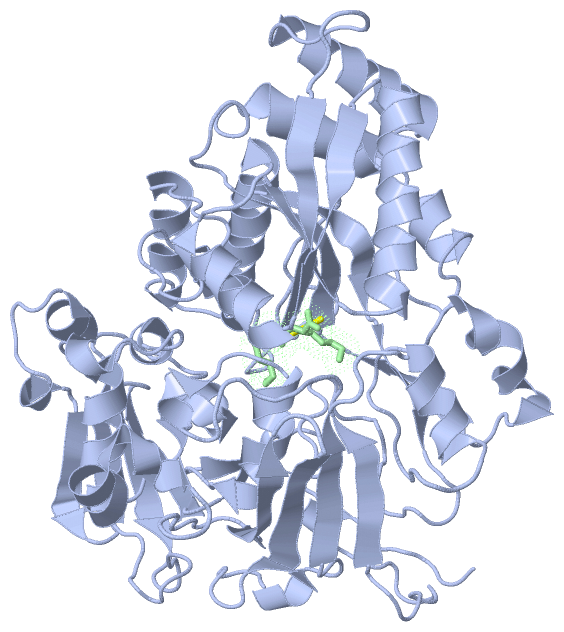

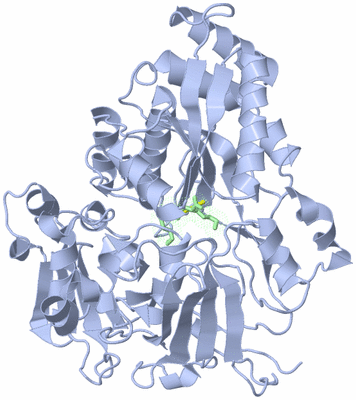

Biol. Unit 1 - sites (Jmol Viewer)

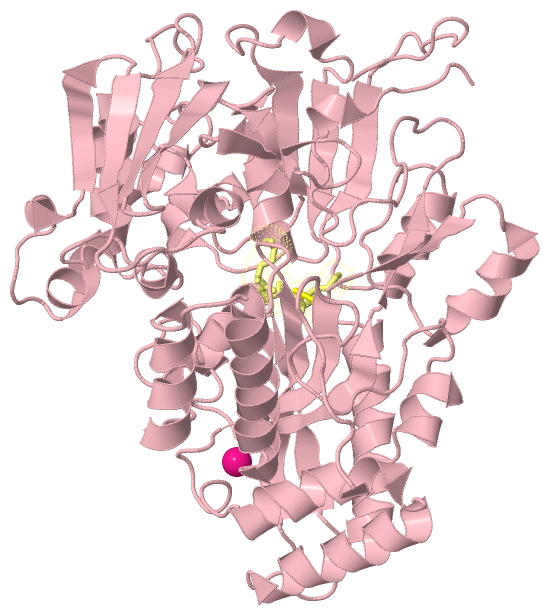

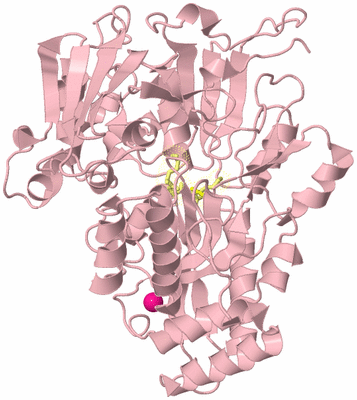

Biological Unit 2 (Jmol Viewer)

Title :   OLIGO-PEPTIDE BINDING PROTEIN (OPPA) COMPLEXED WITH KGK

Authors :   J. R. H. Tame, A. J. Wilkinson

Date :   11 Dec 98 (Deposition) - 16 Dec 98 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.00

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: C,D  (1x)

Keywords :   Complex (Peptide Transport/Peptide), Peptide Transport, Peptide Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   S. H. Sleigh, P. R. Seavers, A. J. Wilkinson, J. E. Ladbury, J. R. Tame
Crystallographic And Calorimetric Analysis Of Peptide Binding To Oppa Protein.
J. Mol. Biol. V. 291 393 1999
PubMed-ID: 10438628 | Reference-DOI: 10.1006/JMBI.1999.2929
(for further references see the PDB file header)

Molecule 1 - PROTEIN (OLIGO-PEPTIDE BINDING PROTEIN)
	Chains	:	A, C
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Gene	:	OPPA
	Organism Scientific	:	SALMONELLA TYPHIMURIUM
	Organism Taxid	:	602
	Synonym	:	OPPA

Molecule 2 - PROTEIN (LYS-GLY-LYS)
	Chains	:	B, D
	Engineered	:	YES
	Synthetic	:	YES

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:			C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 1)

No.	Name	Count	Type	Full Name
1	IUM	1	Ligand/Ion	URANYL (VI) ION

Biological Unit 1 (0, 0)

No.	Name	Count	Type	Full Name
1	IUM	-1	Ligand/Ion	URANYL (VI) ION

Biological Unit 2 (1, 1)

No.	Name	Count	Type	Full Name
1	IUM	1	Ligand/Ion	URANYL (VI) ION

Asymmetric Unit (1, 1)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASP C:362 , ASP C:410	BINDING SITE FOR RESIDUE IUM C 518

Asymmetric Unit

No.	Residues
1	A:271	-	A:417
2	C:271	-	C:417

Asymmetric Unit

No.	Residues
1	Ala A:282	-	Pro A:283
2	Ala C:282	-	Pro C:283

(no "SAP(SNP)/Variant" information available for 1B3L)

Asymmetric Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SBP_BACTERIAL_5	PS01040	Bacterial extracellular solute-binding proteins, family 5 signature.	OPPA_SALTY	87-108	2	A:61-82 C:61-82

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SBP_BACTERIAL_5	PS01040	Bacterial extracellular solute-binding proteins, family 5 signature.	OPPA_SALTY	87-108	1	A:61-82 -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SBP_BACTERIAL_5	PS01040	Bacterial extracellular solute-binding proteins, family 5 signature.	OPPA_SALTY	87-108	1	- C:61-82

(no "Exon" information available for 1B3L)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:517
 aligned with OPPA_SALTY | P06202 from UniProtKB/Swiss-Prot  Length:543

    Alignment length:517
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496       506       516       526       536
           OPPA_SALTY    27 ADVPAGVQLADKQTLVRNNGSEVQSLDPHKIEGVPESNVSRDLFEGLLISDVEGHPSPGVAEKWENKDFKVWTFHLRENAKWSDGTPVTAHDFVYSWQRLADPNTASPYASYLQYGHIANIDDIIAGKKPATDLGVKALDDHTFEVTLSEPVPYFYKLLVHPSVSPVPKSAVEKFGDKWTQPANIVTNGAYKLKNWVVNERIVLERNPQYWDNAKTVINQVTYLPISSEVTDVNRYRSGEIDMTYNNMPIELFQKLKKEIPNEVRVDPYLCTYYYEINNQKAPFNDVRVRTALKLALDRDIIVNKVKNQGDLPAYSYTPPYTDGAKLVEPEWFKWSQQKRNEEAKKLLAEAGFTADKPLTFDLLYNTSDLHKKLAIAVASIWKKNLGVNVNLENQEWKTFLDTRHQGTFDVARAGWCADYNEPTSFLNTMLSDSSNNTAHYKSPAFDKLIADTLKVADDTQRSELYAKAEQQLDKDSAIVPVYYYVNARLVKPWVGGYTGKDPLDNIYVKNLYIIKH 543
               SCOP domains d1b3la_ A: Oligo-peptide binding protein (OPPA)                                                                                                                                                                                                                                                                                                                                                                                                                                                                                       SCOP domains
               CATH domains 1b3lA01 A:1-44,A:169-270,A:487-517          1b3lA02 A:45-168 Dipeptide-binding Protein; Domain 1                                                                        1b3lA01 A:1-44,A:169-270,A:487-517 Periplasmic binding protein-like II                                1b3lA03 A:271-486 Dipeptide-binding Protein; Domain 3                                                                                                                                                                   1b3lA01                         CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .............eeeee.........hhh...hhhhhhhhhh....eee.....eee..eeeeeee...eeeeee.............hhhhhhhhhhhh.hhh....hhhhhh.....hhhhh.....hhh..eeeee..eeeee.......hhhhhh.hhh....hhhhhhhhhhhh..........eeeeeee...eeeeee......hhh....eeeee....hhhhhhhh.............hhhhhhhhhh....eeeee..eeeeeee.........hhhhhhhhhh..hhhhhh..........................hhhh..hhhhhhhhhhhhhh.........eeeeeee..hhhhhhhhhhhhhhhhhh..eeeeeee.hhhhhhhhhh....eeeeeee.....hhhhhhhh.............hhhhhhhhhhh....hhhhhhhhhhhhhhhhhh..eeeeee.eeeee..................hhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------SBP_BACTERIAL_5       --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1b3l A   1 ADVPAGVQLADKQTLVRNNGSEVQSLDPHKIEGVPESNVSRDLFEGLLISDVEGHPSPGVAEKWENKDFKVWTFHLRENAKWSDGTPVTAHDFVYSWQRLADPNTASPYASYLQYGHIANIDDIIAGKKPATDLGVKALDDHTFEVTLSEPVPYFYKLLVHPSVSPVPKSAVEKFGDKWTQPANIVTNGAYKLKNWVVNERIVLERNPQYWDNAKTVINQVTYLPISSEVTDVNRYRSGEIDMTYNNMPIELFQKLKKEIPNEVRVDPYLCTYYYEINNQKAPFNDVRVRTALKLALDRDIIVNKVKNQGDLPAYSYTPPYTDGAKLVEPEWFKWSQQKRNEEAKKLLAEAGFTADKPLTFDLLYNTSDLHKKLAIAVASIWKKNLGVNVNLENQEWKTFLDTRHQGTFDVARAGWCADYNEPTSFLNTMLSDSSNNTAHYKSPAFDKLIADTLKVADDTQRSELYAKAEQQLDKDSAIVPVYYYVNARLVKPWVGGYTGKDPLDNIYVKNLYIIKH 517
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510

Chain B from PDB  Type:PROTEIN  Length:3

               SCOP domains --- SCOP domains
               CATH domains --- CATH domains
               Pfam domains --- Pfam domains
         Sec.struct. author ... Sec.struct. author
                 SAPs(SNPs) --- SAPs(SNPs)
                    PROSITE --- PROSITE
                 Transcript --- Transcript
                 1b3l B   1 KGK   3

Chain C from PDB  Type:PROTEIN  Length:517
 aligned with OPPA_SALTY | P06202 from UniProtKB/Swiss-Prot  Length:543

    Alignment length:517
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496       506       516       526       536
           OPPA_SALTY    27 ADVPAGVQLADKQTLVRNNGSEVQSLDPHKIEGVPESNVSRDLFEGLLISDVEGHPSPGVAEKWENKDFKVWTFHLRENAKWSDGTPVTAHDFVYSWQRLADPNTASPYASYLQYGHIANIDDIIAGKKPATDLGVKALDDHTFEVTLSEPVPYFYKLLVHPSVSPVPKSAVEKFGDKWTQPANIVTNGAYKLKNWVVNERIVLERNPQYWDNAKTVINQVTYLPISSEVTDVNRYRSGEIDMTYNNMPIELFQKLKKEIPNEVRVDPYLCTYYYEINNQKAPFNDVRVRTALKLALDRDIIVNKVKNQGDLPAYSYTPPYTDGAKLVEPEWFKWSQQKRNEEAKKLLAEAGFTADKPLTFDLLYNTSDLHKKLAIAVASIWKKNLGVNVNLENQEWKTFLDTRHQGTFDVARAGWCADYNEPTSFLNTMLSDSSNNTAHYKSPAFDKLIADTLKVADDTQRSELYAKAEQQLDKDSAIVPVYYYVNARLVKPWVGGYTGKDPLDNIYVKNLYIIKH 543
               SCOP domains d1b3lc_ C: Oligo-peptide binding protein (OPPA)                                                                                                                                                                                                                                                                                                                                                                                                                                                                                       SCOP domains
               CATH domains 1b3lC01 C:1-44,C:169-270,C:487-517          1b3lC02 C:45-168 Dipeptide-binding Protein; Domain 1                                                                        1b3lC01 C:1-44,C:169-270,C:487-517 Periplasmic binding protein-like II                                1b3lC03 C:271-486 Dipeptide-binding Protein; Domain 3                                                                                                                                                                   1b3lC01                         CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .............eeeee.........hhh...hhhhhhhhhh....eee.....eee..eeeeeee...eeeeee.............hhhhhhhhhhhh.hhh....hhhhhh.....hhhhh.....hhh..eeeee..eeeee.......hhhhhh.hhh....hhhhhhhhhhhh..........eeeeeee...eeeeee......hhh....eeeee....hhhhhhhhh............hhhhhhhhhh....eeeee..eeeeeee.........hhhhhhhhhh..hhhhhh..........................hhhh..hhhhhhhhhhhhhh.........eeeeeee..hhhhhhhhhhhhhhhhhh..eeeeeee.hhhhhhhhhh....eeeeeee.....hhhhhhhh.............hhhhhhhhhhh....hhhhhhhhhhhhhhhhh...eeeeee.eeeee..................hhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------SBP_BACTERIAL_5       --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1b3l C   1 ADVPAGVQLADKQTLVRNNGSEVQSLDPHKIEGVPESNVSRDLFEGLLISDVEGHPSPGVAEKWENKDFKVWTFHLRENAKWSDGTPVTAHDFVYSWQRLADPNTASPYASYLQYGHIANIDDIIAGKKPATDLGVKALDDHTFEVTLSEPVPYFYKLLVHPSVSPVPKSAVEKFGDKWTQPANIVTNGAYKLKNWVVNERIVLERNPQYWDNAKTVINQVTYLPISSEVTDVNRYRSGEIDMTYNNMPIELFQKLKKEIPNEVRVDPYLCTYYYEINNQKAPFNDVRVRTALKLALDRDIIVNKVKNQGDLPAYSYTPPYTDGAKLVEPEWFKWSQQKRNEEAKKLLAEAGFTADKPLTFDLLYNTSDLHKKLAIAVASIWKKNLGVNVNLENQEWKTFLDTRHQGTFDVARAGWCADYNEPTSFLNTMLSDSSNNTAHYKSPAFDKLIADTLKVADDTQRSELYAKAEQQLDKDSAIVPVYYYVNARLVKPWVGGYTGKDPLDNIYVKNLYIIKH 517
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510

Chain D from PDB  Type:PROTEIN  Length:3

               SCOP domains --- SCOP domains
               CATH domains --- CATH domains
               Pfam domains --- Pfam domains
         Sec.struct. author ... Sec.struct. author
                 SAPs(SNPs) --- SAPs(SNPs)
                    PROSITE --- PROSITE
                 Transcript --- Transcript
                 1b3l D   1 KGK   3

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Periplasmic binding protein-like II (813)

Superfamily: Periplasmic binding protein-like II (813)

Family: Phosphate binding protein-like (463)

Protein domain: Oligo-peptide binding protein (OPPA) (34)

Salmonella typhimurium [TaxId: 90371] (32)

1a	d1b3la_	A:
1b	d1b3lc_	C:

(no "Pfam Domain" information available for 1B3L)

Asymmetric Unit(hide GO term definitions)

Chain A,C (OPPA_SALTY | P06202)

molecular function
	GO:0015197	peptide transporter activity	Enables the directed movement of peptides, compounds of two or more amino acids where the alpha carboxyl group of one is bound to the alpha amino group of another, into, out of or within a cell, or between cells.
biological process
	GO:0015833	peptide transport	The directed movement of peptides, compounds of two or more amino acids where the alpha carboxyl group of one is bound to the alpha amino group of another, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0015031	protein transport	The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0055085	transmembrane transport	The process in which a solute is transported across a lipid bilayer, from one side of a membrane to the other
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0043190	ATP-binding cassette (ABC) transporter complex	A complex for the transport of metabolites into and out of the cell, typically comprised of four domains; two membrane-associated domains and two ATP-binding domains at the intracellular face of the membrane, that form a central pore through the plasma membrane. Each of the four core domains may be encoded as a separate polypeptide or the domains can be fused in any one of a number of ways into multidomain polypeptides. In Bacteria and Archaebacteria, ABC transporters also include substrate binding proteins to bind substrate external to the cytoplasm and deliver it to the transporter.
	GO:0030288	outer membrane-bounded periplasmic space	The region between the inner (cytoplasmic or plasma) membrane and outer membrane of organisms with two membranes such as Gram negative bacteria. These periplasmic spaces are relatively thick and contain a thin peptidoglycan layer (PGL), also referred to as a thin cell wall.
	GO:0042597	periplasmic space	The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		IUM	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Ala A:282 - Pro A:283	[ RasMol ]
		Ala C:282 - Pro C:283	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1b3l
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	OPPA_SALTY \| P06202
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	OPPA_SALTY \| P06202
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Related Entries Specified in the PDB File" available for 1B3L)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 1)

Sites (1, 1)

SS Bonds (2, 2)

Cis Peptide Bonds (2, 2)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 2)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (3, 6)

Pfam Domains (0, 0)

Gene Ontology (8, 8)
