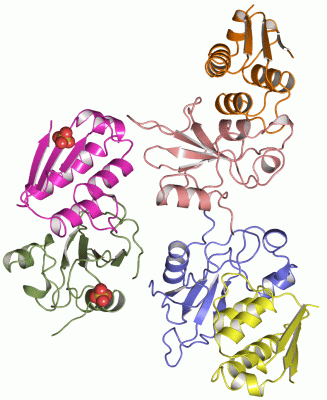

Asym.Unit - manually (Jmol Viewer)

Asymmetric Unit (Jmol Viewer)

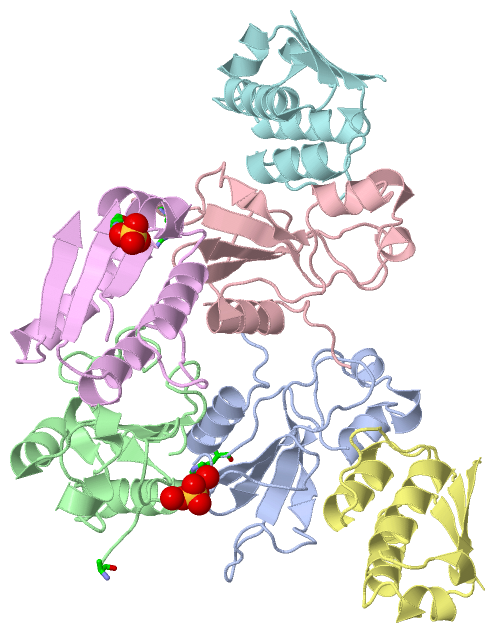

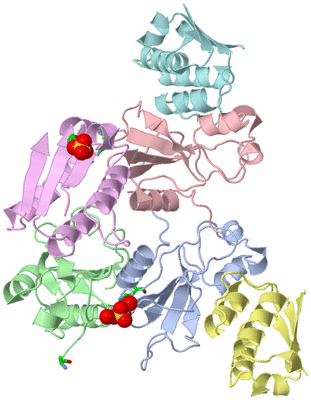

Asym. Unit - sites (Jmol Viewer)

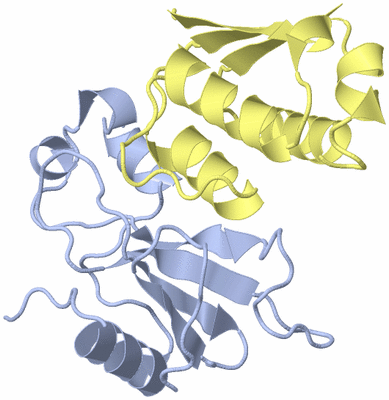

Biological Unit 1 (Jmol Viewer)

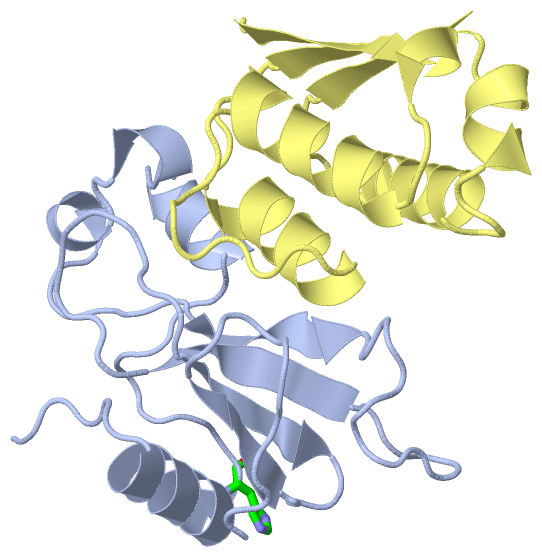

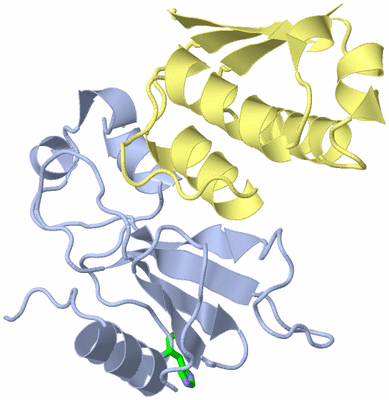

Biol. Unit 1 - sites (Jmol Viewer)

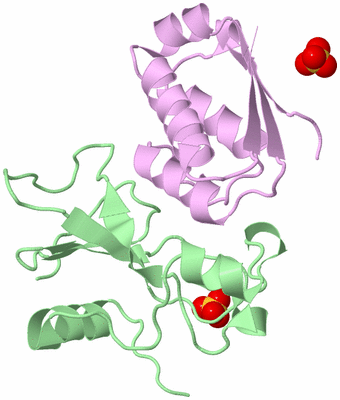

Biological Unit 2 (Jmol Viewer)

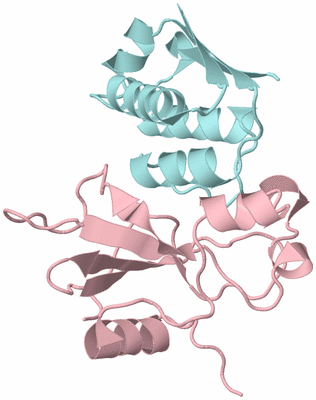

Biological Unit 3 (Jmol Viewer)

Title :   STRUCTURAL RESPONSE TO MUTATION AT A PROTEIN-PROTEIN INTERFACE

Authors :   C. K. Vaughan, A. M. Buckle, A. R. Fersht

Date :   30 Nov 98 (Deposition) - 08 Dec 98 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.82

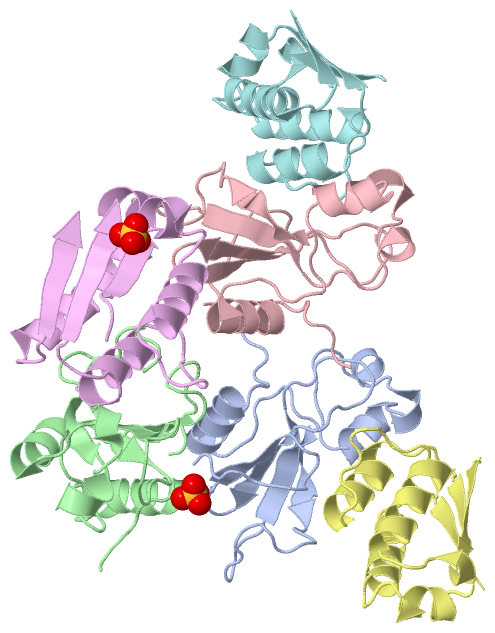

Chains :   Asym. Unit : A,B,C,D,E,F

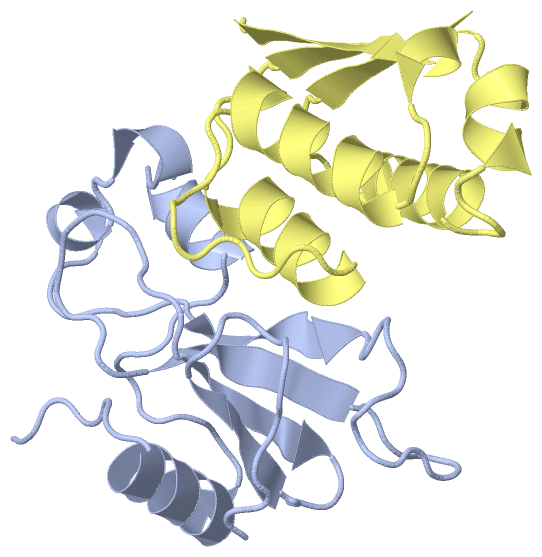

Biol. Unit 1: A,D  (1x)

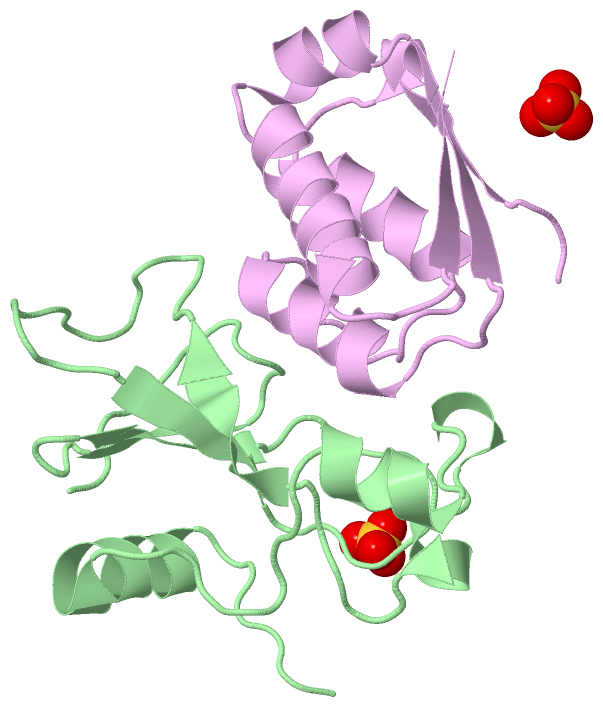

Biol. Unit 2: B,E  (1x)

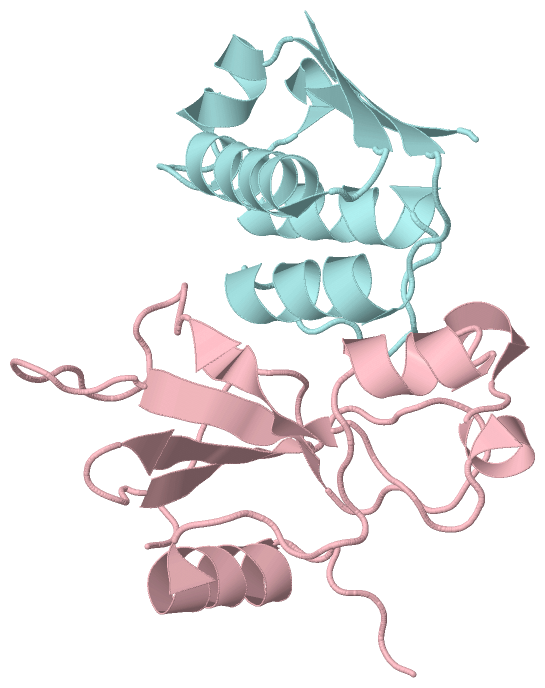

Biol. Unit 3: C,F  (1x)

Keywords :   Rnase-Inhibitor Complex, Interfacial Double Mutant, Hydrolase/Hydrolase Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. K. Vaughan, A. M. Buckle, A. R. Fersht
Structural Response To Mutation At A Protein-Protein Interface.
J. Mol. Biol. V. 286 1487 1999
PubMed-ID: 10064711 | Reference-DOI: 10.1006/JMBI.1998.2559
(for further references see the PDB file header)

Molecule 1 - PROTEIN (BARNASE)
	Cellular Location	:	EXTRACELLULAR
	Chains	:	A, B, C
	EC Number	:	3.1.27.3
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PMT410
	Expression System Strain	:	TG2
	Expression System Taxid	:	562
	Expression System Vector	:	PUC19
	Mutation	:	YES
	Organism Scientific	:	BACILLUS AMYLOLIQUEFACIENS
	Organism Taxid	:	1390

Molecule 2 - PROTEIN (BARSTAR)
	Cellular Location	:	CYTOSOL
	Chains	:	D, E, F
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PML2BS
	Expression System Strain	:	BL21(DE3)[PLYSE]
	Expression System Taxid	:	562
	Expression System Vector	:	PTZ18U
	Mutation	:	YES
	Organism Scientific	:	BACILLUS AMYLOLIQUEFACIENS
	Organism Taxid	:	1390

		1	2	3	4	5	6
Asymmetric Unit	:	A	B	C	D	E	F
Biological Unit 1 (1x)	:	A			D
Biological Unit 2 (1x)	:		B			E
Biological Unit 3 (1x)	:			C			F

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 2)

No.	Name	Count	Type	Full Name
1	SO4	2	Ligand/Ion	SULFATE ION

Biological Unit 1 (0, 0)

No.	Name	Count	Type	Full Name
1	SO4	-1	Ligand/Ion	SULFATE ION

Biological Unit 2 (1, 2)

No.	Name	Count	Type	Full Name
1	SO4	2	Ligand/Ion	SULFATE ION

Biological Unit 3 (0, 0)

No.	Name	Count	Type	Full Name
1	SO4	-1	Ligand/Ion	SULFATE ION

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	HIS A:18 , ALA B:1 , HOH B:695 , HOH B:727	BINDING SITE FOR RESIDUE SO4 B 590
2	AC2	SOFTWARE	GLY C:65 , ARG C:69 , ARG E:55	BINDING SITE FOR RESIDUE SO4 E 591

(no "SS Bond" information available for 1B2S)

Asymmetric Unit

No.	Residues
1	Tyr D:48	-	Pro D:49
2	Tyr E:48	-	Pro E:49
3	Tyr F:48	-	Pro F:49

(no "SAP(SNP)/Variant" information available for 1B2S)

(no "PROSITE Motif" information available for 1B2S)

(no "Exon" information available for 1B2S)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:110
 aligned with RNBR_BACAM | P00648 from UniProtKB/Swiss-Prot  Length:157

    Alignment length:110
                                    57        67        77        87        97       107       117       127       137       147       157
           RNBR_BACAM    48 AQVINTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLIYKTTDHYQTFTKIR 157
               SCOP domains d1b2sa_ A: Barnase                                                                                             SCOP domains
               CATH domains 1b2sA00 A:1-110  [code=3.10.450.30, no name defined]                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhh.........hhhhhhh...hhh..hhhh......eeeee..............eeeee...........eeeee....eeee........... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------- Transcript
                 1b2s A   1 AQVINTFDGVADYLQTYHKLPDNYITASEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLIYKTTDHYQTFTKIR 110
                                    10        20        30        40        50        60        70        80        90       100       110

Chain B from PDB  Type:PROTEIN  Length:110
 aligned with RNBR_BACAM | P00648 from UniProtKB/Swiss-Prot  Length:157

    Alignment length:110
                                    57        67        77        87        97       107       117       127       137       147       157
           RNBR_BACAM    48 AQVINTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLIYKTTDHYQTFTKIR 157
               SCOP domains d1b2sb_ B: Barnase                                                                                             SCOP domains
               CATH domains 1b2sB00 B:1-110  [code=3.10.450.30, no name defined]                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhh.........hhhhhhh...hhh..hhhh......eeeee..............eeeee...........eeeee....eeee........... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------- Transcript
                 1b2s B   1 AQVINTFDGVADYLQTYHKLPDNYITASEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLIYKTTDHYQTFTKIR 110
                                    10        20        30        40        50        60        70        80        90       100       110

Chain C from PDB  Type:PROTEIN  Length:110
 aligned with RNBR_BACAM | P00648 from UniProtKB/Swiss-Prot  Length:157

    Alignment length:110
                                    57        67        77        87        97       107       117       127       137       147       157
           RNBR_BACAM    48 AQVINTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLIYKTTDHYQTFTKIR 157
               SCOP domains d1b2sc_ C: Barnase                                                                                             SCOP domains
               CATH domains 1b2sC00 C:1-110  [code=3.10.450.30, no name defined]                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhh.........hhhhhhh...hhh..hhhh......eeeee..............eeeee...........eeeee....eeee........... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------- Transcript
                 1b2s C   1 AQVINTFDGVADYLQTYHKLPDNYITASEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLIYKTTDHYQTFTKIR 110
                                    10        20        30        40        50        60        70        80        90       100       110

Chain D from PDB  Type:PROTEIN  Length:90
 aligned with BARS_BACAM | P11540 from UniProtKB/Swiss-Prot  Length:90

    Alignment length:90
                                    10        20        30        40        50        60        70        80        90
           BARS_BACAM     1 MKKAVINGEQIRSISDLHQTLKKELALPEYYGENLDALWDCLTGWVEYPLVLEWRQFEQSKQLTENGAESVLQVFREAKAEGCDITIILS  90
               SCOP domains d1b2sd_ D: Barstar (barnase inhibitor)                                                     SCOP domains
               CATH domains 1b2sD00 D:1-90 Barnase, subunit D                                                          CATH domains
               Pfam domains ------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeeehhh...hhhhhhhhhhh..........hhhhhhhhhh.....eeeeee.hhhhhh....hhhhhhhhhhhhhh....eeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------ Transcript
                 1b2s D   1 MKKAVINGEQIRSISDLHQTLKKELALPEYYGENLDALWDCLAGWVEYPLVLEWRQFEQSKQLTENGAESVLQVFREAKAEGCDITIILS  90
                                    10        20        30        40        50        60        70        80        90

Chain E from PDB  Type:PROTEIN  Length:90
 aligned with BARS_BACAM | P11540 from UniProtKB/Swiss-Prot  Length:90

    Alignment length:90
                                    10        20        30        40        50        60        70        80        90
           BARS_BACAM     1 MKKAVINGEQIRSISDLHQTLKKELALPEYYGENLDALWDCLTGWVEYPLVLEWRQFEQSKQLTENGAESVLQVFREAKAEGCDITIILS  90
               SCOP domains d1b2se_ E: Barstar (barnase inhibitor)                                                     SCOP domains
               CATH domains 1b2sE00 E:1-90 Barnase, subunit D                                                          CATH domains
               Pfam domains ------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...eeeehhh...hhhhhhhhhhh..........hhhhhhhhhh.....eeeeee.hhhhhhhh..hhhhhhhhhhhhhh....eeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------ Transcript
                 1b2s E   1 MKKAVINGEQIRSISDLHQTLKKELALPEYYGENLDALWDCLAGWVEYPLVLEWRQFEQSKQLTENGAESVLQVFREAKAEGCDITIILS  90
                                    10        20        30        40        50        60        70        80        90

Chain F from PDB  Type:PROTEIN  Length:89
 aligned with BARS_BACAM | P11540 from UniProtKB/Swiss-Prot  Length:90

    Alignment length:89
                                    11        21        31        41        51        61        71        81
           BARS_BACAM     2 KKAVINGEQIRSISDLHQTLKKELALPEYYGENLDALWDCLTGWVEYPLVLEWRQFEQSKQLTENGAESVLQVFREAKAEGCDITIILS  90
               SCOP domains d1b2sf_ F: Barstar (barnase inhibitor)                                                    SCOP domains
               CATH domains 1b2sF00 F:2-90 Barnase, subunit D                                                         CATH domains
               Pfam domains ----------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeehhh...hhhhhhhhhhh..........hhhhhhhhhh.....eeeeee.hhhhhh....hhhhhhhhhhhhhhh...eeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------- Transcript
                 1b2s F   2 KKAVINGEQIRSISDLHQTLKKELALPEYYGENLDALWDCLAGWVEYPLVLEWRQFEQSKQLTENGAESVLQVFREAKAEGCDITIILS  90
                                    11        21        31        41        51        61        71        81

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Microbial ribonucleases (174)

Superfamily: Microbial ribonucleases (174)

Family: Bacterial ribonucleases (89)

Protein domain: Barnase (49)

Bacillus amyloliquefaciens [TaxId: 1390] (49)

1a	d1b2sa_	A:
1b	d1b2sb_	B:
1c	d1b2sc_	C:

Class: Alpha and beta proteins (a/b) (23833)

Fold: Barstar-like (79)

Superfamily: Barstar-related (21)

Family: Barstar-related (21)

Protein domain: Barstar (barnase inhibitor) (15)

Bacillus amyloliquefaciens [TaxId: 1390] (15)

2a	d1b2sd_	D:
2b	d1b2se_	E:
2c	d1b2sf_	F:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: Barnase; Chain D (18)

Homologous Superfamily: Barnase, subunit D (18)

Bacillus amyloliquefaciens. Organism_taxid: 1390. (4)

1a	1b2sF00	F:2-90
1b	1b2sD00	D:1-90
1c	1b2sE00	E:1-90

Architecture: Roll (3276)

Topology: Nuclear Transport Factor 2; Chain: A, (517)

Homologous Superfamily: [code=3.10.450.30, no name defined] (159)

Bacillus amyloliquefaciens. Organism_taxid: 1390. (12)

2a	1b2sA00	A:1-110
2b	1b2sB00	B:1-110
2c	1b2sC00	C:1-110

(no "Pfam Domain" information available for 1B2S)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C (RNBR_BACAM | P00648)

molecular function
	GO:0003723	RNA binding	Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
	GO:0004519	endonuclease activity	Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
	GO:0004521	endoribonuclease activity	Catalysis of the hydrolysis of ester linkages within ribonucleic acid by creating internal breaks.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0004518	nuclease activity	Catalysis of the hydrolysis of ester linkages within nucleic acids.
	GO:0004540	ribonuclease activity	Catalysis of the hydrolysis of phosphodiester bonds in chains of RNA.
biological process
	GO:0090501	RNA phosphodiester bond hydrolysis	The RNA metabolic process in which the phosphodiester bonds between ribonucleotides are cleaved by hydrolysis.
	GO:0090502	RNA phosphodiester bond hydrolysis, endonucleolytic	The chemical reactions and pathways involving the hydrolysis of internal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.
	GO:0090305	nucleic acid phosphodiester bond hydrolysis	The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Chain D,E,F (BARS_BACAM | P11540)

cellular component
	GO:0005737		cytoplasm		All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Tyr D:48 - Pro D:49	[ RasMol ]
		Tyr E:48 - Pro E:49	[ RasMol ]
		Tyr F:48 - Pro F:49	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1b2s
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	BARS_BACAM \| P11540
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	RNBR_BACAM \| P00648
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.1.27.3
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	BARS_BACAM \| P11540
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	RNBR_BACAM \| P00648
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Related Entries Specified in the PDB File" available for 1B2S)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 2)

Sites (2, 2)

SS Bonds (0, 0)

Cis Peptide Bonds (3, 3)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 6)

CATH Domains (2, 6)

Pfam Domains (0, 0)

Gene Ontology (11, 11)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
