1AWD - JenaLib

Title :   FERREDOXIN [2FE-2S] OXIDIZED FORM FROM CHLORELLA FUSCA

Authors :   G. M. Sheldrick

Date :   01 Oct 97 (Deposition) - 14 Jan 98 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.40

Chains :   Asym. Unit : A
Biol. Unit 1: A  (2x)

Keywords :   Electron Transport, Eukaryotic, Green Alga, Electron Transfer, Metalloprotein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. T. Bes, E. Parisini, L. A. Inda, L. Saraiva, M. L. Peleato, G. M. Sheldrick
Crystal Structure Determination At 1. 4 A Resolution Of Ferredoxin From The Green Alga Chlorella Fusca
Structure Fold. Des. V. 7 1201 1999
PubMed-ID: 10545324 | Reference-DOI: 10.1016/S0969-2126(00)80054-4
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 1)

Sites (1, 1)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 2)

Asymmetric Unit (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	2FE2S_FER_2	PS51085	2Fe-2S ferredoxin-type iron-sulfur binding domain profile.	FER_SCEFU	1-91	1	A:1-91
2	2FE2S_FER_1	PS00197	2Fe-2S ferredoxin-type iron-sulfur binding region signature.	FER_SCEFU	37-45	1	A:37-45

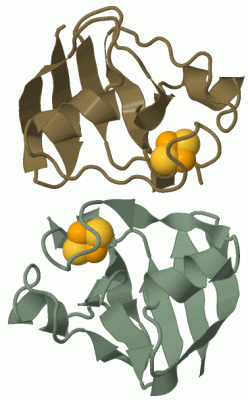

Biological Unit 1 (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	2FE2S_FER_2	PS51085	2Fe-2S ferredoxin-type iron-sulfur binding domain profile.	FER_SCEFU	1-91	2	A:1-91
2	2FE2S_FER_1	PS00197	2Fe-2S ferredoxin-type iron-sulfur binding region signature.	FER_SCEFU	37-45	2	A:37-45

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:94
 aligned with FER_SCEFU | P56408 from UniProtKB/Swiss-Prot  Length:94

    Alignment length:94
                                    10        20        30        40        50        60        70        80        90
             FER_SCEFU    1 YKVTLKTPSGEETIECPEDTYILDAAEEAGLDLPYSCRAGACSSCAGKVESGEVDQSDQSFLDDAQMGKGFVLTCVAYPTSDVTILTHQEAALY 94
               SCOP domains d1awda_ A: 2Fe-2S ferredoxin                                                                   SCOP domains
               CATH domains 1awdA00 A:1-94  [code=3.10.20.30, no name defined]                                             CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee..eeeeee......hhhhhhh.................eeeeee............hhhhh..eeehhh......eeee...hhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) 2FE2S_FER_2  PDB: A:1-91 UniProt: 1-91                                                     --- PROSITE (1)
                PROSITE (2) ------------------------------------2FE2S_FER------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------- Transcript
                  1awd A  1 YKVTLKTPSGEETIECPEDTYILDAAEEAGLDLPYSCRAGACSSCAGKVESGEVDQSDQSFLDDAQMGKGFVLTCVAYPTSDVTILTHQEAALY 94
                                    10        20        30        40        50        60        70        80        90

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (8, 8)

Asymmetric Unit(hide GO term definitions)

Chain A (FER_SCEFU | P56408)

molecular function
	GO:0051537	2 iron, 2 sulfur cluster binding	Interacting selectively and non-covalently with a 2 iron, 2 sulfur (2Fe-2S) cluster; this cluster consists of two iron atoms, with two inorganic sulfur atoms found between the irons and acting as bridging ligands.
	GO:0009055	electron carrier activity	Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
	GO:0051536	iron-sulfur cluster binding	Interacting selectively and non-covalently with an iron-sulfur cluster, a combination of iron and sulfur atoms.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
biological process
	GO:0022900	electron transport chain	A process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
cellular component
	GO:0009507	chloroplast	A chlorophyll-containing plastid with thylakoids organized into grana and frets, or stroma thylakoids, and embedded in a stroma.
	GO:0009536	plastid	Any member of a family of organelles found in the cytoplasm of plants and some protists, which are membrane-bounded and contain DNA. Plant plastids develop from a common type, the proplastid.

Visualization

Interactive Views

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		FES	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1awd)

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Still Images

Jmol

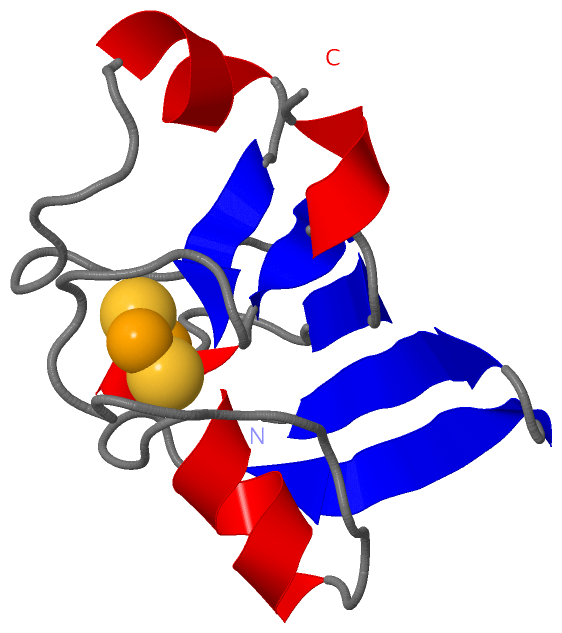

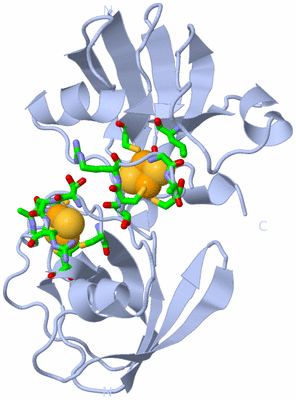

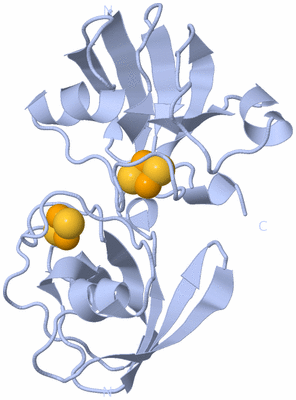

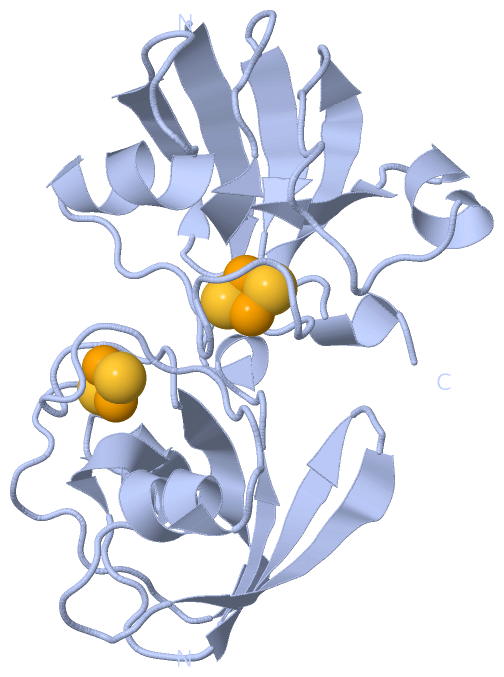

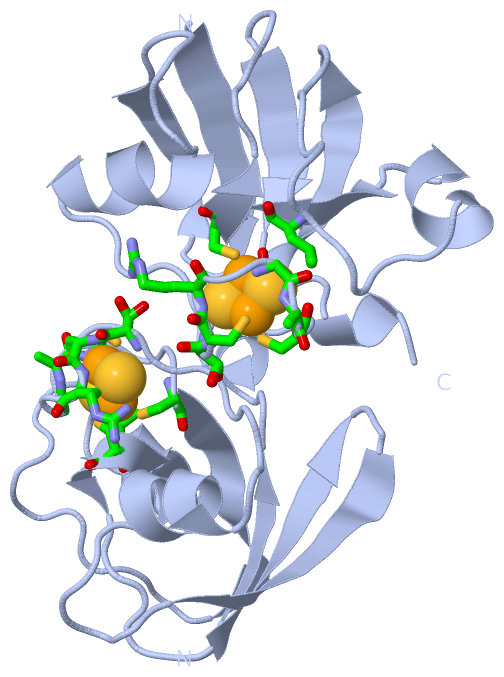

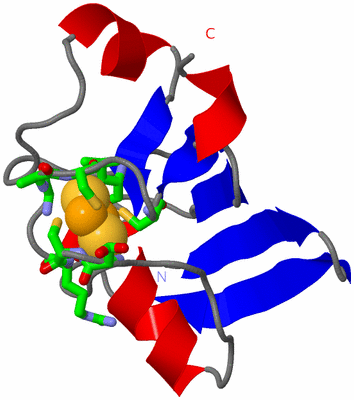

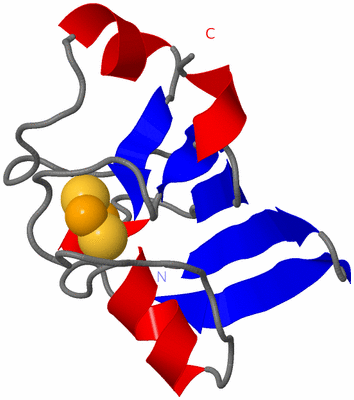

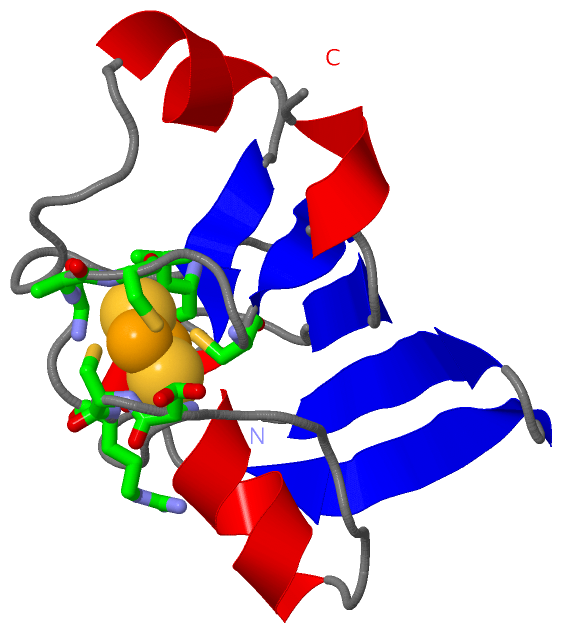

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
