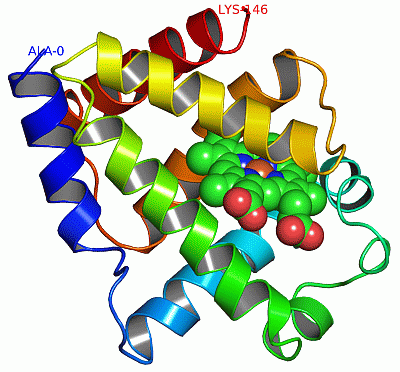

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

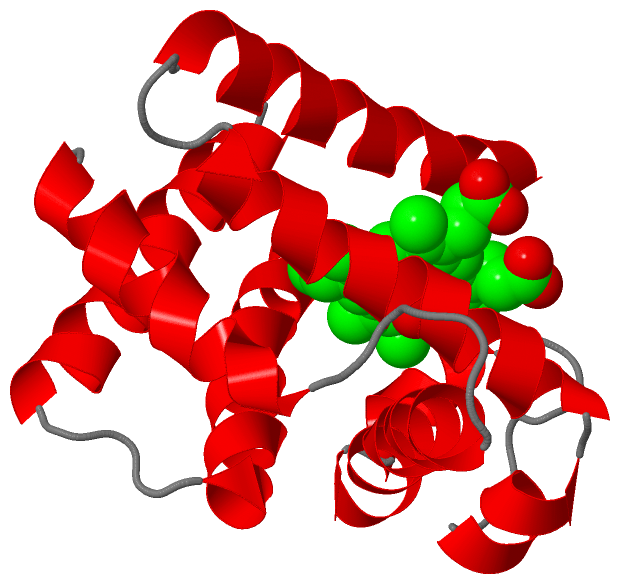

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

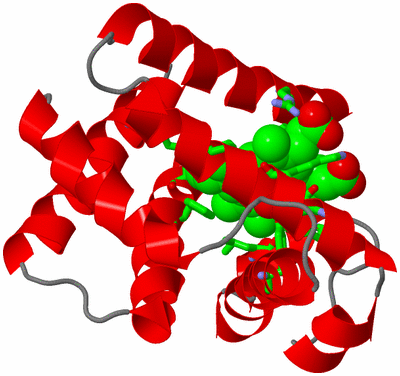

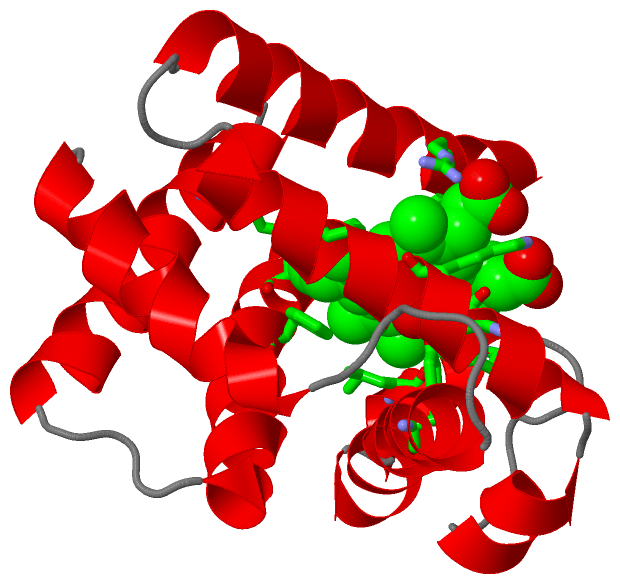

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  THE STRUCTURE OF ASCARIS HEMOGLOBIN DOMAIN I AT 2.2 ANGSTROMS RESOLUTION: MOLECULAR FEATURES OF OXYGEN AVIDITY

Authors :  J. Yang, F. S. Mathews, A. P. Kloek, D. E. Goldberg
Date :  06 Jan 95  (Deposition) - 27 Feb 95  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.15
Chains :  Asym./Biol. Unit :  A
Keywords :  Oxygen Storage (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Yang, A. P. Kloek, D. E. Goldberg, F. S. Mathews
The Structure Of Ascaris Hemoglobin Domain I At 2. 2 A Resolution: Molecular Features Of Oxygen Avidity.
Proc. Natl. Acad. Sci. Usa V. 92 4224 1995
PubMed-ID: 7753786  |  Reference-DOI: 10.1073/PNAS.92.10.4224
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HEMOGLOBIN (OXY)
    Chains: A
    Engineered: YES
    Expression System Plasmid: PET-8C
    Organism Common: PIG ROUNDWORM
    Organism Scientific: ASCARIS SUUM
    Organism Taxid: 6253

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1HEM1Ligand/IonPROTOPORPHYRIN IX CONTAINING FE
2OXY1Ligand/IonOXYGEN MOLECULE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELEU A:40 , TYR A:43 , PHE A:44 , GLN A:64 , LYS A:67 , ALA A:71 , ARG A:95 , HIS A:96 , MET A:103 , TRP A:108 , PHE A:111 , PHE A:140 , OXY A:302BINDING SITE FOR RESIDUE HEM A 301
2AC2SOFTWARETYR A:30 , PHE A:44 , GLN A:64 , HEM A:301BINDING SITE FOR RESIDUE OXY A 302

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1ASH)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1ASH)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ASH)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GLOBINPS01033 Globin family profile.GLB_ASCSU44-116
193-263		  1A:26-98
-

(-) Exons   (0, 0)

(no "Exon" information available for 1ASH)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:147
 aligned with GLB_ASCSU | P28316 from UniProtKB/Swiss-Prot  Length:338

    Alignment length:147
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157
            GLB_ASCSU    18 ANKTRELCMKSLEHAKVDTSNEARQDGIDLYKHMFENYPPLRKYFKNREEYTAEDVQNDPFFAKQGQKILLACHVLCATYDDRETFNAYTRELLDRHARDHVHMPPEVWTDFWKLFEEYLGKKTTLDEPTKQAWHEIGREFAKEINK 164
               SCOP domains d1asha_ A: Ascaris hemoglobin, domain 1                                                                                                             SCOP domains
               CATH domains 1ashA00 A:0-146 Globins                                                                                                                             CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhh.hhhhhh........hhhhhh.hhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------GLOBIN  PDB: A:26-98 UniProt: 44-116                                     ------------------------------------------------ PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ash A   0 ANKTRELCMKSLEHAKVDTSNEARQDGIDLYKHMFENYPPLRKYFKSREEYTAEDVQNDPFFAKQGQKILLACHVLCATYDDRETFNAYTRELLDRHARDHVHMPPEVWTDFWKLFEEYLGKKTTLDEPTKQAWHEIGREFAKEINK 146
                                     9        19        29        39        49        59        69        79        89        99       109       119       129       139
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1ASH)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (GLB_ASCSU | P28316)
molecular function
    GO:0020037    heme binding    Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0019825    oxygen binding    Interacting selectively and non-covalently with oxygen (O2).
    GO:0005344    oxygen transporter activity    Enables the directed movement of oxygen into, out of or within a cell, or between cells.
biological process
    GO:0015671    oxygen transport    The directed movement of oxygen (O2) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0005615    extracellular space    That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.
