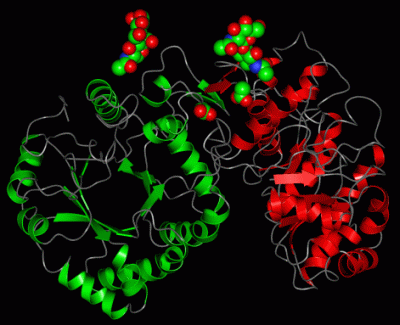

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  BARLEY 1,3-1,4-BETA-GLUCANASE IN MONOCLINIC SPACE GROUP

Authors :  J. J. Mueller, K. K. Thomsen, U. Heinemann
Date :  05 Aug 97  (Deposition) - 11 Feb 98  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Hydrolase, Glycosidase, Glycoprotein, Glycosylated Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. J. Muller, K. K. Thomsen, U. Heinemann
Crystal Structure Of Barley 1, 3-1, 4-Beta-Glucanase At 2. 0-A Resolution And Comparison With Bacillus 1, 3-1, 4-Beta-Glucanase.
J. Biol. Chem. V. 273 3438 1998
PubMed-ID: 9452466  |  Reference-DOI: 10.1074/JBC.273.6.3438
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - 1,3-1,4-BETA-GLUCANASE
    Chains: A, B
    EC Number: 3.2.1.73
    Organism Scientific: HORDEUM VULGARE
    Organism Taxid: 4513
    Other Details: ISOENZYME 2
    Synonym: 1,3-1,4-BETA-D-GLUCAN 4-GLUCANOHYDROLASE

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 6)

Asymmetric/Biological Unit (2, 6)
No.NameCountTypeFull Name
1ACT2Ligand/IonACETATE ION
2NAG4Ligand/IonN-ACETYL-D-GLUCOSAMINE

(-) Sites  (6, 6)

Asymmetric Unit (6, 6)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASN A:190 , NAG A:308 , HOH A:364 , HOH A:477BINDING SITE FOR RESIDUE NAG A 307
2AC2SOFTWARENAG A:307BINDING SITE FOR RESIDUE NAG A 308
3AC3SOFTWARELEU B:188 , ASN B:190 , PHE B:250 , NAG B:308 , HOH B:516BINDING SITE FOR RESIDUE NAG B 307
4AC4SOFTWARENAG B:307BINDING SITE FOR RESIDUE NAG B 308
5AC5SOFTWAREARG A:249 , PHE A:250 , HIS A:254 , HOH A:460BINDING SITE FOR RESIDUE ACT A 309
6AC6SOFTWARETYR A:201 , SER B:136 , PRO B:137 , TYR B:186 , VAL B:196 , TYR B:203 , THR B:209 , HOH B:441BINDING SITE FOR RESIDUE ACT B 309

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1AQ0)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1Ser A:136 -Pro A:137
2Phe A:275 -Ala A:276
3Ser B:136 -Pro B:137
4Phe B:275 -Ala B:276

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1AQ0)

(-) PROSITE Motifs  (1, 2)

Asymmetric/Biological Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GLYCOSYL_HYDROL_F17PS00587 Glycosyl hydrolases family 17 signature.GUB2_HORVU232-245
 		  2A:226-239
B:226-239

(-) Exons   (0, 0)

(no "Exon" information available for 1AQ0)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:306
 aligned with GUB2_HORVU | P12257 from UniProtKB/Swiss-Prot  Length:312

    Alignment length:306
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306
           GUB2_HORVU     7 IGVCYGMSANNLPAASTVVSMFKFNGIKSMRLYAPNQAALQAVGGTGINVVVGAPNDVLSNLAASPAAAASWVKSNIQAYPKVSFRYVCVGNEVAGGATRNLVPAMKNVHGALVAAGLGHIKVTTSVSQAILGVFSPPSAGSFTGEAAAFMGPVVQFLARTNAPLMANIYPYLAWAYNPSAMDMGYALFNASGTVVRDGAYGYQNLFDTTVDAFYTAMGKHGGSSVKLVVSESGWPSGGGTAATPANARFYNQHLINHVGRGTPRHPGAIETYIFAMFNENQKDSGVEQNWGLFYPNMQHVYPINF 312
               SCOP domains d1aq0a_ A: Plant beta-glucanases                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains 1aq0A00 A:1-306 Glycosidases                                                                                                                                                                                                                                                                                       CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eee..........hhhhhhhhhhh...eeee....hhhhhhh.....eeeeee.hhhhhhhhh.hhhhhhhhhhh.......eeeeeee.....hhhhhhhhhhhhhhhhhhhh......eee.eeehhh......hhh....hhhhhhhhhhhhhhhhh...eeee..hhhhhhh......hhhhh.......eee..eee..hhhhhhhhhhhhhhhh......eeeee............hhhhhhhhhhhhhh............................hhh................. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLYCOSYL_HYDRO------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1aq0 A   1 IGVCYGMSANNLPAASTVVSMFKSNGIKSMRLYAPNQAALQAVGGTGINVVVGAPNDVLSNLAASPAAAASWVKSNIQAYPKVSFRYVCVGNEVAGGATRNLVPAMKNVHGALVAAGLGHIKVTTSVSQAILGVFSPPSAGSFTGEAAAFMGPVVQFLARTNAPLMANIYPYLAWAYNPSAMDMGYALFNASGTVVRDGAYGYQNLFDTTVDAFYTAMGKHGGSSVKLVVSESGWPSGGGTAATPANARFYNQHLINHVGRGTPRHPGAIETYIFAMFNENQKDSGVEQNWGLFYPNMQHVYPINF 306
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300


Chain B from PDB  Type:PROTEIN  Length:306
 aligned with GUB2_HORVU | P12257 from UniProtKB/Swiss-Prot  Length:312

    Alignment length:306
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306
           GUB2_HORVU     7 IGVCYGMSANNLPAASTVVSMFKFNGIKSMRLYAPNQAALQAVGGTGINVVVGAPNDVLSNLAASPAAAASWVKSNIQAYPKVSFRYVCVGNEVAGGATRNLVPAMKNVHGALVAAGLGHIKVTTSVSQAILGVFSPPSAGSFTGEAAAFMGPVVQFLARTNAPLMANIYPYLAWAYNPSAMDMGYALFNASGTVVRDGAYGYQNLFDTTVDAFYTAMGKHGGSSVKLVVSESGWPSGGGTAATPANARFYNQHLINHVGRGTPRHPGAIETYIFAMFNENQKDSGVEQNWGLFYPNMQHVYPINF 312
               SCOP domains d1aq0b_ B: Plant beta-glucanases                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains 1aq0B00 B:1-306 Glycosidases                                                                                                                                                                                                                                                                                       CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eee..........hhhhhhhhhhh...eeee....hhhhhhh.....eeeeee.hhhhhhhhh.hhhhhhhhhhh.......eeeeeee.....hhhhhhhhhhhhhhhhhhhhh.....eee.eeehhh......hhh....hhhhhhhhhhhhhhhh....eeee..hhhhhhhh.....hhhhh.......eee..eee..hhhhhhhhhhhhhhhh......eeeee............hhhhhhhhhhhhhh............................hhh................. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLYCOSYL_HYDRO------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1aq0 B   1 IGVCYGMSANNLPAASTVVSMFKSNGIKSMRLYAPNQAALQAVGGTGINVVVGAPNDVLSNLAASPAAAASWVKSNIQAYPKVSFRYVCVGNEVAGGATRNLVPAMKNVHGALVAAGLGHIKVTTSVSQAILGVFSPPSAGSFTGEAAAFMGPVVQFLARTNAPLMANIYPYLAWAYNPSAMDMGYALFNASGTVVRDGAYGYQNLFDTTVDAFYTAMGKHGGSSVKLVVSESGWPSGGGTAATPANARFYNQHLINHVGRGTPRHPGAIETYIFAMFNENQKDSGVEQNWGLFYPNMQHVYPINF 306
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1AQ0)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (GUB2_HORVU | P12257)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0004553    hydrolase activity, hydrolyzing O-glycosyl compounds    Catalysis of the hydrolysis of any O-glycosyl bond.
    GO:0042972    licheninase activity    Catalysis of the hydrolysis of (1->4)-beta-D-glucosidic linkages in beta-D-glucans containing (1->3) and (1->4) bonds.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ACT  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NAG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Phe A:275 - Ala A:276   [ RasMol ]
    Phe B:275 - Ala B:276   [ RasMol ]
    Ser A:136 - Pro A:137   [ RasMol ]
    Ser B:136 - Pro B:137   [ RasMol ]


(-) Still Images

Jmol

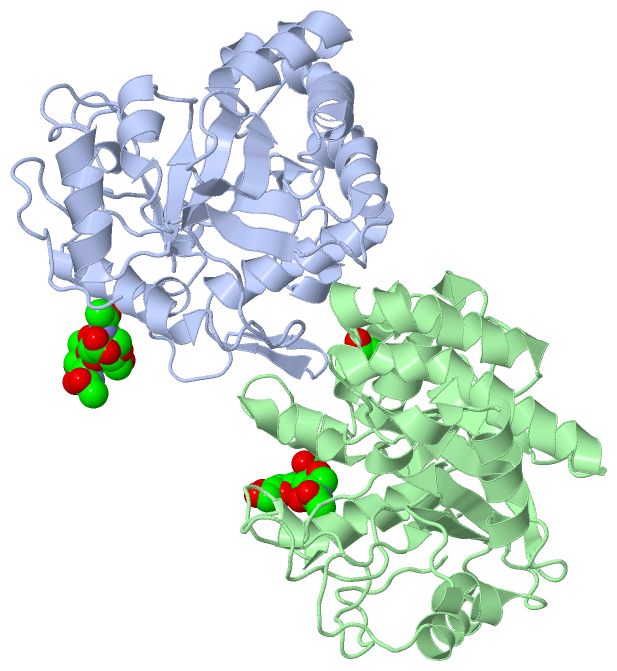

  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
Prepi

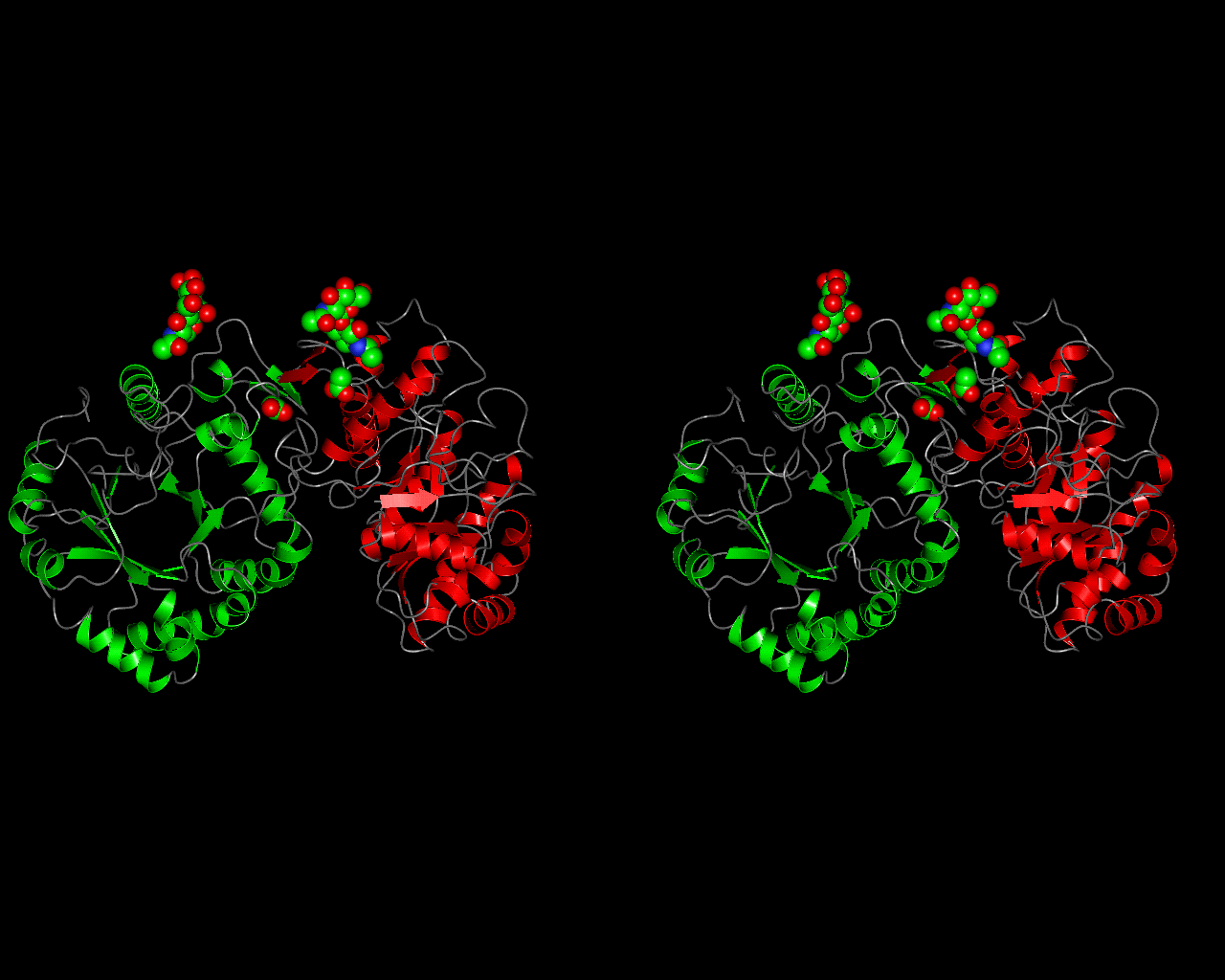

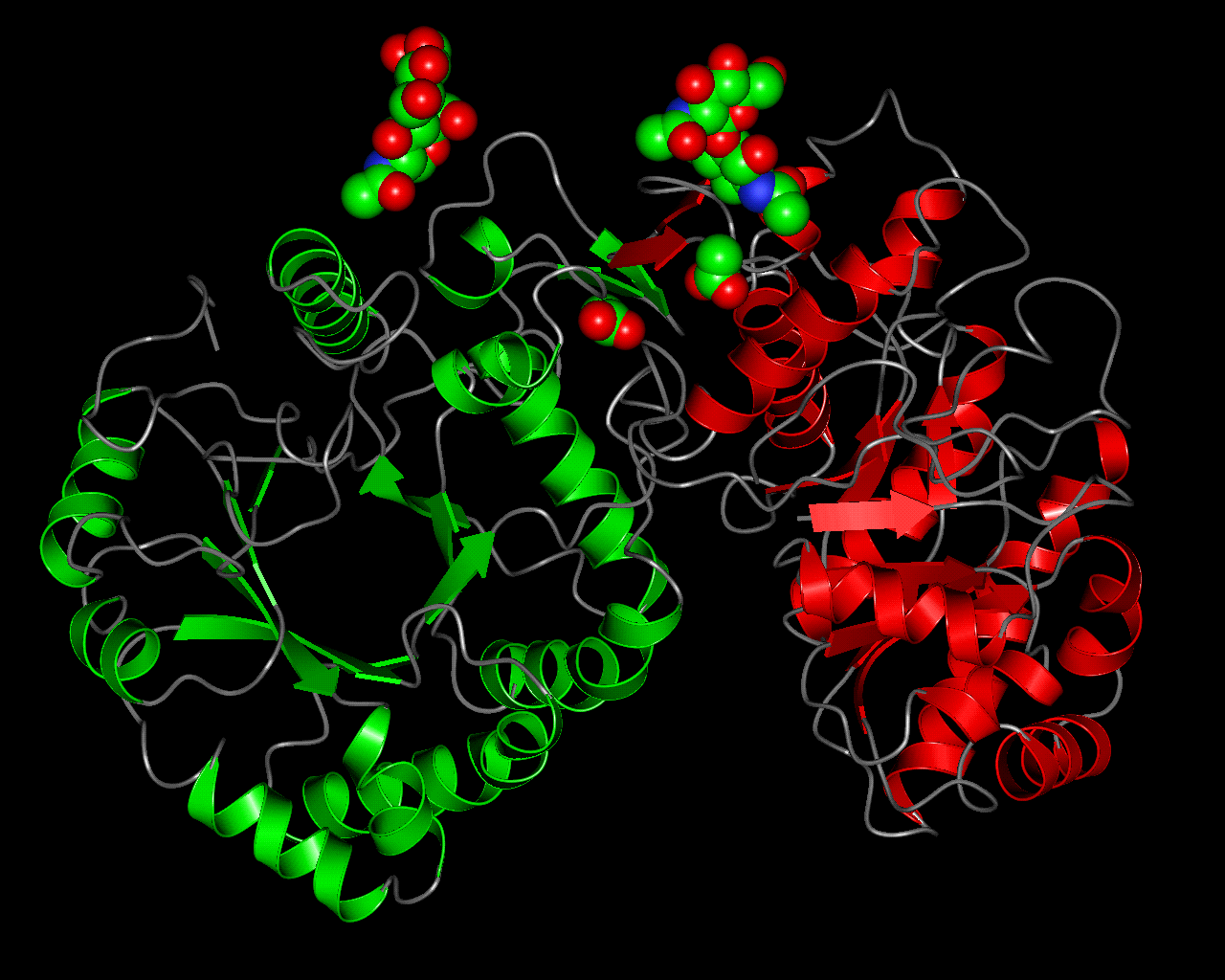

  protein: ribbon, secondary structure; ligands: spacefill
[ mono GIF format | stereo GIF format ]

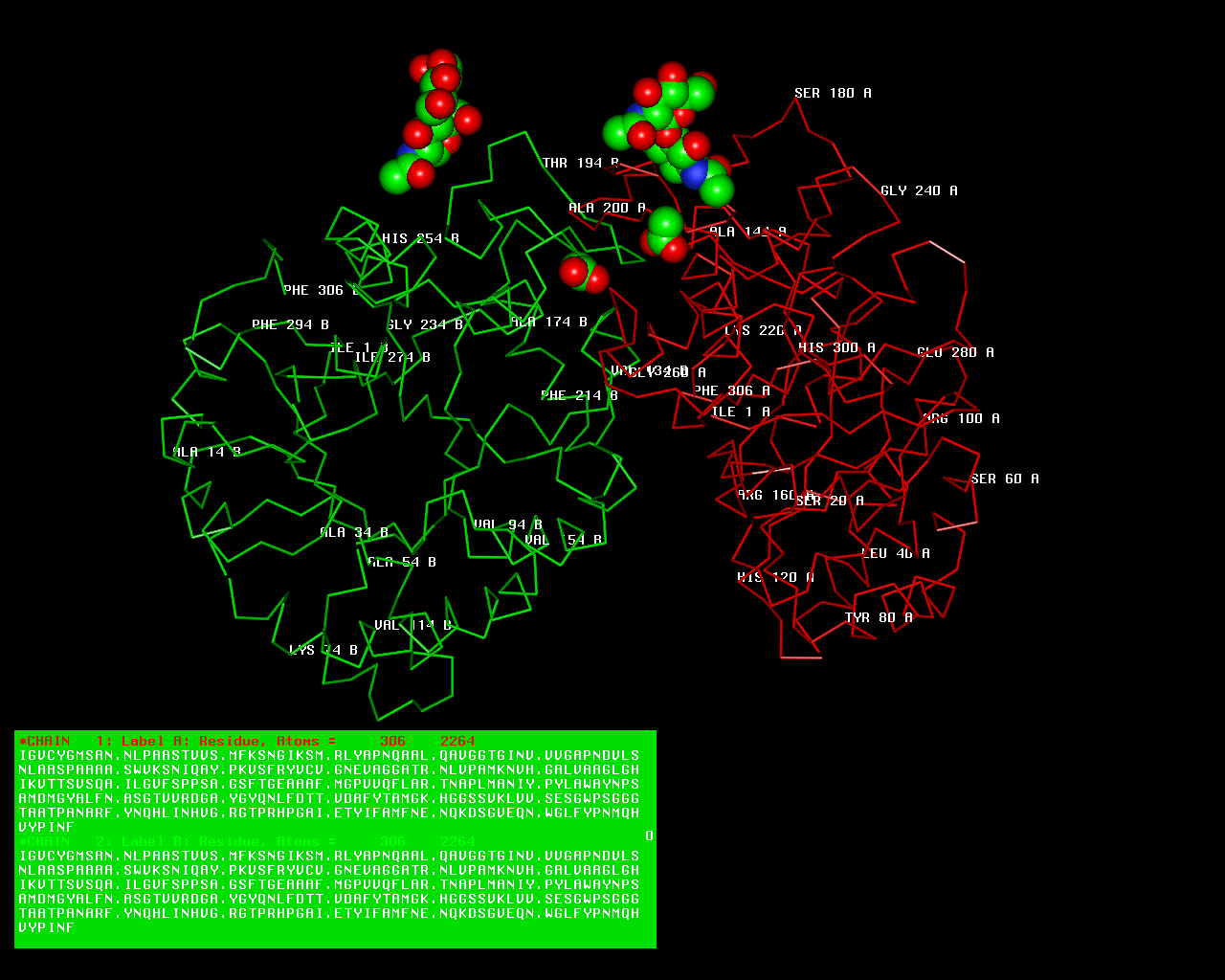

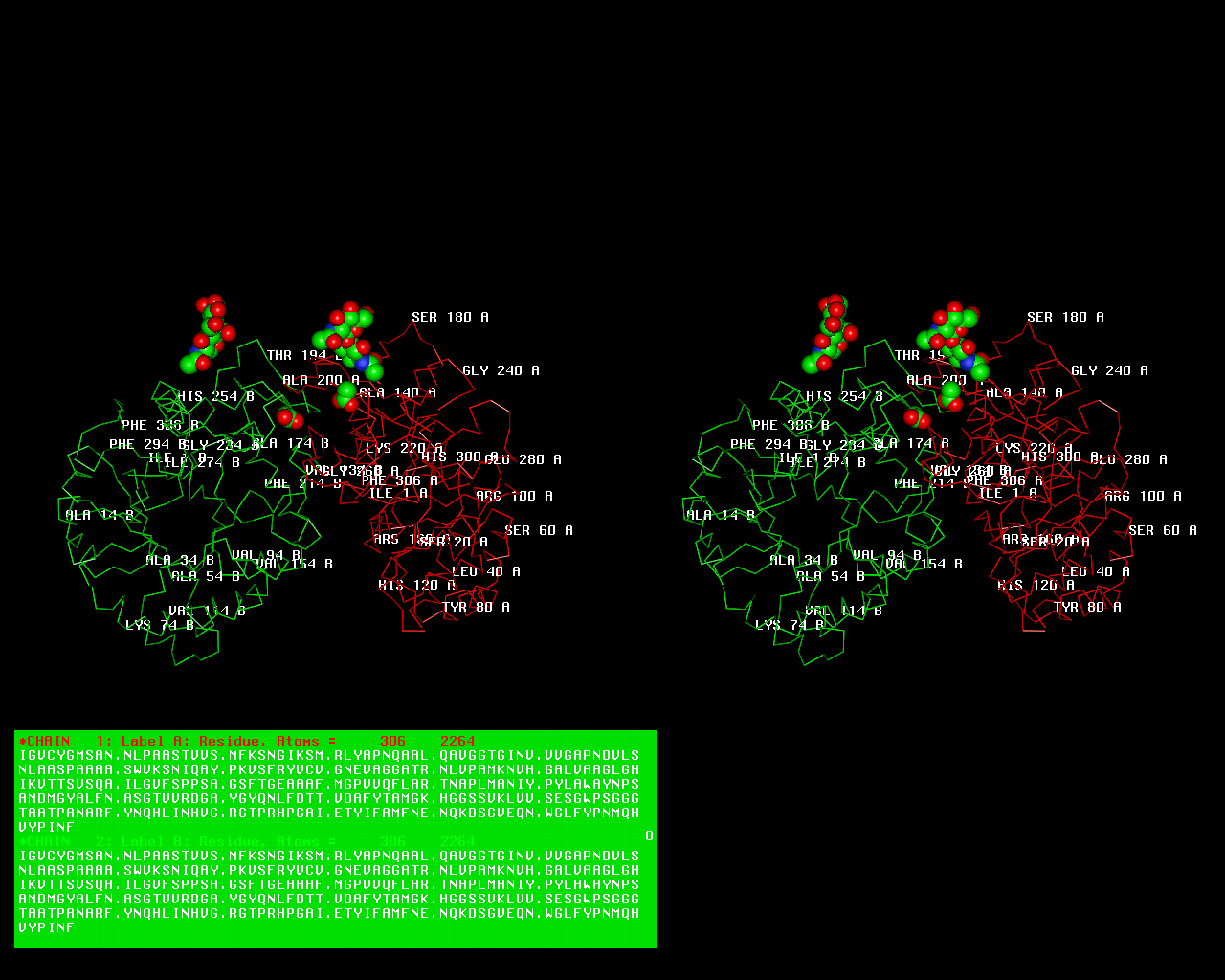

  protein: C alpha wire, chain-specific colring, laqbeling; ligands: spacefill
[ mono GIF format | stereo GIF format ]

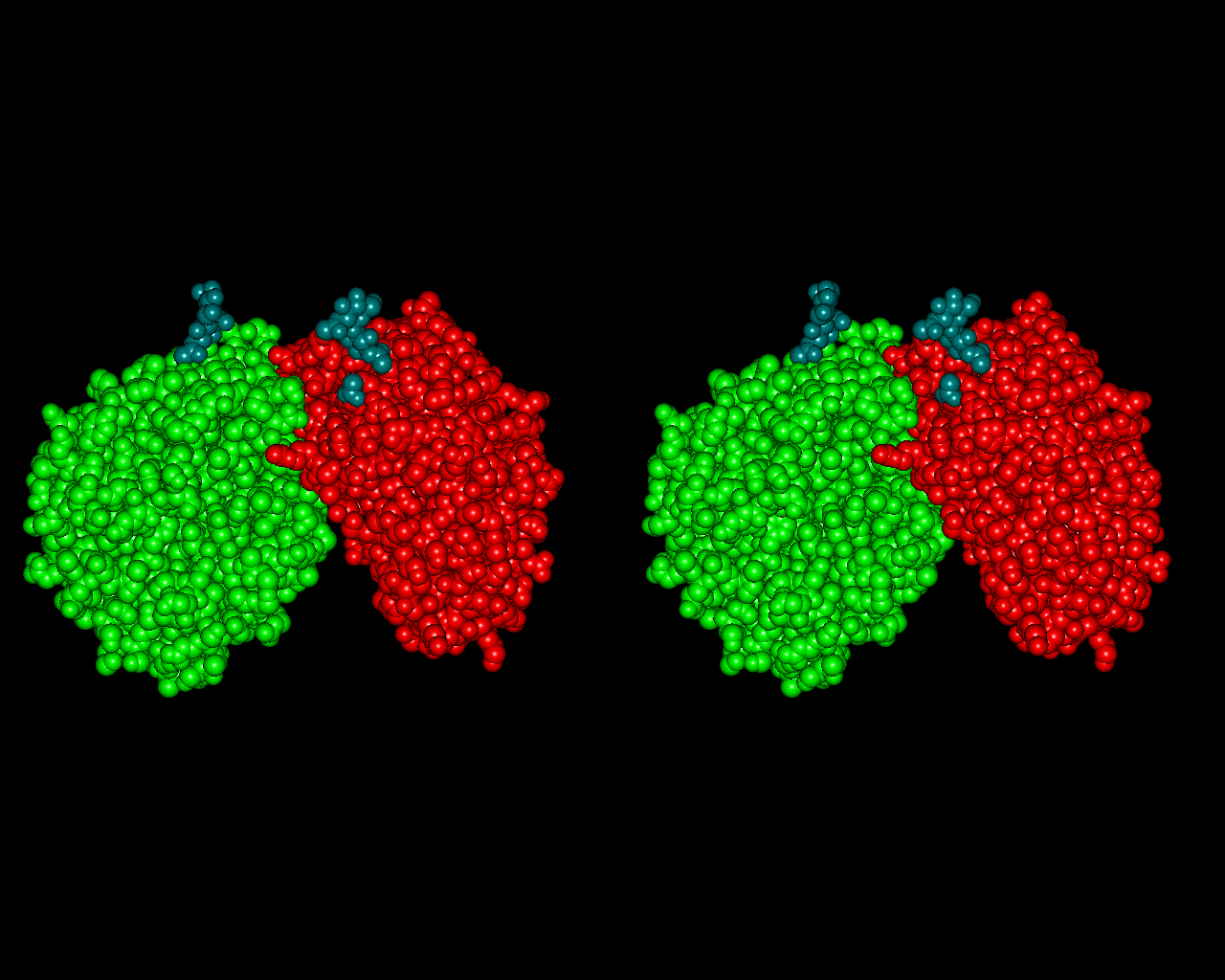

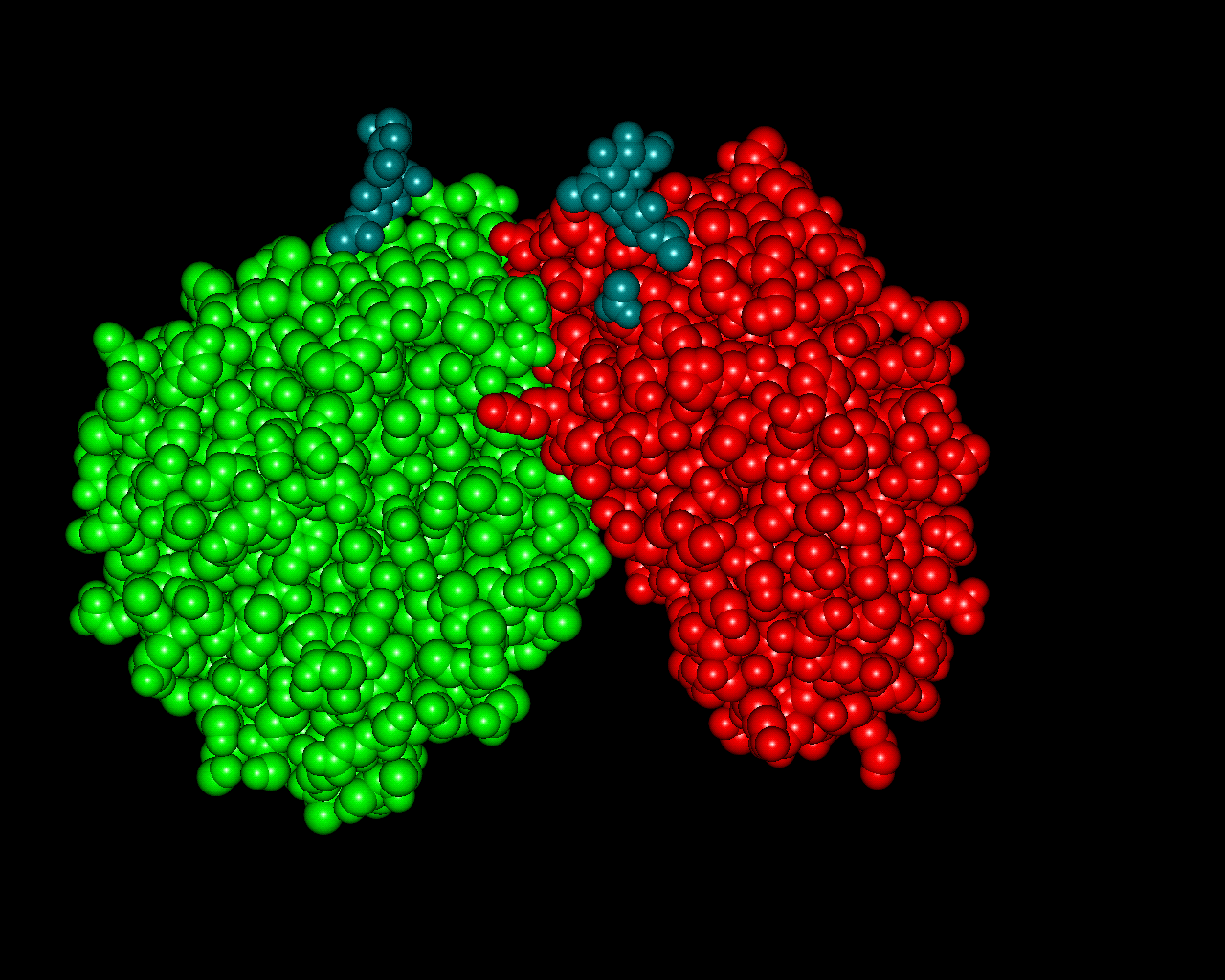

  spacefill, chain-specific coloring
[ mono GIF format | stereo GIF format ]

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1aq0
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GUB2_HORVU | P12257
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.2.1.73
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  GUB2_HORVU | P12257
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        GUB2_HORVU | P12257: 1ghr

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1AQ0)
