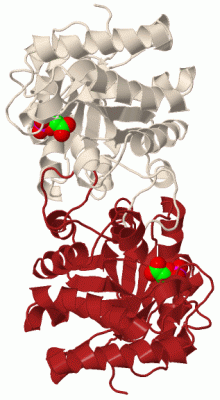

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

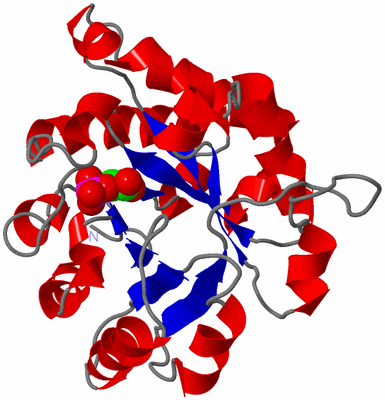

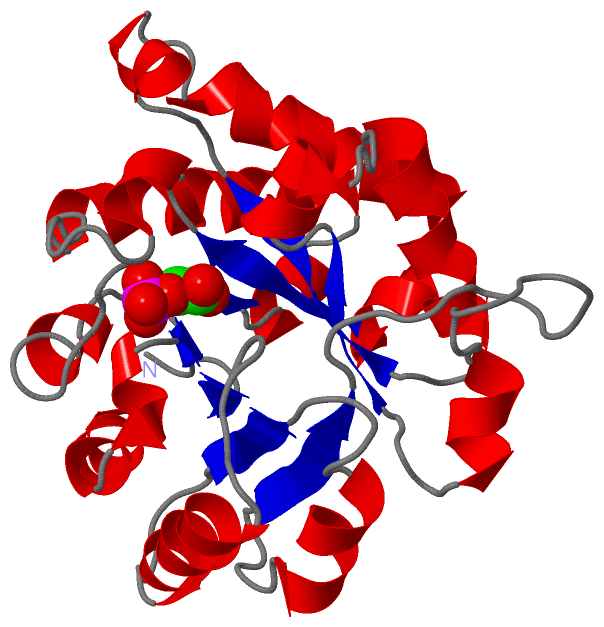

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

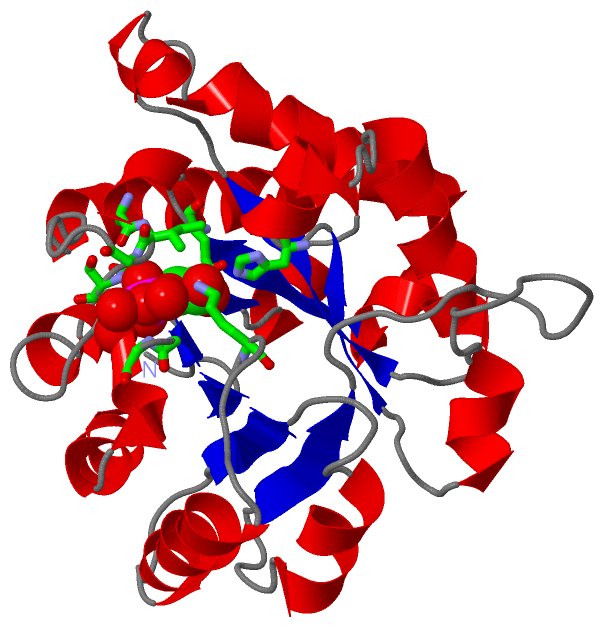

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

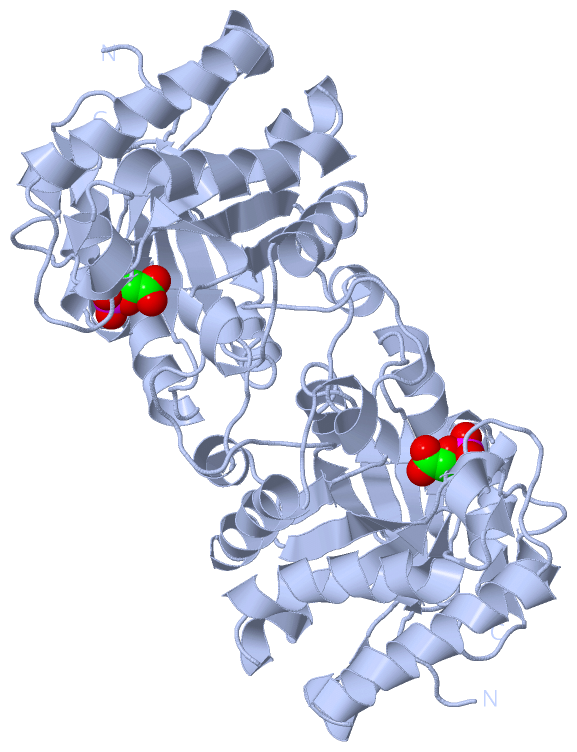

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

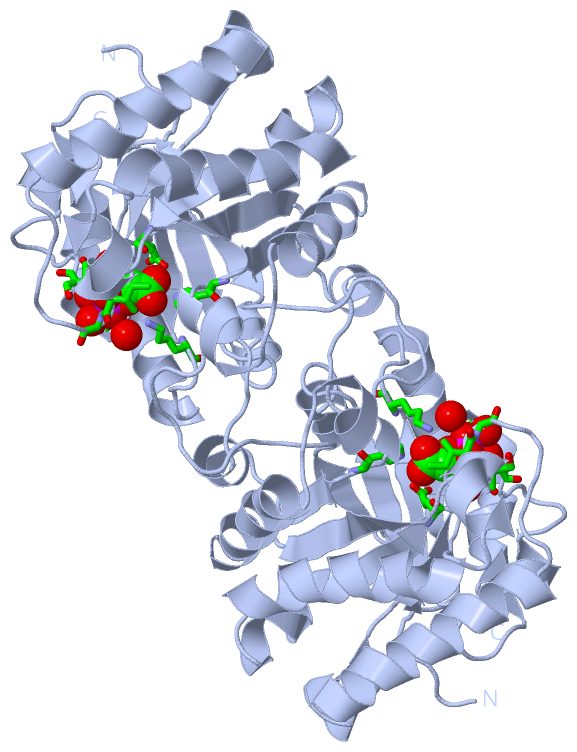

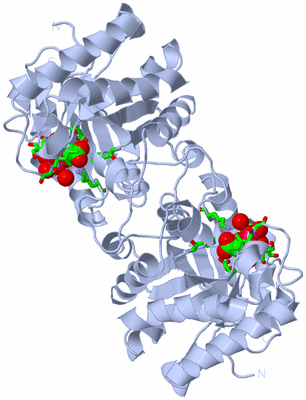

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  LEISHMANIA MEXICANA TRIOSE PHOSPHATE ISOMERASE

Authors :  J. C. Williams, R. Wierenga
Date :  17 Jun 97  (Deposition) - 17 Dec 97  (Release) - 16 Nov 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.83
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Tim, 2-Pg, Pga, Gluconeogenesis, Fatty Acid Biosynthesis (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  J. C. Williams, J. P. Zeelen, G. Neubauer, G. Vriend, J. Backmann, P. A. Michels, A. M. Lambeir, R. K. Wierenga
Structural And Mutagenesis Studies Of Leishmania Triosephosphate Isomerase: A Point Mutation Can Convert A Mesophilic Enzyme Into A Superstable Enzyme Without Losing Catalytic Power.
Protein Eng. V. 12 243 1999
PubMed-ID: 10235625  |  Reference-DOI: 10.1093/PROTEIN/12.3.243
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - TRIOSE PHOSPHATE ISOMERASE
    ChainsA
    EC Number5.3.1.1
    EngineeredYES
    Organism ScientificLEISHMANIA MEXICANA
    Organism Taxid5665

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit A
Biological Unit 1 (2x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1PGA1Ligand/Ion2-PHOSPHOGLYCOLIC ACID
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1PGA2Ligand/Ion2-PHOSPHOGLYCOLIC ACID

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:13 , HIS A:95 , GLU A:167 , ALA A:171 , ILE A:172 , GLY A:173 , GLY A:212 , SER A:213 , GLY A:234 , GLY A:235 , HOH A:261 , HOH A:271 , HOH A:317 , HOH A:324BINDING SITE FOR RESIDUE PGA A 600

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1AMK)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1AMK)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1AMK)

(-) PROSITE Motifs  (2, 2)

Asymmetric Unit (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1TIM_2PS51440 Triosephosphate isomerase (TIM) family profile.TPIS_LEIME6-249  1A:5-248
2TIM_1PS00171 Triosephosphate isomerase active site.TPIS_LEIME166-176  1A:165-175
Biological Unit 1 (2, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1TIM_2PS51440 Triosephosphate isomerase (TIM) family profile.TPIS_LEIME6-249  2A:5-248
2TIM_1PS00171 Triosephosphate isomerase active site.TPIS_LEIME166-176  2A:165-175

(-) Exons   (0, 0)

(no "Exon" information available for 1AMK)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:250
 aligned with TPIS_LEIME | P48499 from UniProtKB/Swiss-Prot  Length:251

    Alignment length:250
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251
           TPIS_LEIME     2 SAKPQPIAAANWKCNGTTASIEKLVQVFNEHTISHDVQCVVAPTFVHIPLVQAKLRNPKYVISAENAIAKSGAFTGEVSMPILKDIGVHWVILGHSERRTYYGETDEIVAQKVSEACKQGFMVIACIGETLQQREANQTAKVVLSQTSAIAAKLTKDAWNQVVLAYEPVWAIGTGKVATPEQAQEVHLLLRKWVSENIGTDVAAKLRILYGGSVNAANAATLYAKPDINGFLVGGASLKPEFRDIIDATR 251
               SCOP domains d1amka_ A: Triosephosphate isomerase                                                                                                                                                                                                                       SCOP domains
               CATH domains 1amkA00 A:1-250 Aldolase class I                                                                                                                                                                                                                           CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeeee......hhhhhhhhhhhh.......eeeeee.....hhhhhhh.....eeee................hhhhhh....eeee..hhhhhh....hhhhhhhhhhhhh...eeeeee...hhhhh...hhhhhhhhhhhhhhh..hhhhhheeeee..hhh........hhhhhhhhhhhhhhhhhh..hhhhhh..eee........hhhhh......eeee.hhhh.hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ----TIM_2  PDB: A:5-248 UniProt: 6-249                                                                                                                                                                                                                  -- PROSITE (1)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------------------------------------------------TIM_1      --------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1amk A   1 SAKPQPIAAANWKCNGTTASIEKLVQVFNEHTISHDVQCVVAPTFVHIPLVQAKLRNPKYVISAENAIAKSGAFTGEVSMPILKDIGVHWVILGHSERRTYYGETDEIVAQKVSEACKQGFMVIACIGETLQQREANQTAKVVLSQTSAIAAKLTKDAWNQVVLAYEPVWAIGTGKVATPEQAQEVHLLLRKWVSENIGTDVAAKLRILYGGSVNAANAATLYAKPDINGFLVGGASLKPEFRDIIDATR 250
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1AMK)

(-) Gene Ontology  (10, 10)

Asymmetric Unit(hide GO term definitions)
Chain A   (TPIS_LEIME | P48499)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0004807    triose-phosphate isomerase activity    Catalysis of the reaction: D-glyceraldehyde 3-phosphate = glycerone phosphate.
biological process
    GO:0006094    gluconeogenesis    The formation of glucose from noncarbohydrate precursors, such as pyruvate, amino acids and glycerol.
    GO:0006096    glycolytic process    The chemical reactions and pathways resulting in the breakdown of a carbohydrate into pyruvate, with the concomitant production of a small amount of ATP and the reduction of NAD(P) to NAD(P)H. Glycolysis begins with the metabolism of a carbohydrate to generate products that can enter the pathway and ends with the production of pyruvate. Pyruvate may be converted to acetyl-coenzyme A, ethanol, lactate, or other small molecules.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0006098    pentose-phosphate shunt    The glucose-6-phosphate catabolic process in which, coupled to NADPH synthesis, glucose-6-P is oxidized with the formation of carbon dioxide (CO2) and ribulose 5-phosphate; ribulose 5-P then enters a series of reactions interconverting sugar phosphates. The pentose phosphate pathway is a major source of reducing equivalents for biosynthesis reactions and is also important for the conversion of hexoses to pentoses.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0020015    glycosome    A membrane-bounded organelle found in organisms from the order Kinetoplastida that houses the enzymes of glycolysis.
    GO:0005777    peroxisome    A small organelle enclosed by a single membrane, and found in most eukaryotic cells. Contains peroxidases and other enzymes involved in a variety of metabolic processes including free radical detoxification, lipid catabolism and biosynthesis, and hydrogen peroxide metabolism.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    PGA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1amk)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1amk
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TPIS_LEIME | P48499
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  5.3.1.1
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  TPIS_LEIME | P48499
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        TPIS_LEIME | P484991if2 1n55 1qds 2vxn 2y61 2y62 2y63

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1AMK)
