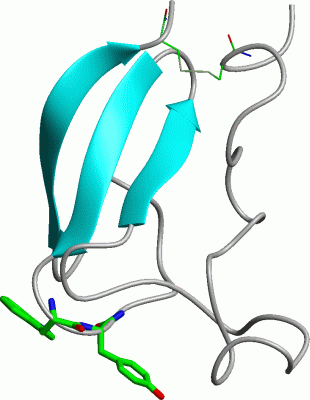

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

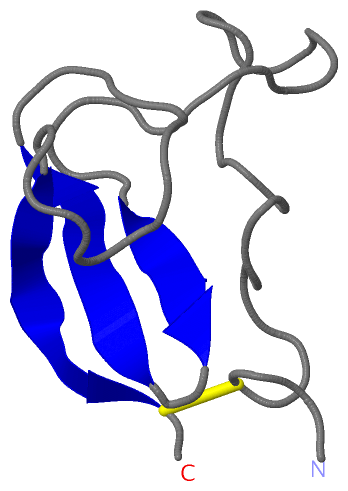

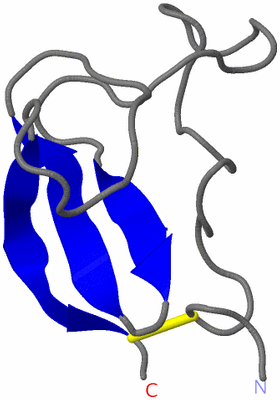

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

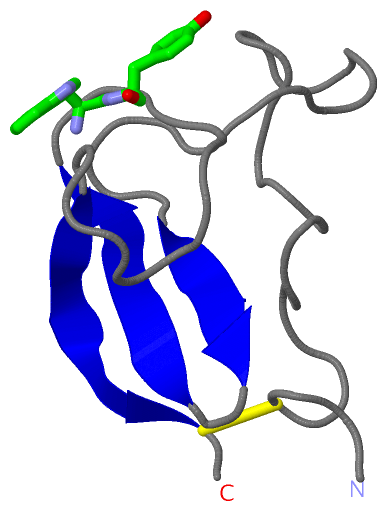

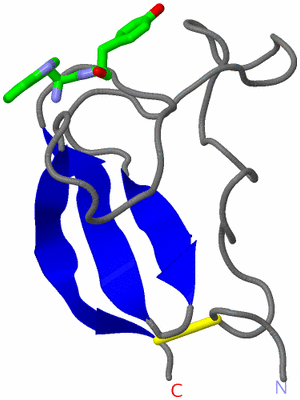

Image NMR Structure - model 1, sites
NMR Structure - model 1, sites  (Jmol Viewer)

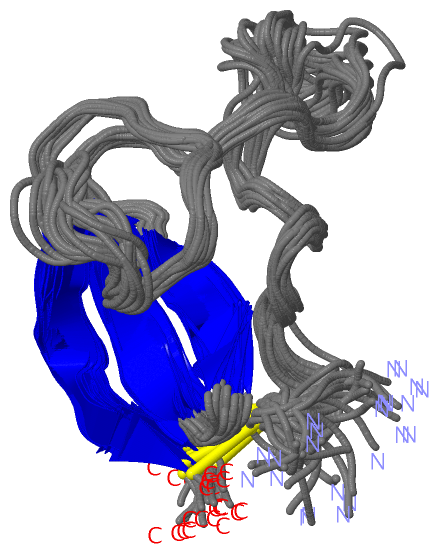

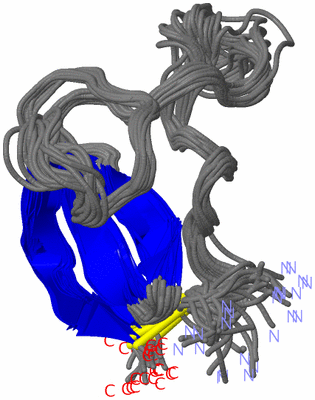

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURES OF THE CELLULOSE-BINDING DOMAIN OF THE ENDOGLUCANASE Z FROM ERWINIA CHRYSANTHEMI, 23 STRUCTURES

Authors :  E. Brun, F. Moriaud, P. Gans, M. J. Blackledge, F. Barras, D. Marion
Date :  30 Apr 97  (Deposition) - 06 May 98  (Release) - 13 Jul 11  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (23x)
NMR Structure *:  A  (1x)
Keywords :  Cellulose Degradation, Endoglucanase, Cellulose-Binding Domain, Erwinia Chrysanthemi (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  E. Brun, F. Moriaud, P. Gans, M. J. Blackledge, F. Barras, D. Marion
Solution Structure Of The Cellulose-Binding Domain Of The Endoglucanase Z Secreted By Erwinia Chrysanthemi.
Biochemistry V. 36 16074 1997
PubMed-ID: 9405041  |  Reference-DOI: 10.1021/BI9718494
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ENDOGLUCANASE Z
    Cellular LocationSECRETED
    Cell LineBL21
    ChainsA
    EC Number3.2.1.4
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21(DE3)
    Expression System Cellular LocationEXTRACELLULAR
    Expression System GenePMIA2
    Expression System PlasmidPET22
    Expression System StrainBL21 (DE3)
    Expression System Taxid469008
    Expression System VectorM/A
    FragmentC-TERMINAL CELLULOSE-BINDING DOMAIN
    GeneCELZ
    MutationYES
    Organism ScientificERWINIA CHRYSANTHEMI
    Organism Taxid198628
    Strain3937
    SynonymCBDEGZ

 Structural Features

(-) Chains, Units

  1
NMR Structure (23x)A
NMR Structure * (1x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1AIW)

(-) Sites  (1, 1)

NMR Structure (1, 1)
No.NameEvidenceResiduesDescription
1S1UNKNOWNTRP A:43 , TYR A:44PUTATIVE CELLULOSE-BINDING SITE.

(-) SS Bonds  (1, 1)

NMR Structure
No.Residues
1A:4 -A:61

(-) Cis Peptide Bonds  (1, 23)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23Tyr A:10 -Pro A:11

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1AIW)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1AIW)

(-) Exons   (0, 0)

(no "Exon" information available for 1AIW)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:62
 aligned with GUNZ_DICD3 | P07103 from UniProtKB/Swiss-Prot  Length:426

    Alignment length:62
                                   374       384       394       404       414       424
           GUNZ_DICD3   365 TADCANANVYPNWVSKDWAGGQPTHNEAGQSIVYKGNLYTANWYTASVPGSDSSWTQVGSCN 426
               SCOP domains d1aiwa_ A: Cellulose-binding domain of endoglucanase Z         SCOP domains
               CATH domains 1aiwA00 A:1-62  [code=2.10.10.20, no name defined]             CATH domains
               Pfam domains -------------------------------------------------------------- Pfam domains
         Sec.struct. author ..............................eeee..eeeee.............eeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------- Transcript
                 1aiw A   1 MGDCANANVYPNWVSKDWAGGQPTHNEAGQSIVYKGNLYTANWYTASVPGSDSSWTQVGSCN  62
                                    10        20        30        40        50        60

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1AIW)

(-) Gene Ontology  (10, 10)

NMR Structure(hide GO term definitions)
Chain A   (GUNZ_DICD3 | P07103)
molecular function
    GO:0030246    carbohydrate binding    Interacting selectively and non-covalently with any carbohydrate, which includes monosaccharides, oligosaccharides and polysaccharides as well as substances derived from monosaccharides by reduction of the carbonyl group (alditols), by oxidation of one or more hydroxy groups to afford the corresponding aldehydes, ketones, or carboxylic acids, or by replacement of one or more hydroxy group(s) by a hydrogen atom. Cyclitols are generally not regarded as carbohydrates.
    GO:0008810    cellulase activity    Catalysis of the endohydrolysis of (1->4)-beta-D-glucosidic linkages in cellulose, lichenin and cereal beta-D-glucans.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0004553    hydrolase activity, hydrolyzing O-glycosyl compounds    Catalysis of the hydrolysis of any O-glycosyl bond.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0030245    cellulose catabolic process    The chemical reactions and pathways resulting in the breakdown of cellulose, a linear beta1-4 glucan of molecular mass 50-400 kDa with the pyranose units in the -4C1 conformation.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0000272    polysaccharide catabolic process    The chemical reactions and pathways resulting in the breakdown of a polysaccharide, a polymer of many (typically more than 10) monosaccharide residues linked glycosidically.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
