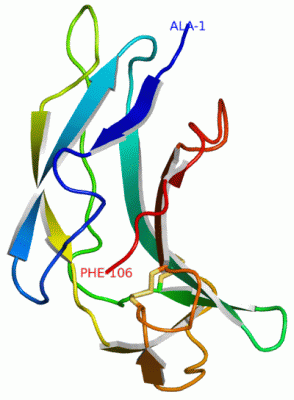

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

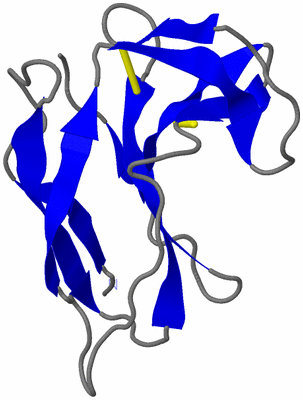

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  ACTINOXANTHIN STRUCTURE AT THE ATOMIC LEVEL (RUSSIAN)

Authors :  V. Z. Pletnev, A. P. Kuzin
Date :  17 Dec 82  (Deposition) - 09 Mar 83  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Antibacterial Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  V. Z. Pletnev, A. P. Kuzin, L. V. Malinina
Actinoxanthin Structure At The Atomic Level (Russian)
Bioorg. Khim. V. 8 1637 1982
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ACTINOXANTHIN
    Chains: A
    Engineered: YES
    Organism Scientific: STREPTOMYCES GLOBISPORUS
    Organism Taxid: 1908

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1ACX)

(-) Sites  (0, 0)

(no "Site" information available for 1ACX)

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:34 -A:43
2A:83 -A:88

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1ACX)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ACX)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1ACX)

(-) Exons   (0, 0)

(no "Exon" information available for 1ACX)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:108
 aligned with ATXA_STRGL | P01551 from UniProtKB/Swiss-Prot  Length:143

    Alignment length:110
                                    43        53        63        73        83        93       103       113       123       133       143
           ATXA_STRGL    34 APAFSVSPASGLSDGQSVSVSVSGAAAGETYYIAQCAPVGGQDACNPATATSFTTDASGAASFSFVVRKSYAGSTPEGTPVGSVDCATDACNLGAGNSGLDLGHVALTFG 143
               SCOP domains d1acxa_ A: Actinoxanth  in                                                                                     SCOP domains
               CATH domains 1acxA00 A:1-107  [code  =2.60.40.230, no name defined]                                                         CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee.........eeeeeee--e....eeeeeeeeee..eeee................eeeeee..eeeeee.......eee.....eeeeee.......ee..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------- Transcript
                 1acx A   1 APAFSVSPASGASDGQSVSVSV--AAAGETYYIAQCAPVGGQDACNPATATSFTTDASGAASFSFTVRKSYAGQTPSGTPVGSVDCATDACNLGAGNSGLNLGHVALTFG 107
                                    10        20 |  |   28        38        48        58     |  67        77        87        97       107
                                                22 23                                      63A
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1ACX)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (ATXA_STRGL | P01551)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0006952    defense response    Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
    GO:0042742    defense response to bacterium    Reactions triggered in response to the presence of a bacterium that act to protect the cell or organism.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1acx)

  Sites
(no "Sites" information available for 1acx)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1acx)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

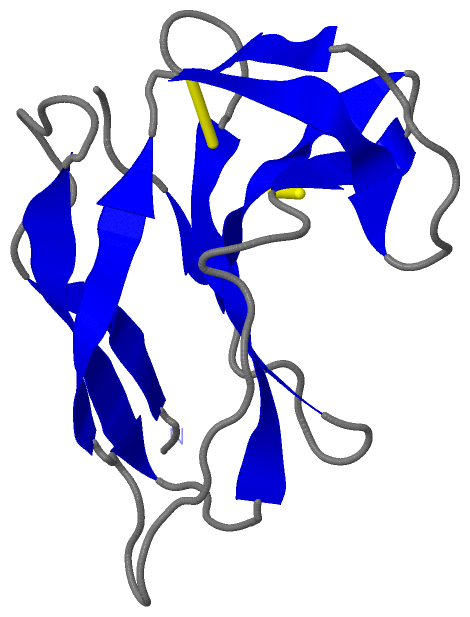

[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
