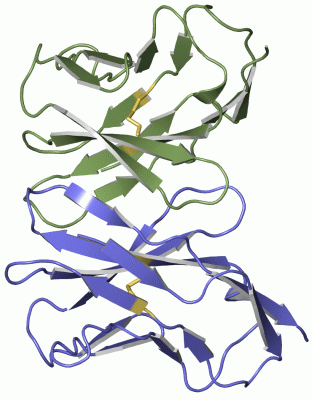

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A VARIABLE DOMAIN MUTANT OF A T-CELL RECEPTOR ALPHA CHAIN

Authors :  H. -M. Li, R. A. Mariuzza
Date :  13 Feb 97  (Deposition) - 25 Feb 98  (Release) - 20 Mar 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Receptor, V Alpha Domain, Site-Directed Mutagenesis, Three- Dimensional Structure, Glycoprotein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Li, M. I. Lebedeva, E. S. Ward, R. A. Mariuzza
Dual Conformations Of A T Cell Receptor V Alpha Homodimer: Implications For Variability In V Alpha V Beta Domain Association.
J. Mol. Biol. V. 269 385 1997
PubMed-ID: 9199407  |  Reference-DOI: 10.1006/JMBI.1997.1047
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - T-CELL RECEPTOR ALPHA
    Chains: A, B
    Fragment: VARIABLE DOMAIN
    Mutation: YES
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1AC6)

(-) Sites  (0, 0)

(no "Site" information available for 1AC6)

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:22 -A:89
2B:22 -B:89

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1AC6)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1AC6)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1AC6)

(-) Exons   (0, 0)

(no "Exon" information available for 1AC6)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:110
 aligned with Q5R1F5_MOUSE | Q5R1F5 from UniProtKB/TrEMBL  Length:112

    Alignment length:110
                                                                                                                     112
                                    30        40        50        60        70        80        90       100       110 |       -         -
         Q5R1F5_MOUSE    21 DSVTQTEGQVALSEEDFLTIHCNYSASGYPALFWYVQYPGEGPQFLFRASRDKEKGSSRGFEATYNKEATSFHLQKASVQESDSAVYYCALS------------------   -
               SCOP domains d1ac6a_ A: T-cell antigen receptor                                                                             SCOP domains
               CATH domains 1ac6A00 A:1-112 Immunoglobulins                                                                                CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee...eeeee....eee.eeee.....eeeeeee......eeeeee.....eeee..eeee.........eee....hhh.eeeeeeeee...eeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------- Transcript
                 1ac6 A   1 DSVTQTEGQVALSEEDFLTIHCNYSASGYPALFWYVQYPGEGPQFLFRASRDKEKGSSRGFEATYNKEATSFHLQKASVQESDSAVYYCALSGGNNKLTFGAGTKLTIKP 112
                                    10        20        30        40        50        60        70        80        90  ||   102       112
                                                                                                                       93|
                                                                                                                        96


Chain B from PDB  Type:PROTEIN  Length:110
 aligned with Q5R1F5_MOUSE | Q5R1F5 from UniProtKB/TrEMBL  Length:112

    Alignment length:110
                                                                                                                     112
                                    30        40        50        60        70        80        90       100       110 |       -         -
         Q5R1F5_MOUSE    21 DSVTQTEGQVALSEEDFLTIHCNYSASGYPALFWYVQYPGEGPQFLFRASRDKEKGSSRGFEATYNKEATSFHLQKASVQESDSAVYYCALS------------------   -
               SCOP domains d1ac6b_ B: T-cell antigen receptor                                                                             SCOP domains
               CATH domains 1ac6B00 B:1-112 Immunoglobulins                                                                                CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee..eeee......eee.eeee.....eeeeeeee....eeeeeee.....eeee..eeee.........eee....hhh.eeeeeeee.....eee...eeee... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------- Transcript
                 1ac6 B   1 DSVTQTEGQVALSEEDFLTIHCNYSASGYPALFWYVQYPGEGPQFLFRASRDKEKGSSRGFEATYNKEATSFHLQKASVQESDSAVYYCALSGGNNKLTFGAGTKLTIKP 112
                                    10        20        30        40        50        60        70        80        90  ||   102       112
                                                                                                                       93|
                                                                                                                        96
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1AC6)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1AC6)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ac6)

  Sites
(no "Sites" information available for 1ac6)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ac6)


(-) Still Images

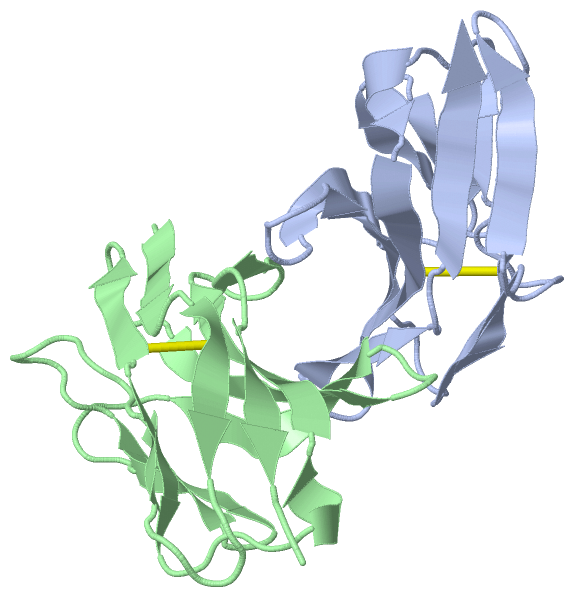

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

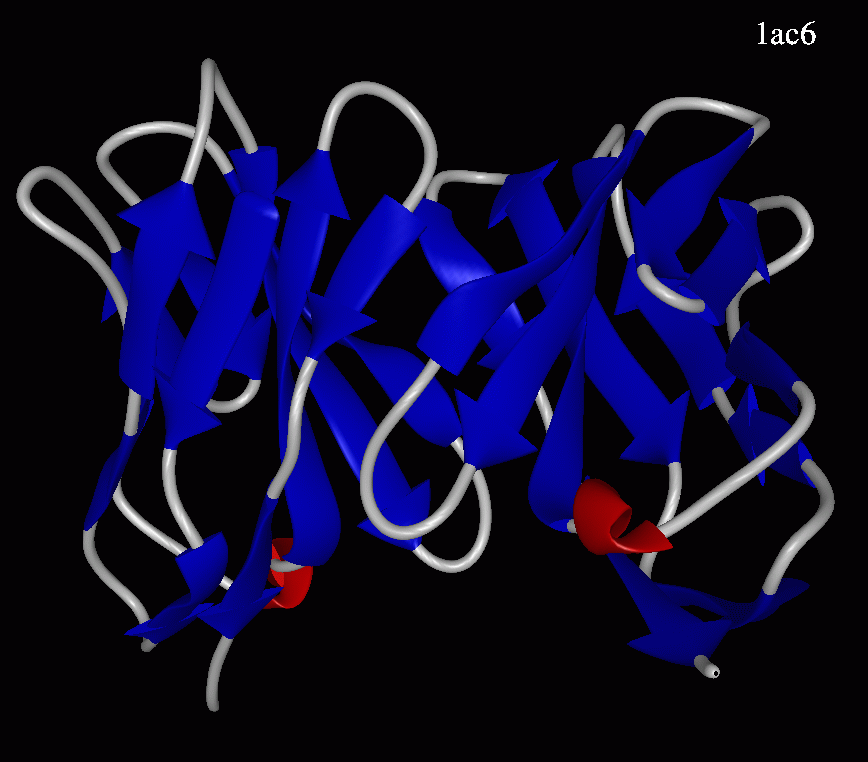

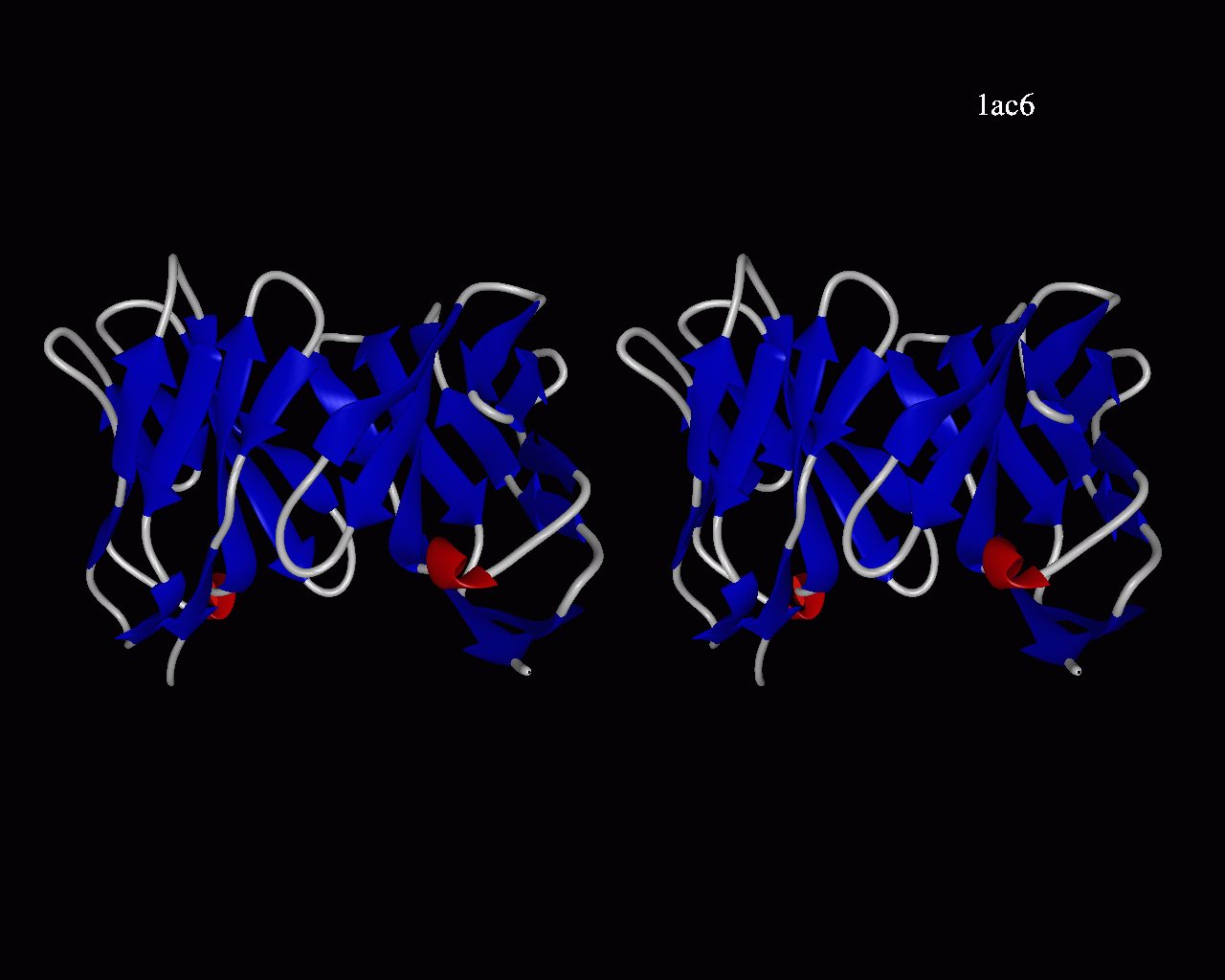

Midas
  ribbon, secondary structure
[ mono GIF format | stereo GIF format ]
  ribbon, secondary structure, residue specific coloring
[ mono GIF format | stereo GIF format ]

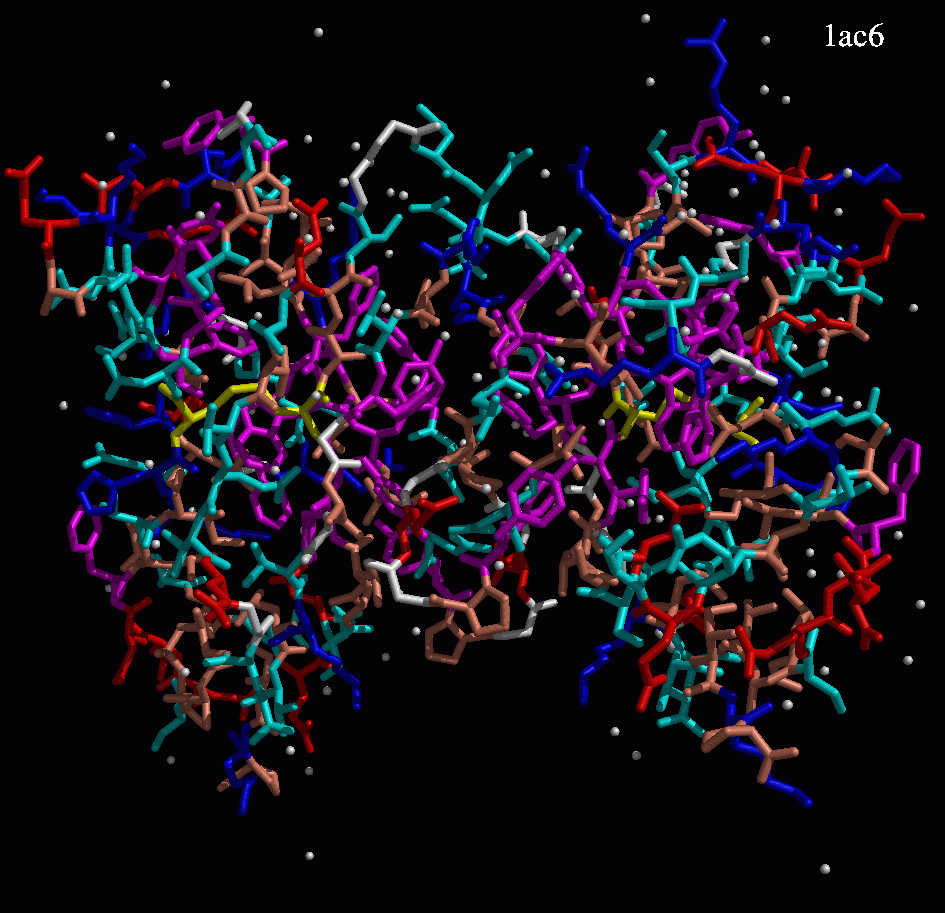

  sticks
[ mono GIF format | stereo GIF format ]

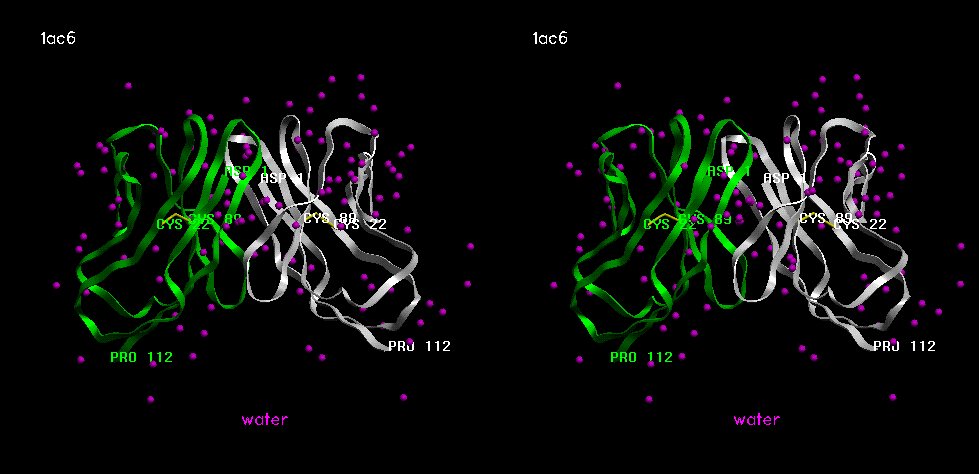

Setor
  ribbon, SS bonds, water
[ mono GIF format | stereo GIF format ]

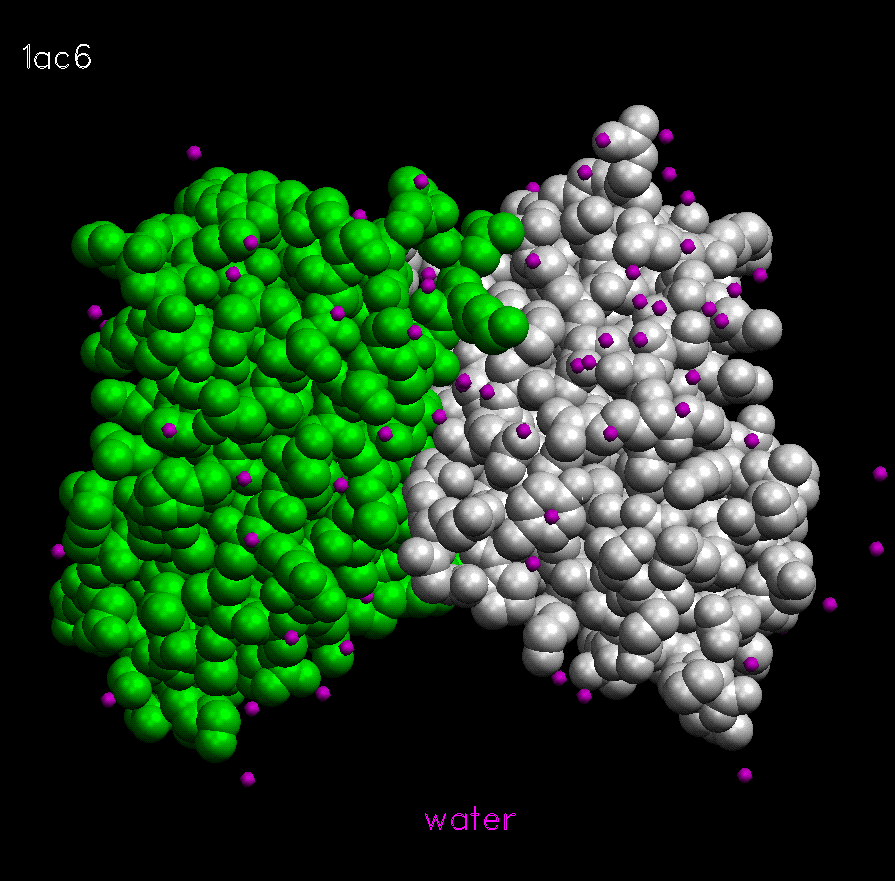

  spacefill, water
[ mono GIF format | stereo GIF format ]

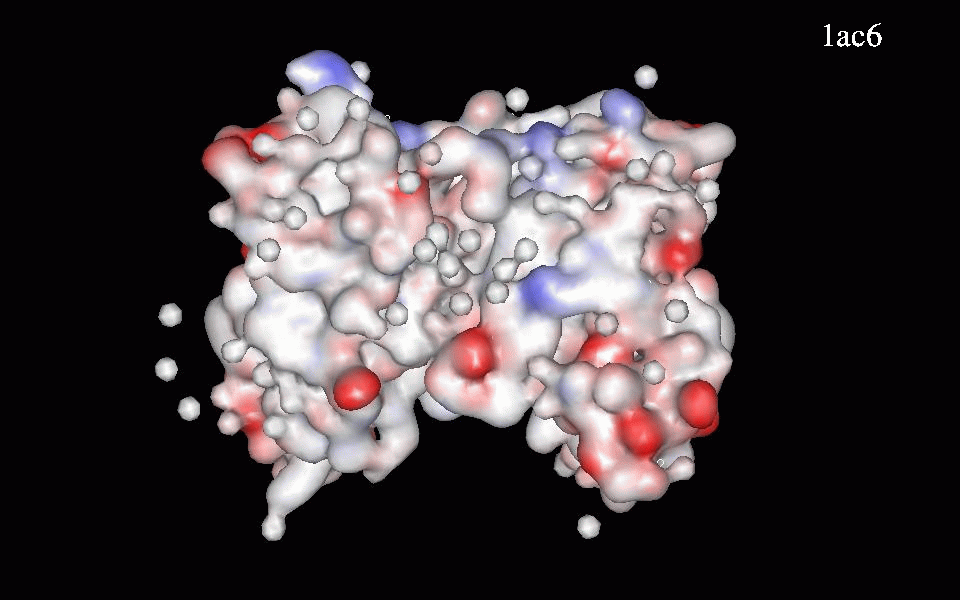

Weblab
