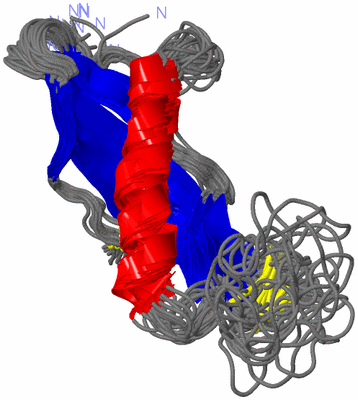

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  RECOMBINANT MUTANT CHICKEN EGG WHITE CYSTATIN, NMR, 31 STRUCTURES

Authors :  T. Dieckmann, L. Mitschang, M. Hofmann, J. Kos, V. Turk, E. A. Auerswald, R. Jaenicke, H. Oschkinat
Date :  14 Apr 98  (Deposition) - 17 Jun 98  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (31x)
Keywords :  Proteinase Inhibitor, Thiol Proteinase, Steffins, Kininogens, Thiol Protease Inhibitor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Dieckmann, L. Mitschang, M. Hofmann, J. Kos, V. Turk, E. A. Auerswald, R. Jaenicke, H. Oschkinat
The Structures Of Native Phosphorylated Chicken Cystatin And Of A Recombinant Unphosphorylated Variant In Solution.
J. Mol. Biol. V. 234 1048 1993
PubMed-ID: 8263912  |  Reference-DOI: 10.1006/JMBI.1993.1658
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CYSTATIN
    Cell: EGG
    Cellular Location: CYTOPLASM (WHITE)
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Mutation: YES
    Organ: EGG
    Organism Common: CHICKEN
    Organism Scientific: GALLUS GALLUS
    Organism Taxid: 9031

 Structural Features

(-) Chains, Units


NMR Structure (31x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1A90)

(-) Sites  (0, 0)

(no "Site" information available for 1A90)

(-) SS Bonds  (2, 2)

NMR Structure
No.Residues
1A:71 -A:81
2A:95 -A:115

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1A90)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1A90)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CYSTATINPS00287 Cysteine proteases inhibitors signature.CYT_CHICK75-88  1A:52-65

(-) Exons   (0, 0)

(no "Exon" information available for 1A90)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:108
 aligned with CYT_CHICK | P01038 from UniProtKB/Swiss-Prot  Length:139

    Alignment length:108
                                    41        51        61        71        81        91       101       111       121       131
            CYT_CHICK    32 GAPVPVDENDEGLQRALQFAMAEYNRASNDKYSSRVVRVISAKRQLVSGIKYILQVEIGRTTCPKSSGDLQSCEFHDEPEMAKYTTCTFVVYSIPWLNQIKLLESKCQ 139
               SCOP domains d1a90a_ A: Cystatin                                                                                          SCOP domains
               CATH domains 1a90A00 A:9-116  [code=3.10.450.10, no name defined]                                                         CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..........hhhhhhhhhhhhhhhhhh....eee.......eeee...eeeeeeeeeeee.......................eeeeeeeeee....eeee...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------------------------------------CYSTATIN      --------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------ Transcript
                 1a90 A   9 GAPVPVDENDEGLQRALQFAIAEYNRASNDKYSSRVVRVISAKRQLVSGIKYILQVEIGRTTCPKSSGDLQSCEFHDEPELAKYTTCTFVVYSIPWLNQIKLLESKCQ 116
                                    18        28        38        48        58        68        78        88        98       108
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1A90)

(-) Gene Ontology  (5, 5)

NMR Structure(hide GO term definitions)
Chain A   (CYT_CHICK | P01038)
molecular function
    GO:0004869    cysteine-type endopeptidase inhibitor activity    Stops, prevents or reduces the activity of a cysteine-type endopeptidase, any enzyme that hydrolyzes peptide bonds in polypeptides by a mechanism in which the sulfhydryl group of a cysteine residue at the active center acts as a nucleophile.
    GO:0030414    peptidase inhibitor activity    Stops, prevents or reduces the activity of a peptidase, any enzyme that catalyzes the hydrolysis peptide bonds.
biological process
    GO:0010951    negative regulation of endopeptidase activity    Any process that decreases the frequency, rate or extent of endopeptidase activity, the endohydrolysis of peptide bonds within proteins.
    GO:0010466    negative regulation of peptidase activity    Any process that stops or reduces the rate of peptidase activity, the hydrolysis of peptide bonds within proteins.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1a90)

  Sites
(no "Sites" information available for 1a90)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1a90)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
