Title :   CHLOROPEROXIDASE F/PROPIONATE COMPLEX

Authors :   B. Hofmann, S. Toelzer, I. Pelletier, J. Altenbuchner, K. -H. Van Pee, J. Hecht

Date :   27 Mar 98 (Deposition) - 17 Jun 98 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.80

Chains :   Asym. Unit : A
Biol. Unit 1: A  (1x)

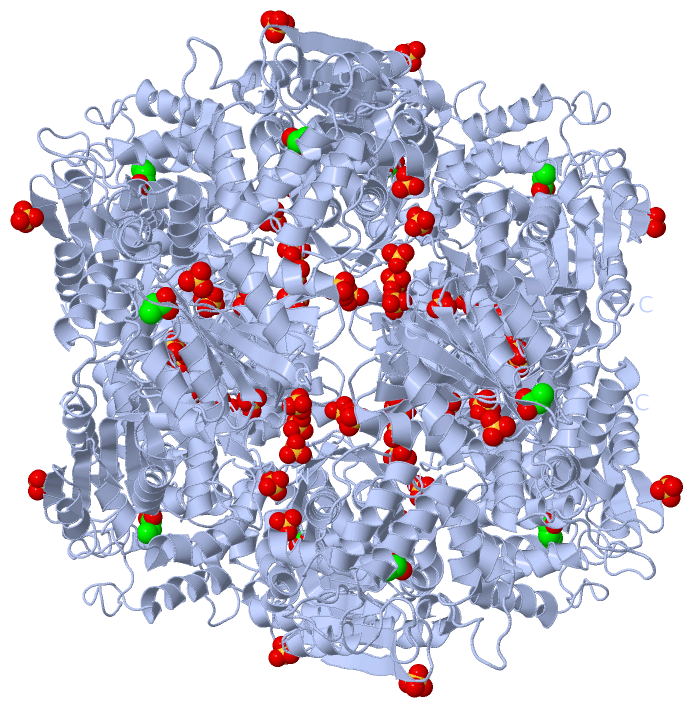

Biol. Unit 2: A  (12x)
Biol. Unit 3: A  (3x)

Keywords :   Haloperoxidase, Oxidoreductase, Propionate Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   B. Hofmann, S. Tolzer, I. Pelletier, J. Altenbuchner, K. H. Van Pee, H. J. Hecht
Structural Investigation Of The Cofactor-Free Chloroperoxidases.
J. Mol. Biol. V. 279 889 1998
PubMed-ID: 9642069 | Reference-DOI: 10.1006/JMBI.1998.1802

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 5)

Sites (6, 6)

Asymmetric Unit (6, 6)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	LYS A:241 , GLY A:242 , TYR A:248 , SER A:249 , GLN A:262 , HOH A:349 , HOH A:365 , HOH A:374 , HOH A:494	BINDING SITE FOR RESIDUE SO4 A 274
2	AC2	SOFTWARE	THR A:1 , TYR A:12 , SER A:61 , GLN A:62 , HOH A:285 , HOH A:339 , HOH A:580	BINDING SITE FOR RESIDUE SO4 A 275
3	AC3	SOFTWARE	THR A:1 , THR A:2 , HOH A:440	BINDING SITE FOR RESIDUE SO4 A 276
4	AC4	SOFTWARE	TRP A:16 , GLY A:17 , TRP A:64 , ARG A:86 , HOH A:297 , HOH A:412 , HOH A:497	BINDING SITE FOR RESIDUE SO4 A 277
5	AC5	SOFTWARE	TRP A:28 , SER A:94 , THR A:95 , PHE A:163 , PHE A:200 , HIS A:253 , HOH A:607	BINDING SITE FOR RESIDUE PPI A 278
6	NUL	UNKNOWN	SER A:94 , ASP A:224 , HIS A:253	CATALYTIC TRIAD.

SS Bonds (0, 0)

Cis Peptide Bonds (2, 2)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:273
 aligned with PRXC_PSEFL | O31158 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:273
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271
           PRXC_PSEFL     2 TTFTTRDGTQIYYKDWGSGQPIVFSHGWPLNADSWESQMIFLAAQGYRVIAHDRRGHGRSSQPWSGNDMDTYADDLAQLIEHLDLRDAVLFGFSTGGGEVARYIGRHGTARVAKAGLISAVPPLMLKTEANPGGLPMEVFDGIRQASLADRSQLYKDLASGPFFGFNQPGAKSSAGMVDWFWLQGMAAGHKNAYDCIKAFSETDFTEDLKKIDVPTLVVHGDADQVVPIEASGIASAALVKGSTLKIYSGAPHGLTDTHKDQLNADLLAFIKG 274
               SCOP domains d1a8sa_ A: Chloroperoxidase F                                                                                                                                                                                                                                                     SCOP domains
               CATH domains 1a8sA00 A:1-273  [code=3.40.50.1820, no name defined]                                                                                                                                                                                                                             CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee.....eeeeeee....eeeee......hhhhhhhhhhhhhh..eeeee................hhhhhhhhhhhhhh.....eeeeeehhhhhhhhhhhhhh....eeeeeee..................hhhhhhhhhhhhhhhhhhhhhhhh..............hhhhhhhhhhhhh..hhhhhhhhhhhhh...hhhhhh...eeeeeee...........hhhhhhh....eeeee......hhhh.hhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1a8s A   1 TTFTTRDGTQIYYKDWGSGQPIVFSHGWPLNADSWESQMIFLAAQGYRVIAHDRRGHGRSSQPWSGNDMDTYADDLAQLIEHLDLRDAVLFGFSTGGGEVARYIGRHGTARVAKAGLISAVPPLMLKTEANPGGLPMEVFDGIRQASLADRSQLYKDLASGPFFGFNQPGAKSSAGMVDWFWLQGMAAGHKNAYDCIKAFSETDFTEDLKKIDVPTLVVHGDADQVVPIEASGIASAALVKGSTLKIYSGAPHGLTDTHKDQLNADLLAFIKG 273
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (6, 6)

Asymmetric Unit(hide GO term definitions)

Chain A (PRXC_PSEFL | O31158)

molecular function
	GO:0003824	catalytic activity	Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
	GO:0016691	chloride peroxidase activity	Catalysis of the reaction: 2 R-H + 2 chloride + hydrogen peroxide = 2 R-Cl + 2 H2O.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
	GO:0004601	peroxidase activity	Catalysis of the reaction: donor + hydrogen peroxide = oxidized donor + 2 H2O.
biological process
	GO:0098869	cellular oxidant detoxification	Any process carried out at the cellular level that reduces or removes the toxicity superoxide radicals or hydrogen peroxide.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

Visualization

Interactive Views

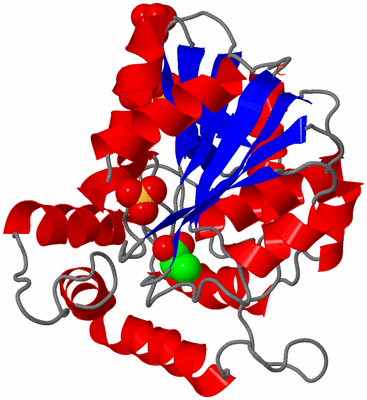

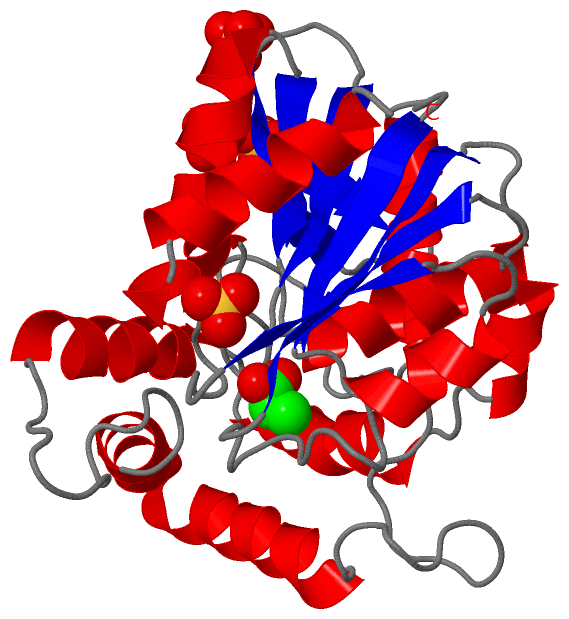

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		PPI	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

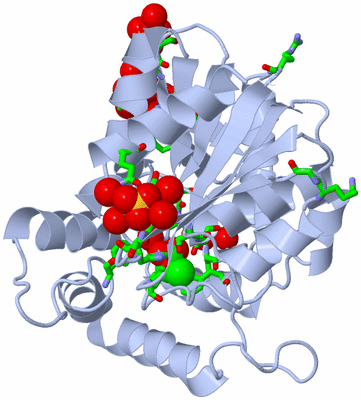

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		NUL	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Pro A:122 - Pro A:123	[ RasMol ]
		Trp A:28 - Pro A:29	[ RasMol ]

Biological Units
	Complete Structure

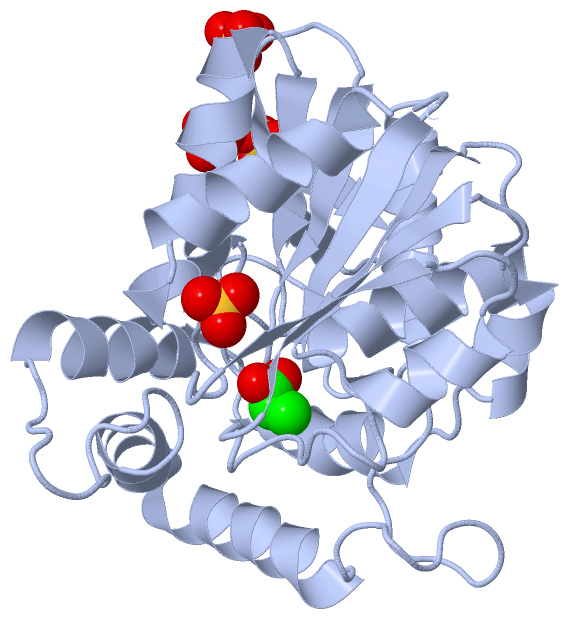

		Biological Unit 1	[ Jena3D ]

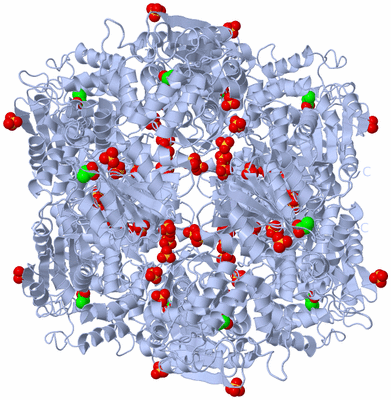

		Biological Unit 2	[ Jena3D ]

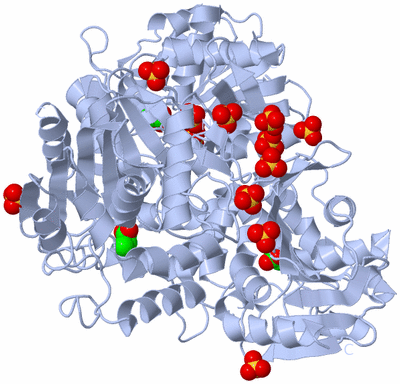

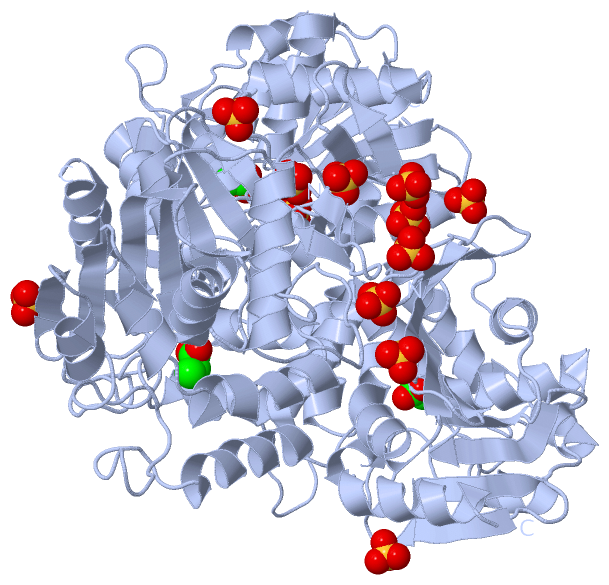

		Biological Unit 3	[ Jena3D ]

Still Images

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	1a8s
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	PRXC_PSEFL \| O31158
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	1.11.1.10
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge
