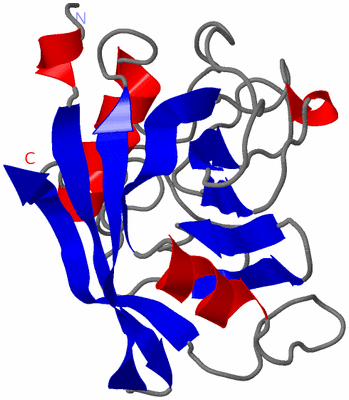

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CYCLOPHILIN FROM BRUGIA MALAYI

Authors :  P. Taylor, A. P. Page, G. Kontopidis, H. Husi, M. D. Walkinshaw
Date :  20 Feb 98  (Deposition) - 27 May 98  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.95
Chains :  Asym./Biol. Unit :  A
Keywords :  Isomerase, Ppiase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. Taylor, A. P. Page, G. Kontopidis, H. Husi, M. D. Walkinshaw
The X-Ray Structure Of A Divergent Cyclophilin From The Nematode Parasite Brugia Malayi.
Febs Lett. V. 425 361 1998
PubMed-ID: 9559680  |  Reference-DOI: 10.1016/S0014-5793(98)00264-6
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CYCLOPHILIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Gene: CYCLOPHILIN
    Expression System Plasmid: PMAL-C2
    Expression System Strain: XL-1 BLUE SUPERCOMPETANT
    Expression System Taxid: 562
    Fragment: CYCLOPHILIN DOMAIN
    Gene: CYCLOPHILIN
    Organism Scientific: BRUGIA MALAYI
    Organism Taxid: 6279

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1A58)

(-) Sites  (0, 0)

(no "Site" information available for 1A58)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1A58)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1A58)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1A58)

(-) PROSITE Motifs  (2, 2)

Asymmetric/Biological Unit (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CSA_PPIASE_2PS50072 Cyclophilin-type peptidyl-prolyl cis-trans isomerase domain profile.CYP1_BRUMA10-175  1A:10-175
2CSA_PPIASE_1PS00170 Cyclophilin-type peptidyl-prolyl cis-trans isomerase signature.CYP1_BRUMA59-76  1A:59-76

(-) Exons   (0, 0)

(no "Exon" information available for 1A58)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:177
 aligned with CYP1_BRUMA | Q27450 from UniProtKB/Swiss-Prot  Length:843

    Alignment length:177
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
           CYP1_BRUMA     1 MSKKDRRRVFLDVTIDGNLAGRIVMELYNDIAPRTCNNFLMLCTGMAGTGKISGKPLHYKGSTFHRVIKNFMIQGGDFTKGDGTGGESIYGGMFDDEEFVMKHDEPFVVSMANKGPNTNGSQFFITTTPAPHLNNIHVVFGKVVSGQEVVTKIEYLKTNSKNRPLADVVILNCGELV 177
               SCOP domains d1a58a_ A: Cyclophilin (eukaryotic)                                                                                                                                               SCOP domains
               CATH domains 1a58A00 A:1-177 Cyclophilin                                                                                                                                                       CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhh.eeeeeeeee..eeeeeeeeee.....hhhhhhhhhhhh...................eeeee...eeee................................eeee...........eeee....hhh.....eeeeeee.hhhhhhhh.............eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ---------CSA_PPIASE_2  PDB: A:10-175 UniProt: 10-175                                                                                                                           -- PROSITE (1)
                PROSITE (2) ----------------------------------------------------------CSA_PPIASE_1      ----------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1a58 A   1 MSKKDRRRVFLDVTIDGNLAGRIVMELYNDIAPRTCNNFLMLCTGMAGTGKISGKPLHYKGSTFHRVIKNFMIQGGDFTKGDGTGGESIYGGMFDDEEFVMKHDEPFVVSMANKGPNTNGSQFFITTTPAPHLNNIHVVFGKVVSGQEVVTKIEYLKTNSKNRPLADVVILNCGELV 177
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1A58)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (CYP1_BRUMA | Q27450)
molecular function
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0003755    peptidyl-prolyl cis-trans isomerase activity    Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
biological process
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
    GO:0000413    protein peptidyl-prolyl isomerization    The modification of a protein by cis-trans isomerization of a proline residue.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1a58)

  Sites
(no "Sites" information available for 1a58)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1a58)


(-) Still Images

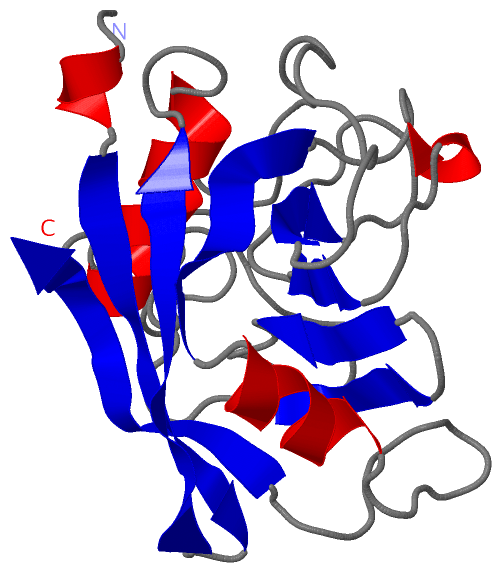

Jmol
