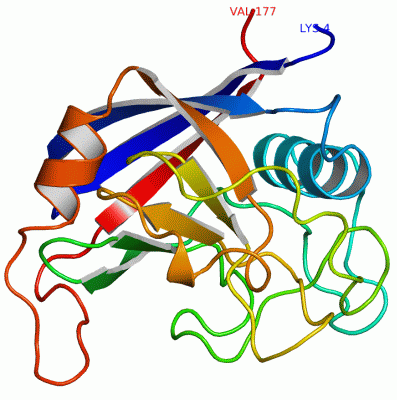

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  PEPTIDYLPROLYL ISOMERASE, CYCLOPHILIN-LIKE DOMAIN FROM BRUGIA MALAYI

Authors :  V. Mikol, D. Ma, C. K. S. Carlow
Date :  27 Jan 98  (Deposition) - 29 Jul 98  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.15
Chains :  Asym./Biol. Unit :  A
Keywords :  Isomerase, Peptidyl-Prolyl Cis-Trans, Peptidylprolyl Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  V. Mikol, D. Ma, C. K. Carlow
Crystal Structure Of The Cyclophilin-Like Domain From The Parasitic Nematode Brugia Malayi.
Protein Sci. V. 7 1310 1998
PubMed-ID: 9655334
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PEPTIDYLPROLYL ISOMERASE
    Atcc: ATCC 75593
    Chains: A
    Collection: ATCC 75593
    EC Number: 5.2.1.8
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Gene: MBP FUSION PROTEIN
    Expression System Plasmid: PMAL-C2
    Expression System Strain: ER2267
    Expression System Taxid: 562
    Expression System Vector Type: DOUBLE STRAND VECTOR (TAC, PMB1 AND AMPR)
    Fragment: CYCLOPHILIN-LIKE DOMAIN
    Gene: BMCYP-1
    Organism Scientific: BRUGIA MALAYI
    Organism Taxid: 6279

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1A33)

(-) Sites  (0, 0)

(no "Site" information available for 1A33)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1A33)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1A33)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1A33)

(-) PROSITE Motifs  (2, 2)

Asymmetric/Biological Unit (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CSA_PPIASE_2PS50072 Cyclophilin-type peptidyl-prolyl cis-trans isomerase domain profile.CYP1_BRUMA10-175  1A:10-175
2CSA_PPIASE_1PS00170 Cyclophilin-type peptidyl-prolyl cis-trans isomerase signature.CYP1_BRUMA59-76  1A:59-76

(-) Exons   (0, 0)

(no "Exon" information available for 1A33)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:174
 aligned with CYP1_BRUMA | Q27450 from UniProtKB/Swiss-Prot  Length:843

    Alignment length:174
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173
           CYP1_BRUMA     4 KDRRRVFLDVTIDGNLAGRIVMELYNDIAPRTCNNFLMLCTGMAGTGKISGKPLHYKGSTFHRVIKNFMIQGGDFTKGDGTGGESIYGGMFDDEEFVMKHDEPFVVSMANKGPNTNGSQFFITTTPAPHLNNIHVVFGKVVSGQEVVTKIEYLKTNSKNRPLADVVILNCGELV 177
               SCOP domains d1a33a_ A: Cyclophilin (eukaryotic)                                                                                                                                            SCOP domains
               CATH domains 1a33A00 A:4-177 Cyclophilin                                                                                                                                                    CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...eeeeeeeee..eeeeeeeeee.....hhhhhhhhhhhh...................eeeee...eeee................................eeee...........eeee....hhh.....eeeeeee.hhhhhhhh.............eeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (1) ------CSA_PPIASE_2  PDB: A:10-175 UniProt: 10-175                                                                                                                           -- PROSITE (1)
                PROSITE (2) -------------------------------------------------------CSA_PPIASE_1      ----------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1a33 A   4 KDRRRVFLDVTIDGNLAGRIVMELYNDIAPRTCNNFLMLCTGMAGTGKISGKPLHYKGSTFHRVIKNFMIQGGDFTKGDGTGGESIYGGMFDDEEFVMKHDEPFVVSMANKGPNTNGSQFFITTTPAPHLNNIHVVFGKVVSGQEVVTKIEYLKTNSKNRPLADVVILNCGELV 177
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1A33)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (CYP1_BRUMA | Q27450)
molecular function
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0003755    peptidyl-prolyl cis-trans isomerase activity    Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
biological process
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
    GO:0000413    protein peptidyl-prolyl isomerization    The modification of a protein by cis-trans isomerization of a proline residue.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1a33)

  Sites
(no "Sites" information available for 1a33)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1a33)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

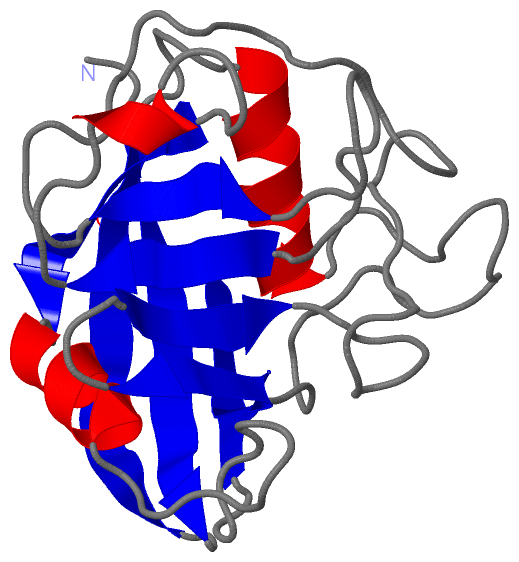

[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
