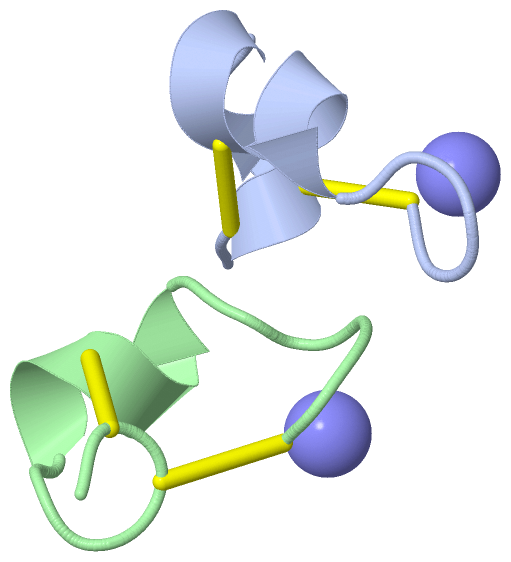

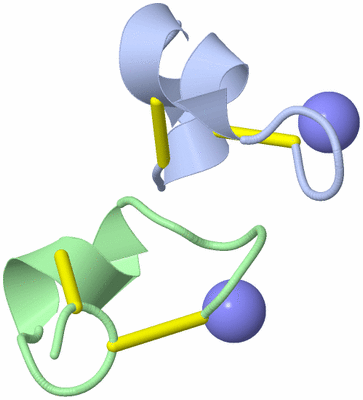

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

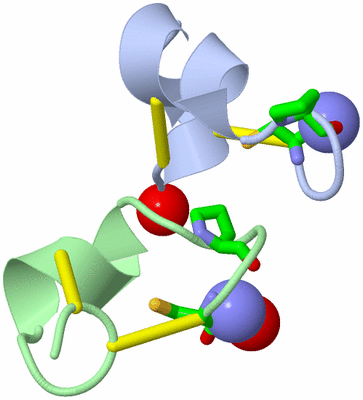

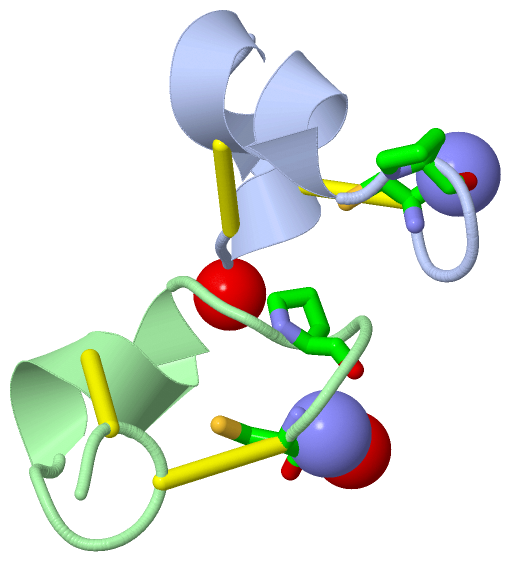

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  1.1 ANGSTROM CRYSTAL STRUCTURE OF A-CONOTOXIN [TYR15]-EPI

Authors :  S. -H. Hu, M. Loughnan, R. Miller, C. M. Weeks, R. H. Blessing, P. F. Alewood, R. J. Lewis, J. L. Martin
Date :  03 Dec 97  (Deposition) - 13 Jan 99  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.10
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Acetylcholine Receptor Antagonist, A-Conotoxin, Crystal Structure, Neurotoxin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. H. Hu, M. Loughnan, R. Miller, C. M. Weeks, R. H. Blessing, P. F. Alewood, R. J. Lewis, J. L. Martin
The 1. 1 A Resolution Crystal Structure Of [Tyr15]Epi, A Novel Alpha-Conotoxin From Conus Episcopatus, Solved By Direct Methods.
Biochemistry V. 37 11425 1998
PubMed-ID: 9708977  |  Reference-DOI: 10.1021/BI9806549
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ALPHA-CONOTOXIN [TYR15]-EPI
    Chains: A, B
    Engineered: YES
    Organism Scientific: CONUS EPISCOPATUS
    Organism Taxid: 88764

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1NH22Mod. Amino AcidAMINO GROUP

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREPRO A:13 , CYS A:16BINDING SITE FOR RESIDUE NH2 A 17
2AC2SOFTWAREPRO B:13 , CYS B:16 , HOH A:21 , HOH B:27BINDING SITE FOR RESIDUE NH2 B 17

(-) SS Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1A:2 -A:8
2A:3 -A:16
3B:2 -B:8
4B:3 -B:16

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1A0M)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1A0M)

(-) PROSITE Motifs  (1, 2)

Asymmetric/Biological Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1ALPHA_CONOTOXINPS60014 Alpha-conotoxin family signature.CA1_CONEP41-55
 		  2A:2-16
B:2-16

(-) Exons   (0, 0)

(no "Exon" information available for 1A0M)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:17
 aligned with CA1_CONEP | P56638 from UniProtKB/Swiss-Prot  Length:56

    Alignment length:17
                                    49
             CA1_CONEP   40 GCCSDPRCNMNNPDYCG 56
               SCOP domains ----------------- SCOP domains
               CATH domains ----------------- CATH domains
               Pfam domains ----------------- Pfam domains
         Sec.struct. author .hhh.hhhhhh...... Sec.struct. author
                 SAPs(SNPs) ----------------- SAPs(SNPs)
                    PROSITE -ALPHA_CONOTOXIN- PROSITE
                 Transcript ----------------- Transcript
                  1a0m A  1 GCCSDPRCNMNNPDYCx 17
                                    10      |
                                           17-NH2


Chain B from PDB  Type:PROTEIN  Length:17
 aligned with CA1_CONEP | P56638 from UniProtKB/Swiss-Prot  Length:56

    Alignment length:17
                                    49
             CA1_CONEP   40 GCCSDPRCNMNNPDYCG 56
               SCOP domains ----------------- SCOP domains
               CATH domains ----------------- CATH domains
               Pfam domains ----------------- Pfam domains
         Sec.struct. author .....hhhhh....... Sec.struct. author
                 SAPs(SNPs) ----------------- SAPs(SNPs)
                    PROSITE -ALPHA_CONOTOXIN- PROSITE
                 Transcript ----------------- Transcript
                  1a0m B  1 GCCSDPRCNMNNPDYCx 17
                                    10      |
                                           17-NH2
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1A0M)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1A0M)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1A0M)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (CA1_CONEP | P56638)
molecular function
    GO:0030550    acetylcholine receptor inhibitor activity    Interacting (directly or indirectly) with acetylcholine receptors such that the proportion of receptors in the active form is decreased.
biological process
    GO:2000272    negative regulation of receptor activity    Any process that stops, prevents or reduces the frequency, rate or extent of receptor activity.
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0035792    other organism postsynaptic membrane    A postsynaptic membrane that is part of another organism, i.e. a secondary organism with which the first organism is interacting. A postsynaptic membrane is a specialized area of membrane facing the presynaptic membrane on the tip of the nerve ending and separated from it by a minute cleft (the synaptic cleft). Neurotransmitters transmit the signal across the synaptic cleft to the postsynaptic membrane.
