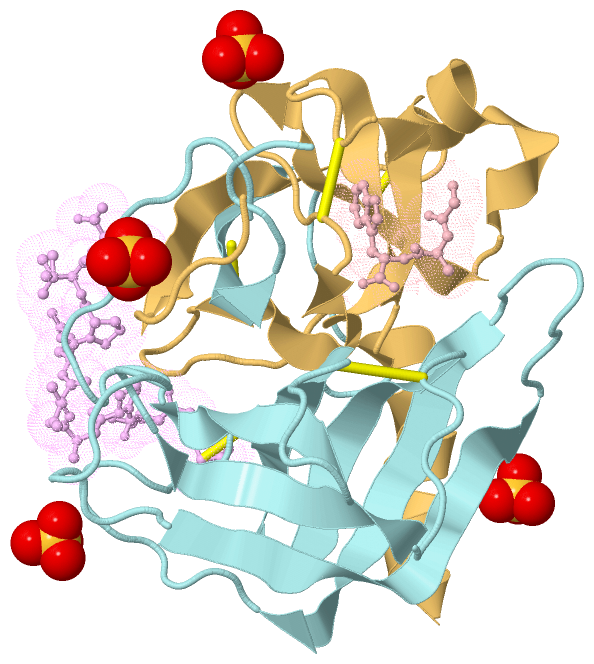

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

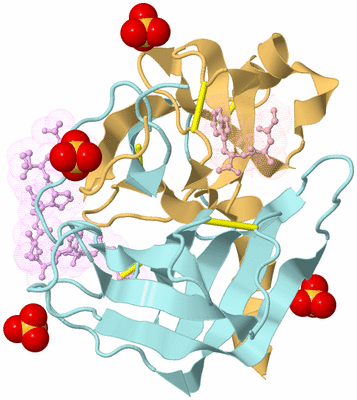

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

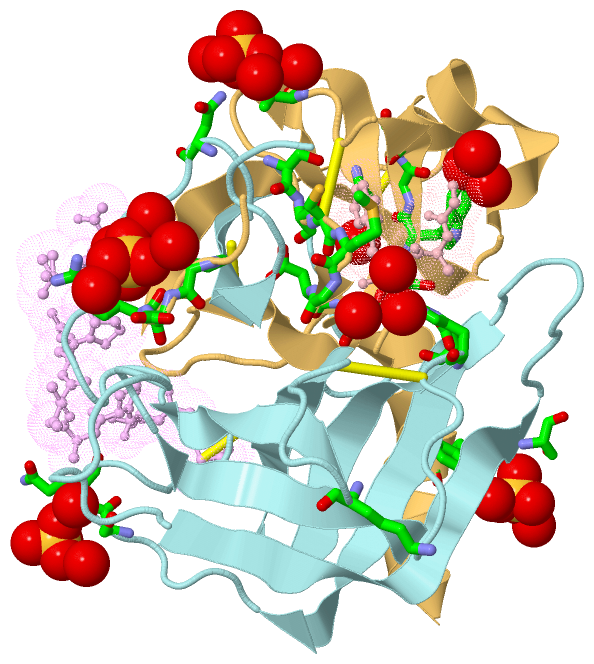

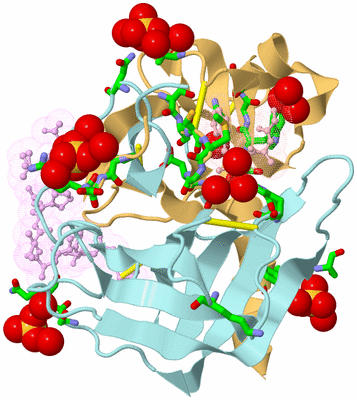

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

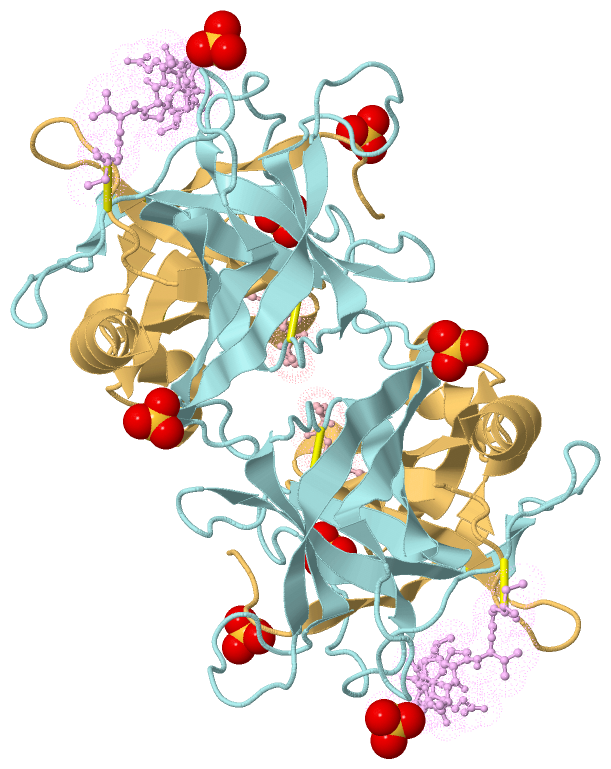

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

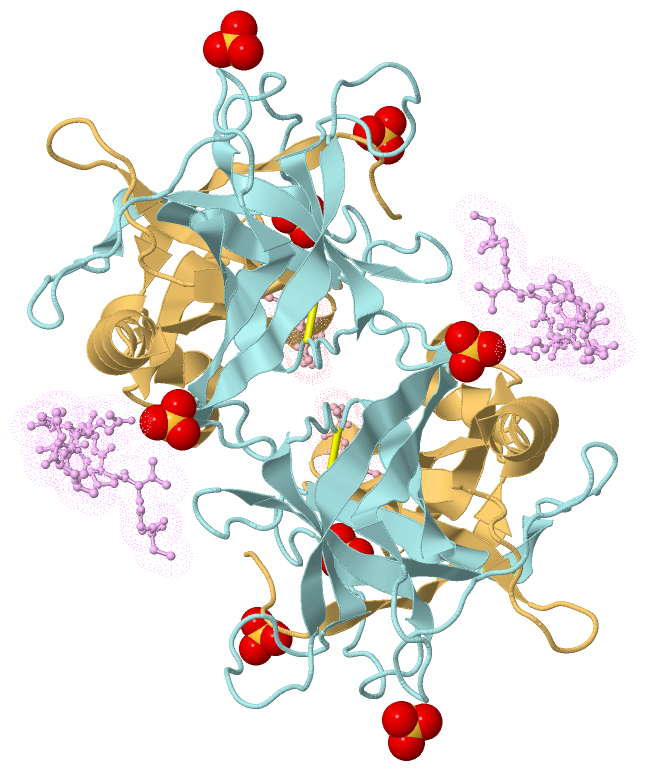

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  GAMMA-CHYMOTRYPSIN IS A COMPLEX OF ALPHA-CHYMOTRYPSIN WITH ITS OWN AUTOLYSIS PRODUCTS

Authors :  M. Harel, J. L. Sussman, I. Silman
Date :  27 Mar 91  (Deposition) - 15 Apr 92  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.60
Chains :  Asym. Unit :  C,E,F,G
Biol. Unit 1:  C,E,F,G  (1x)
Biol. Unit 2:  C,E,F,G  (2x)
Biol. Unit 3:  C (2x),E (2x),F (2x),G (2x)
Keywords :  Hydrolase, Serine Proteinase, Hydrolase-Peptide Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Harel, C. T. Su, F. Frolow, I. Silman, J. L. Sussman
Gamma-Chymotrypsin Is A Complex Of Alpha-Chymotrypsin With Its Own Autolysis Products.
Biochemistry V. 30 5217 1991
PubMed-ID: 2036388  |  Reference-DOI: 10.1021/BI00235A015

(-) Compounds

Molecule 1 - GAMMA-CHYMOTRYPSIN A
    Chains: E
    EC Number: 3.4.21.1
    Organism Common: CATTLE
    Organism Scientific: BOS TAURUS
    Organism Taxid: 9913

Molecule 2 - GAMMA-CHYMOTRYPSIN A
    Chains: F
    EC Number: 3.4.21.1
    Organism Common: CATTLE
    Organism Scientific: BOS TAURUS
    Organism Taxid: 9913

Molecule 3 - GAMMA-CHYMOTRYPSIN A
    Chains: G
    EC Number: 3.4.21.1
    Organism Common: CATTLE
    Organism Scientific: BOS TAURUS
    Organism Taxid: 9913

Molecule 4 - GLY ALA TRP PEPTIDE
    Chains: C
    Organism Common: CATTLE
    Organism Scientific: BOS TAURUS
    Organism Taxid: 9913

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : CEFG
Biological Unit 1 (1x): CEFG
Biological Unit 2 (2x): CEFG
Biological Unit 3 (2x): C (2x)E (2x)F (2x)G (2x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric Unit (1, 4)
No.NameCountTypeFull Name
1SO44Ligand/IonSULFATE ION
Biological Unit 1 (1, 4)
No.NameCountTypeFull Name
1SO44Ligand/IonSULFATE ION
Biological Unit 2 (1, 8)
No.NameCountTypeFull Name
1SO48Ligand/IonSULFATE ION
Biological Unit 3 (0, 0)
No.NameCountTypeFull Name
1SO4-1Ligand/IonSULFATE ION

(-) Sites  (6, 6)

Asymmetric Unit (6, 6)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASN F:18 , THR G:222 , HOH G:395 , HOH G:440 , HOH G:521BINDING SITE FOR RESIDUE SO4 G 297
2AC2SOFTWARESER F:115 , GLN F:116 , HOH F:464 , HOH F:476BINDING SITE FOR RESIDUE SO4 F 298
3AC3SOFTWAREPRO G:152 , ASP G:153 , ARG G:154 , HOH G:452 , HOH G:554 , HOH G:594 , HOH G:637BINDING SITE FOR RESIDUE SO4 G 299
4AC4SOFTWARELYS F:36 , SER F:92 , HOH F:302 , HOH F:335 , HOH F:567 , TRP G:237BINDING SITE FOR RESIDUE SO4 F 300
5AC5SOFTWAREHOH C:486 , HOH C:487 , HOH C:530 , HOH C:617 , HOH C:647 , HIS F:57 , HOH F:615 , SER G:189 , SER G:190 , CYS G:191 , MET G:192 , GLY G:193 , ASP G:194 , SER G:195 , SER G:214 , TRP G:215 , GLY G:216 , SER G:217 , GLY G:226 , HOH G:551BINDING SITE FOR CHAIN C OF GLY ALA TRP PEPTIDE
6CATAUTHORHIS F:57 , ASP F:102 , SER G:195catalytic site

(-) SS Bonds  (5, 5)

Asymmetric Unit
No.Residues
1E:1 -F:122
2F:42 -F:58
3F:136 -G:201
4G:168 -G:182
5G:191 -G:220

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 8GCH)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 8GCH)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 8GCH)

(-) Exons   (0, 0)

(no "Exon" information available for 8GCH)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain C from PDB  Type:PROTEIN  Length:3

               SCOP domains --- SCOP domains
               CATH domains --- CATH domains
               Pfam domains --- Pfam domains
         Sec.struct. author ... Sec.struct. author
                 SAPs(SNPs) --- SAPs(SNPs)
                    PROSITE --- PROSITE
                 Transcript --- Transcript
                 8gch C 250 GAW 252


Chain E from PDB  Type:PROTEIN  Length:11

               SCOP domains d8gch.1     SCOP domains
               CATH domains ----------- CATH domains
               Pfam domains ----------- Pfam domains
         Sec.struct. author ........... Sec.struct. author
                 SAPs(SNPs) ----------- SAPs(SNPs)
                    PROSITE ----------- PROSITE
                 Transcript ----------- Transcript
                 8gch E   1 CGVPAIQPVLS  11
                                    10


Chain F from PDB  Type:PROTEIN  Length:131

               SCOP domains d8gch.1 E:,F:,G: (alpha,gamma)-chymotrypsin(ogen)                                                                                   SCOP domains
               CATH domains 8gchF00 F:16-146 Trypsin-like serine proteases                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............eeeeeeee......eeeeeeeeeeeeeee......eeeeeee...........eeeeeeeeeeee........eeeeeeeeee......................eeeeeeeee..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------- Transcript
                 8gch F  16 IVNGEEAVPGSWPWQVSLQDKTGFHFCGGSLINENWVVTAAHCGVTTSDVVVAGEFDQGSSSEKIQKLKIAKVFKNSKYNSLTINNDITLLKLSTAASFSQTVSAVCLPSASDDFAAGTTCVTTGWGLTRY 146
                                    25        35        45        55        65        75        85        95       105       115       125       135       145


Chain G from PDB  Type:PROTEIN  Length:96

               SCOP domains d8gch.1 E:,F:,G: (alpha,gamma)-chymotrypsin(ogen)                                                SCOP domains
               CATH domains 8gchG00 G:150-245 Trypsin-like serine proteases                                                  CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....eeeeeeee....hhhhhhhhhh..eeeeeeee......eeeeeeeee..........eeeeeee....eeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------ Transcript
                 8gch G 150 NTPDRLQQASLPLLSNTNCKKYWGTKIKDAMICAGASGVSSCMGDSGGPLVCKKNGAWTLVGIVSWGSSTCSTSTPGVYARVTALVNWVQQTLAAN 245
                                   159       169       179       189       199       209       219       229       239
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 8GCH)

(-) Gene Ontology  (9, 9)

Asymmetric Unit(hide GO term definitions)
