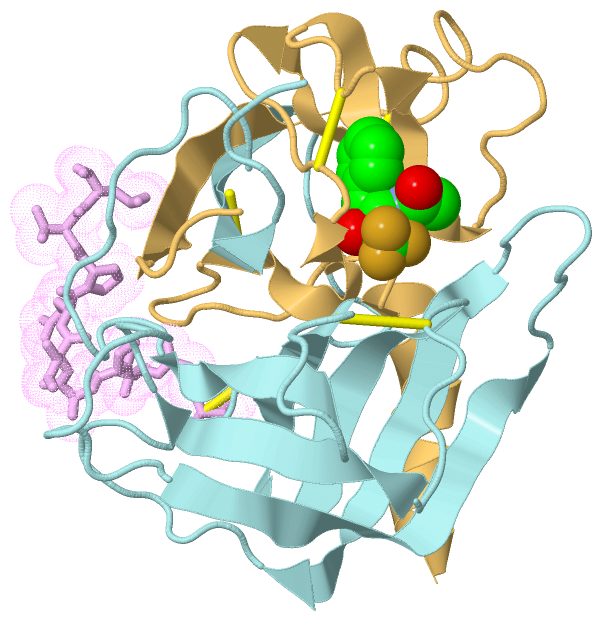

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

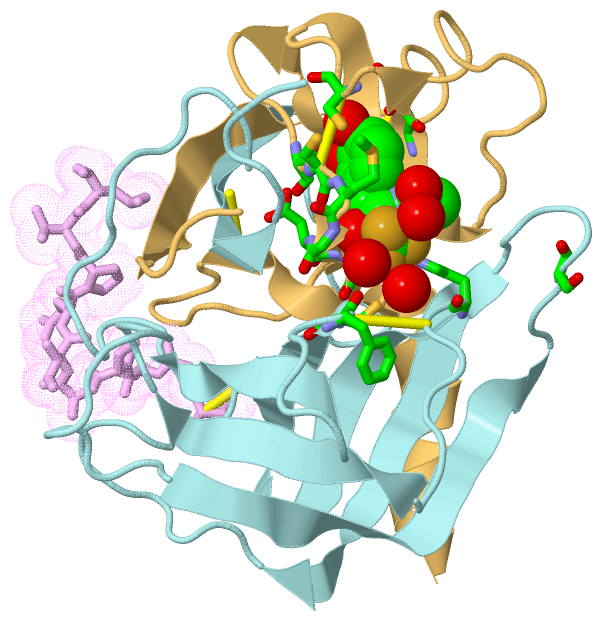

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

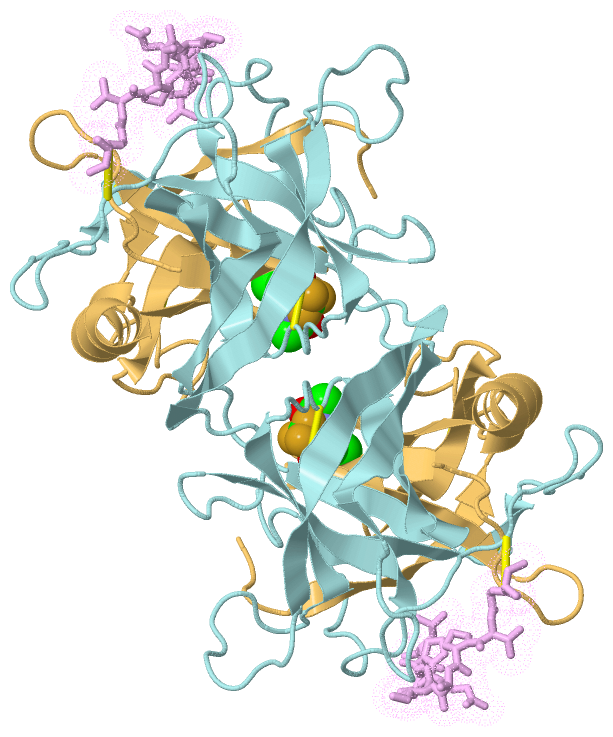

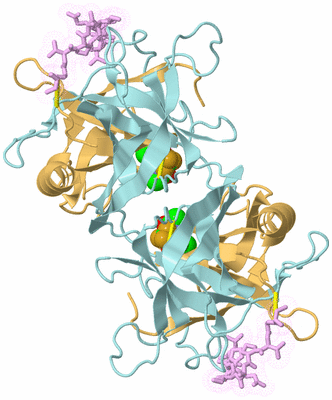

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

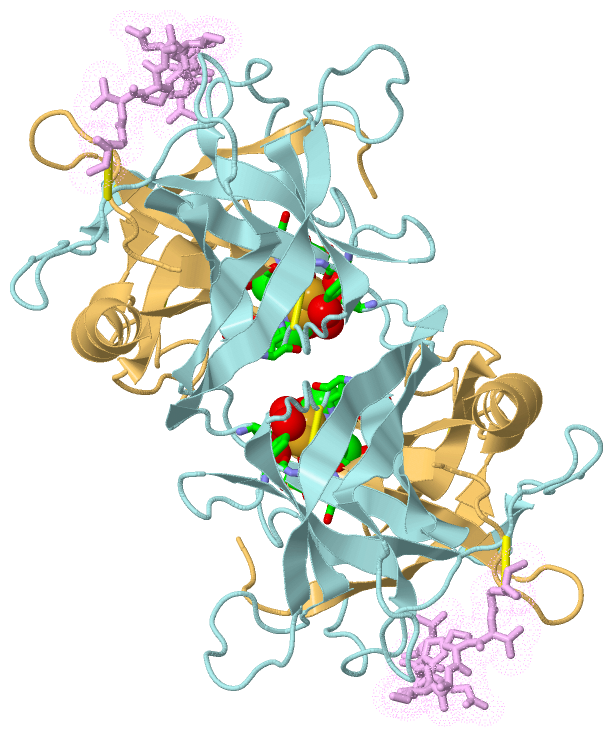

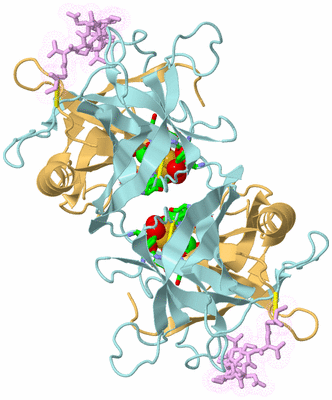

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF CHYMOTRYPSIN-*TRIFLUOROMETHYL KETONE INHIBITOR COMPLEXES. COMPARISON OF SLOWLY AND RAPIDLY EQUILIBRATING INHIBITORS

Authors :  K. Brady, A. Wei, D. Ringe, R. H. Abeles
Date :  06 Apr 90  (Deposition) - 15 Oct 90  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym. Unit :  E,F,G
Biol. Unit 1:  E,F,G  (2x)
Keywords :  Hydrolase (Serine Proteinase) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Brady, A. Z. Wei, D. Ringe, R. H. Abeles
Structure Of Chymotrypsin-Trifluoromethyl Ketone Inhibitor Complexes: Comparison Of Slowly And Rapidly Equilibrating Inhibitors.
Biochemistry V. 29 7600 1990
PubMed-ID: 2271520  |  Reference-DOI: 10.1021/BI00485A009
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - GAMMA-CHYMOTRYPSIN A
    Chains: E
    EC Number: 3.4.21.1
    Organism Common: CATTLE
    Organism Scientific: BOS TAURUS
    Organism Taxid: 9913

Molecule 2 - GAMMA-CHYMOTRYPSIN A
    Chains: F
    EC Number: 3.4.21.1
    Organism Common: CATTLE
    Organism Scientific: BOS TAURUS
    Organism Taxid: 9913

Molecule 3 - GAMMA-CHYMOTRYPSIN A
    Chains: G
    EC Number: 3.4.21.1
    Organism Common: CATTLE
    Organism Scientific: BOS TAURUS
    Organism Taxid: 9913

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : EFG
Biological Unit 1 (2x): EFG

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1APF1Ligand/Ion1,1,1-TRIFLUORO-3-ACETAMIDO-4-PHENYL BUTAN-2-ONE(N-ACETYL-L-PHENYLALANYL TRIFLUOROMETHYL KETONE)
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1APF2Ligand/Ion1,1,1-TRIFLUORO-3-ACETAMIDO-4-PHENYL BUTAN-2-ONE(N-ACETYL-L-PHENYLALANYL TRIFLUOROMETHYL KETONE)

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREPHE F:41 , CYS F:42 , HIS F:57 , SER F:96 , HOH F:369 , HOH F:433 , SER G:190 , CYS G:191 , MET G:192 , GLY G:193 , ASP G:194 , SER G:195 , SER G:214 , GLY G:216 , SER G:217 , CYS G:220 , HOH G:354 , HOH G:366 , HOH G:542BINDING SITE FOR RESIDUE APF G 246

(-) SS Bonds  (5, 5)

Asymmetric Unit
No.Residues
1E:1 -F:122
2F:42 -F:58
3F:136 -G:201
4G:168 -G:182
5G:191 -G:220

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 6GCH)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 6GCH)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 6GCH)

(-) Exons   (0, 0)

(no "Exon" information available for 6GCH)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain E from PDB  Type:PROTEIN  Length:11

               SCOP domains d6gch.1     SCOP domains
               CATH domains ----------- CATH domains
               Pfam domains ----------- Pfam domains
         Sec.struct. author ........... Sec.struct. author
                 SAPs(SNPs) ----------- SAPs(SNPs)
                    PROSITE ----------- PROSITE
                 Transcript ----------- Transcript
                 6gch E   1 CGVPAIQPVLS  11
                                    10


Chain F from PDB  Type:PROTEIN  Length:131

               SCOP domains d6gch.1 E:,F:,G: (alpha,gamma)-chymotrypsin(ogen)                                                                                   SCOP domains
               CATH domains 6gchF00 F:16-146 Trypsin-like serine proteases                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............eeeeeeee......eeeeeeeeeeeeeee......eeeeeee...........eeeeeeeeeeee........eeeeeeeeee......................eeeeeeeee..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------- Transcript
                 6gch F  16 IVNGEEAVPGSWPWQVSLQDKTGFHFCGGSLINENWVVTAAHCGVTTSDVVVAGEFDQGSSSEKIQKLKIAKVFKNSKYNSLTINNDITLLKLSTAASFSQTVSAVCLPSASDDFAAGTTCVTTGWGLTRY 146
                                    25        35        45        55        65        75        85        95       105       115       125       135       145


Chain G from PDB  Type:PROTEIN  Length:95

               SCOP domains d6gch.1 E:,F:,G: (alpha,gamma)-chymotrypsin(ogen)                                               SCOP domains
               CATH domains 6gchG00 G:151-245 Trypsin-like serine proteases                                                 CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeee................eeeeeeee......eeeeeeeee..........eeeeeee....eeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------- Transcript
                 6gch G 151 TPDRLQQASLPLLSNTNCKKYWGTKIKDAMICAGASGVSSCMGDSGGPLVCKKNGAWTLVGIVSWGSSTCSTSTPGVYARVTALVNWVQQTLAAN 245
                                   160       170       180       190       200       210       220       230       240
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 6GCH)
