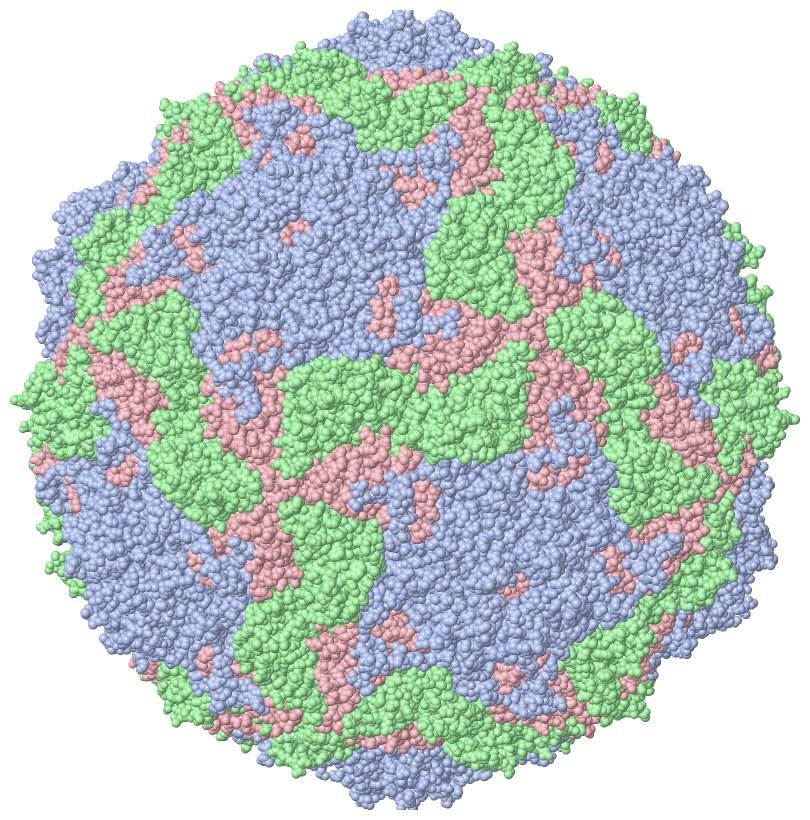

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYO-EM STRUCTURE OF HUMAN AICHI VIRUS

Authors :  L. Zhu, X. X. Wang, J. S. Ren, T. J. Tuthill, E. E. Fry, Z. H. Rao, D. I. Stuar
Date :  04 Jul 16  (Deposition) - 21 Sep 16  (Release) - 26 Apr 17  (Revision)
Method :  ELECTRON MICROSCOPY
Resolution :  3.70
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A,B,C  (60x)
Keywords :  Picornavirus, Entry, Receptor Binding, Gastroenteritis, Virus (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. Zhu, X. Wang, J. Ren, A. Kotecha, T. S. Walter, S. Yuan, T. Yamashita, T. J. Tuthill, E. E. Fry, Z. Rao, D. I. Stuart
Structure Of Human Aichi Virus And Implications For Recepto Binding
Nat Microbiol V. 1 16150 2016
PubMed-ID: 27595320  |  Reference-DOI: 10.1038/NMICROBIOL.2016.150

(-) Compounds

Molecule 1 - CAPSID PROTEIN VP1
    Chains: A
    Engineered: YES
    Expression System: CHLOROCEBUS AETHIOPS
    Expression System Taxid: 9534
    Organism Common: AICHI VIRUS (STRAIN A846/88)
    Organism Scientific: AICHI VIRUS (STRAIN HUMAN/A846/88/1989)
    Organism Taxid: 650132

Molecule 2 - CAPSID PROTEIN VP0
    Chains: B
    Engineered: YES
    Expression System: CHLOROCEBUS AETHIOPS
    Expression System Taxid: 9534
    Organism Common: AICHI VIRUS (STRAIN A846/88)
    Organism Scientific: AICHI VIRUS (STRAIN HUMAN/A846/88/1989)
    Organism Taxid: 650132

Molecule 3 - GENOME POLYPROTEIN
    Chains: C
    Engineered: YES
    Expression System: CHLOROCEBUS AETHIOPS
    Expression System Cell: GREEN MONKEY KIDNEY (VERO) CELLS
    Expression System Taxid: 9534
    Organism Common: AICHI VIRUS (STRAIN A846/88)
    Organism Scientific: AICHI VIRUS (STRAIN HUMAN/A846/88/1989)
    Organism Taxid: 650132

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (60x): ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5GKA)

(-) Sites  (0, 0)

(no "Site" information available for 5GKA)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5GKA)

(-) Cis Peptide Bonds  (6, 6)

Asymmetric Unit
No.Residues
1Ala A:60 -Pro A:61
2Pro A:126 -Gly A:127
3Pro B:52 -Pro B:53
4Pro B:170 -Ser B:171
5Phe B:209 -Pro B:210
6Ser B:222 -Pro B:223

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5GKA)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5GKA)

(-) Exons   (0, 0)

(no "Exon" information available for 5GKA)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:253

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........................................hhhhhh...ee..........eeee.........hhhhhhh.....hhhhhhhhh.eee...eeeeeee......eeeeeee...........hhhhhhh...eeeee....................ee........................eeeeee.........eeeeeeeee....ee............................ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5gka A   1 TLTEDLDAPQDTGNIENGAADNSPQPRTTFDYTGNPLPPDTKLENFFSFYRLLPMGGSGAPSLSFPADEGTIIPLDPINWLKGADVSGIAAMLSCFTYIAADLRITLRFSNPNDNPATMLVAFAPPGATIPLKPTRQMLSNFYMAEVPVSAATSTMVSFSIPYTSPLSAIPTSYFGWEDWSGTNFGQLSSGSWGNLMLIPSLSVDSAIPFDFQLSCWVAFGNFKAWVPRPPPPLPPLPTPAANAERTVAVIKQ 253
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250


Chain B from PDB  Type:PROTEIN  Length:333

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........................................................................................eee......eee..................................ee....ee.................hhhhh....................eehhhhhhh....hhhhhh......eeeeeeeeee...........ee..ee..hhhhhh.....hhhhh...........eeeeee................eee.ee..............ee.eeeeeeeeeee......... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5gka B   5 TNIYGNGNNVNTDVGANGWAPTVSTGLGDGPVSCTPPTPSPGDTEVPPPRKPFTFPAPPTKSGSRFSKWWEPAAAPSSTANPQPSLIALNPSATQSGNASILTGSTAPSLLAYPTATPVPLPNPDEPSQPGPSGDRTWLLDTVTWSQEFTRGWNIAGSNGMQWTGLESLIFPVSTDTNWTSTSSPTAYPLPFSFVRAYPDSSWAAMYNTHSMWNCGWRVQVTVNGSQFHAGALILYMVPEATTHAIQTARDNAGFVFPYVILNLYESNTATIEVPYISPTPNTSSGLHAPWTFYLQVLSPLNPPPSLPTSLSCSIYVTPVDSSFHGLRYLAPQ 371
                                    14        24        34        44        54        64        74    || 118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368
                                                                                                     79|
                                                                                                     114


Chain C from PDB  Type:PROTEIN  Length:222

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ............ee.............................hhhhhh..eeeeeeeee.......eee....hhhhhhh....hhhhhhheeeee..eeeeee.......eeeeeeeee........hhhhhh...eeeee.....eee...........ee..............eeeeeeeeeee.......eeeeeeeeee....eeeee....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5gka C   2 HWKTRAVPGAGTFGSAVAGQELPLCGVRAYYPPNAYIPAQVRDWLEFAHRPGLMATVPWTMADEPAERLGIFPVSPSAIAGTGAPISYVISLFSQWRGELAAHLLFTGSAQHYGRLVVCYTPAAPQPPSTMQEAMRGTYTVWDVNAASTLEFTIPFISNSYWKTVDVNNPDALLSTTGYVSIWVQNPLVGPHTAPASALVQAFISAGESFNVRLMQNPALTS 223
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5GKA)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5GKA)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5GKA)

(-) Gene Ontology  (35, 35)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5gka)

  Sites
(no "Sites" information available for 5gka)

  Cis Peptide Bonds
    Ala A:60 - Pro A:61   [ RasMol ]
    Phe B:209 - Pro B:210   [ RasMol ]
    Pro A:126 - Gly A:127   [ RasMol ]
    Pro B:170 - Ser B:171   [ RasMol ]
    Pro B:52 - Pro B:53   [ RasMol ]
    Ser B:222 - Pro B:223   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5gka
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  O91464_AIV | O91464
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  O91464_AIV | O91464
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        O91464_AIV | O91464: 5lvc 5lz3

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 5GKA)
