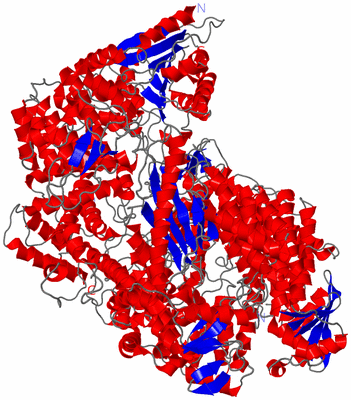

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE L PROTEIN OF VESICULAR STOMATITIS VIRUS FROM ELECTRON CRYOMICROSCOPY

Authors :  B. Liang, Z. Li, S. Jenni, A. A. Rameh, B. M. Morin, T. Grant, N. Grigorief S. C. Harrison, S. P. J. Whelan
Date :  06 May 15  (Deposition) - 19 Aug 15  (Release) - 19 Aug 15  (Revision)
Method :  ELECTRON MICROSCOPY
Resolution :  3.80
Chains :  Asym./Biol. Unit :  A
Keywords :  Transferase, Rna-Dependent Rna Polymerase, Rna Capping, Cryoem Single- Particle Analysis (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  B. Liang, Z. Li, S. Jenni, A. A. Rahmeh, B. M. Morin, T. Grant, N. Grigorieff, S. C. Harrison, S. P. Whelan
Structure Of The L Protein Of Vesicular Stomatitis Virus From Electron Cryomicroscopy.
Cell(Cambridge, Mass. ) V. 162 314 2015
PubMed-ID: 26144317  |  Reference-DOI: 10.1016/J.CELL.2015.06.018

(-) Compounds

Molecule 1 - VESICULAR STOMATITIS VIRUS L POLYMERASE
    Chains: A
    EC Number: 2.7.7.6
    Engineered: YES
    Expression System: SPODOPTERA FRUGIPERDA
    Expression System Cell Line: SF21
    Expression System Common: FALL ARMYWORM
    Expression System Plasmid: PFASTBAC DUAL (INVITROGEN)
    Expression System Taxid: 7108
    Expression System Vector Type: BACULOVIRUS
    Organism Scientific: VESICULAR STOMATITIS VIRUS
    Organism Taxid: 11276
    Strain: INDIANA
    Variant: SAN JUAN ISOLATE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1ZN2Ligand/IonZINC ION

(-) Sites  (0, 0)

(no "Site" information available for 5A22)

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:1081 -A:1299

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5A22)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5A22)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5A22)

(-) Exons   (0, 0)

(no "Exon" information available for 5A22)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:2002

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............hhhhhhhhhhhh......hhhhh.hhhhhhhhhhh......hhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhh..eeeee...eeeeeeee...eeeeee..eeee....eeeehhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhh.hhhhhhhhhhhh........hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhh....hhhhhhhh...................hhhhh........hhhhhhhhhhh.........hhhhhhhhh...hhhhhhhhhhhhh.hhhh.eeeee............eee.hhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhh........hhh.eeeeeeee...hhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhheeee..hhhhheee..eee.......eee.........hhhhhhhhhhhhhhhhh.....eeeeeee..eeeeeeeee......hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.........ee....eee..eeee..ee..hhhhhhhhh.........hhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhh...................hhhhhhhhhhh.....................hhhhhhhhhhhhhhhhh..hhhhhhhhhhhh......hhhhhhhhhhh..........hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhhhh..........hhhhhhh..ee...............eeeee......................................hhhhhhhhhhhhh........hhhhhhhhhhhhhhh.................................hhhhhhhheee..............hhhhhhhhhhhhhhhhhh.....eeeee...........................hhhhhhhhh....hhhhhhhhhhhhhhhhhhh...................hhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhh................hhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhh...........eeeeee...................hhhhhhhh......hhhhhhhhhhhhh.....eeeee....hhhhhhhhhhh...eeeee.................hhhhhhhh..........hhhhh.......hhhhhhhhhhhhhh....eeee.....hhhhhhhhhhhhhhhhhhh.....eeeeeehhhhhhhh.hhhhhh...eeeeeeee.........eeeeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh..............hhhhhhhhhhh..hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eee..........eee.....ee.......hhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhh...hhhhhhh...hhhhh.......................... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                5a22 A   35 NHADYNLNSPLISDDIDNLIRKFNSLPIPSMWDSKNWDGVLEMLTSCQANPISTSQMHKWMGSWLMSDNHDASQGYSFLHEVDKEAEITFDVVETFIRGWGNKPIEYIKKERWTDSFKILAYLCQKFLDLHKLTLILNAVSEVELLNLARTFKGKVRRSSHGTNICRIRVPSLGPTFISEGWAYFKKLDILMDRNFLLMVKDVIIGRMQTVLSMVCRIDNLFSEQDIFSLLNIYRIGDKIVERQGNFSYDLIKMVEPICNLKLMKLARESRPLVPQFPHFENHIKTSVDEGAKIDRGIRFLHDQIMSVKTVDLTLVIYGSFRHWGHPFIDYYTGLEKLHSQVTMKKDIDVSYAKALASDLARIVLFQQFNDHKKWFVNGDLLPHDHPFKSHVKENTWPTAAQVQDFGDKWHELPLIKCFEIPDLLDPSIIYSDKSHSMNRSEVLKHVRMNPNTPIPSKKVLQTMLDTKATNWKEFLKEIDEKGLDDDDLIIGLKGKERELKLAGRFFSLMSWKLREYFVITEYLIKTHFVPMFKGLTMADDLTAVIKKMLDSSSGQGLKSYEAICIANHIDYEKWNNHQRKLSNGPVFRVMGQFLGYPSLIERTHEFFEKSLIYYNGRPDLMRVHNNTLINSTSQRVCWQGQEGGLEGLRQKGWTILNLLVIQREAKIRNTAVKVLAQGDNQVICTQYKTKKSRNVVELQGALNQMVSNNEKIMTAIKIGTGKLGLLINDDETMQSADYLNYGKIPIFRGVIRGLETKRWSRVTCVTNDQIPTCANIMSSVSTNALTVAHFAENPINAMIQYNYFGTFARLLLMMHDPALRQSLYEVQDKIPGLHSSTFKYAMLYLDPSIGGVSGMSLSRFLIRAFPDPVTESLSFWRFIHVHARSEHLKEMSAVFGNPEIAKFRITHIDKLVEDPTSLNIAMGMSPANLLKTEVKKCLIESRQTIRNQVIKDATIYLYHEEDRLRSFLWSINPLFPRFLSEFKSGTFLGVADGLISLFQNSRTIRNSFKKKYHRELDDLIVRSEVSSLTHLGKLHLRRGSCKMWTCSATHADTLRYKSWGRTVIGTTVPHPLEMLGPQHRKETPCAPCNTSGFNYVSVHCPDGIHDVFSSRGPLPAYLGSKTSESTSILQPWERESKVPLIKRATRLRDAISWFVEPDSKLAMTILSNIHSLTGEEWTKRQHGFKRTGSALHRFSTSRMSHGGFASQSTAALTRLMATTDTMRDLGDQNFDFLFQATLLYAQITTTVARDGWITSCTDHYHIACKSCLRPIEEITLDSSMDYTPPDVSHVLKTWRNGEGQSYQVGRCIGFLYGDLAYRKSTHAEDSSLFPLSIQGRIRGRGFLKGLLDGLMRASCCQVIHRRSLAHLKRPANAVYGGLIYLIDKLSVSPPFLSLTRSGPIRDELETIPHKIPTSYPTSNRDMGVIVRNYFKYQCRLIEKGKYRSHYSQLWLFSDVLSIDFIGPFSISTTLLQILYKPFLSGKDKNELRELANLSSLLRSYPPWGRESRGTITTIPVYYTTTPYPKMLEMPPRIQNPLLSGIRLGQLPTGAHYKIRSILHGMGIHYRDFLSCGDGSGGMTAALLRENVHSRGIFNSLLELSGSVMRGASPEPPSALETLGGDKSRCVNGETCWEYPSDLCDPRTWDYFLRLKAGLGLQIDLIVMDMEVRDSSTSLKIETNVRNYVHRILDEQGVLIYKTYGTYICESEKNAVTILGPMFKTVDLVQTEFSSSQTSEVYMVCKPDWSSINESWKNLYAFQSSEQEFARAKKVSTYFTLTGIPSQFIPDPFVNIETMLQIFGVPTGVSHAAALKSSDRPADLLTISLFYMAIISYYNINHIRVGPIPPNPPSDGIAQNVGIAITGISFWLSLMEKDIPLYQQCLAVIQQSFPIRWEAVSVKGGYKQKWSTRGDGLPKDTRISDSLAPIGNWIRSLELVRNQVRLNPFNEILFNQLCRTVDNHLKWSNLRRNTGMIEWINRRISKEDRSILMLKSDLHEENSWRD 2109
                                    44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444       454       464       474       484       494       504       514       524       534       544       554       564       574       584       594       604       614       624       634       644       654       664       674       684       694       704       714       724       734       744       754       764       774       784       794       804       814       824       834       844       854       864       874       884       894       904       914       924       934       944       954       964       974       984       994      1004      1014      1024      1034      1044      1054      1064      1074      1084      1094      1104      1114      1124      1134      1144      1154      1164      1174      1184      1194      1204      1214      1224      1234      1244      1254      1264      1274      1284      1294      1304      1314      1324      1334|     1367      1377      1387      1397      1407      1417      1427      1437      1447      1457      1467      1477      1487      1497      1507      1517      1527      1537      1547      1557|     1607      1617      1627      1637      1647      1657      1667      1677      1687      1697      1707      1717      1727      1737      1747      1757      1767      1777      1787      1797      1807      1817      1827      1837 ||   1857      1867      1877      1887      1897      1907      1917      1927      1937      1947      1957      1967      1977      1987      1997      2007      2017      2027      2037      2047      2057      2067      2077      2087      2097      2107
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            1334|                                                                                                                                                                                                   1557|                                                                                                                                                                                                                                             1839|
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                             1358                                                                                                                                                                                                    1598                                                                                                                                                                                                                                              1850
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5A22)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5A22)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5A22)

(-) Gene Ontology  (20, 20)
