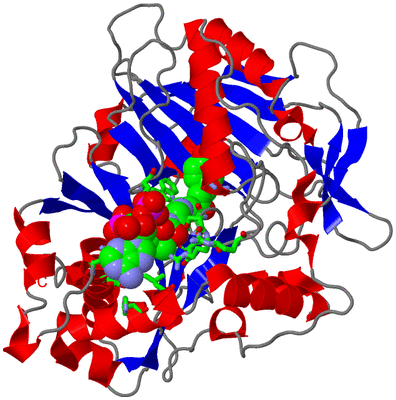

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF ARABIDOPSIS THALIANA HCT IN COMPLEX WITH P-COUMAROYL-COA

Authors :  O. Levsh, Y. C. Chiang, C. F. Tung, J. P. Noel, Y. Wang, J. K. Weng
Date :  20 Jun 16  (Deposition) - 02 Nov 16  (Release) - 21 Dec 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A
Keywords :  Phenylpropanoid Metabolism, Hct, Bahd, Acyltransferase, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  O. Levsh, Y. C. Chiang, C. F. Tung, J. P. Noel, Y. Wang, J. K. Weng
Dynamic Conformational States Dictate Selectivity Toward Th Native Substrate In A Substrate-Permissive Acyltransferase.
Biochemistry V. 55 6314 2016
PubMed-ID: 27805809  |  Reference-DOI: 10.1021/ACS.BIOCHEM.6B00887

(-) Compounds

Molecule 1 - SHIKIMATE O-HYDROXYCINNAMOYLTRANSFERASE
    Chains: A
    EC Number: 2.3.1.133
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Gene: HST, HCT, AT5G48930, K19E20.4
    Organism Common: MOUSE-EAR CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702
    Synonym: HYDROXYCINNAMOYL TRANSFERASE,HYDROXYCINNAMOYL-COENZYME A SHIKIMATE/QUINATE HYDROXYCINNAMOYLTRANSFERASE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1WCA1Ligand/IonP-COUMAROYL-COA

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETHR A:36 , GLY A:158 , SER A:252 , TYR A:254 , GLU A:255 , ALA A:282 , THR A:283 , ASP A:284 , SER A:287 , ARG A:288 , ARG A:290 , HIS A:327 , LEU A:330 , THR A:369 , SER A:370 , TRP A:371 , ARG A:373 , HOH A:702binding site for residue WCA A 501

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5KJT)

(-) Cis Peptide Bonds  (6, 6)

Asymmetric/Biological Unit
No.Residues
1Asp A:192 -Pro A:193
2Thr A:231 -Arg A:232
3Ala A:240 -Lys A:241
4Ala A:358 -His A:359
5Cys A:363 -Pro A:364
6Asn A:408 -Asp A:409

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5KJT)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5KJT)

(-) Exons   (0, 0)

(no "Exon" information available for 5KJT)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:431

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeee........eee............eeeeeeee.........hhhhhhhhhhhhh..hhhhhheeee.....eeeee....eeeeeee...hhhhhh......hhhhhh..............eeeeeee.....eeeeeeee....hhhhhhhhhhhhhhhhh..........hhhhhh..........hhhhh.........hhhhhh...eeeeeeeee.hhhhhhhh..hhhhh....hhhhhhhhhhhhhhhhhh......eeeeeeeee.................eeee..eeehhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh..hhhhhh..........eeeee.................eeee.......eeeeee......eeeeeeeeehhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5kjt A   1 MKINIRDSTMVRPATETPITNLWNSNVDLVIPRFHTPSVYFYRPTGASNFFDPQVMKEALSKALVPFYPMAGRLKRDDDGRIEIDCNGAGVLFVVADTPSVIDDFGDFAPTLNLRQLIPEVDHSAGIHSFPLLVLQVTFFKCGGASLGVGMQHHAADGFSGLHFINTWSDMARGLDLTIPPFIDRTLLRARDPPQPAFHHVEYQPAPSMKIPLDPSKSGPENTTVSIFKLTRDQLVALKAKSKEDGNTVSYSSYEMLAGHVWRSVGKARGLPNDQETKLYIATDGRSRLRPQLPPGYFGNVIFTATPLAVAGDLLSKPTWYAAGQIHDFLVRMDDNYLRSALDYLEMQPDLSALVRGAHTYKCPNLGITSWVRLPIYDADFGWGRPIFMGPGGIPYEGLSFVLPSPTNDGSLSVAIALQSEHMKLFEKFLF 431
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5KJT)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5KJT)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5KJT)

(-) Gene Ontology  (12, 12)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    WCA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ala A:240 - Lys A:241   [ RasMol ]
    Ala A:358 - His A:359   [ RasMol ]
    Asn A:408 - Asp A:409   [ RasMol ]
    Asp A:192 - Pro A:193   [ RasMol ]
    Cys A:363 - Pro A:364   [ RasMol ]
    Thr A:231 - Arg A:232   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5kjt
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  HST_ARATH | Q9FI78
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.3.1.133
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  HST_ARATH | Q9FI78
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        HST_ARATH | Q9FI78: 5kjs 5kju

(-) Related Entries Specified in the PDB File

5kjs CRYSTAL STRUCTURE OF ARABIDOPSIS THALIANA HCT
5kju CRYSTAL STRUCTURE OF ARABIDOPSIS THALIANA HCT IN COMPLEX WITH P- COUMAROYLSHIKIMATE
