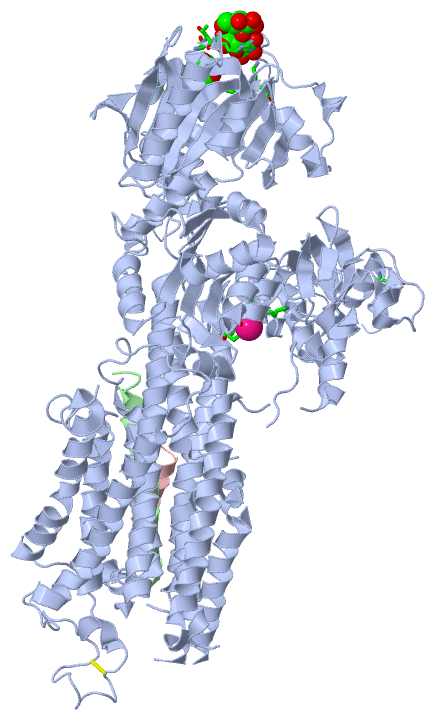

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

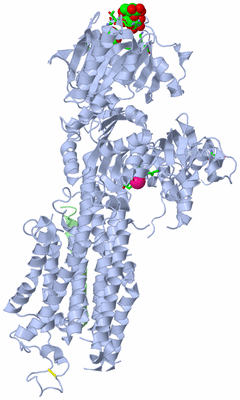

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

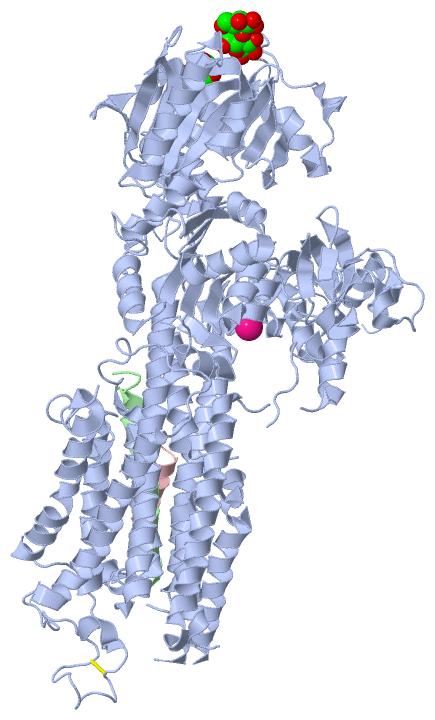

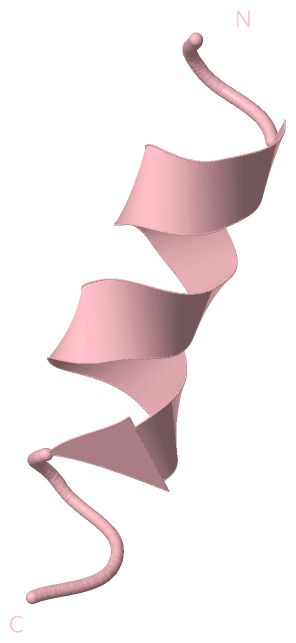

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  THE STRUCTURE OF SUPERINHIBITORY PHOSPHOLAMBAN BOUND TO THE CALCIUM PUMP SERCA1A

Authors :  T. D. Hurley, B. L. Akin, L. R. Jones
Date :  29 May 13  (Deposition) - 04 Sep 13  (Release) - 13 Nov 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.83
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C  (1x)
Biol. Unit 3:  A,B,C  (1x)
Keywords :  Transmembrane Helices, Calcium Pump, P-Type Atpase, Membrane, Membrane Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  B. L. Akin, T. D. Hurley, Z. Chen, L. R. Jones
The Structural Basis For Phospholamban Inhibition Of The Calcium Pump In Sarcoplasmic Reticulum.
J. Biol. Chem. V. 288 30181 2013
PubMed-ID: 23996003  |  Reference-DOI: 10.1074/JBC.M113.501585

(-) Compounds

Molecule 1 - SERCA1A
    Chains: A
    Organism Common: EUROPEAN RABBIT,JAPANESE WHITE RABBIT,DOMESTIC RABBIT,RABBITS
    Organism Scientific: ORYCTOLAGUS CUNICULUS
    Organism Taxid: 9986
    Other Details: SKELETAL MUSCLE

Molecule 2 - CARDIAC PHOSPHOLAMBAN
    Chains: B, C
    Engineered: YES
    Expression System: SPODOPTERA FRUGIPERDA
    Expression System Cell Line: SF21
    Expression System Common: FALL ARMYWORM
    Expression System Taxid: 7108
    Expression System Vector: PVL1393
    Expression System Vector Type: BACULOVIRUS
    Gene: PLN
    Mutation: YES
    Organism Common: DOGS
    Organism Scientific: CANIS LUPUS FAMILIARIS
    Organism Taxid: 9615
    Synonym: PLB

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   C
Biological Unit 3 (1x): ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 3)

Asymmetric Unit (2, 3)
No.NameCountTypeFull Name
1K1Ligand/IonPOTASSIUM ION
2MAL2Ligand/IonMALTOSE
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1K-1Ligand/IonPOTASSIUM ION
2MAL2Ligand/IonMALTOSE
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1K-1Ligand/IonPOTASSIUM ION
2MAL-1Ligand/IonMALTOSE
Biological Unit 3 (1, 2)
No.NameCountTypeFull Name
1K-1Ligand/IonPOTASSIUM ION
2MAL2Ligand/IonMALTOSE

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:11 , PHE A:455 , ASN A:456 , THR A:457 , LEU A:478BINDING SITE FOR RESIDUE MAL A 1001
2AC2SOFTWARELYS A:511 , ARG A:529 , THR A:532 , THR A:533 , ARG A:534BINDING SITE FOR RESIDUE MAL A 1002
3AC3SOFTWARELEU A:711 , LYS A:712 , ALA A:714 , GLU A:732BINDING SITE FOR RESIDUE K A 1003

(-) SS Bonds  (1, 1)

Asymmetric Unit
No.Residues
1A:876 -A:888

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4KYT)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4KYT)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4KYT)

(-) Exons   (0, 0)

(no "Exon" information available for 4KYT)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:975

               SCOP domains d4kyta1 A:1-124,A:240-343,A:751-992 Calcium ATPase, transmembrane domain M                                          d4kyta2 A:125-239 Calcium ATPase, transduction domain A                                                            d4kyta1 A:1-124,A:240-343,A:751-992 Calcium ATPase, transmembrane domain M                     d4kyta3          d4kyta4 A:361-599 Calcium ATPase                                                                                                                                                                                                               d4kyta3 A:344-360,A:600-750 Calcium ATPase, catalytic domain P                                                                                         d4kyta1 A:1-124,A:240-343,A:751-992 Calcium ATPase, transmembrane domain M                                                                                                                                                                         SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhh.......hhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeee.......eeee.hhh....eeeee.......eeeeeee.....eeehhhhhh....ee...........hhhhh..ee....eeee.eeeeeeeehhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh.eee..hhhhhhhh...eeeee..........eeeeeeeeeeee..eeeeeeeee..........eee..eeehhhhhhhhhhhhhhhhhh....eeee....eeee..hhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhh.eeeeeeeeee....eeeeeeee..........eeeeeehhhhhhhheeeeee..eeee.hhhhhhhhhhhhhhhhhh....eeeeeeee....hhhhh...hhhhhhhhh..eeeeeeeeee.....hhhhhhhhhhhh..eeeeee..hhhhhhhhhhhh............eeehhhhhhhhhhhhhhhhhhh.eee....hhhhhhhhhhhh....eeeee....hhhhhhhh.eeeee...hhhhhhh..eee...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhh...................hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhh.....................hhhhhhhhhhhhhhhhhhhh...............hhhhhhhhhhhhhhhh......hhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4kyt A   1 MEAAHSKSTEECLAYFGVSETTGLTPDQVKRHLEKYGHNELPAEESLWELVIEQFEDLLVRILLLAACISFVLAWFETAFVEPFVILLILIANAIVGVWQERNAENAIEALKEYEPEMGKVYRADRKSVQRIKARDIVPGDIVEVAVGDKVPADIRILSIKSTTLRVDQSILTGESVSVIKHTEPVPDPRAVNQDKKNMLFSGTNIAAGKALGIVATTGVSTEIGKIRDQMAADKTPLQQKLDEFGEQLSKVISLICVAVWLINIGHFNDPIRGAIYYFKIAVALAVAAIPEGLPAVITTCLALGTRRMAKKNAIVRSLPSVETLGCTSVICSDKTGTLTTNQMSVCKMFIIDKVDGDFCSLNEFSITGSTYAPEGEVLKNDKPIRSGQFDGLVELATICALCNDSSLDFNETKGVYEKVGEATETALTTLVEKMNVFNTEVRNLSKVERANACNSVIRQLMKKEFTLEFSRDRKSMSVYCSPAKSSRAAVGNKMFVKGAPEGVIDRCNYVRVGTTRVPMTGPVKEKILSVIKEWGTGRDTLRCLALATRDTPPKREEMVLDDSSRFMEYETDLTFVGVVGMLDPPRKEVMGSIQLCRDAGIRVIMITGDNKGTAIAICRRIGIFGENEEVADRAYTGREFDDLPLAEQREACRRACCFARVEPSHKSKIVEYLQSYDEITAMTGDGVNDAPALKKAEIGIAMGSGTAVAKTASEMVLADDNFSTIVAAVEEGRAIYNNMKQFIRYLISSNVGEVVCIFLTAALGLPEALIPVQLLWVNLVTDGLPATALGFNPPDLDIMDRPPRSPKEPLISGWLFFRYMAIGGYVGAATVGAAAWWFMYAEDGPGVTYHQLTHFMQCTEDHPHFEGLDCEIFEAPEPMTMALSVLVTIEMCNALNSLSENQSLMRMPPWVNIWLLGSICLSMSLHFLILYVDPLPMIFKLKALDLTQWLMVLKISLPVIGLDEILKFIARNYL 992
                                    10        20        30        40    ||  52        62        72      ||88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238  ||   251       261       271       281||     297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467       477       487       497       507       517       527       537       547       557       567       577       587       597       607       617       627       637       647       657       667       677       687       697       707       717       727       737       747       757       767       777       787       797       807       817       827       837       847       857       867       877       887       897       907       917       927       937       947       957       967       977       987
                                                                       45|                             79|                                                                                                                                                        241|                                  282|
                                                                        48                              86                                                                                                                                                         245                                   289


Chain B from PDB  Type:PROTEIN  Length:29

               SCOP domains ----------------------------- SCOP domains
               CATH domains ----------------------------- CATH domains
               Pfam domains ----------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------- SAPs(SNPs)
                    PROSITE ----------------------------- PROSITE
                 Transcript ----------------------------- Transcript
                 4kyt B  21 PQQARQALQCLFINFCAILICLLLICIIG  49
                                    30        40


Chain C from PDB  Type:PROTEIN  Length:15

               SCOP domains --------------- SCOP domains
               CATH domains --------------- CATH domains
               Pfam domains --------------- Pfam domains
         Sec.struct. author ..hhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) --------------- SAPs(SNPs)
                    PROSITE --------------- PROSITE
                 Transcript --------------- Transcript
                 4kyt C  26 QALQCLFINFCAILI  40
                                    35
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (4, 4)

Asymmetric Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a+b) (23004)
(-)
Class: Alpha and beta proteins (a/b) (23833)
(-)
Class: Membrane and cell surface proteins and peptides (2046)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4KYT)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4KYT)

(-) Gene Ontology  (52, 72)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    K  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MAL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4kyt)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
