4IBW - JenaLib

Title :   HUMAN P53 CORE DOMAIN WITH HOT SPOT MUTATION R273H AND SECOND-SITE SUPPRESSOR MUTATION T284R IN SEQUENCE-SPECIFIC COMPLEX WITH DNA

Authors :   A. Eldar, H. Rozenberg, Y. Diskin-Posner, Z. Shakked

Date :   09 Dec 12 (Deposition) - 14 Aug 13 (Release) - 23 Oct 13 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.79

Chains :   Asym. Unit : A,B
Biol. Unit 1: A,B  (2x)

Keywords :   Metal-Binding, Loop-Sheet-Helix Motif, Transcription, Activator, Anti-Oncogene, Apoptosis, Cell Cycle, Disease Mutation, Rescue Mutation, Tumor Suppressor, Dna Binding Protein-Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   A. Eldar, H. Rozenberg, Y. Diskin-Posner, R. Rohs, Z. Shakked
Structural Studies Of P53 Inactivation By Dna-Contact Mutations And Its Rescue By Suppressor Mutations Via Alternative Protein-Dna Interactions.
Nucleic Acids Res. V. 41 8748 2013
PubMed-ID: 23863845 | Reference-DOI: 10.1093/NAR/GKT630

Compounds

Molecule 1 - CELLULAR TUMOR ANTIGEN P53
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET-27-B
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Fragment	:	DNA BINDING DOMAIN
	Gene	:	P53, TP53
	Mutation	:	YES
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606
	Synonym	:	ANTIGEN NY-CO-13, PHOSPHOPROTEIN P53, TUMOR SUPPRESSOR P53

*Molecule 2 - DNA (5'-D(CPGPGPGPCPAPTPGPCPCPCPG)-3')*
	Chains	:	B
	Engineered	:	YES
	Synthetic	:	YES

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 18)

Sites (18, 18)

Asymmetric Unit (18, 18)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	CYS A:176 , HIS A:179 , CYS A:238 , CYS A:242	BINDING SITE FOR RESIDUE ZN A 301
02	AC2	SOFTWARE	SER A:95 , THR A:231 , HIS A:233 , HOH A:659	BINDING SITE FOR RESIDUE EDO A 302
03	AC3	SOFTWARE	ARG A:110 , ASP A:148 , ASP A:208 , ASN A:210 , EDO A:306 , HOH A:465 , HOH A:559 , HOH A:658 , HOH A:683	BINDING SITE FOR RESIDUE EDO A 303
04	AC4	SOFTWARE	GLU A:224 , VAL A:225 , HOH A:518 , HOH A:633 , HOH A:673	BINDING SITE FOR RESIDUE EDO A 304
05	AC5	SOFTWARE	ARG A:110 , LEU A:111 , TRP A:146 , HOH A:555 , HOH A:607	BINDING SITE FOR RESIDUE EDO A 305
06	AC6	SOFTWARE	ARG A:110 , TRP A:146 , VAL A:147 , ASP A:148 , ASP A:228 , EDO A:303 , HOH A:456 , HOH A:575 , HOH A:658 , HOH A:686	BINDING SITE FOR RESIDUE EDO A 306
07	AC7	SOFTWARE	LEU A:114 , SER A:166 , MET A:169 , HIS A:233 , HOH A:498 , HOH A:536	BINDING SITE FOR RESIDUE EDO A 307
08	AC8	SOFTWARE	PHE A:113 , LEU A:114 , HIS A:115 , TYR A:126 , PRO A:128 , ARG A:282 , HOH A:466 , HOH A:477 , HOH A:532 , HOH A:622	BINDING SITE FOR RESIDUE EDO A 308
09	AC9	SOFTWARE	LYS A:132 , SER A:240 , ARG A:248 , PRO A:250 , GLU A:271 , VAL A:272 , HIS A:273 , HOH A:507	BINDING SITE FOR RESIDUE EDO A 309
10	BC1	SOFTWARE	ASP A:186 , ARG A:196 , ASN A:235 , HOH A:669	BINDING SITE FOR RESIDUE EDO A 310
11	BC2	SOFTWARE	ALA A:138 , LYS A:139 , THR A:140 , GLN A:167 , GLU A:198 , ASN A:235 , HOH A:655	BINDING SITE FOR RESIDUE EDO A 311
12	BC3	SOFTWARE	CYS A:229 , THR A:231 , HOH A:470 , HOH A:548	BINDING SITE FOR RESIDUE EDO A 312
13	BC4	SOFTWARE	SER A:94 , SER A:95 , SER A:96 , ASN A:200 , LEU A:201 , EDO A:315 , HOH A:594 , HOH A:679	BINDING SITE FOR RESIDUE EDO A 313
14	BC5	SOFTWARE	LYS A:120 , ARG A:280 , ARG A:283 , HOH A:464 , HOH A:547 , DG B:3 , HOH B:227	BINDING SITE FOR RESIDUE EDO A 314
15	BC6	SOFTWARE	SER A:95 , GLU A:221 , THR A:230 , THR A:231 , EDO A:313 , HOH A:492 , HOH A:634	BINDING SITE FOR RESIDUE EDO A 315
16	BC7	SOFTWARE	ARG A:283 , GLU A:286 , GLU A:287	BINDING SITE FOR RESIDUE EDO A 316
17	BC8	SOFTWARE	ARG A:248 , DT B:7 , DG B:8 , EDO B:102 , HOH B:241	BINDING SITE FOR RESIDUE EDO B 101
18	BC9	SOFTWARE	SER A:241 , ARG A:248 , DC B:9 , EDO B:101 , HOH B:213 , HOH B:219 , HOH B:223	BINDING SITE FOR RESIDUE EDO B 102

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:197

               SCOP domains d4ibwa_ A: p53 tumor suppressor, DNA-binding domain                                                                                                                                                   SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ................eee...........eeee....eeee.....eeeeee.........eeeeeeee.hhhhh......hhhhhh..........eeee.....eeee......eeeeee..........eeeeeee..............eeeeeeee.....eeeeeeeeeee..hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ibw A  94 SSSVPSQKTYQGSYGFRLGFLHSGTAKSVTCTYSPALNKMFCQLAKTCPVQLWVDSTPPPGTRVRAMAIYKQSQHMTEVVRRCPHHERCDGLAPPQHLIRVEGNLRVEYLDDRNTFRHSVVVPYEPPEVGSDCTTIHYNYMCNSSCMGGMNRRPILTIITLEDSSGNLLGRNSFEVHVCACPGRDRRREEENLRKKG 293
                                   103       113       123       133       143       153       163       173       186       196       206       216       226       236       246       256       266       276       286
                                                                                                                  182|
                                                                                                                   186

Chain B from PDB  Type:DNA  Length:12

                 4ibw B   1 CGGGCATGCCCG  12
                                    10

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (122, 122)

Visualization

Interactive Views

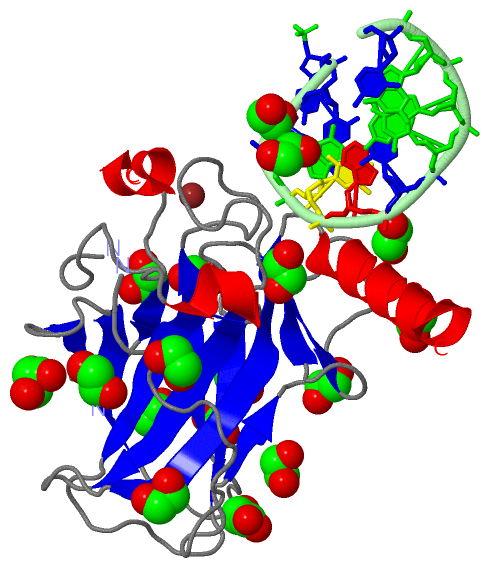

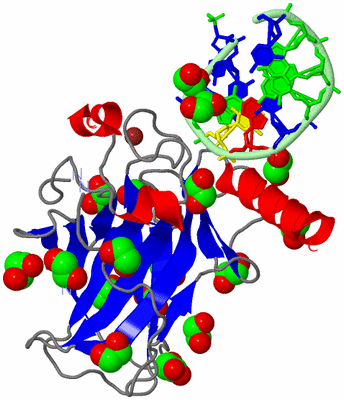

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		EDO	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

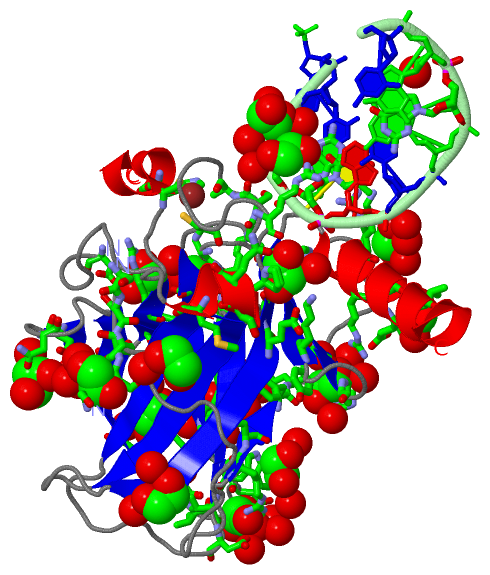

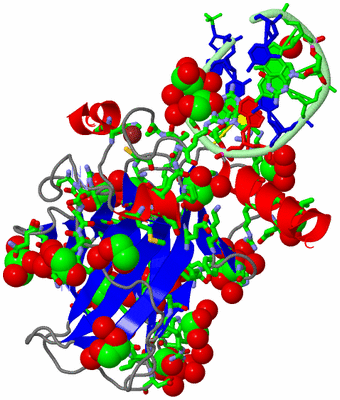

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]
		BC9	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4ibw)

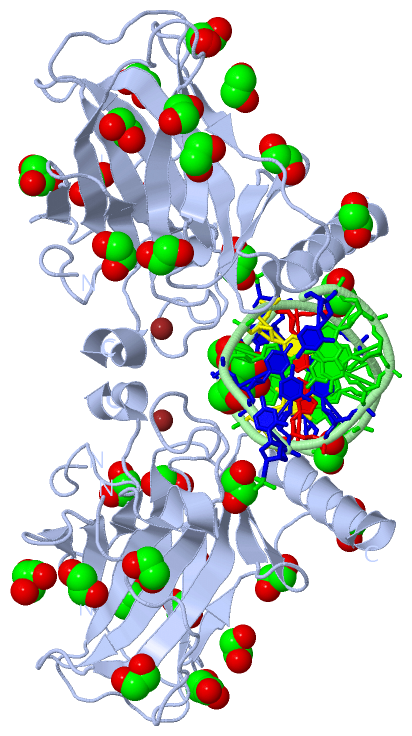

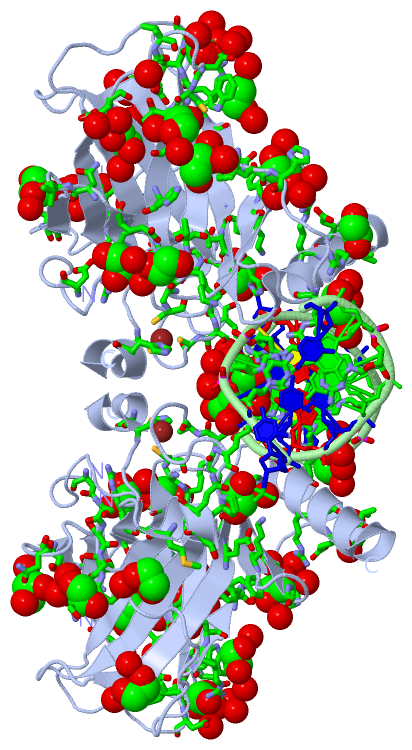

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]
