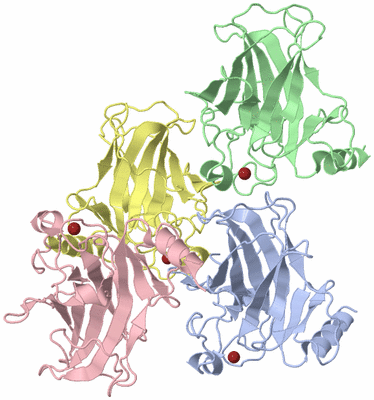

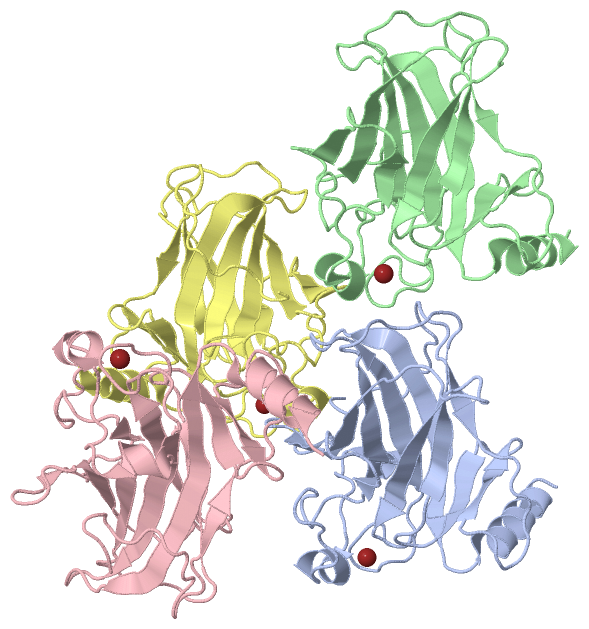

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

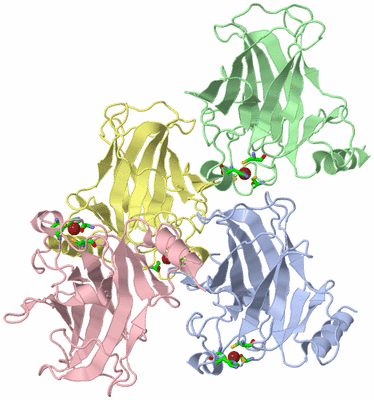

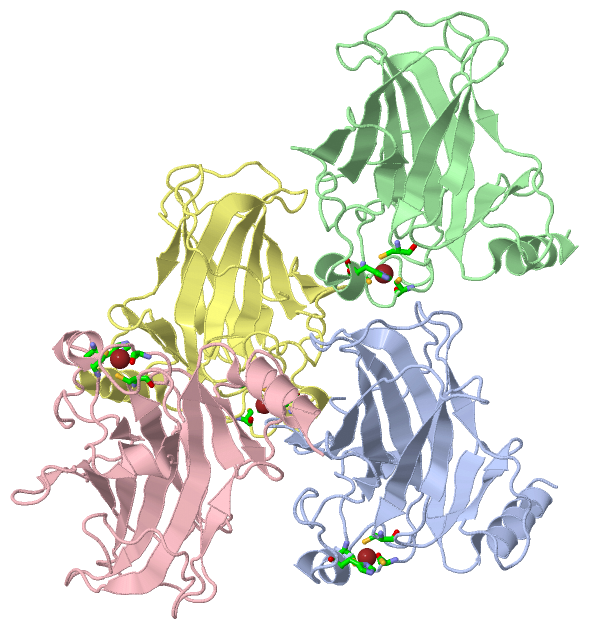

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

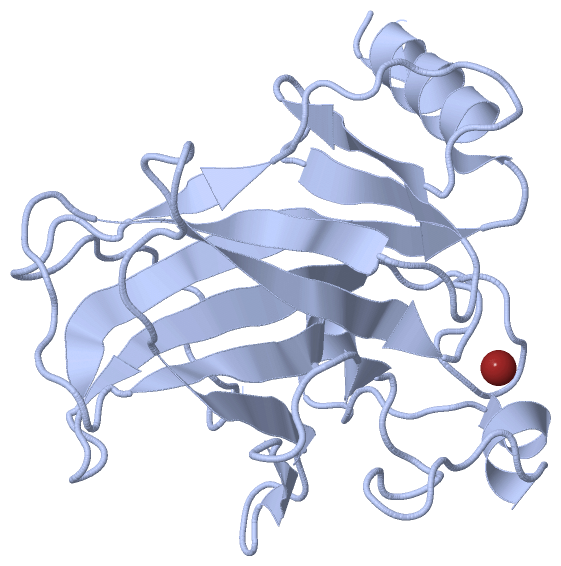

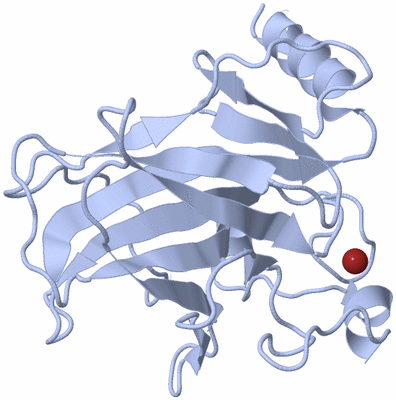

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

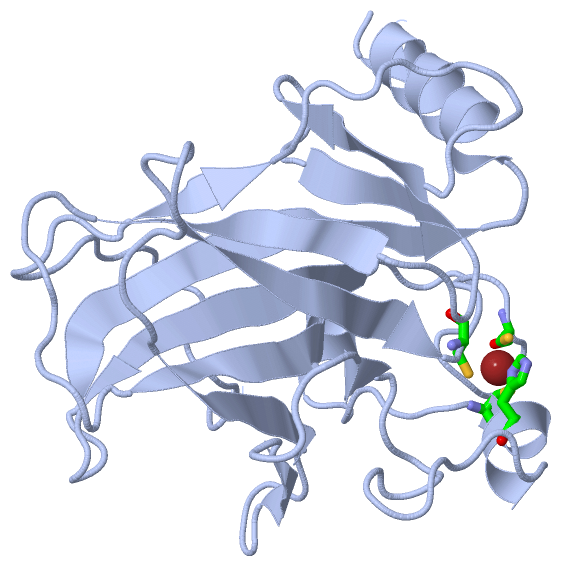

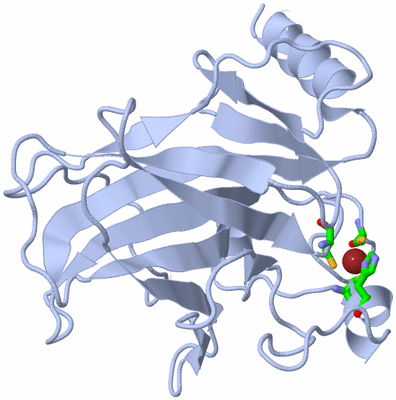

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

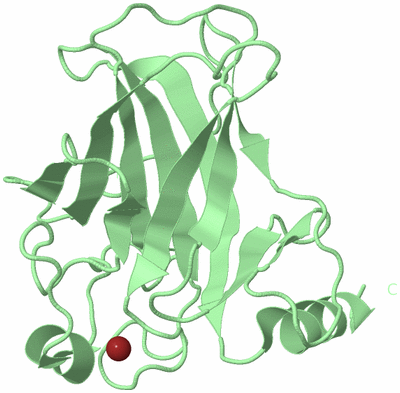

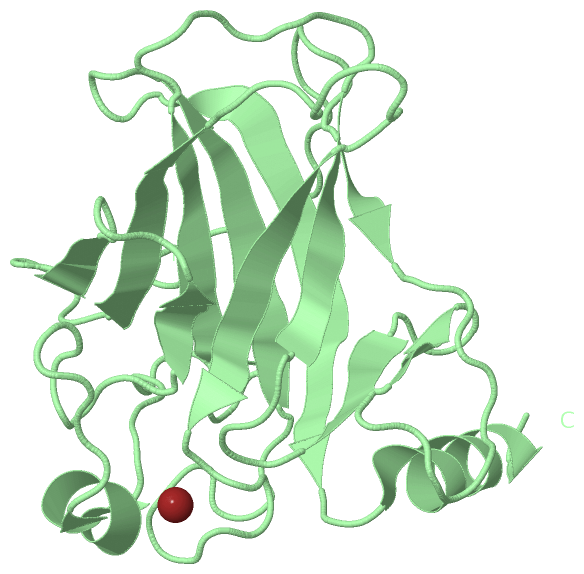

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

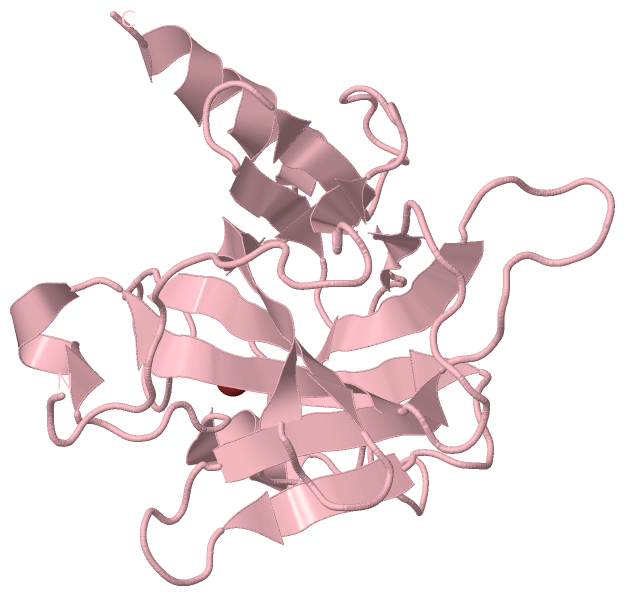

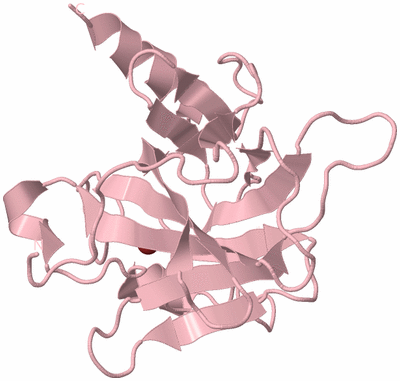

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

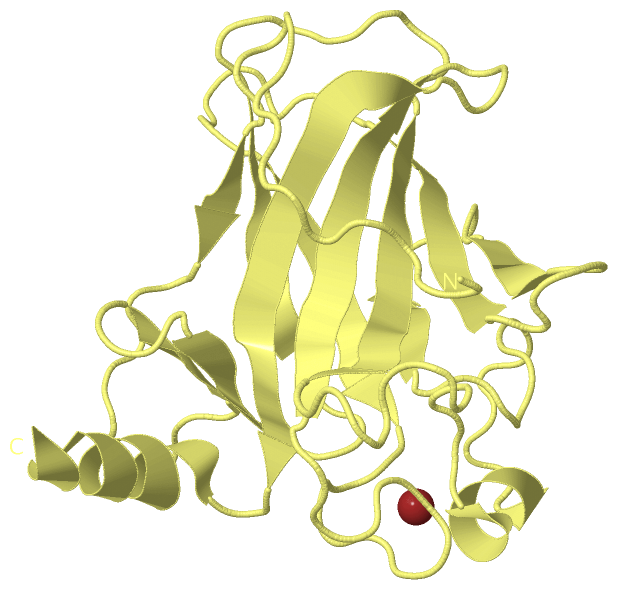

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  HUMAN P53 CORE DOMAIN WITH HOT SPOT MUTATION R273H AND SECOND-SITE SUPPRESSOR MUTATION T284R

Authors :  Y. Diskin-Posner, A. Eldar, H. Rozenberg, Z. Shakked
Date :  09 Dec 12  (Deposition) - 14 Aug 13  (Release) - 23 Oct 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.70
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Keywords :  Metal-Binding, Loop-Sheet-Helix Motif, Transcription, Activator, Anti-Oncogene, Apoptosis, Cell Cycle, Disease Mutation, Rescue Mutation, Tumor Suppressor, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Eldar, H. Rozenberg, Y. Diskin-Posner, R. Rohs, Z. Shakked
Structural Studies Of P53 Inactivation By Dna-Contact Mutations And Its Rescue By Suppressor Mutations Via Alternative Protein-Dna Interactions.
Nucleic Acids Res. V. 41 8748 2013
PubMed-ID: 23863845  |  Reference-DOI: 10.1093/NAR/GKT630

(-) Compounds

Molecule 1 - CELLULAR TUMOR ANTIGEN P53
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-27-B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: DNA BINDING DOMAIN
    Gene: P53, TP53
    Mutation: YES
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: ANTIGEN NY-CO-13, PHOSPHOPROTEIN P53, TUMOR SUPPRESSOR P53

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric Unit (1, 4)
No.NameCountTypeFull Name
1ZN4Ligand/IonZINC ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION
Biological Unit 3 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION
Biological Unit 4 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS A:176 , HIS A:179 , CYS A:238 , CYS A:242BINDING SITE FOR RESIDUE ZN A 301
2AC2SOFTWARECYS B:176 , HIS B:179 , CYS B:238 , CYS B:242BINDING SITE FOR RESIDUE ZN B 301
3AC3SOFTWARECYS C:176 , HIS C:179 , CYS C:238 , CYS C:242BINDING SITE FOR RESIDUE ZN C 301
4AC4SOFTWARECYS D:176 , HIS D:179 , CYS D:238 , CYS D:242BINDING SITE FOR RESIDUE ZN D 301

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4IBT)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Ser D:95 -Ser D:96

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4IBT)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4IBT)

(-) Exons   (0, 0)

(no "Exon" information available for 4IBT)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:196

               SCOP domains d4ibta_ A: p53 tumor suppressor, DNA-binding domain                                                                                                                                                  SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...............eee...........eeee....eeee.....eeeeee.........eeeeeeee.hhhhh......hhhhhh.............eee......eeee......eeeeee..........eeeeeee..............eeeeeeee.....eeeeeeeeeee..hhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ibt A  95 SSVPSQKTYQGSYGFRLGFLHSGTAKSVTCTYSPALNKMFCQLAKTCPVQLWVDSTPPPGTRVRAMAIYKQSQHMTEVVRRCPHHERCSDSDGLAPPQHLIRVEGNLRVEYLDDRNTFRHSVVVPYEPPEVGSDCTTIHYNYMCNSSCMGGMNRRPILTIITLEDSSGNLLGRNSFEVHVCACPGRDRRREEENLR 290
                                   104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284


Chain B from PDB  Type:PROTEIN  Length:195

               SCOP domains d4ibtb_ B: p53 tumor suppressor, DNA-binding domain                                                                                                                                                 SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...............eee............eee....eeee.....eeeeee.........eeeeeeee............hhhhhhh............eeee.....eeee......eeeeee..........eeeeeee..............eeeeeeee.....eeeeeeeeeee..hhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ibt B  95 SSVPSQKTYQGSYGFRLGFLHSGTAKSVTCTYSPALNKMFCQLAKTCPVQLWVDSTPPPGTRVRAMAIYKQSQHMTEVVRRCPHHERCSDSDGLAPPQHLIRVEGNLRVEYLDDRNTFRHSVVVPYEPPEVGSDCTTIHYNYMCNSSCMGGMNRRPILTIITLEDSSGNLLGRNSFEVHVCACPGRDRRREEENL 289
                                   104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284


Chain C from PDB  Type:PROTEIN  Length:197

               SCOP domains d4ibtc_ C: p53 tumor suppressor, DNA-binding domain                                                                                                                                                   SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ................eee...........eeee....eeee.....eeeeee.........eeeeeeee.hhhhh......hhhhhh.............eeee.....eeee......eeeeee..........eeeeeee..............eeeeeeee.....eeeeeeeeeee..hhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ibt C  94 SSSVPSQKTYQGSYGFRLGFLHSGTAKSVTCTYSPALNKMFCQLAKTCPVQLWVDSTPPPGTRVRAMAIYKQSQHMTEVVRRCPHHERCSDSDGLAPPQHLIRVEGNLRVEYLDDRNTFRHSVVVPYEPPEVGSDCTTIHYNYMCNSSCMGGMNRRPILTIITLEDSSGNLLGRNSFEVHVCACPGRDRRREEENLR 290
                                   103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283


Chain D from PDB  Type:PROTEIN  Length:195

               SCOP domains d4ibtd_ D: p53 tumor suppressor, DNA-binding domain                                                                                                                                                 SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...............eee...........eeee....eeee.....eeeeee.........eeeeeeee............hhhhhh.............eeee.....eeee......eeeeee..........eeeeeee..............eeeeeeee.....eeeeeeeeeee..hhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ibt D  95 SSVPSQKTYQGSYGFRLGFLHSGTAKSVTCTYSPALNKMFCQLAKTCPVQLWVDSTPPPGTRVRAMAIYKQSQHMTEVVRRCPHHERCSDSDGLAPPQHLIRVEGNLRVEYLDDRNTFRHSVVVPYEPPEVGSDCTTIHYNYMCNSSCMGGMNRRPILTIITLEDSSGNLLGRNSFEVHVCACPGRDRRREEENL 289
                                   104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4IBT)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4IBT)

(-) Gene Ontology  (122, 122)

Asymmetric Unit(hide GO term definitions)
