4CHA - JenaLib

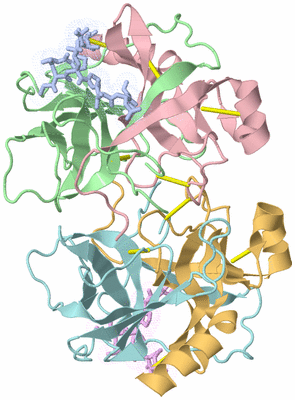

Asym./Biol. Unit (Jmol Viewer)

Title :   STRUCTURE OF ALPHA-*CHYMOTRYPSIN REFINED AT 1.68 ANGSTROMS RESOLUTION

Authors :   H. Tsukada, D. M. Blow

Date :   26 Nov 84 (Deposition) - 01 Apr 85 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.68

Chains :   Asym./Biol. Unit : A,B,C,E,F,G

Keywords :   Hydrolase (Serine Proteinase) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   H. Tsukada, D. M. Blow
Structure Of Alpha-Chymotrypsin Refined At 1. 68 A Resolution.
J. Mol. Biol. V. 184 703 1985
PubMed-ID: 4046030 | Reference-DOI: 10.1016/0022-2836(85)90314-6
(for further references see the PDB file header)

Molecule 1 - ALPHA-CHYMOTRYPSIN A
	Chains	:	A, E
	EC Number	:	3.4.21.1
	Organism Common	:	CATTLE
	Organism Scientific	:	BOS TAURUS
	Organism Taxid	:	9913

Molecule 2 - ALPHA-CHYMOTRYPSIN A
	Chains	:	B, F
	EC Number	:	3.4.21.1
	Organism Common	:	CATTLE
	Organism Scientific	:	BOS TAURUS
	Organism Taxid	:	9913

Molecule 3 - ALPHA-CHYMOTRYPSIN A
	Chains	:	C, G
	EC Number	:	3.4.21.1
	Organism Common	:	CATTLE
	Organism Scientific	:	BOS TAURUS
	Organism Taxid	:	9913

		1	2	3	4	5	6
Asymmetric/Biological Unit	:	A	B	C	E	F	G

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 4CHA)

(no "Site" information available for 4CHA)

Asymmetric/Biological Unit

No.	Residues
1	A:1	-	B:122
2	B:42	-	B:58
3	B:136	-	C:201
4	C:168	-	C:182
5	C:191	-	C:220
6	E:1	-	F:122
7	F:42	-	F:58
8	F:136	-	G:201
9	G:168	-	G:182
10	G:191	-	G:220

(no "Cis Peptide Bond" information available for 4CHA)

(no "SAP(SNP)/Variant" information available for 4CHA)

Asymmetric/Biological Unit (3, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TRYPSIN_DOM	PS50240	Serine proteases, trypsin domain profile.	CTRA_BOVIN	16-243	2	B:16-146 F:16-146
2	TRYPSIN_HIS	PS00134	Serine proteases, trypsin family, histidine active site.	CTRA_BOVIN	53-58	2	B:53-58 F:53-58
3	TRYPSIN_SER	PS00135	Serine proteases, trypsin family, serine active site.	CTRA_BOVIN	189-200	2	C:189-200 G:189-200

(no "Exon" information available for 4CHA)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:11
 aligned with CTRA_BOVIN | P00766 from UniProtKB/Swiss-Prot  Length:245

    Alignment length:11
                                    10
           CTRA_BOVIN     1 CGVPAIQPVLS  11
               SCOP domains d4cha.1     SCOP domains
               CATH domains ----------- CATH domains
               Pfam domains ----------- Pfam domains
         Sec.struct. author ........... Sec.struct. author
                 SAPs(SNPs) ----------- SAPs(SNPs)
                PROSITE (1) ----------- PROSITE (1)
                PROSITE (2) ----------- PROSITE (2)
                 Transcript ----------- Transcript
                 4cha A   1 CGVPAIQPVLS  11
                                    10

Chain B from PDB  Type:PROTEIN  Length:131
 aligned with CTRA_BOVIN | P00766 from UniProtKB/Swiss-Prot  Length:245

    Alignment length:131
                                    25        35        45        55        65        75        85        95       105       115       125       135       145
           CTRA_BOVIN    16 IVNGEEAVPGSWPWQVSLQDKTGFHFCGGSLINENWVVTAAHCGVTTSDVVVAGEFDQGSSSEKIQKLKIAKVFKNSKYNSLTINNDITLLKLSTAASFSQTVSAVCLPSASDDFAAGTTCVTTGWGLTRY 146
               SCOP domains d4cha.1 A:,B:,C: (alpha,gamma)-chymotrypsin(ogen)                                                                                   SCOP domains
               CATH domains 4chaB00 B:16-146 Trypsin-like serine proteases                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .............eeeeeee...eeeeeeeeee..eeee..........eeee............eeeeeeeeeee...........eeeeee.........................eeeeeee...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) TRYPSIN_DOM  PDB: B:16-146 UniProt: 16-243                                                                                          PROSITE (1)
                PROSITE (2) -------------------------------------TRYPSI---------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4cha B  16 IVNGEEAVPGSWPWQVSLQDKTGFHFCGGSLINENWVVTAAHCGVTTSDVVVAGEFDQGSSSEKIQKLKIAKVFKNSKYNSLTINNDITLLKLSTAASFSQTVSAVCLPSASDDFAAGTTCVTTGWGLTRY 146
                                    25        35        45        55        65        75        85        95       105       115       125       135       145

Chain C from PDB  Type:PROTEIN  Length:97
 aligned with CTRA_BOVIN | P00766 from UniProtKB/Swiss-Prot  Length:245

    Alignment length:97
                                   158       168       178       188       198       208       218       228       238
           CTRA_BOVIN   149 ANTPDRLQQASLPLLSNTNCKKYWGTKIKDAMICAGASGVSSCMGDSGGPLVCKKNGAWTLVGIVSWGSSTCSTSTPGVYARVTALVNWVQQTLAAN 245
               SCOP domains d4cha.1 A:,B:,C: (alpha,gamma)-chymotrypsin(ogen)                                                 SCOP domains
               CATH domains 4chaC00 C:149-245 Trypsin-like serine proteases                                                   CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
     Sec.struct. author (1) .......eeeeeeeehhhhhhhhhhhhh..eeeeee............eeeeeee..eeeeeeeeee..........----hhhhhhhhhhhhhhhh Sec.struct. author (1)
     Sec.struct. author (2) -----------------------------------------------------------------------------eeeeee-------------- Sec.struct. author (2)
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) TRYPSIN_DOM  PDB: - UniProt: 16-243                                                            -- PROSITE (1)
                PROSITE (2) ----------------------------------------TRYPSIN_SER --------------------------------------------- PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------- Transcript
                 4cha C 149 ANTPDRLQQASLPLLSNTNCKKYWGTKIKDAMICAGASGVSSCMGDSGGPLVCKKNGAWTLVGIVSWGSSTCSTSTPGVYARVTALVNWVQQTLAAN 245
                                   158       168       178       188       198       208       218       228       238

Chain E from PDB  Type:PROTEIN  Length:10
 aligned with CTRA_BOVIN | P00766 from UniProtKB/Swiss-Prot  Length:245

    Alignment length:10
                                    10
           CTRA_BOVIN     1 CGVPAIQPVL  10
               SCOP domains d4cha.2    SCOP domains
               CATH domains ---------- CATH domains
               Pfam domains ---------- Pfam domains
         Sec.struct. author .......... Sec.struct. author
                 SAPs(SNPs) ---------- SAPs(SNPs)
                PROSITE (1) ---------- PROSITE (1)
                PROSITE (2) ---------- PROSITE (2)
                 Transcript ---------- Transcript
                 4cha E   1 CGVPAIQPVL  10
                                    10

Chain F from PDB  Type:PROTEIN  Length:131
 aligned with CTRA_BOVIN | P00766 from UniProtKB/Swiss-Prot  Length:245

    Alignment length:131
                                    25        35        45        55        65        75        85        95       105       115       125       135       145
           CTRA_BOVIN    16 IVNGEEAVPGSWPWQVSLQDKTGFHFCGGSLINENWVVTAAHCGVTTSDVVVAGEFDQGSSSEKIQKLKIAKVFKNSKYNSLTINNDITLLKLSTAASFSQTVSAVCLPSASDDFAAGTTCVTTGWGLTRY 146
               SCOP domains d4cha.2 E:,F:,G: (alpha,gamma)-chymotrypsin(ogen)                                                                                   SCOP domains
               CATH domains 4chaF00 F:16-146 Trypsin-like serine proteases                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .............eeeeeee...eeeeeeeeee..eeee..........eeee............eeeeeeeeeee...........eeeeee.........................eeeeeee...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) TRYPSIN_DOM  PDB: F:16-146 UniProt: 16-243                                                                                          PROSITE (1)
                PROSITE (2) -------------------------------------TRYPSI---------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4cha F  16 IVNGEEAVPGSWPWQVSLQDKTGFHFCGGSLINENWVVTAAHCGVTTSDVVVAGEFDQGSSSEKIQKLKIAKVFKNSKYNSLTINNDITLLKLSTAASFSQTVSAVCLPSASDDFAAGTTCVTTGWGLTRY 146
                                    25        35        45        55        65        75        85        95       105       115       125       135       145

Chain G from PDB  Type:PROTEIN  Length:97
 aligned with CTRA_BOVIN | P00766 from UniProtKB/Swiss-Prot  Length:245

    Alignment length:97
                                   158       168       178       188       198       208       218       228       238
           CTRA_BOVIN   149 ANTPDRLQQASLPLLSNTNCKKYWGTKIKDAMICAGASGVSSCMGDSGGPLVCKKNGAWTLVGIVSWGSSTCSTSTPGVYARVTALVNWVQQTLAAN 245
               SCOP domains d4cha.2 E:,F:,G: (alpha,gamma)-chymotrypsin(ogen)                                                 SCOP domains
               CATH domains 4chaG00 G:149-245 Trypsin-like serine proteases                                                   CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
     Sec.struct. author (1) .......eeeeeeeehhhhhhhhhhhhh..eeeeee............eeeeeee..eeeeeeeeee..........----hhhhhhhhhhhhhhhh Sec.struct. author (1)
     Sec.struct. author (2) -----------------------------------------------------------------------------eeeeee-------------- Sec.struct. author (2)
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) TRYPSIN_DOM  PDB: - UniProt: 16-243                                                            -- PROSITE (1)
                PROSITE (2) ----------------------------------------TRYPSIN_SER --------------------------------------------- PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------- Transcript
                 4cha G 149 ANTPDRLQQASLPLLSNTNCKKYWGTKIKDAMICAGASGVSSCMGDSGGPLVCKKNGAWTLVGIVSWGSSTCSTSTPGVYARVTALVNWVQQTLAAN 245
                                   158       168       178       188       198       208       218       228       238

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: Trypsin-like serine proteases (1752)

Superfamily: Trypsin-like serine proteases (1752)

Family: Eukaryotic proteases (1343)

Protein domain: (alpha,gamma)-chymotrypsin(ogen) (60)

Cow (Bos taurus) [TaxId: 9913] (58)

1a	d4cha.1	A:,B:,C:
1b	d4cha.2	E:,F:,G:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Beta Barrel (4804)

Topology: Thrombin, subunit H (1535)

Homologous Superfamily: Trypsin-like serine proteases (1488)

Cattle (Bos taurus) (308)

1a	4chaC00	C:149-245
1b	4chaG00	G:149-245
1c	4chaB00	B:16-146
1d	4chaF00	F:16-146

(no "Pfam Domain" information available for 4CHA)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B,C,E,F,G (CTRA_BOVIN | P00766)

molecular function
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0008233	peptidase activity	Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0004252	serine-type endopeptidase activity	Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
	GO:0008236	serine-type peptidase activity	Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
	GO:0007586	digestion	The whole of the physical, chemical, and biochemical processes carried out by multicellular organisms to break down ingested nutrients into components that may be easily absorbed and directed into metabolism.
	GO:0006508	proteolysis	The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
	GO:0005615	extracellular space	That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4cha)

	Sites
(no "Sites" information available for 4cha)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4cha)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	4cha
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	CTRA_BOVIN \| P00766
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.4.21.1
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	CTRA_BOVIN \| P00766
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Related Entries Specified in the PDB File" available for 4CHA)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (10, 10)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (3, 6)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (1, 4)

Pfam Domains (0, 0)

Gene Ontology (9, 9)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
