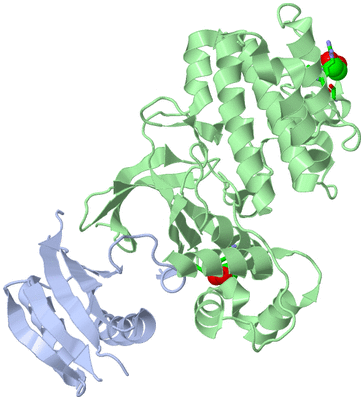

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF SAD KINASE

Authors :  J. X. Wu, J. Wang, L. Chen, Z. X. Wang, J. W. Wu
Date :  12 Mar 15  (Deposition) - 16 Dec 15  (Release) - 16 Dec 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.49
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Kinase Domain, Uba Domain, Ka1 Domain, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. X. Wu, Y. S. Cheng, J. Wang, L. Chen, M. Ding, J. W. Wu
Structural Insight Into The Mechanism Of Synergistic Autoinhibition Of Sad Kinases
Nat Commun V. 6 8953 2015
PubMed-ID: 26626945  |  Reference-DOI: 10.1038/NCOMMS9953

(-) Compounds

Molecule 1 - SERINE/THREONINE-PROTEIN KINASE BRSK2
    Chains: B
    EC Number: 2.7.11.26
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET21B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 1-342
    Gene: BRSK2
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Synonym: SADA,SERINE/THREONINE-PROTEIN KINASE SAD-A

Molecule 2 - SERINE/THREONINE-PROTEIN KINASE BRSK2
    Chains: A
    EC Number: 2.7.11.26
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET21B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 519-653
    Gene: BRSK2
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Synonym: SADA,SERINE/THREONINE-PROTEIN KINASE SAD-A

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1EDO2Ligand/Ion1,2-ETHANEDIOL

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU B:65 , GLU B:87binding site for residue EDO B 401
2AC2SOFTWAREGLY B:232 , PHE B:234 , ARG B:249binding site for residue EDO B 402

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4YOM)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4YOM)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4YOM)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4YOM)

(-) Exons   (0, 0)

(no "Exon" information available for 4YOM)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:104

               SCOP domains -------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .ee............eeeeee...hhhhhhhhhhhhhhh...eeeeeee..eeeeee....eeeeeeeee......eeeeeeeee.hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 4yom A 519 KKSWFGNFINLEKEEQIFVVIKDKPLSSIKADIVHAFLSIPSLSHSVISQTSFRAEYKQKPVKFQVDITYTEGNGIYSVTFTLLSGPSRRFKRVVETIQAQLLS 636
                                   528       538       548       558       568       586       596  ||   612       622       632
                                                                                   576|           599|
                                                                                    585            606


Chain B from PDB  Type:PROTEIN  Length:322

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee..eeeeeeee.....eeeeeee.....eeeeeeee....hhhhhhhhhhhhhhhh.........eeeeee...eeeeeee.....hhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhh.......hhh.eee.....eee....hhhhh...........hhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhh........hhhhhhhhhhhh........hhhhhhhhhhhhh................hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4yom B  13 HAQYVGPYRLEKTLGKGQTGLVKLGIHCVTCQKVAIKIVNREKLSESVLMKVEREIAILKLIEHPHVLKLHDVYENKKYLYLVLEHVSGGELFDYLVKKGRLTPKEARKFFRQIISALDFCHSHSICHRDLKPENLLLDERNNIRIADFGMASLQVGDSLLETSCGSPHYACPEVIRGEKYDGRKADVWSCGVILFALLVGALPFDDDNLRQLLEKVKRGVFHMPHFIPPDCQSLLRGMIEVDAARRLTLEHIQKHIWYIGGKNKVQIRSLPSLEDIDPDVLDSMHSLGCFRDRNKLLQDLLSEEENQEKMIYFLLLDRKLE 344
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272   ||  292       302       312       322       332       342
                                                                                                                                                                                                                                                                                                 276|
                                                                                                                                                                                                                                                                                                  287
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4YOM)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4YOM)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4YOM)

(-) Gene Ontology  (37, 37)

Asymmetric/Biological Unit(hide GO term definitions)
